Frigidaire FCS388WE Manuale utente

PRODUCT NO. FACTORY NO. COLOR MARKET

FCS388WECC 37957393H6063 BLACK U.S.A.

FCS388WECE 37957393H6065 BLACK U.S.A.

ELECTRIC - RANGE

Model No.

FCS388WE

Inc.

FACTORY PARTS CATALOG

SLIDE-IN RANGE

WIRING DIAGRAM # - 318045030

OWNER’S GUIDE # - 318200807

TIMER INSTRUCTION GUIDE # - 318130805

INSTALLATION INSTR. # - 318104600

FRIGIDAIRE HOME PRODUCTS

7075 ORDAN DRIVE

MISSISSAUGA, ONTARIO

CANADA, L5T 1K6

TEL: (905) 565-9200 Publication No.

5995315669

981204

-EN/SERVICE

377

Publication No. FCS388WE

5995315669

11/98 2

BACKGUARD

LAP22G0018A

13A

18A

2424

36A

FCS388WE Publication No.

5995315669

# = Functional Part 311/98

* = Non-Illustrated Part

BACKGUARD

POS. NO PART NO DESCRIPTION

13A 316095500 AB Switch-warmer infinite

14 5303051533 AB Light/Lamp

18 5303300160 AB End Cap black RH

18A 5303300161 AB End Cap black LH

19 318005543 AB Panel-control

20# 318012903 AB Clock/Timer

21 318027800 ATrim-backguard

21 318027803 B Trim-backguard

23 318015506 ABracket-clock mtg

23 318015020 B Bracket-clock mtg

24 # 316083101 AB Switch-rocker

36A 318017600 AB Knob-warmer grey

42 318106900 ATrim-vent

42 318106903 B Trim-vent

46 5308006417 AB Lens-light/lamp

51 316082300 A B Name plate black

64 318112200 A B Plate

69 5303323134 AB Screw mtg 8-32 X 3/16

*5303211311 AB Screw, #8 X ½

*08016432 AB Screw, 8-18 X 3/8

*5303323145 AB Nut

A= FCS388WE (FCS388WECC)

B= FCS388WE (FCS388WECE)

Publication No. FCS388WE

5995315669 BURNER

01/95 4

44A

11 45 50

10A

33A 14

33A 33

33 37

33A

10A

333

22A

35 35 35 35

LAP22B0023

50A

FCS388WE Publication No.

BURNER 5995315669

# = Functional Part 512/98

* = Non-Illustrated Part

POS. NO PART NO DESCRIPTION

1# 318177301 AB Manifold pipe

2# 5303935042 A B Valve-top burner

2A# 318087020 A B Valve-top burner

3# 316032002 A B Switch-ignitor

4# 5303305456 A B Tube-burner

5# 5303305455 A B Tube-burner

8# 5303280394 A B Spark module

10# 318055001 A B Burner assy

10A# 318055100 A B Burner assy

11 316011200 A B Ignitor-top burner

13 318054503 A B Connector manifold tube

14# 318122700 A B Regulator-pressure

15 318122900 A B Bracket

33 318162300 A B Bracket burner

33A 318072000 A B Bracket burner mtg

35 5303307978 A B Bushing-insulation

37 5303320671 A B Screw metric

44 318088700 A B Orifice-top burner

44A 318088702 A B Orifice top burner/ Orifice

45 316011100 A B Screw-ignitor mtg

50 316010700 A B Burner-top

50A 316077300 A B Burner-top

72 5303323141 A B Screw valve

73 318080100 A B Plate/ Plaque mtg

*5303319611 A B LP kit

A= FCS388WE (FCS388WECC)

B= FCS388WE (FCS388WECE)

FCS388WE Publication No.

5995315669

11/98 6

BODY

141

219

170

170A

102

191

LAP22V0012A

58B

142

58A

89 108

141

127

129

128

114

54 15 16

125

76 41

217

107

102

177

4223

222

59A

FCS388WE Publication No.

5995315669

# = Functional Part 711/98

* = Non-Illustrated Part

BODY

POS. NO PART NO DESCRIPTION

1 318066400 AB Back-main

1A 5303311161 A B Panel-back

2A 318108600 AB Shield-oven top

3 5303300143 AB Panel-bodyside

3A 5303280349 AB Panel-bodyside RH

3B 5303280351 AB Panel-bodyside LH

4318073900 A B Panel-subtop

5318175500 AB Screw-leveling

6 318025301 AB Rack-oven

6A 5303311206 AB Rack, broiler pan

9 5303317977 AB Pan-broiler

10 5303317976 AB Insert-broiler pan

12 # 318089910 AB Switch-light

14 5308011085 AB Socket-light/lamp

15 3201908 AB Lamp-oven light

16 3201911 AB Glass-oven light lens

17 5304400195 AB Retainer-lens

25 318121303 AB Shield-heat

37 # 316111201 AB Probe-oven temp

41 5303310526 AB Cover-hinge cutout

54 5303310514 AB Housing-oven light

56 318002601 AB Trim-oven front black

58A 5303310539 AB Insulation

58B 5303310538 AB Insulation oven back

59 318072519 AB Tube-oven vent

59A 318072520 A B Tube-oven vent

62 # 5303310518 AB Terminal Block

63 5303310517 A B Plate-ground strap

66 # 5303310513 AB Element-broil

67 # 5303310512 AB Element-bake

68 5304403015 AB Support-element

70 5303300142 AB Shield-insulation

71 5303310515 AB Cover-wiring

76 318124100 AB Front-oven

80 5303320846 AB Plate oven

81 5303301261 AB Spring-oven

83 318089609 AB Liner-oven

86 5303310524 AB Channel-hinge

87 318111800 AB Plate-mounting

88 5303311160 AB Rod-latch

89# 5304404899 AB Motor-latch

89 * 318120702 AB Switch latch

102 5303311142 AB Support-oven front

107 318119600 AB Cover-fan

108# 318073001 AB Motor-fan

109 5303311203 AB Fan blade

111 5303311205 AB Nut-fan retainer

111* 5303322885 AB Spacer

114 3051827 AB Plate-filler

125# 5303311202 AB Motor-convection

127 5303310542 AB Adapter assy

128 5303311163 AB Bushing

129 5303311164 AB Spring

141 530328446 AB Switch thermal cutout

142 318123901 AB Air Deflector

170 3203576 AB Anti-tip bracket right

170A 3203575 AB Anti-tip bracket left

177 5303324040 AB Gasket-vent

191 5303304030 AB Bracket

217 316042300 AB Warning plate

219# 318003400 AB Thermostat safety

222 318080000 AB Plate, oven temp probe

223 318038400 A B Cover-tube

* 5303211311 AB Screw #8 X ½/

*5303311124 AB Screw

*5303300265 A B Screw, 8-18 X 1/2

A= FCS388WE (FCS388WECC)

B= FCS388WE (FCS388WECE)

FCS388WE Publication No.

5995315669

11/98 8

TOP/DRAWER

193

124

124A 13A

43 43 43

73A

22A

21A

61A

19A

31A

LAP22T0021A

FCS388WE Publication No.

5995315669

# = Functional Part 911/98

* = Non-Illustrated Part

TOP/DRAWER

POS.NO PART NO DESCRIPTION

1 318142500 AB Drawer-warmer

1A 318143307 AB Deflector-warmer side

1B 318143306 AB Deflector-warmer side

1C 318143201 AB Deflector-warmer rear

2318108011 AB Liner-drawer

3318090700 A B Bracket-maintop

4 318107900 AB Panel-drawer white

13 316094900 AB Rail-drawer RH outer

13A 316094901 AB Rail-drawer LH outer

16 318079203 AB Main Top glassblack

19 318066901 A B Pan-burner black (3)

19A 318066911 A B Pan-burner large black

20 318120400 A B Grate (2)

21 5303209009 A B Trim ring black (3)

21A 316011304 A B Trim ring black large

22 316098501 A B Cap-burner black small

22A# 316098505 A B Cap-burner black large

31A 5303307931 A B Gasket-pan

39 316079500 AB Handle-drawer white

43 318099110 A B Knob top valve

45 5303307933 A B Bushing, top burner

60 5304400794 AB Screw handle (10-32 x 1 1/8)

61 318083900 A B Trim ring chrome

61A 318083901 A B Trim ring large

72 318113401 AB Bracket-slide (2)

73 318057100 A B Deflector

73A 318057101 A B Deflector large

80 318052700 AB Seal-door, warmer drawer

81# 316093100 AB Element warmer drawer

84# 318005101 AB Thermostat

85 316093600 AB Rack, warmer drawer

86 316095800 AB Clip hold down

87 318121501 AB Base-warmer

95 318143701 AB Cover-wire

124 316096500 AB Channel-drawer RH, inner

124A 316096501 AB Channel-drawer LH, inner

193 5304400796 AB Plug

*5303211311 AB Screw, #8 X ½

A= FCS388WE (FCS388WECC)

B= FCS388WE (FCS388WECE)

Publication No. FCS388WE

5995315669

11/98 10

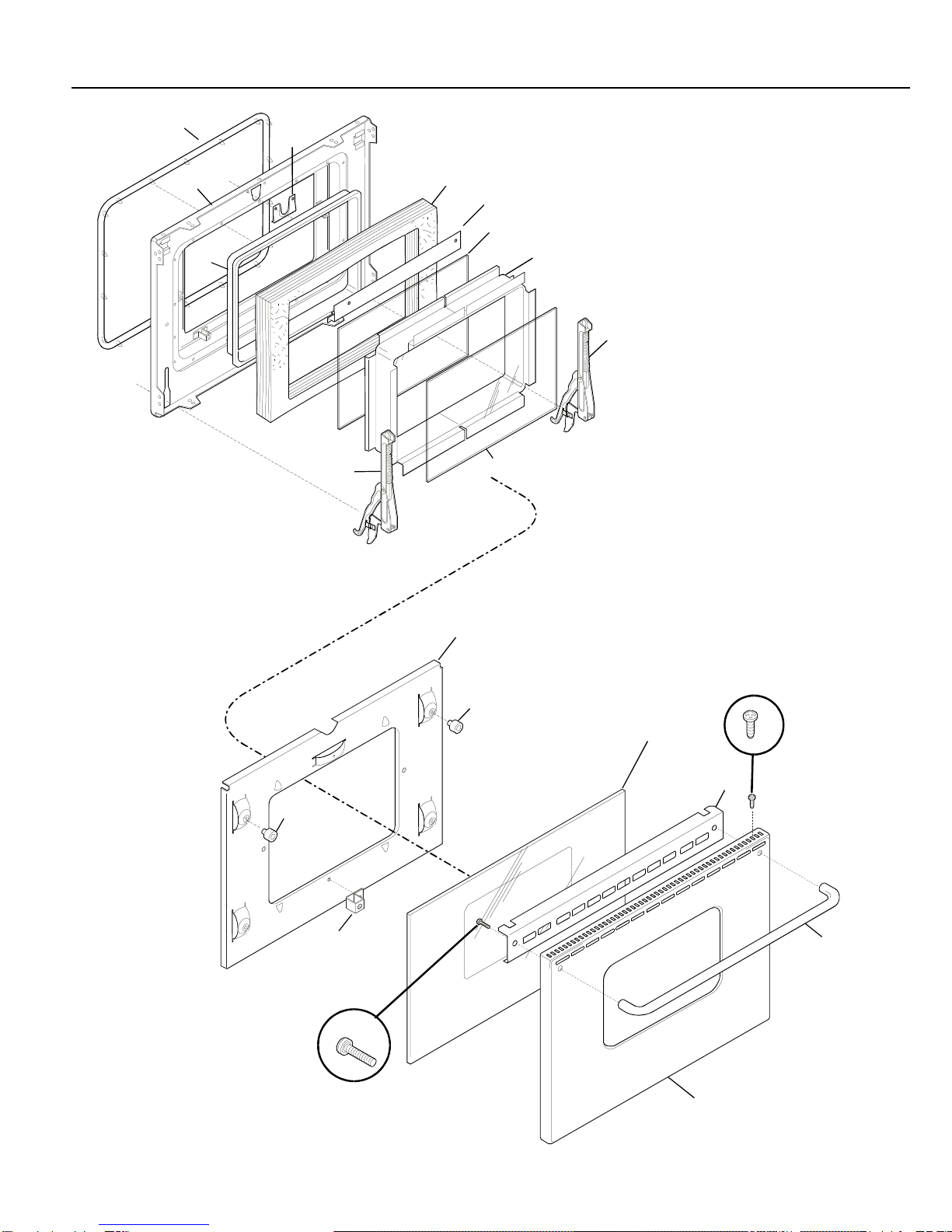

DOOR

LAP22D0014A
