Frigidaire FEF304PH Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR MARKET

FEF304PHWY FEF304PH Frigidaire white North America

Publication No.

5995347233

001208

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF304PH

FACTORY PARTS CATALOG

RANGE

WIRING DIAGRAM - #316002674

OWNER’S GUIDE - # 316135904

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. BOX 212378, Augusta, GA 30917

01/01 2

Publication No. FEF304PHWY

5995347233

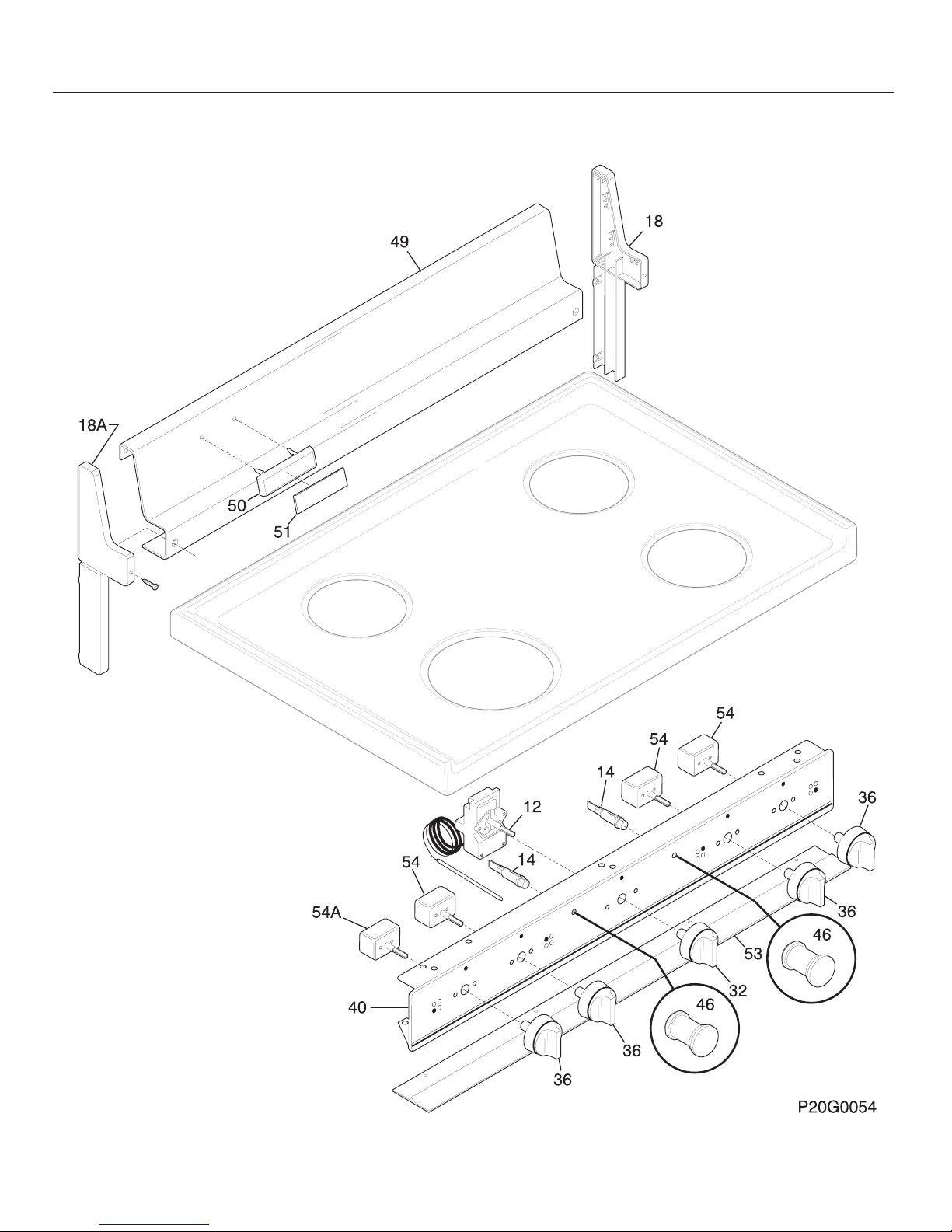

BACKGUARD

# = Fast-moving Parts 3 01/01

* = Non-Illustrated Parts

FEF304PHWY Publication No.

5995347233

BACKGUARD

POS. NO PART NO DESCRIPTION

12 # 316114600 Thermostat

14 316022503 Light/Lamp, indicator , surface ,250 V

18 3202802 End Cap,black ,RH

18A 3202801 End Cap,black ,LH

32 316102302 Knob-thermostat,black

36 316102307 Knob-control,white

40 316086827 Panel-manifold,black

46 316040201 Lens-light/lamp,indicator ,red

49 316073501 Panel-backguard,white

50 316096900 Bezel-nameplate,black

51 316095420 Nameplate,Frigidaire ,black

53 3204623 Shield-heat,extrusion

54 # 5303051540 Switch-6" element

54A# 5301313767 Switch-8" element

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrme,hinge,ind light,manifold panel

* 316021110 Screw,8-18 x 0.500 ,black

01/01 4

Publication No. FEF304PHWY

5995347233

BODY

# = Fast-moving Parts 5 01/01

* = Non-Illustrated Parts

FEF304PHWY Publication No.

5995347233

BODY

POS. NO PART NO DESCRIPTION

1 316080803 Panel-main back,galv steel ,short

3 316081034 Panel-bodyside,white ,RH

3 316081035 Panel-bodyside,white ,LH

4 5303271756 Burner Box

5 316129200 Screw-leveling,plastic ,with stop

6 316067902 Rack-oven

7 316007007 Hinge-oven door,(2)

8 3203540 Panel-oven bottom

9 316081900 Pan-broiler

10 316082000 Insert-broiler pan

12 316027702 Switch-oven light

13 316026800 Rod-light switch /door

14 316116400 Socket-light/lamp,oven

15 5303013071 Light Bulb/Lamp

21 3014099 Spacer-bodyside, (8)

27 5303284616 Clip-thermo bulb

28 3051367 Clip-wire

29 3051162 Glide-drawer,front

39 # 5303325195 Cord-electric power

41 3131570 Cover-hinge cutout

57 5303289855 Cover-access

58 3200847 Insulation,oven bottom

58A 316047707 Insulation, 1" ,oven wrapper

58B 316054202 Insulation, 1" ,oven back

59 316073601 Tube-oven vent

62 # 5303935061 Terminal Block Kit

62* 5303308427 Nut,hex ,10-32

66 # 5303051140 Element-broil,2950 W

67 # 316075103 Element-bake,67

68 316075300 Support-element, broil

71 316015808 Shield-rear wall,galv steel

72 5303285692 Cover-rod end,lt switch rod

82 5303289913 Shield-insulation

87 316081200 Bracket-cable mtg

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template, Anti-tip bracket

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* 316001554 Harness-main

* 3203550 Plug-button,oven bottom

* 316073400 Plate-weight,(3)

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrme,hinge,ind light,manifold panel

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.500 ,burner box

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 Screw,6-20 x 0.312

01/01 6

Publication No. FEF304PHWY

5995347233

TOP/DRAWER

# = Fast-moving Parts 7 01/01

* = Non-Illustrated Parts

FEF304PHWY Publication No.

5995347233

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011501 Drawer-utility

2 5303288582 Shield-drawer,liner ,galv steel ,front panel

4 316084405 Panel-drawer front,white

7 3051163 Glide-drawer,rear

15 # 3051450 Element-surface, 8" , large

15A# 3051449 Element-surface, small

16 3051379 Main Top,white

17 316066900 Rod-maintop support

18 08067747 Bracket-hinge,main top RH

18A 08067746 Bracket-hinge,main top LH

19 # 318067056 Pan-surface element,large ,chrome

19A# 318067046 Pan-surface element,small ,chrome

27 # 5303912666 Terminal Block Kit,surface element

28 5303017715 Medallion,1 1/2"dia ,black ,surface element

* 316089600 Spacer-drawer,(2)

* 316021105 Screw,hex head cup pt ,8-18 x 0.375 ,black,back/bodyside

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrm,hinge,ind light,manifold panel

* 316021110 Screw,8-18 x 0.500 ,black

* 316021112 Screw,8-18 x 0.500 ,white

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)

* 5308014215 Screw,6-20 x 0.312

01/01 8

Publication No. FEF304PHWY

5995347233

DOOR

# = Fast-moving Parts 9 01/01

* = Non-Illustrated Parts

FEF304PHWY Publication No.

5995347233

DOOR

POS. NO PART NO DESCRIPTION

9 316066611 Liner-oven door

10 5303281378 Screw-handle mtg,wafer head ,10-24F x 3

10* 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 5303202011 Seal-oven door,non self-clean

13 3202315 Panel-oven door,white

39 316020204 Handle-door,black ,oven

49 3016755 End Cap,black ,(2)

* 316102200 Foil-aluminum

* 316021109 Screw,8-18 x 0.500 ,chrome

* 316021110 Screw,8-18 x 0.500 ,black

* 316021112 Screw,8-18 x 0.500 ,white

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.500 ,burner box

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312 ,(2)

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

01/01 10

Publication No. FEF304PHWY

5995347233

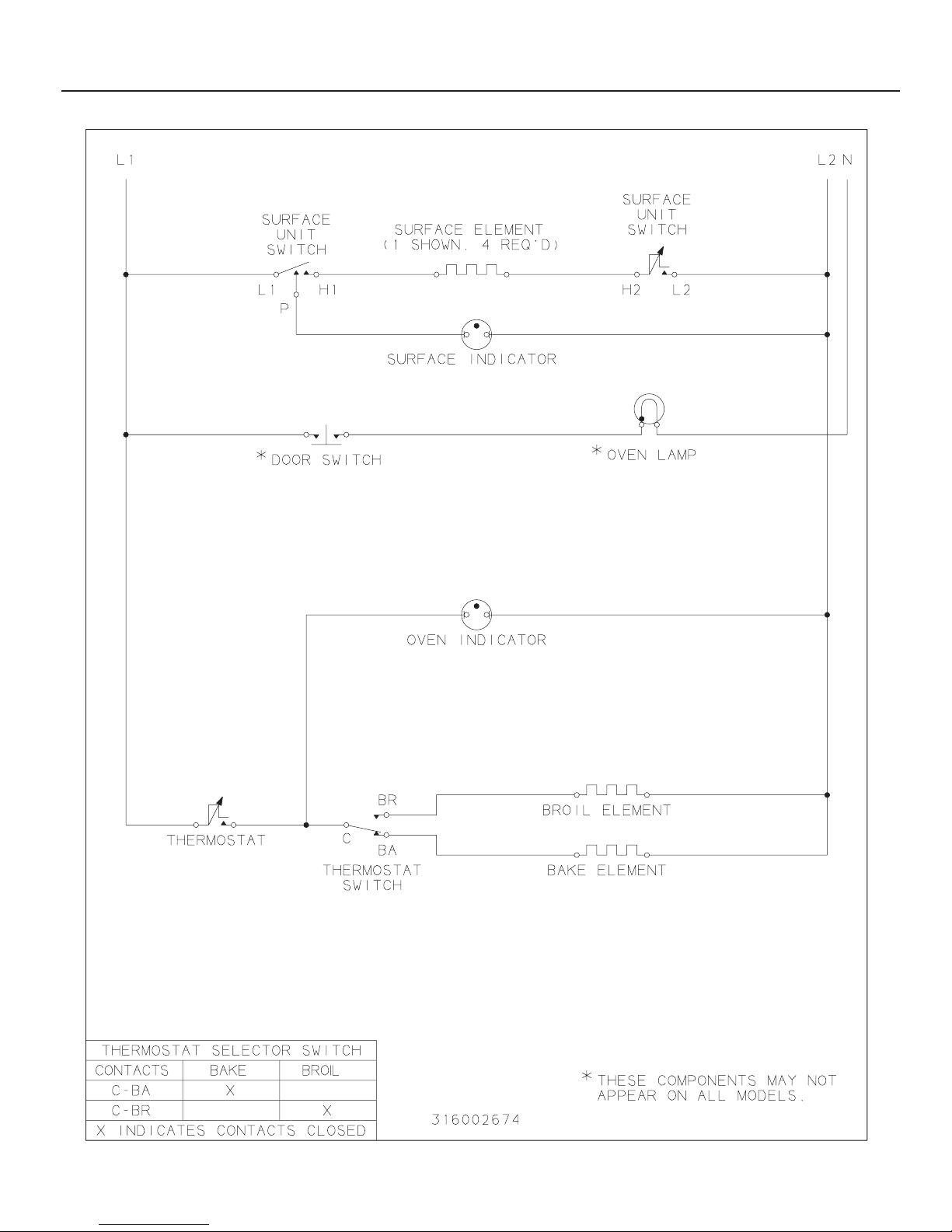

WIRING DIAGRAM
