Frigidaire FEF312A Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF312ASA FEF312A white North America

Publication No.

5995357646

010815

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF312A

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - #316255124

OWNER’S GUIDE - # 316257101

INSTALLATION INSTRUCTIONS -# 316259200

08/01 2

Publication No. FEF312ASA

5995357646

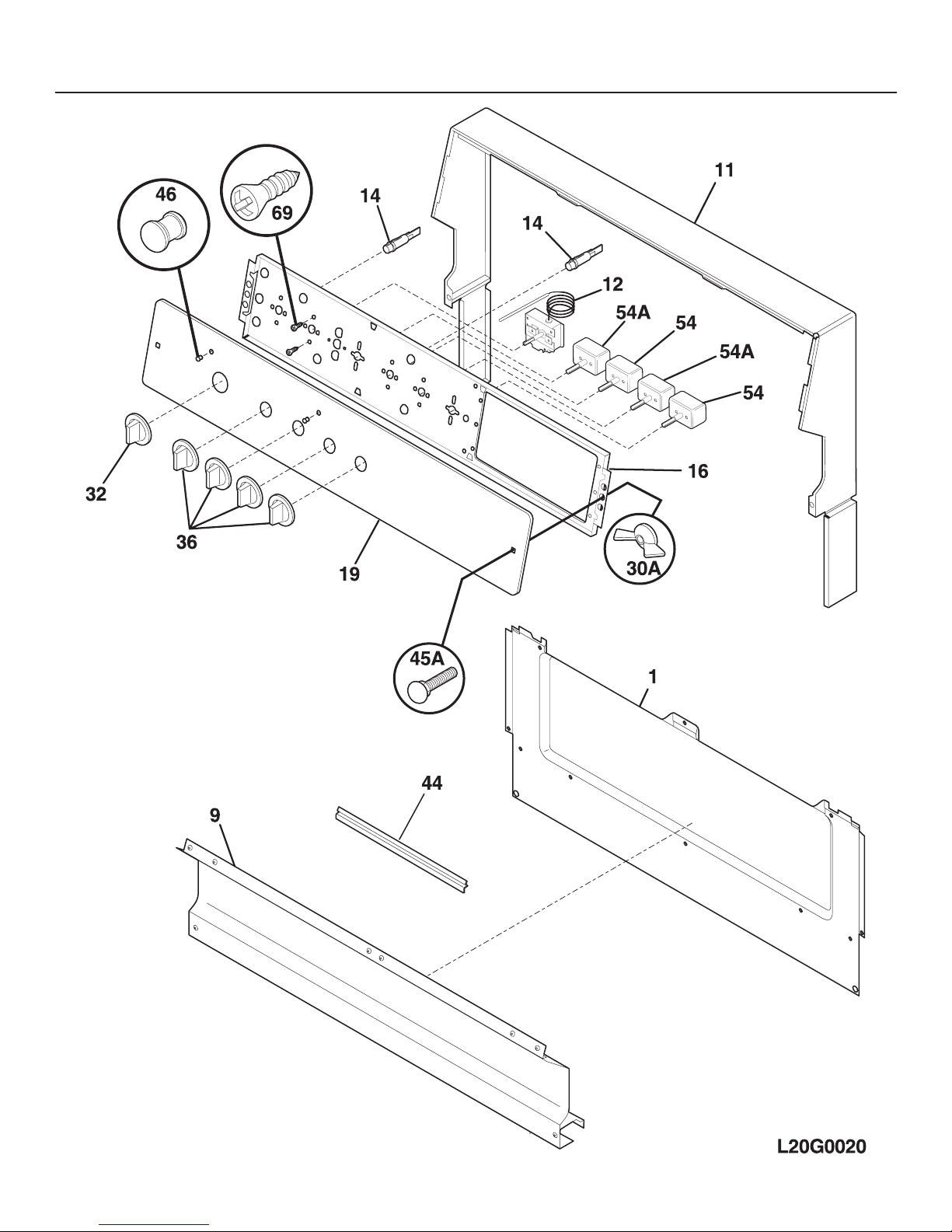

BACKGUARD

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FEF312ASA Publication No.

5995357646

POS. NO PART NO DESCRIPTION

1 5303289640 Shield,backguard ,rear wall

9 316133501 Trim,splasher ,white ,lower

11 316057003 Trim,wrapper ,white

12 # 316032408 Thermostat,oven

14 # 3201726 Light/Lamp,indicator ,blue ,250 V

16 316042602 Plate,instrument mtg

19 316034155 Panel,backguard ,white

30A 316064300 Nut,nylon

32 316123306 Knob,thermostat ,white

36 316123304 Knob,infinite switch ,white

44 3131468 Bracket,backguard

45A 316056903 Bolt,fastener ,nylon ,white ,(2)

46 316065801 Lens,indicator light ,red

54 # 5303285142 Switch,element ,6"

54A# 5303285143 Switch,element ,8"

69 5303288565 Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 5303272555 Clip,backguard

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

08/01 4

Publication No. FEF312ASA

5995357646

BODY

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FEF312ASA Publication No.

5995357646

POS. NO PART NO DESCRIPTION

1 316201300 Back,main

3 316230102 Panel,bodyside ,white ,RH

3 316230103 Panel,bodyside ,white ,LH

4 316201401 Burner Box

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316205012 Hinge,oven door ,RH

7A 316205013 Hinge,oven door ,LH

8 3203540 Panel,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

12 316027702 Switch,oven light

13 316238800 Rod,light switch

14 # 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

21 3014099 Spacer,bodyside

26 316206300 Support,chassis ,(2)

27 5303284616 Clip,thermo bulb mtg

29 3051162 Glide,drawer ,front

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

42 316206200 Shield,wool ,lower

57 316081100 Cover,access

58 3200847 Insulation,oven bottom

58A 316047707 Insulation,1" ,oven wrapper

58B 316054202 Insulation,1" ,oven back

59 316073605 Tube,oven vent

60 316239100 Cover,oven front

62 # 5303935061 Terminal Block Kit

62* 5303308427 Nut,hex ,10-32

63 5301145190 Plate,grounding strap

66 # 316203200 Element,broil

67 # 316075103 Element,bake

68 316203400 Support,broil element

71 316015810 Shield,rear wall ,galv steel

72 316234500 Cover,rod end ,light switch

87 316081200 Bracket,cable mtg

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316253101 Wiring Harness,main

* 3051367 Clip,wire

* 316073400 Plate,weight ,(3)

* 3203550 Plug,button ,oven bottom

* 316246400 Plug,button ,oven probe

* 5303305324 Paint,touch-up ,white

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 Screw,6-20 x 0.312

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

BODY

08/01 6

Publication No. FEF312ASA

5995357646

TOP/DRAWER

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FEF312ASA Publication No.

5995357646

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011503 Drawer

2 316231500 Liner,drawer

4 316231305 Panel,drawer ,white

7 3051163 Glide,drawer ,rear

15 # 3051450 Element,surface ,8" large

15A# 3051449 Element,surface ,6" small

16 316245402 Main Top,white

17 316066900 Rod,maintop support

18 08067747 Bracket,hinge ,main top RH

18A 08067746 Bracket,hinge ,main top LH

19 # 318067056 Pan,surface element ,large ,chrome

19A# 318067046 Pan,surface element ,small ,chrome

27 # 5303912666 Terminal Block Kit,surface element

28 5303017715 Medallion,1 1/2"dia ,black ,surface element

* # 316253503 Wiring Harness,surface element

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 Screw,6-20 x 0.312

08/01 8

Publication No. FEF312ASA

5995357646

DOOR

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FEF312ASA Publication No.

5995357646

DOOR

POS. NO PART NO DESCRIPTION

6 316222705 Shield,wool ,oven door

9 316230603 Liner,oven door

10 316001009 Screw,waf hd sq ,10-24 x 1.88 ,(2) ,handle mtg

10B 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 316239700 Seal,oven door

13 316202603 Panel,oven door ,white

39 316020202 Handle,oven door ,white

49 316137000 End Cap,handle ,white ,(2)

60B 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 316132100 Spacer,sponge pad

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

08/01 10

Publication No. FEF312ASA

5995357646

WIRING DIAGRAM
