Frigidaire FEF312B Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF312BSA FEF312B white North America

Publication No.

5995384962

030130

-EN/SERVICE /ECL

369

ELECTRIC

RANGE

Model No.

FEF312B

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - #316255169

OWNER’S GUIDE - # 316257101

INSTALLATION INSTRUCTIONS -# 316259200

01/03 2

Publication No. FEF312BSA

5995384962

BACKGUARD

# = Fast-moving Parts 3 01/03

* = Non-Illustrated Parts

FEF312BSA Publication No.

5995384962

POS. NO PART NO DESCRIPTION

1 5303289640 Shield,backguard ,rear wall

12 # 316032403 Thermostat

14 316022503 Light/Lamp,indicator ,surface ,250 V

18 316263404 End Cap,white ,RH

18A 316263405 End Cap,white ,LH

19 316263304 Panel,backguard ,white

31 316223000 Knob,control ,white

46 316040201 Lens,indicator light ,red

54 # 316021500 Switch,infinite ,small element

54A# 316021501 Switch,infinite ,large element

69 5303288565 Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

01/03 4

Publication No. FEF312BSA

5995384962

BODY

# = Fast-moving Parts 5 01/03

* = Non-Illustrated Parts

FEF312BSA Publication No.

5995384962

POS. NO PART NO DESCRIPTION

1 316201300 Back,main

3 316230114 Panel,bodyside ,white ,RH

3 316230115 Panel,bodyside ,white ,LH

3* 316021131 Screw,bodyside ,8-18 X 11/16 ,white

4 316201401 Burner Box

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316216502 Hinge,oven door ,RH

7A 316216503 Hinge,oven door ,LH

8 3203540 Panel,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

12 # 316209902 Switch,oven light/door

14 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

21 3014099 Spacer,bodyside

26 316206300 Support,chassis ,(2)

27 5303284616 Clip,thermo bulb mtg

29 3051162 Glide,drawer ,front

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

42 316206200 Shield,wool ,lower

57 316081100 Cover,access

58 3200847 Insulation,oven bottom

58A 316047707 Insulation,1" ,oven wrapper

58B 316054202 Insulation,1" ,oven back

59 316073605 Tube,oven vent

60 316239100 Cover,oven front

62 # 5303935061 Terminal Block Kit

62* 316205500 Nut,hex flange ,3/8 10-32

63 316208500 Plate,grounding strap

66 # 316203200 Element,broil

67 316075103 Element,bake

68 316203400 Support,broil element

71 316015810 Shield,rear wall ,galv steel

87 316081200 Bracket,cable mtg

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete ,1.75" ,anti-tip brkt

* # 316253132 Wiring Harness,main

* 3203550 Plug,button ,oven bottom

* 316246400 Plug,button ,oven probe

* 316073400 Plate,weight ,(3)

* 5303305324 Paint,touch-up ,white

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 Screw,6-20 x 0.312

BODY

01/03 6

Publication No. FEF312BSA

5995384962

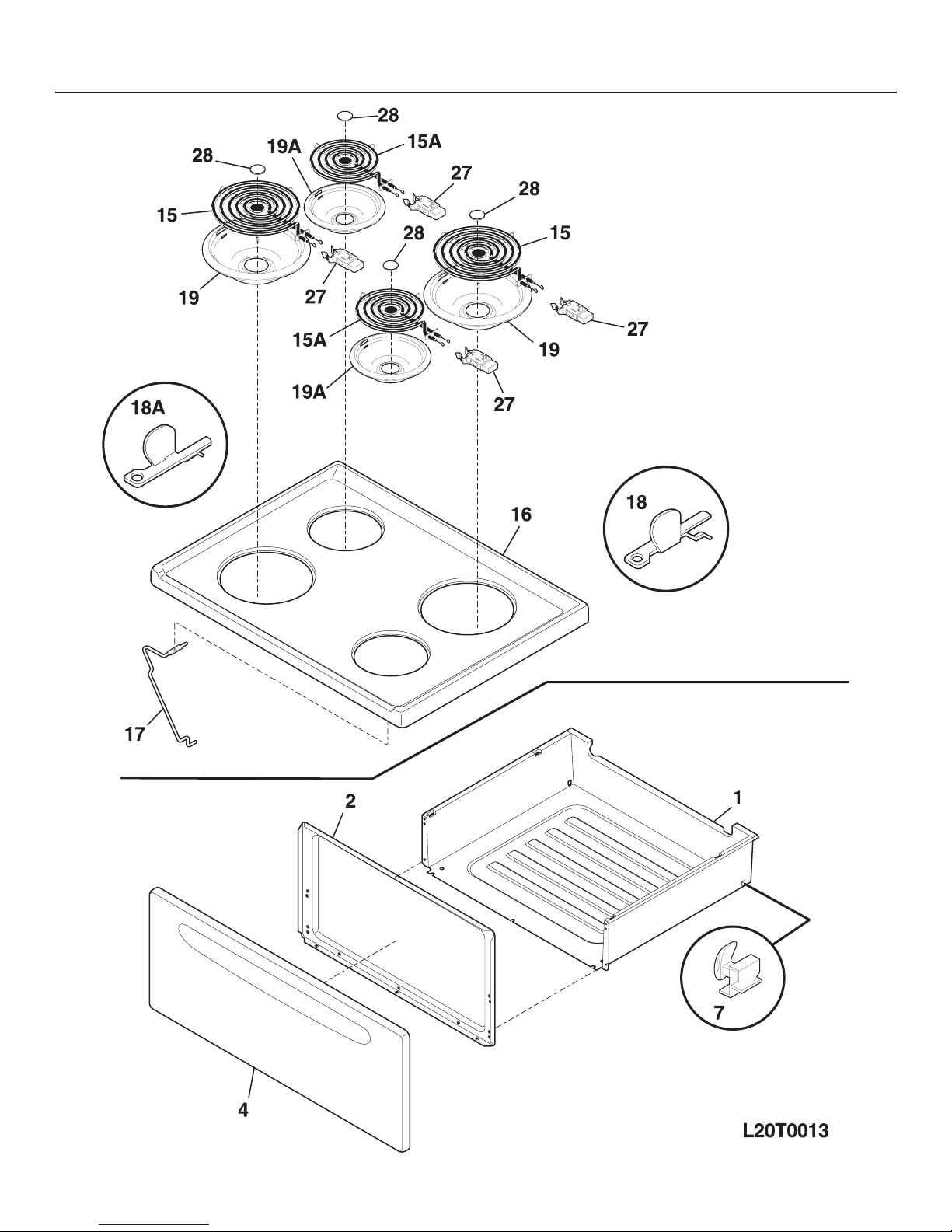

TOP/DRAWER

# = Fast-moving Parts 7 01/03

* = Non-Illustrated Parts

FEF312BSA Publication No.

5995384962

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011503 Drawer

2 316231500 Liner,drawer

4 316231305 Panel,drawer ,white

7 3051163 Glide,drawer ,rear

15 # 3051450 Element,surface ,8" large

15A# 3051449 Element,surface ,6" small

16 316245402 Main Top,white

17 316066900 Rod,maintop support

18 08067747 Bracket,hinge ,main top RH

18A 08067746 Bracket,hinge ,main top LH

19 # 316048413 Pan-surface element,chrome ,large/8 inch,(2)

19A# 316048414 Pan-surface element,chrome ,small/6 inch,(2)

27 # 5303912666 Terminal Block Kit,surface element

28 5303017715 Medallion,1 1/2"dia ,black ,surface element

* # 316253524 Wiring Harness,surface element

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 Screw,6-20 x 0.312

01/03 8

Publication No. FEF312BSA

5995384962

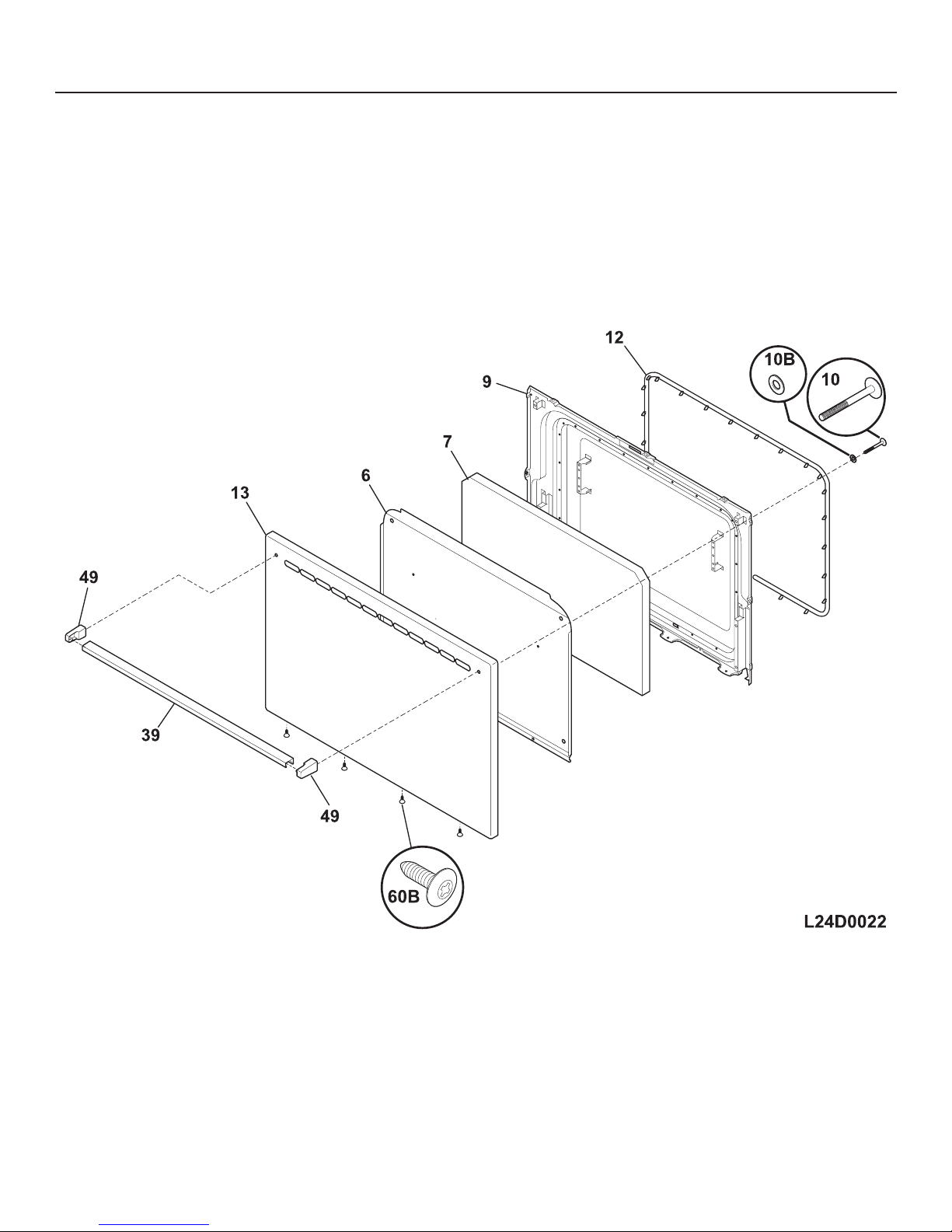

DOOR

# = Fast-moving Parts 9 01/03

* = Non-Illustrated Parts

FEF312BSA Publication No.

5995384962

DOOR

POS. NO PART NO DESCRIPTION

6 316222705 Shield,wool ,oven door

7 316236801 Insulation,oven door

9 316230603 Liner,oven door

10 316001009 Screw,waf hd sq ,10-24 x 1.88 ,(2) ,handle mtg

10B 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 316239700 Seal,oven door

13 316202603 Panel,oven door ,white

39 316020202 Handle,oven door ,white

49 316137000 End Cap,handle ,white ,(2)

60B 316021110 Screw,8-18 x 0.5 ,black

* 316021109 Screw,8-18 x 0.5 ,chrome

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

01/03 10

Publication No. FEF312BSA

5995384962

WIRING SCHEMATIC
