Frigidaire FEF326F Manuale utente

FEF326A.eps T20G0059.eps T20V0078.eps L20T0051.eps T20D0031.eps

316255302d.eps 316255302s.eps

Product No. FEF326FBA FEF326FQA FEF326FSA

Series 30" f/s elec 30" f/s elec 30" f/s elec

Color black bisque white

Market North America North America North America

Wiring Diagram 316255302 316255302 316255302

Owner's Guide 316257129 316257129 316257129

Installation Instructions 316454901 316454901 316454901

Service Data Sheet 316218512 316218512 316218512

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995458493

06/01/12

(EN/SERVICE/BJH)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

FEF326F

Publication No: 5995458493 FEF326F

01/06 2

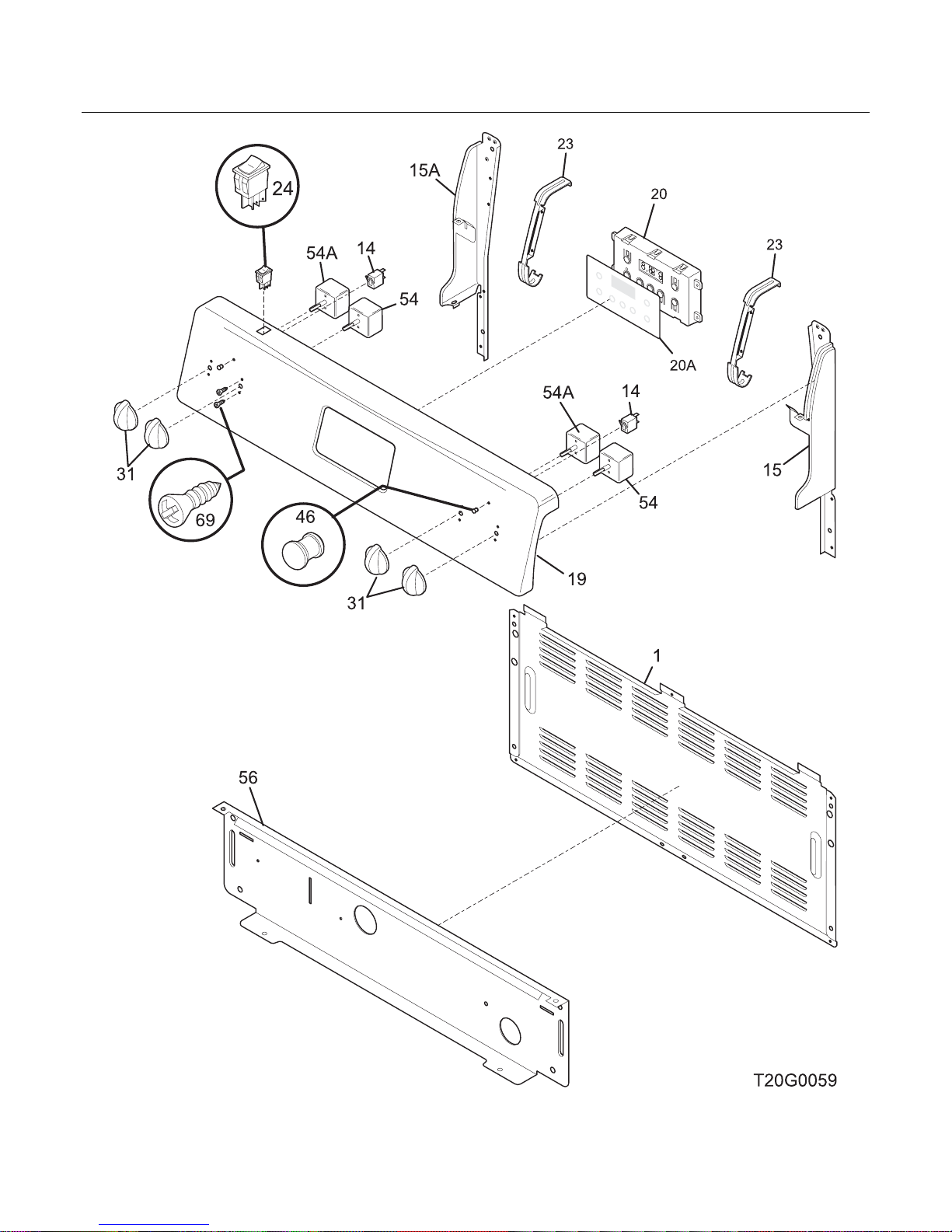

BACKGUARD

FEF326F Publication No: 5995458493

# Functional Parts 3 01/06

* Non-Illustrated Parts

BACKGUARD

Model Index: AFEF326F (FEF326FBA)

BFEF326F (FEF326FQA)

CFEF326F (FEF326FSA)

POS. NO PART NO. DESCRIPTION

1 316416100 A B C Shield, backguard, rear wall

14 316022500 A B C Light/Lamp, indicator, 125 V

15 316411405 A - - Support, backguard, black, RH

15 316411407 - B - Support, backguard, bisque, RH

15 316411403 - - C Support, backguard, white, RH

15A 316411404 A - - Support, backguard, black, LH

15A 316411406 - B - Support, backguard, bisque, LH

15A 316411402 - - C Support, backguard, white, LH

19 316445203 A - - Panel-backguard, black

19 316445205 - B - Panel-backguard, bisque

19 316445204 - - C Panel-backguard, white

20 # 316222807 A B C Clock/Timer, electronic, ES100

20A 316220701 A - - Overlay, clock, black

20A 316220702 - B - Overlay, clock, bisque

20A 316220700 - - C Overlay, clock, white

23 316441600 A B C Bracket-clock mtg, black

24 # 316448700 A - - Switch, rocker, black, oven light

24 # 316448702 - B - Switch, rocker, bisque, oven light

24 # 316448701 - - C Switch, rocker, white, oven light

31 316223002 A - - Knob, control, black

31 316223003 - B - Knob, control, bisque

31 316223000 - - C Knob, control, white

46 316040201 A B C Lens, indicator light, red

54 # 316436000 A B C Switch, infinite, small element

54A# 316436001 A B C Switch, infinite, large element

56 316234013 A - - Shield, backguard, black, inner

56 316234014 - B - Shield, backguard, bisque, inner

56 316234012 - - C Shield, backguard, white, inner

69 5303288565 A B C Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B C Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

Publication No: 5995458493 FEF326F

01/06 4

BODY

68 68

NOTE: Oven Liner N/A

Ass. du four N/A

58A 58B

41A

T20V0078

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

170

FEF326F Publication No: 5995458493

# Functional Parts 5 01/06

* Non-Illustrated Parts

BODY

Model Index: AFEF326F (FEF326FBA)

BFEF326F (FEF326FQA)

CFEF326F (FEF326FSA)

POS. NO PART NO. DESCRIPTION

1 316201300 A B C Back, main

3 316400118 A - - Panel, bodyside, black, RH

3 316400119 A - - Panel, bodyside, black, LH

3 316400120 - B - Panel, bodyside, bisque, RH

3 316400121 - B - Panel, bodyside, bisque, LH

3 316400116 - - C Panel, bodyside, white, RH

3 316400117 - - C Panel, bodyside, white, LH

4 316201401 A B C Burner Box

5 316272900 A B C Screw, leveling, plastic, rear, (2)

5A 316407201 A B C Leveling Leg Assy, metal, front, (2), bracket & leg

6 316067902 A B C Rack, oven

7 316216502 A B C Hinge, oven door, RH

7A 316216503 A B C Hinge, oven door, LH

8 3203540 A B C Panel, oven bottom

14 316116400 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, light

21 316408000 A B C Clip, bodyside

26 316206300 A B C Support, chassis, (2)

29 3051162 A B C Glide, drawer, front

37 # 316233900 A B C Probe, oven temp

41 316233400 A B C Cover, hinge cutout, RH

41A 316233500 A B C Cover, hinge cutout, LH

42 316206200 A B C Shield, wool, lower

57 316457800 A B C Cover, access

58 3200847 A B C Insulation, oven bottom

58A 316047707 A B C Insulation, 1", oven wrapper

58B 316054202 A B C Insulation, 1", oven back

59 316073605 A B C Tube, oven vent

60 316239100 A B C Cover, oven front

62 5303935238 A B C Terminal Block Kit, w/ground plate

62* 316205500 A B C Nut, hex flange, 3/8 10-32

63 316278800 A B C Plate, grounding strap

66 # 316203200 A B C Element, broil

67 316075103 A B C Element, bake

68 316203400 A B C Support, broil element

71 316422304 A B C Shield, rear wall

71* 316248900 A B C Spacer, shield, rear wall

87 316081200 A B C Bracket, cable mtg

170 5303935180 A B C Anti-tip Kit, w/bracket, screw

170* 316107200 A B C Bracket, anti-tip

170* 316112500 A B C Template, anti-tip

170* 316116000 A B C Screw, concrete, 1.75", anti-tip brkt

* # 316253146 A B C Wiring Harness, main

* 3203550 A B C Plug, button, oven bottom

* 316210800 A B C Plug, button

* 316427400 A B C Plate, weight, (4)

* 5303305345 A - - Paint, touch-up, black

Publication No: 5995458493 FEF326F

01/06 6

BODY

68 68

NOTE: Oven Liner N/A

Ass. du four N/A

58A 58B

41A

T20V0078

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

170

FEF326F Publication No: 5995458493

# Functional Parts 7 01/06

* Non-Illustrated Parts

BODY

Model Index: AFEF326F (FEF326FBA)

BFEF326F (FEF326FQA)

CFEF326F (FEF326FSA)

POS. NO PART NO. DESCRIPTION

* 5304414035 - B - Paint, touch-up, bisque

* 5303321319 - - C Paint, touch-up, white

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B C Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

* 316089500 A B C Screw, 10-16 x .486

* 5303271648 A B C Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 A B C Screw, wafer head, 8-32T x 0.500, black

* 5308014215 A B C Screw, 6-20 x 0.312

Publication No: 5995458493 FEF326F

01/06 8

TOP/DRAWER

FEF326F Publication No: 5995458493

# Functional Parts 9 01/06

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFEF326F (FEF326FBA)

BFEF326F (FEF326FQA)

CFEF326F (FEF326FSA)

POS. NO PART NO. DESCRIPTION

1 316011503 A B C Drawer

2 316231500 A B C Liner, drawer

4 316231306 A - - Panel, drawer, black

4 316231309 - B - Panel, drawer, bisque

4 316231305 - - C Panel, drawer, white

7 3051163 A B C Glide, drawer, rear

15 # 5303012223 A B C Element, surface, 8", large

15A# 08067762 A B C Element, surface, 6", small

16 316202362 A - - Main Top, black

16 316202364 - B - Main Top, bisque

16 316202363 - - C Main Top, white

17 316057601 A B C Rod, support, main top

18 316436600 A B C Hinge Bracket, maintop, (2)

19 # 316048413 A B C Pan-surface element, chrome, large/8 inch, (2)

19A# 316048414 A B C Pan-surface element, chrome, small/6 inch, (2)

27 # 5303912666 A B C Terminal Block Kit, surface element

28 3017801 A B C Medallion, stainless steel, surf elem

28 5303017715 A B C Medallion, 1 1/2"dia, black, surface element

* # 316253501 A B C Wiring Harness, surface element

* 316021105 A B C Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B C Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B C Screw, 8-18 x 0.5, black

* 5308014215 A B C Screw, 6-20 x 0.312

Publication No: 5995458493 FEF326F

01/06 10

DOOR
