Frigidaire FEF336BCA Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF336BCA FEF366B stainless North America

Publication No.

5995370383

020418

-EN/SERVICE /ECL

369

04/02 2

BACKGUARD

POS. NO PART NO DESCRIPTION

1 316239900 Shield,backguard ,rear wall

1* 316248900 Spacer,shield ,rear wall

11 316241000 Shield,end cap ,RH

11A 316241001 Shield,end cap ,LH

14 316022500 Light/Lamp,warmer,indicator ,drawer/zone,125 V

15 316220216 Support,backguard ,black ,RH

15A 316220217 Support,backguard ,black ,LH

18 316240905 End Cap,black ,RH

18A 316240904 End Cap,black ,LH

19 316246621 Panel,backguard ,black

20 # 316222801 Clock/Timer,electronic

20A 316220701 Overlay,clock ,black

24 # 316246001 Switch,rocker ,black ,oven light

31 316223002 Knob,black

46 316040201 Lens,indicator light ,red

54 # 316021500 Switch,infinite ,small element

54A# 316021501 Switch,infinite ,large element

56 316234003 Shield,backguard ,black ,inner

69 5303288565 Screw,truss sqdr ,8-32 x 3/16 ,switch mtg

* 218490900 Cleaner,stainless steel

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

04/02 4

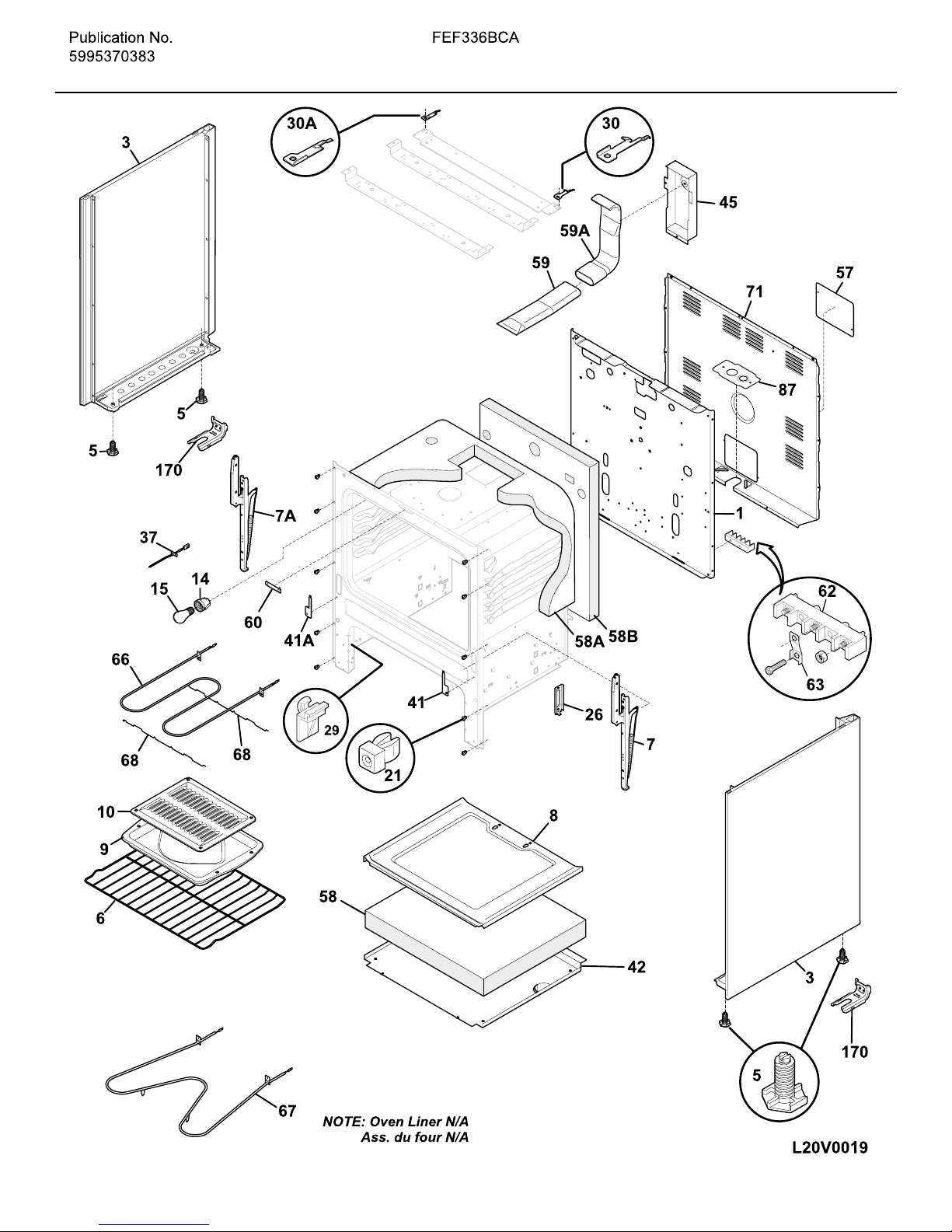

BODY

POS. NO PART NO DESCRIPTION

1 316201300 Back,main

3 316230104 Panel,bodyside ,black ,RH

3 316230105 Panel,bodyside ,black ,LH

5 316129200 Screw,leveling ,plastic ,with stop

6 316067902 Rack,oven

7 316212906 Hinge,oven door ,RH

7A 316212907 Hinge,oven door ,LH

8 3203540 Panel,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

14 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

21 3014099 Spacer,bodyside

26 316206300 Support,chassis ,(2)

29 3051162 Glide,drawer ,front

30 316217700 Bracket,hinge ,RH ,main top

30A 316217701 Bracket,hinge ,LH ,main top

37 # 316233900 Probe,oven temp

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

42 316206200 Shield,wool ,lower

45 316234100 Shield,wire ,vent tube

57 316081100 Cover,access

58 3200847 Insulation,oven bottom

58A 316047707 Insulation,1" ,oven wrapper

58B 316054202 Insulation,1" ,oven back

59 316208200 Tube,oven vent ,lower

59A 316208300 Tube,oven vent ,upper

60 316239100 Cover,oven front

62 # 5303935061 Terminal Block Kit

62* 5303308427 Nut,hex ,10-32

63 5301145190 Plate,grounding strap

66 # 316203200 Element,broil

67 # 316075103 Element,bake

68 316203400 Support,broil element

71 316015810 Shield,rear wall ,galv steel

87 316081200 Bracket,cable mtg

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316253112 Wiring Harness,main

* 3203550 Plug,button ,oven bottom

* 316073400 Plate,weight ,(3)

* 5303305345 Paint,touch-up ,black

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021123 Screw,8-18 X 3/8-8 ,TRUSS HD BLACK

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5308014215 Screw,6-20 x 0.312

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

BODY

04/02 6

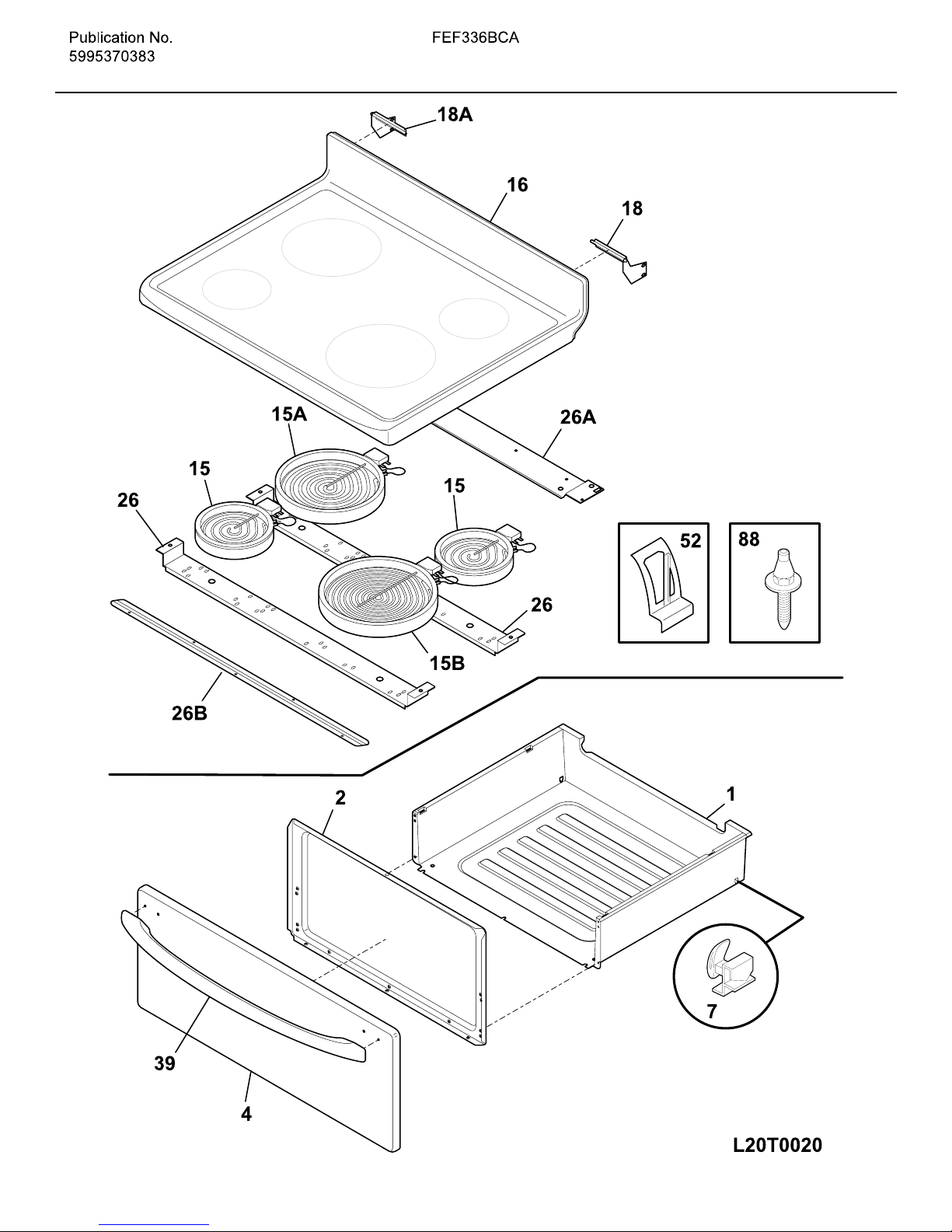

TOP/DRAWER

POS. NO PART NO DESCRIPTION

1 316011503 Drawer

2 316231500 Liner,drawer

4 316248800 Panel,drawer ,stainless

7 3051163 Glide,drawer ,rear

15 # 316010206 Element,surface ,8" ,2200 W ,radiant

15A# 316010205 Element,surface ,6" ,1200 W ,radiant

15B# 316224200 Element,surface ,9" ,2500W ,radiant

16 316251903 Main Top Assy,glass/steel ,black

18 316235900 Hinge,main top ,RH

18A 316235901 Hinge,main top ,LH

26 316230200 Channel,element support ,(2)

26A 316099200 Bracket,chassis support ,rear

26B 316214200 Bracket,chassis support ,front

39 316203000 Handle,door ,black

52 316099400 Clip,element mtg

88 316099500 Pin,guide ,(2)

* 316253515 Wiring Harness,surface element

* 218490900 Cleaner,stainless steel

* 316112101 Cleaner,cooktop

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5308014215 Screw,6-20 x 0.312

TOP/DRAWER

04/02 8

DOOR

POS. NO PART NO DESCRIPTION

4 316240000 Glass,oven door ,black ,outer

6 316222711 Shield,wool ,black ,oven door

8 316237100 Glass,oven door ,clear ,inner

9 316230605 Liner,oven door

10 316001015 Screw,waf hd sq ,10-24 x 1.25 ,(2) ,handle mtg

10* 316001016 Screw,handle mtg ,10-12 X .750

10B 316008401 Washer,3/4 OD x 1/4 ID ,steel

12 316239700 Seal,oven door

13 316209400 Panel,oven door ,stainless ,outer

15B 316085501 Bracket,glass support

17 316117701 Spacer,door glass ,(2)

39 316203000 Handle,door ,black

60B 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

* 218490900 Cleaner,stainless steel

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

DOOR

04/02 10

WIRING SCHEMATIC
