FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF336BGDB FEF336BG ALMOND USA

Publication No.

5995319869

980731

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002660

OWNER’S GUIDE # - 316000273

INSTALLATION GUIDE # - 316003018 ELECTRIC - RANGE

FEF336BGDB

03/99 2

Publication number

5995319869 FEF336BGDB

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 3/99

Publication number

FEF336BGDB 5995319869

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

POS. NO PART NO DESCRIPTION

* 316003018 Instructions,installation

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 Screw-8-18x1/2 Tr Sqd black

1 316081601 Shield-backguard,rear wall

2 316015905 Shield-backguard,inner

11 316083719 Trim-wrapper,textured ,black

12 # 316032400 Thermostat-oven,non sc

13 # 316032500 Switch-selector

14 316022504 Light-indicator,250v

15 316023108 Support-backguard,RH

15A 316023109 Support-backguard,LH

19 316100529 Panel-backguard,black

20 316113300 Clock-timer

20* 316098000 Overlay-clock,black

23 316033204 Bracket-timer

24 # 316005602 Switch-rocker,oven light ,black

31 316109602 Knob-selector

32 316109600 Knob-thermostat

36 316025108 Knob-control, infinite sw, black

39* 5303292005 Screw-switch/handle,8-32 x 5/32

40 316025800 Panel-manifold

46 316040201 Lens-light/lamp,indicator ,red

54 # 316021500 Switch-infinite, 6" element

54A# 316021501 Switch-infinite, 8" element

03/99 4

Publication number

5995319869 FEF336BGDB

CAUTION: Use the part number on all orders, not the position number.

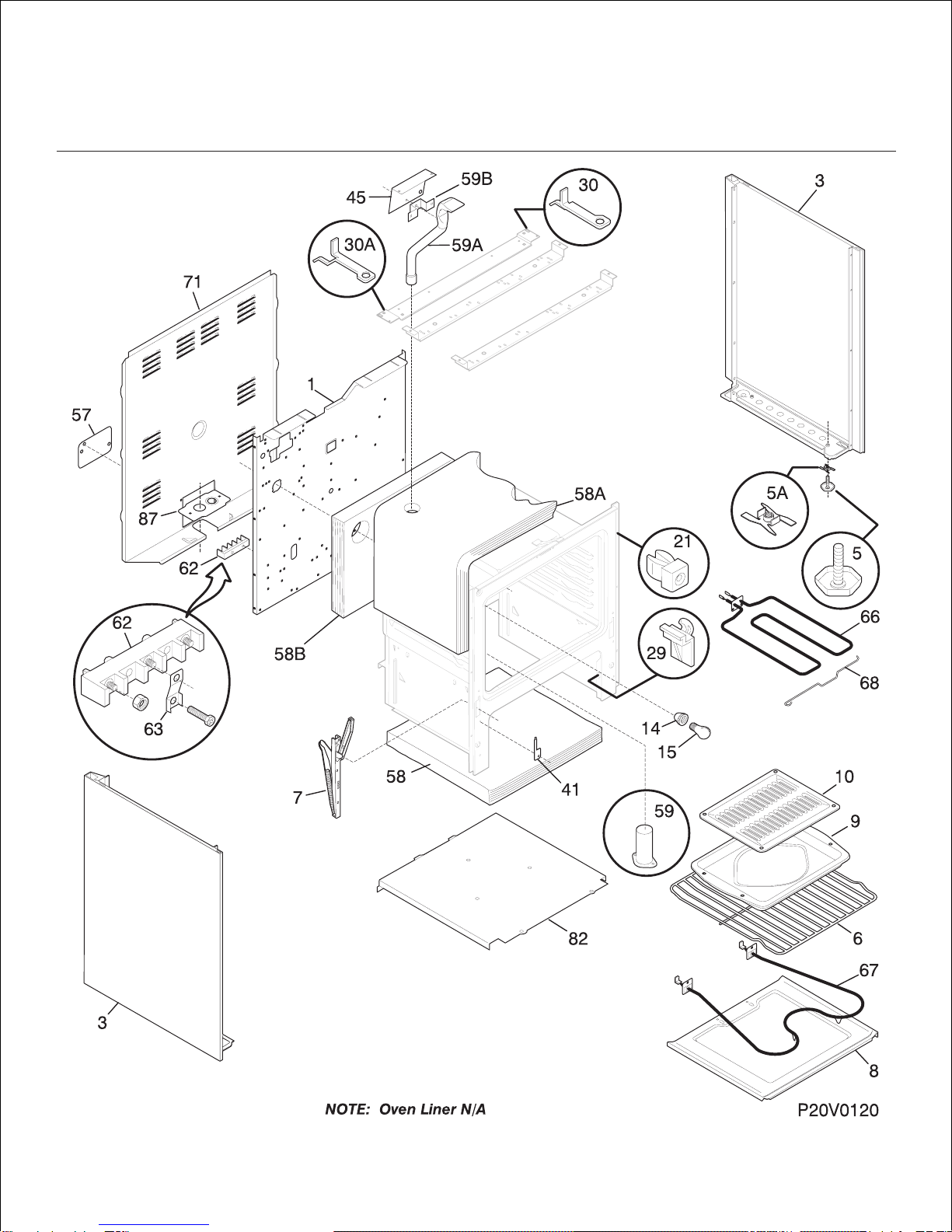

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 03/99

Publication number

FEF336BGDB 5995319869

CAUTION: Use the part number on all orders, not the position number.

BODY

POS. NO PART NO DESCRIPTION

* 3203550 Plug-button

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 Clip-wire,harness ,main top

* 5303051099 Nut,hex ,#10-32

1 316080804 Back-main, short,dipped ,black

3 316081030 Panel-bodyside,almond ,RH

3* 316081031 Panel-bodyside,almond ,LH

5 5303203397 Screw-leveling

5* 3934058 Anti-tip Kit

5* 316078600 Screw,anti-tip ,(4)

5A 5303288460 Nut,T-type ,leveling screw

6 316067902 Rack-oven

7 316007001 Hinge-oven door,(2)

8 3203540 Panel-oven bottom

9 316073800 Pan-broiler

10 3205234 Insert-broiler pan

14 316116400 Socket-light

15 5303013071 Light Bulb/Lamp

21 3014099 Spacer-bodyside,(8)

27 5303284616 Clip-thermo bulb

29 3051162 Glide-drawer,front

30 5303283574 Bracket-hinge,main top RH

30A 5303283575 Bracket-hinge,main top LH

41 3131570 Cover-hinge cutout

45 316066100 Shield-wire, s/t vent

57 316081101 Cover-access

58 3200847 Insulation,oven bottom

59 316073603 Tube-oven vent

59A 316023601 Tube-oven vent,upper

59B 316040100 Bracket-mounting,vent tube

60 316021105 Screw,hex ,8-18 x 3/8 ,back\bodyside

62 # 5303935061 Terminal Block

63 5301145190 Plate-ground strap

66 # 5303051140 Element-broil

67 # 316075102 Element-bake,lower oven

68 316075300 Support-element, broil

71 316015805 Shield-rear wall

82 5303289913 Shield-insulation

87 316081200 Bracket-cable mtg

03/99 6

Publication number

5995319869 FEF336BGDB

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 03/99

Publication number

FEF336BGDB 5995319869

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

POS. NO PART NO DESCRIPTION

* 316021108 Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 Screw-8-18x1/2 Tr Sqd black

* 316021113 Screw-8-18x1/2 Tr Sqd Almond

* 316045000 Clip-wire,harness ,main top

* 316089600 Spacer-drawer,(2)

* 5303280311 Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5309951550 Cleaner-cooktop

1 316011501 Drawer-utility

2 3131975 Shield-panel

4 316084406 Panel-drawer,almond

4* 08067785 Screw,hex washer head ,8-18AB x 1/2

7 3051163 Glide-drawer,rear

10 5303280308 Screw-handle mtg,wafer head ,10-24T x 2

15 # 316010204 Element-surface,radiant , large/8 inch ,

2100W,limit sw incl

15B# 316010203 Element-surface,radiant , small/6 inch ,

1200W,limit sw incl

16 316098104 Main Top,smooth top ,almond

18 5303273062 Hinge-main top,RH

18A 5303273063 Hinge-main top,LH

26 316099101 Channel-support,element ,(2)

26A 316099201 Bracket-support, chassis

48 316100200 Shield-wire,main top

51 80142193 Indicator light

52 316099400 Clip-spring, element mtg,(8)

53 316099300 Bracket-indicator light,hot surface ,

4 hole

88 316099500 Pin-guide,(2)

03/99 8

Publication number

5995319869 FEF336BGDB

CAUTION: Use the part number on all orders, not the position number.

DOOR

# - Fast Moving Parts

* - Non Illustrated Parts 9 03/99

Publication number

FEF336BGDB 5995319869

CAUTION: Use the part number on all orders, not the position number.

DOOR

POS. NO PART NO DESCRIPTION

* 316021110 Screw-8-18x1/2 Tr Sqd black

* 5303212671 Screw,cr pan hd sems ,8-32BP x 1.00

* 5303212762 Screw,8-18 X 1/2

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 1/2

* 5303280311 Screw,waf hd sdr ,10-32 x 5/16 ,(2)

3 316067802 Trim-oven door,black

4 316089000 Glass-oven door,black ,outer

6 316088403 Shield-wool

7 316076401 Insulation,oven door

8 316088600 Glass-oven door,inner

9 316066610 Liner-oven door

10 5303280308 Screw-handle mtg,wafer head ,10-24T x 2

12 5303202011 Seal-oven door,non self-clean

39 316091114 Handle-door,black ,oven

39* 316008401 Washer,3/4 x 1/4 ,steel

39* 5303292005 Screw-switch/handle,8-32 x 5/32

52 316081303 Shield-oven door,black ,top

03/99 10

Publication number

5995319869 FEF336BGDB

CAUTION: Use the part number on all orders, not the position number.

WIRING DIAGRAM
