Frigidaire FEF355CF Manuale utente

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF355CFSB FEF355CF WHITE/WHITE USA

FEF355CFSC FEF355CF WHITE/WHITE USA

FEF355CFTB FEF355CF ALMOND/ALMOND USA

FEF355CFTC FEF355CF ALMOND/ALMOND USA

Publication No.

5995309068

980619

-EN/SERVICE /CML

369

ELECTRIC - RANGE

Model No.

FEF355CF

FACTORY PARTS CATALOG

ELECTRIC RANGE

WIRING DIAGRAM # -316002622

OWNER’S MANUAL # - 316000262

INSTALLATION INSTR. # - 316003018

104 Warren Road

Augusta, Georgia 30907-3755

BACKGUARD

Publication No. FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC

5995309068

06/98 2

A = FEF355CF (FEF355CFSB)

B = FEF355CF (FEF355CFSC)

C = FEF355CF (FEF355CFTB)

D = FEF355CF (FEF355CFTC)

POS. NO PART NO DESCRIPTION

* 316003018 A B C D Instructions,installation

* 316021105 A B C D Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A - C - Screw-8-18x1/2 Tr Sqd black

* 316071902 A B C D Gasket-edge

1 316081601 A B C D Shield-backguard,rear wall

2 316015907 A B C D Shield-backguard,inner

11 316083720 - - C D Trim-wrapper ele w/hole,almond

11 316083721 A B - - Trim-wrapper, textured, white,white

14 316022503 A B C D Light/Lamp,indicator ,yellow ,250 V

15 316023108 A B C D Support-backguard,RH

15A 316023109 A B C D Support-backguard,LH

19 316024495 A B - - Panel-control,metal

19 316024496 - - C D Panel-control,metal

20 # 316101001 A B C D Clock/Timer,electronic

20* 316101502 A B - - Overlay-clock

20* 316101504 - - C D Overlay-clock

23 316100300 A B C D Bracket-clock mtg

24 # 316005608 - - C D Switch-rocker,oven light ,almond

24# 316005607 A B - - Switch-rocker,oven light ,white

36 316025106 A B - - Knob-control,infinite sw ,white ,(4)

36 316025107 - - C D Knob-control,infinite sw ,almond ,(4)

40 316025808 A B - - Panel-manifold

40 316025809 - - C D Panel-manifold

46 316040201 A B C D Lens-light/lamp,indicator ,red

54 # 316021500 A B C D Switch-6" element,(2)

54A# 316021501 A B C D Switch-8" element,(2)

69 5303292005 A B C D Screw-switch mtg,8-32 x 5/32

BACKGUARD

FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC Publication No.

5995309068

# = Functional Part 3 06/98

* = Non-Illustrated Part

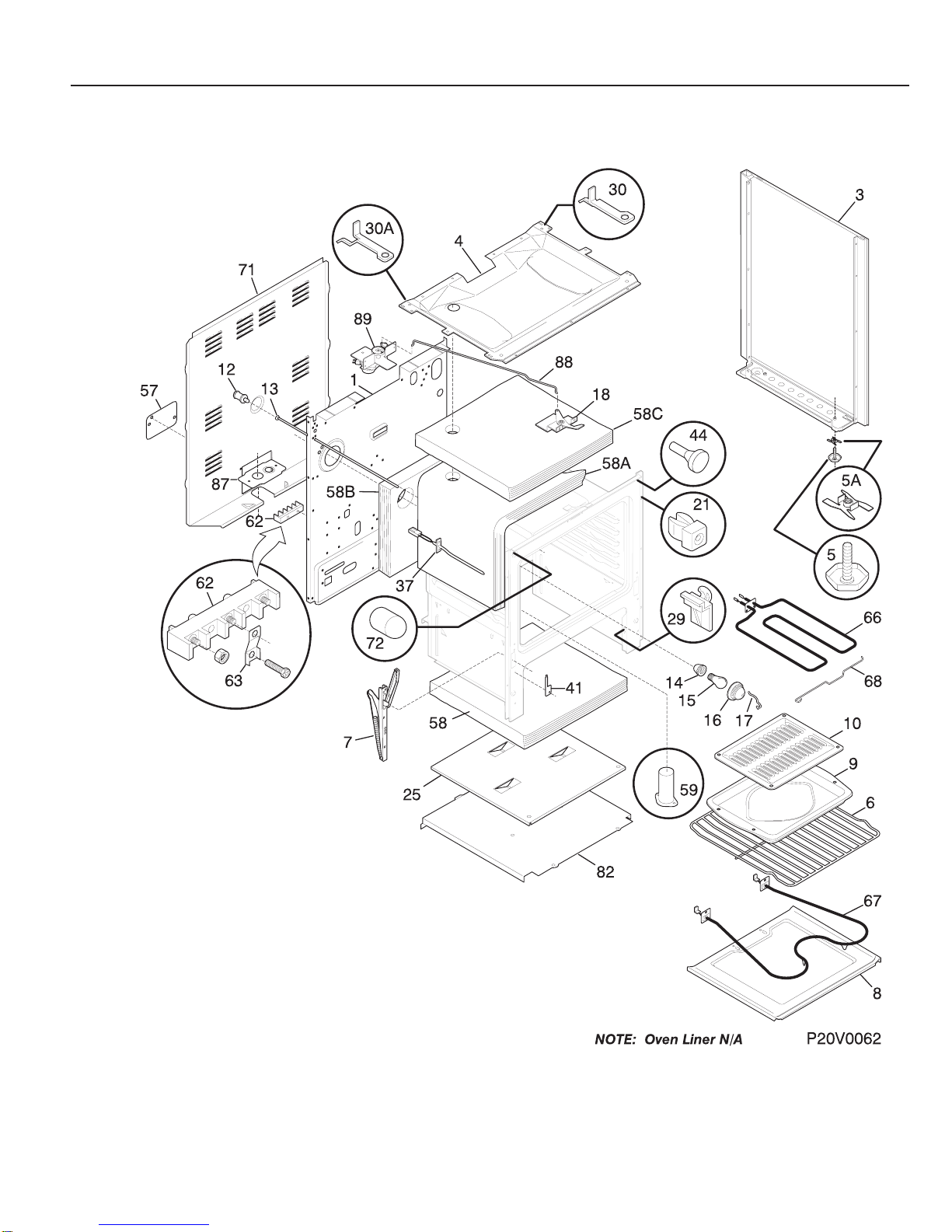

BODY

Publication No. FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC

5995309068

06/98 4

A = FEF355CF (FEF355CFSB)

B = FEF355CF (FEF355CFSC)

C = FEF355CF (FEF355CFTB)

D = FEF355CF (FEF355CFTC)

POS. NO PART NO DESCRIPTION

* 3203550 A B C D Plug-button

* 316021105 A B C D Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 5303051099 A B C D Nut,hex ,#10-32

1 316080804 A B C D Back-main, short,dipped ,black

3 316081028 A B - - Panel-bodyside,white ,RH

3 316081030 - - C D Panel-bodyside,almond ,RH

3* 316081029 A B - - Panel-bodyside,white ,LH

3* 316081031 - - C D Panel-bodyside,almond ,LH

4 5303271756 A B C D Burner Box

5 5303203397 A B C D Screw-leveling

5* 3934058 A B C D Anti-tip Kit

5* 316078600 A B C D Screw,anti-tip ,(4)

5A 5303288460 A B C D Nut,T-type ,leveling screw

6 316067902 A B C D Rack-oven

7 316007002 A B C D Hinge-oven door,(2)

8 3203540 A B C D Panel-oven bottom

9 316073800 A B C D Pan-broiler

10 3205234 A B C D Insert-broiler pan

12 # 316027701 A B C D Switch-oven light

13 316026800 A B C D Rod-light switch /door

14 3014073 A B C D Socket-light/lamp,oven

15 5303013071 A B C D Light Bulb/Lamp

16 08011086 A B C D Lens-light/lamp,glass ,oven

17 316087500 A B C D Retainer-lens

18 # 316036300 A B C D Latch-door

21 3014099 A B C D Spacer-bodyside,(8)

25 3200848 A B C D Shield-heat,lower

29 3051162 A B C D Glide-drawer,front

30 5303283574 A B C D Bracket-hinge,main top RH

30A 5303283575 A B C D Bracket-hinge,main top LH

37 # 316111200 A B C D Probe-oven temp

41 3131570 A B C D Cover-hinge cutout

44 3131903 A B C D Bumper-door/drawer,rubber

57 316081101 A B C D Cover-access

58 3200847 A B C D Insulation,oven bottom

58A 316047708 A B C D Insulation,oven wrapper

58B 316054200 A B C D Insulation,oven back

58C 3131304 A B C D Insulation,oven top

59 316073600 A B C D Tube-oven vent

62 # 5303935061 A B C D Terminal Block

63 5301145190 A B C D Plate-ground strap

66 # 5303051140 A B C D Element-broil

67 # 316075102 A B C D Element-bake,lower oven

68 316075300 A B C D Support-element

71 316015805 A B C D Shield-rear wall

72 5303285692 A B C D Cover-light/switch rod

82 5303289913 A B C D Shield-insulation

87 316081200 A B C D Bracket-cable mtg

88 316026400 A B C D Rod-latch,auto

89 # 316028101 A B C D Motor-latch/lock

BODY

FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC Publication No.

5995309068

# = Functional Part 5 06/98

* = Non-Illustrated Part

TOP/DRAWER

Publication No. FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC

5995309068

06/98 6

A = FEF355CF (FEF355CFSB)

B = FEF355CF (FEF355CFSC)

C = FEF355CF (FEF355CFTB)

D = FEF355CF (FEF355CFTC)

POS. NO PART NO DESCRIPTION

* 3203618 A B C D Rivet-pop,warning-plate

* 316001725 A B C D Harness-wiring,surface element

* 316021105 A B C D Screw,hex ,8-18 x 3/8 ,back\bodyside

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A - C - Screw-8-18x1/2 Tr Sqd black

* 316021112 A B - - Screw-8-18x1/2 Tr Sqd White

* 316021113 - - C D Screw-8-18x1/2 Tr Sqd Almond

* 316058600 A B C D Clip-surface element,(4)

* 316089600 A B C D Spacer-drawer,(2)

* 5303280311 A B C D Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5308014215 A B C D Screw,#6-20 x 5/16 ,(4)

1 316011501 A B C D Drawer-utility

2 3131975 A B C D Shield-panel

4 316084405 A B - - Panel-drawer,white

4 316084406 - - C D Panel-drawer,almond

4* 08067785 - - C D Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B C D Glide-drawer,rear

15 # 316048600 A B C D Element-surface,large/8 inch

15A# 316048500 A B C D Element-surface,small/6 inch

16 316020907 A B - - Main Top,white

16 316020908 - - C D Main Top,almond

17 316057601 A B C D Rod-maintop support

18 5303273062 A B C D Hinge-main top,RH

18A 5303273063 A B C D Hinge-main top,LH

19 # 316048411 A B - - Pan-surface element,gray ,large/8 inch ,

(2)

19 # 316048412 - - C D Pan-surface element,almond ,

large/8 inch,(2)

19A# 316048408 A B - - Pan-surface element,gray ,small/6 inch ,

(2)

19A# 316048409 - - C D Pan-surface element,almond ,

small/6 inch,(2)

27 # 5303912666 A B C D Terminal Block Kit,surface element

28 5303017715 A B C D Medallion,1 1/2"dia ,black ,

surface element

28 5303296595 A B C D Medallion,3/4"dia ,surface element

44 3131903 A B C D Bumper-door/drawer,rubber

TOP/DRAWER

FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC Publication No.

5995309068

# = Functional Part 7 06/98

* = Non-Illustrated Part

DOOR

Publication No. FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC

5995309068

06/98 8

A = FEF355CF (FEF355CFSB)

B = FEF355CF (FEF355CFSC)

C = FEF355CF (FEF355CFTB)

D = FEF355CF (FEF355CFTC)

POS. NO PART NO DESCRIPTION

* 5303271648 A B C D Screw,wafer hd sq dr ,8-18AB x 1/2

* 316021110 A - C - Screw-8-18x1/2 Tr Sqd black

* 316065301 A B C D Plate warning/caution

* 5303212671 A - C - Screw,cr pan hd sems ,8-32BP x 1.00

* 5303212762 - - C D Screw,8-18 X 1/2

* 5303280311 A B C D Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5303285179 A B C D Screw-oven door,wafer head ,8-32T x 1/2

3 316067803 - - C D Trim-oven door,almond

3 316067804 A B - - Trim-oven door,white

4 316089004 - - C D Glass-oven door,almond ,outer

4 316089005 A B - - Glass-oven door,white ,outer

5 316088700 A B C D Glass-oven door,inner

6 316088401 A B C D Shield-wool

7 316076403 A B C D Insulation-door

8 316088600 A B C D Glass-oven door,airwash

9 316066610 A B C D Liner-oven door

10 5303280308 A B C D Screw-handle mtg,wafer head ,10-24T x 2

12 # 5303131601 A B C D Seal-oven door

14 3131361 A B C D Reflector,aluminum foil

14A 3131360 A B C D Reflector,aluminum foil ,(2)

15 316081401 A - C - Bracket-glass mtg

15 316081403 - B - D Bracket-glass mtg

16 316085700 A - C - Glass-oven door,heat barrier

16 316085701 - B - D Glass-oven door,heat barrier

39 316091115 A B - - Handle-door,white ,oven

39 316091116 - - C D Handle-door,almond ,oven

39* 316008401 A B C D Washer,3/4 x 1/4 ,steel ,(2)

52 316081301 A B - - Shield-oven door,white ,top

52 316081302 - - C D Shield-oven door,almond ,top

DOOR

FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC Publication No.

5995309068

# = Functional Part 9 06/98

* = Non-Illustrated Part

WIRING DIAGRAM

Publication No. FEF355CFSB,FEF355CFSC,FEF355CFTB,FEF355CFTC

5995309068

06/98 10
