Frigidaire FES366E Manuale utente

FES366E.eps LA20BG0044.eps BFES366ESA.eps LA20CT0047.eps D79046592500.eps

318271907.eps

Product No. FES366EBA FES366EQA FES366ESA

37954386J5061 37954384J5041 37954387J5011

Series 30" slide-in 30" slide-in 30" slide-in

Color black bisque white

Market North America North America North America

Wiring Diagram 318271907 318271907 318271907

Owner's Guide 318203810 318203810 318203810

Installation Instructions 318201611 318201611 318201611

Timer Guide 318200185 318200185 318200185

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995440384

05/06/28

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

FES366E

Publication No: 5995440384 FES366E

06/05 2

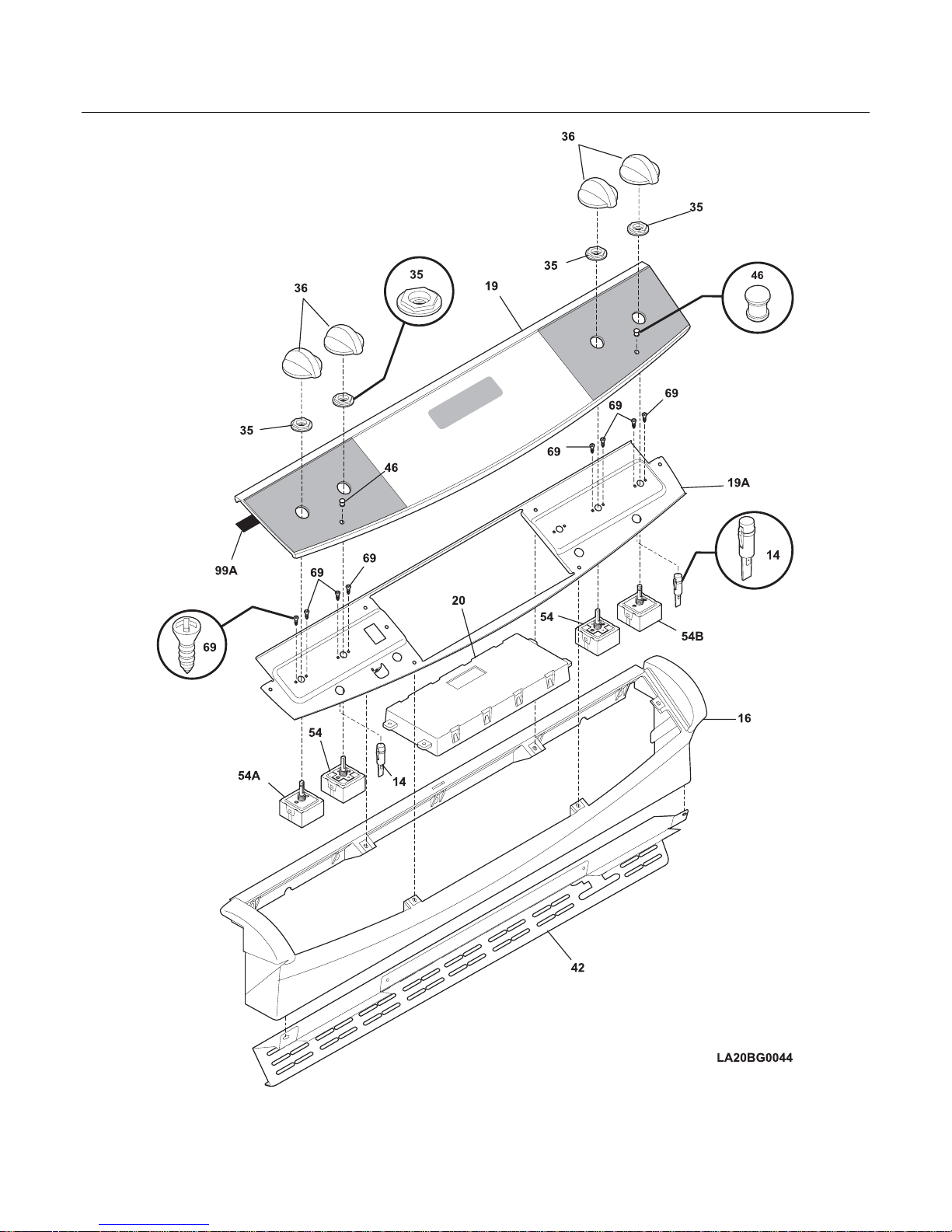

BACKGUARD

FES366E Publication No: 5995440384

# Functional Parts 3 06/05

* Non-Illustrated Parts

BACKGUARD

Model Index: AFES366E (FES366EBA)

BFES366E (FES366EQA)

CFES366E (FES366ESA)

POS. NO PART NO. DESCRIPTION

14 # 318293900 A B C Light, indicator, 125v, (2)

16 318299102 A - - Console, assy., black

16 318299101 - B - Console, assy., bisque

16 318299100 - - C Console, assy., white

19 318312202 A - - Control Panel Assembly, w/membrane, black

19 318312201 - B - Control Panel Assembly, w/membrane, bisque

19 318312200 - - C Control Panel Assembly, w/membrane, white

19A 318224403 A B C Panel, control mtg.

20 # 316418530 A B C Clock/Timer, electronic, ES350

35 318183100 A - - Support, glass, black

35 318183102 - B - Support, glass, bisque, (4)

35 318183101 - - C Support, glass, white, (4)

36 316223027 A - - Knob, control, black

36 316223029 - B - Knob, control, bisque

36 316223028 - - C Knob, control, white

42 318298001 A B C Trim, vent, black, upper

46 318228300 A B C Lens, indicator light

54 # 318220080 A B C Switch, surface unit, single

54A# 318220081 A B C Switch, surface unit, large

54B# 318191023 A B C Switch, infinite, dual

69 5303323134 A B C Screw, 8-32 x 0.188

99A 318223900 A B C Gasket, dark grey

* # 318228817 A B C Harness, wiring, main, backguard

* # 318224811 A B C Harness, wiring, timer

* # 318224815 A B C Harness, wiring, infinite switch

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)

* 5303311333 A B C Screw, 8-32 x 3/8, (4)

Publication No: 5995440384 FES366E

06/05 4

BODY

FES366E Publication No: 5995440384

# Functional Parts 5 06/05

* Non-Illustrated Parts

BODY

Model Index: AFES366E (FES366EBA)

BFES366E (FES366EQA)

CFES366E (FES366ESA)

POS. NO PART NO. DESCRIPTION

1 318259202 A B C Back, main

1A 318225110 A B C Panel, main back, upper

2 318258900 A B C Shield, insulation, upper

3 318225210 A B C Panel, bodyside, upper RH

3A 318225211 A B C Panel, bodyside, upper LH

5 318175503 A B C Screw, leveling

6 318262502 A B C Rack, oven

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

58A 318285055 A B C Insulation, oven wrapper

58B 318285056 A B C Insulation, oven back

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 5303935061 A B C Terminal Block Kit

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

63 318264200 A B C Plate, grounding strap

66 # 318255600 A B C Element, broil, 2750W

67 # 318255401 A B C Element, bake, 3400W

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260007 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258707 A B C Shield, insulation, lower

83 318261404 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260608 A B C Bracket, cable mtg.

87A 318111804 A B C Plate, cord set mtg

89 # 318261202 A B C Motor, latch assy

90 318296904 A - - Panel, filler, black, RH

90 318296906 - B - Panel, filler, bisque, RH

90 318296902 - - C Panel, filler, white, RH

90A 318296905 A - - Panel, filler, black, LH

90A 318296907 - B - Panel, filler, bisque, LH

90A 318296903 - - C Panel, filler, white, LH

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

Publication No: 5995440384 FES366E

06/05 6

BODY

FES366E Publication No: 5995440384

# Functional Parts 7 06/05

* Non-Illustrated Parts

BODY

Model Index: AFES366E (FES366EBA)

BFES366E (FES366EQA)

CFES366E (FES366ESA)

POS. NO PART NO. DESCRIPTION

* 318249401 A B C Tube, protector

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112703 A B C Relay

119# 318005202 A B C Switch, thermal cutout

125# 316415800 A B C Motor, fan

125* 5303316994 A B C Insulation, 3.81 x 3.13

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

163 318014110 A B C Spacer, (4)

166 318298400 A B C Bracket, base support, (4)

170 318335500 A B C Anti-tip & accessories

185 318165800 A B C Spacer, (2)

200 318335600 A B C Frame & Wheel Assembly, black

201 318298210 A B C Frame, drawer

219# 318003614 A B C Thermostat, safety

219A 318003613 A B C Thermostat, safety

263 316136500 A B C Washer, fan motor

300 318326500 A B C Shield, heat

* # 318224929 A B C Harness, wiring, main

* 318235300 A B C Connector assy., w/3 lugs, & instructions

* 3051050 A B C Screw, shoulder

* 3201861 A B C Screw, 6 x 0.375, (4)

* 08016432 A B C Screw, truss head, 8-18 x 0.375

* 5303211311 A B C Screw, 8 x 0.500

* 5303307980 A B C Screw, 8-32 x 0.437

* 5303323129 A B C Screw, 8 X 0.750

* 5304415832 A B C Screw, 8-18 x 0.406

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995440384 FES366E

06/05 8

TOP/DRAWER

FES366E Publication No: 5995440384

# Functional Parts 9 06/05

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AFES366E (FES366EBA)

BFES366E (FES366EQA)

CFES366E (FES366ESA)

POS. NO PART NO. DESCRIPTION

1 318107308 A B C Drawer

4 318298903 A - - Panel, drawer, black, front

4 318298902 - B - Panel, drawer, bisque, front

4 318298901 - - C Panel, drawer, white, front

11 318298601 A B C Bracket, drawer support, (2)

13 318259501 A B C Glide, warmer, inner RH

13A 318259500 A B C Glide, warmer, inner LH

15 # 318198925 A B C Element, surface, 6/9, 1200/2500W, dual radiant

15A# 318198823 A B C Element, surface, 9", large, 2700 W

15B# 318198817 A B C Element, surface, small/6", 1200 W

16 318223634 A - - Main Top, glass assy., black

16 318223633 - B - Main Top, glass assy., bisque

16 318223632 - - C Main Top, glass assy., white

46 318225410 A B C Box, burner

51 # 318044822 A - - Light, indicator, clear

51 # 318044820 - B C Light, indicator, red

52A 318122006 A B C Spring, element mtg, small

52C 318122010 A B C Spring, element mtg, 1000W/2500W

124 316105501 A B C Glide, warmer drawer, outer/RH & LH, (2)

165 318227503 A B C Plate, mounting

* # 318228917 A B C Harness, wiring, cooktop

* 5303325173 A B C Cap, plug

* 5303211311 A B C Screw, 8 x 0.500

* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)

* 5303311333 A B C Screw, 8-32 x 3/8, (4)

Publication No: 5995440384 FES366E

06/05 10

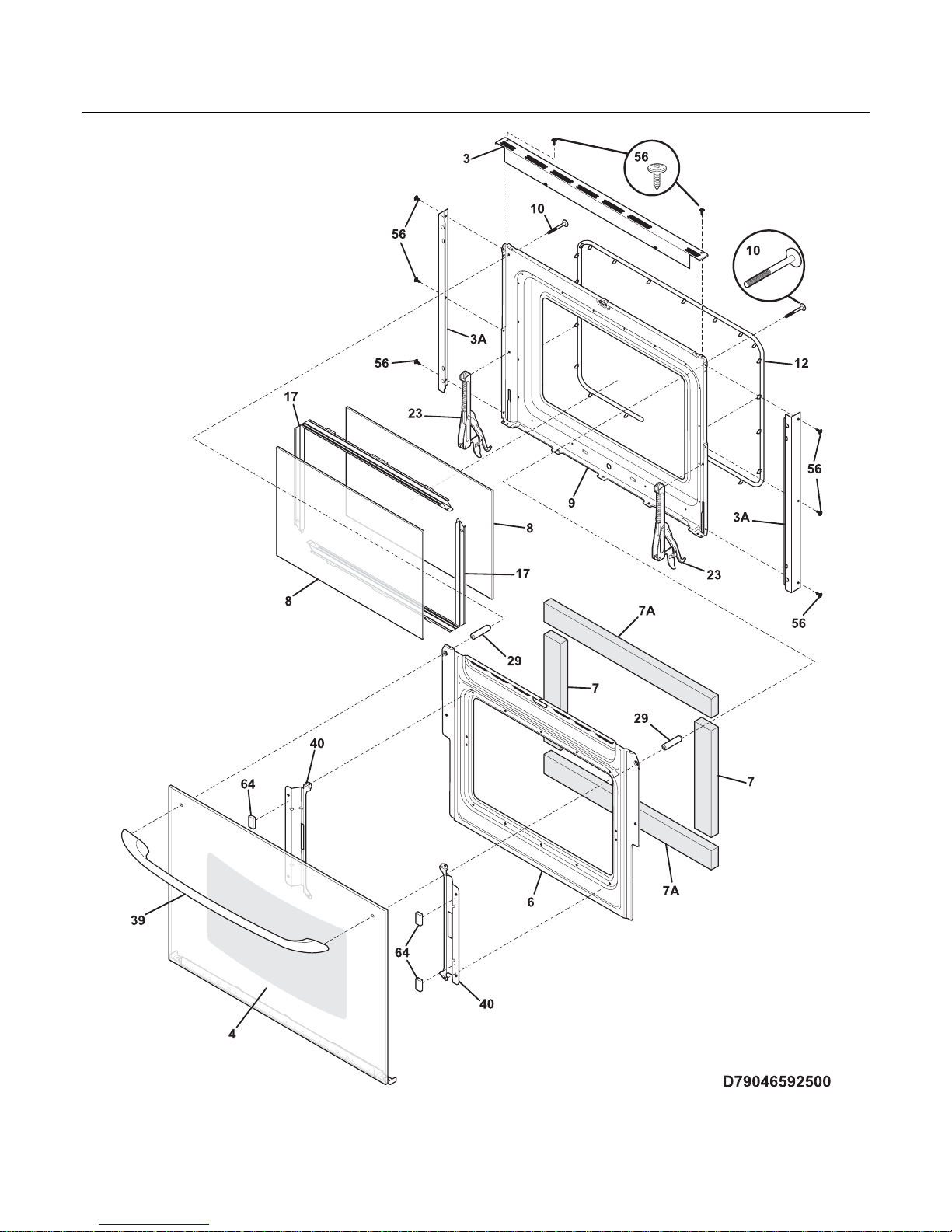

DOOR
