Frigidaire FES368D Manuale utente

31 5/16"

Product No. FES368DQA FES368DSA

37954334H4041 37954337H4011

Series 30" slide-in 30" slide-in

Color bisque white

Market North America North America

Wiring Diagram 318045089 318045089

Owner's Guide 318200840 318200840

Installation Instructions 318201606 316201606

Timer Guide 318200191 318200191

FES368D.eps la20bg0025.eps LA20B0002.eps LA20CT0014.eps LA00D07396-3F.eps

318045089.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995402954

04/01/30

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

FES368D

Publication No: 5995402954 FES368D

01/04 2

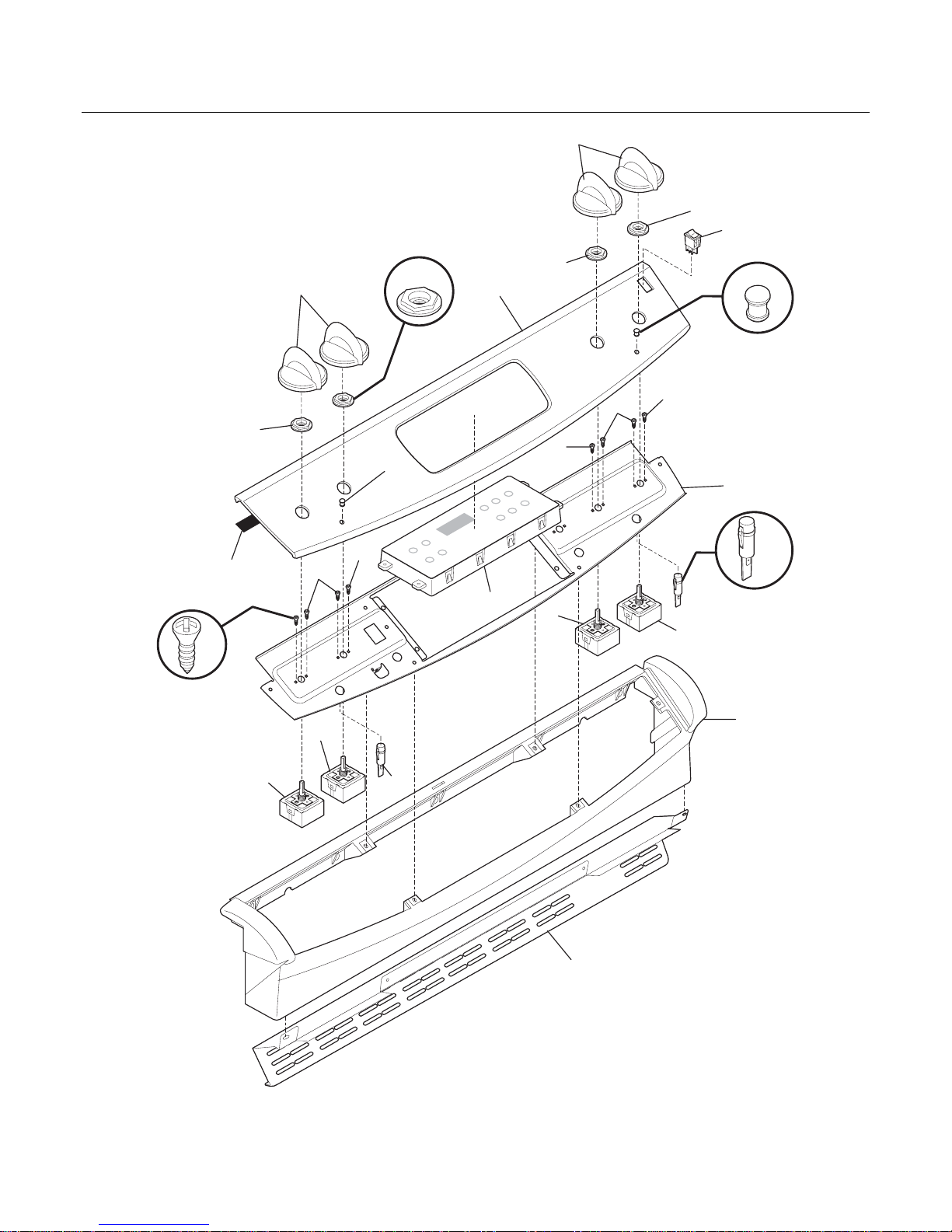

BACKGUARD

8.8.

54A

19A

LA20BG0025

99A

FES368D Publication No: 5995402954

# Functional Parts 3 01/04

* Non-Ilustrated Parts

BACKGUARD

Model Index: AFES368D (FES368DSA)

BFES368D (FES368DQA)

POS. NO PART NO. DESCRIPTION

14 # 318044825 A B Light, indicator, 125v, (2)

16 318235000 A - Console, assy., white, w/ end caps

16 318235002 - B Console, assy., bisque, w/ end caps

19 318235144 A - Panel, control, white

19 318235146 - B Panel, control, bisque

19A 318224401 A B Panel, control mtg.

20 # 318185446 A - Clock/Timer, electronic, white, ES300

20 # 318185448 - B Clock/Timer, electronic, bisque, ES300

20* 316220804 A - Overlay, clock, white, ES300

20* 316220806 - B Overlay, clock, bisque

24 # 316005607 A - Switch, rocker, white

24 # 318037520 - B Switch, rocker, bisque, oven light

35 318183101 A - Support, glass, white, (4)

35 318183102 - B Support, glass, bisque, (4)

36 318229300 A - Knob, control, white

36 318229302 - B Knob, control, bisque

42 318224301 A B Trim, vent, black, bottom

46 318228300 A B Lens, indicator light

54 # 318220020 A B Switch, surface unit, single

54A# 318220021 A B Switch, surface unit, large

69 5303323134 A B Screw, switch mtg., 8-32 x 0.188

99A 318223900 A B Gasket, dark grey

* 3201861 A B Screw, 6 x 0.375, (4)

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303211311 A B Screw, 8 x 0.500

Publication No: 5995402954 FES368D

01/04 4

BODY

FES368D Publication No: 5995402954

# Functional Parts 5 01/04

* Non-Ilustrated Parts

BODY

Model Index: AFES368D (FES368DSA)

BFES368D (FES368DQA)

POS. NO PART NO. DESCRIPTION

1 318066402 A B Panel, main back

1A 318225100 A B Panel, main back, upper

2A 318227600 A B Shield, oven top

3 318225200 A B Panel, bodyside, upper RH

3A 318225201 A B Panel, bodyside, upper LH

3B 318160010 A B Panel, body side, lower RH

3C 318160011 A B Panel, body side, lower LH

5 318175503 A B Screw, leveling

6 318025308 A B Rack, oven

9 5303317977 A B Pan, broiler

10 5303317976 A B Insert, broiler pan

12 # 318089913 A B Switch, light

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, oven light

16 3201911 A B Cover, oven light, glass

17 5304400195 A B Retainer, light cover

25 318179107 A B Panel, heat shield, sm oven bottom

37 # 316217002 A B Probe, oven temp

41 5303310526 A B Cover, hinge cutout

54 318222400 A B Housing, oven light

56 318225901 A - Trim, oven, white

56 318225903 - B Trim, oven, bisque

58A 318133783 A B Insulation, oven wrapper

58B 318133785 A B Insulation, oven back

59 318072534 A B Tube, vent, oven

62 5303935061 A B Terminal Block Kit

62* 5303323144 A B Nut, 10-32

63 316208500 A B Plate, grounding strap

66 # 318255600 A B Element, broil, 2750W

67 # 318255000 A B Element, bake, 3000W

68 5304403015 A B Support, element hanger

70 318194400 A B Shield, insulation

71 5303310515 A B Panel, wiring cover, rear

76 318225302 A B Front, oven

80 5303324473 A B Bracket, oven mounting

80* 318014110 A B Spacer

81 318192400 A B Spring, oven

83 318089613 A B Liner, oven

86 5303310524 A B Receptacle, hinge

87 318111803 A B Plate, mounting

88 318118904 A B Rod, latch

89 # 318095937 A B Motor, latch assy, w/brkt & switch

89* 318120711 A B Switch

102 5303311142 A B Support, oven front

108# 318073016 A B Motor, blower

112# 318112701 A B Relay

127 5303310542 A B Adapter, vent tube, with converter

128 5303311163 A B Bushing

129 5303311164 A B Spring

Publication No: 5995402954 FES368D

01/04 6

BODY

FES368D Publication No: 5995402954

# Functional Parts 7 01/04

* Non-Ilustrated Parts

BODY

Model Index: AFES368D (FES368DSA)

BFES368D (FES368DQA)

POS. NO PART NO. DESCRIPTION

141# 318005201 A B Switch, thermal cutout

141B 318003607 A B Thermostat, safety

142 318123901 A B Deflector

170 5304405244 A B Anti-tip & accessories

191 5303304030 A B Bracket, angle, corner

284 318226600 A B Box, vent tube

285 318236200 A B Shield, hidden wires

* 318235300 A B Connector assy., w/3 lugs, & instructions

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303211311 A B Screw, 8 x 0.500

* 5303307980 A B Screw, 8-32 x 0.437

Publication No: 5995402954 FES368D

01/04 8

TOP/DRAWER

FES368D Publication No: 5995402954

# Functional Parts 9 01/04

* Non-Ilustrated Parts

TOP/DRAWER

Model Index: AFES368D (FES368DSA)

BFES368D (FES368DQA)

POS. NO PART NO. DESCRIPTION

1 318107104 A B Drawer

4 318134011 A - Panel, drawer, white, front

4 318134013 - B Panel, drawer, bisque, front

11 5303311125 A B Bracket, drawer

13 5303311129 A B Channel, drawer, RH

13A 5303311130 A B Channel, drawer, LH

15 # 318198810 A B Element, surface, 6", 1200 W

15A# 318198812 A B Element, surface, 8", 2200 W

15B# 316224200 A B Element, surface, 9", 2500W, radiant

16 318223630 A - Main Top, glass assy., black/white

16 318223631 - B Main Top, glass assy., black/bisque

46 318225401 A B Box, burner

51 # 318044820 A - Light, indicator, red

51 # 318044822 - B Light, indicator, clear

52 318122007 A B Spring, element mtg, large

52A 318122006 A B Spring, element mtg, small

52B 318122010 A B Spring, element mtg, 1000W/2500W

70 5303311143 A B Bracket, slide, rear

71 5303311144 A B Magnet & spring assy

72 5303311145 A B Bracket & wheel assy

165 318227500 A B Plate, mounting

193 5303325173 A B Cap, plug

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303211311 A B Screw, 8 x 0.500

Publication No: 5995402954 FES368D

01/04 10

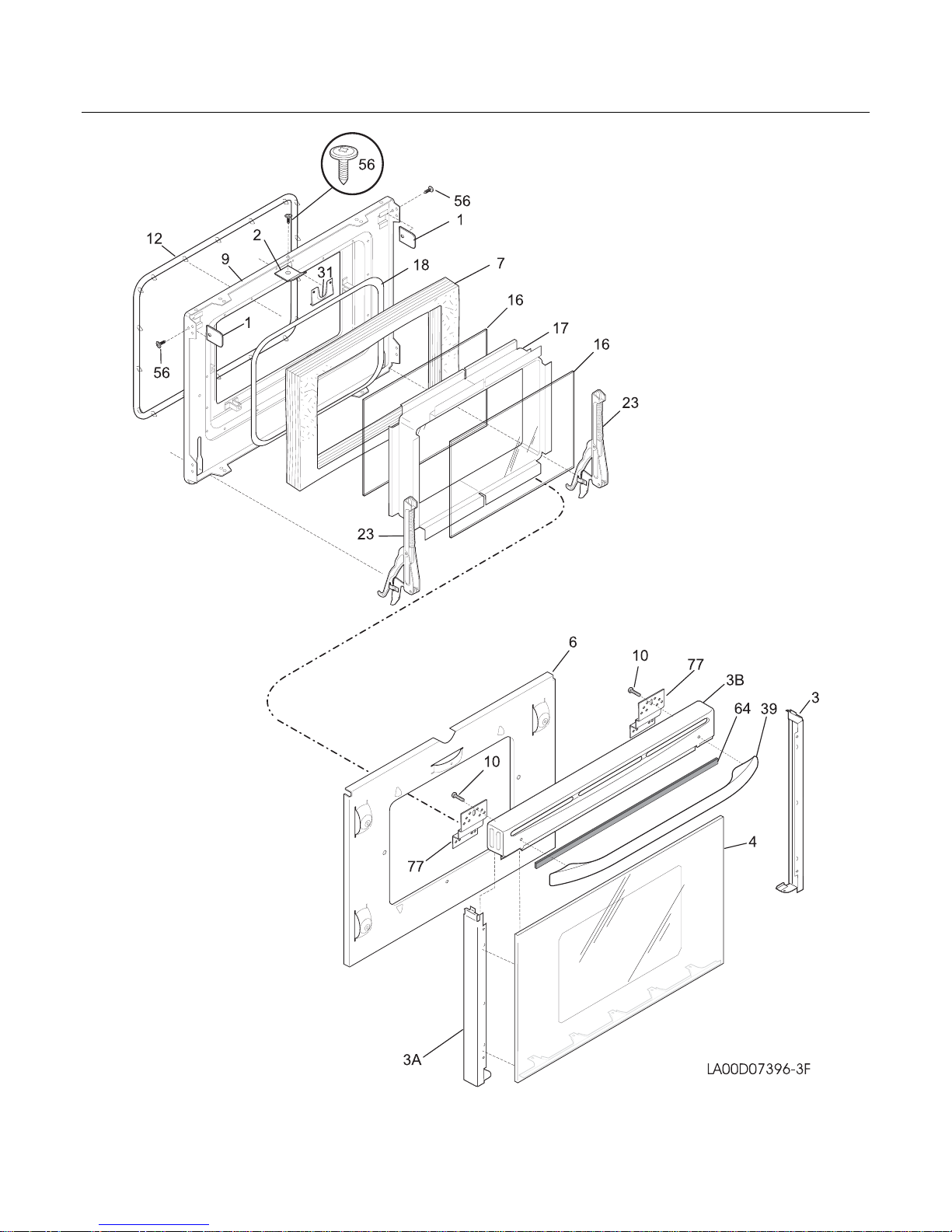

DOOR
