Frigidaire FGEF302TN F Foglio di istruzioni

frigidaire.com

Signature Features

30" Electric

Symmetry™ Double Ovens

The Frigidaire Gallery® Range with

Symmetry™ Double Ovens, each

big enough to cook a 28-pound

turkey or multiple dishes at different

temperatures for maximum cooking

flexibility.

Quick Preheat

Preheat in just four minutes.

SpaceWise® Expandable

Element

Flexible element expands to your

cooking needs.

Quick Boil

Boils water faster.

Based on single rack cooking performance,

not set temperature, using Quick Preheat.

Product Dimensions

Height (Max.) 49"

Width 30"

Depth (Including Handle) 28-1/4"

More Easy-To-Use Features

Precision Set™ Controls

Exceptional temperature control gives

you more cooking flexibility and precise

results.

One-Touch Options

Our ovens feature easy-to-use

one-touch buttons so you can cook

pizza — or even add a minute to

the timer — with the touch of a button.

Pizza Button

Easily bake perfect pizza with the touch

of a button.

One-Touch Keep Warm Setting

Just one touch of a button keeps food

warm until everything — and everyone —

is ready.

Smudge-Proof Stainless Steel

Real Stainless Steel with a protective

coating reduces fingerprints and

smudges so it’s easy to clean.

Even Baking Technology

Our latest technology ensures even

baking every time.

Auto Oven Shut-O

As an extra safety measure, the oven

will automatically shut off after six

hours.

Sabbath Mode (Star-K® Certiﬁed)

Available in:

Stainless

(F)

Freestanding Range

FGEF302TN F

Elements

Right Front

Right Rear

Left Front

Left Rear

Center

Size

6" / 9"

Expandable

Keep Warm

Zone

Watts

1,600 / 3,000

1,200

3,000

1,200

100

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Cutout Dimensions

Height (Stand.)

Width (Min.)

Depth (Min.)

36"

30"

24"

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

49"

30"

28-1/4"

42"

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

30" Electric Freestanding Ranges_Double Oven

Frigidaire Gallery

36"

(Adjustable)

Freestanding Range

FGEF302TN F 30" Electric

Features

Oven Control / Timing System

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Upper Oven

Oven Controls

Bake / Broil

Eortless™ Convection Conversion

Convection Bake / Broil / Roast

Quick Bake Convection

Quick Preheat

Eortless™ Temperature Probe

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Start

Self Clean

Quick Clean Option

Delay Clean

Kitchen Timer / Timed Cook Option

Auto Oven Shuto

Oven Lock-Out

Upper Oven Control

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Bridge Element (Watts)

Center Element (Watts)

Oven Features

Upper/Lower Oven Capacity (Cu. Ft.)

Upper/Lower Oven Light

Hidden Bake Element

Rack Conﬁguration

Baking System

Broiling System

Upper Bake/ Broil Elements (Watts)

Lower Bake/ Broil Elements (Watts)

Certiﬁcations

Sabbath Mode (Star-K® Cert.)

Speciﬁcations

Upper Oven Interior ( H x W x D )

Lower Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating)

@ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Express-Select® Controls

Black Ceramic Glass

Large

Smudge-Proof

Stainless Steel

Black

Self Clean

Yes / Variable (400-550°F)

Yes

2, 3, 4 Hours

Yes /Yes

6 Hours

Yes

SpaceWise® Expandable

6"/ 9"– 1,600 / 3,000

6" – 1,200

9" – 3,000

6" – 1,200

Keep Warm Zone – 100

3.5/3.5

1/1

Yes

2 Oset, 1 Standard

Even Baking Technology

Vari-Broil™

2,500/3,400

Yes

12-3/4" x 24-1/8" x 19-1/2"

Left Bottom Rear

240V / 208V / 60 Hz

14.5/10.9

40A

260 Lbs

Specifications

subject to change.

Freestanding Range

FGEF302TN F 30" Electric

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

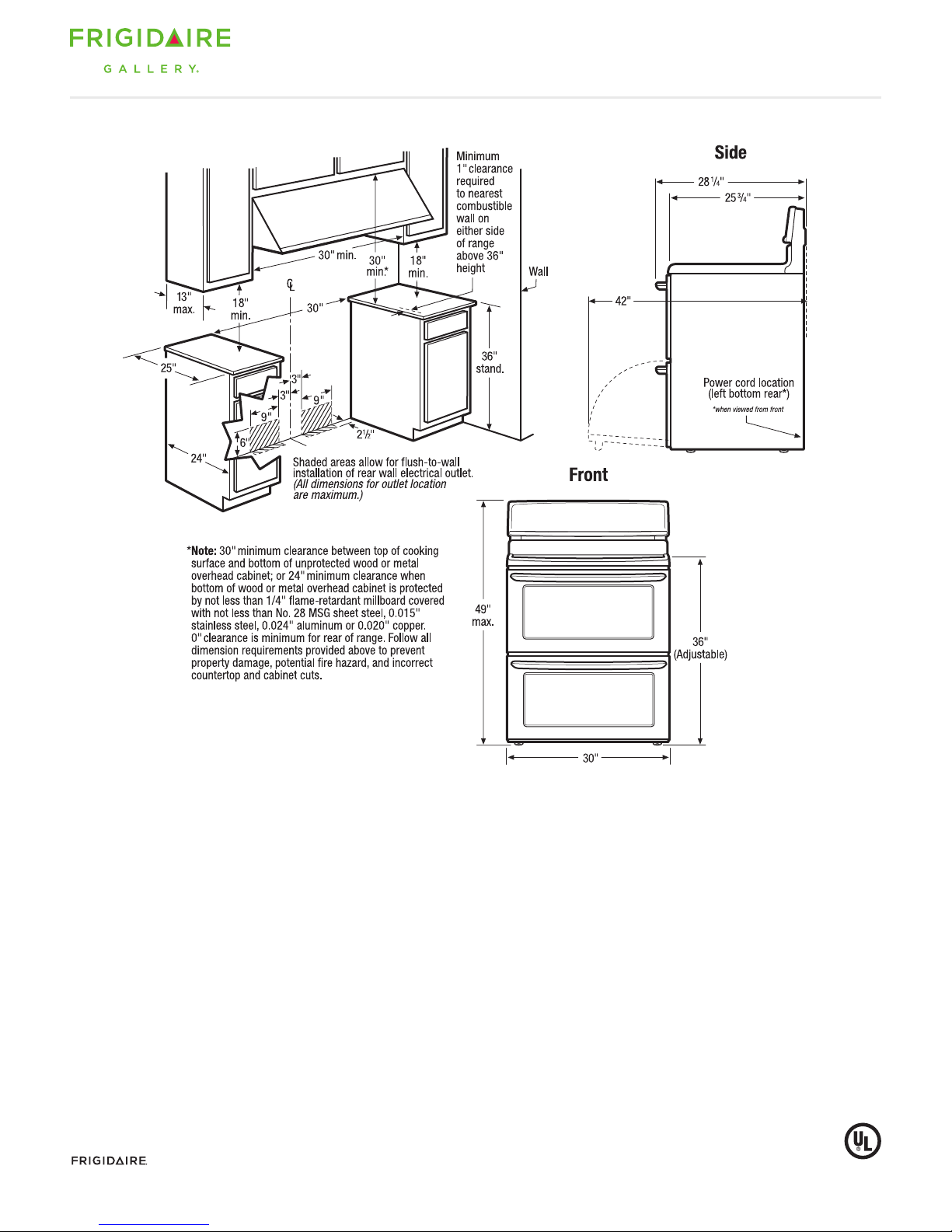

30" Electric Freestanding Ranges with Double Ovens (Symmetrical)

Gallery

Freestanding Range Specifications

•Product Shipping Weight (approx.) – 260 Lbs.

•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,

fused on both sides of line with ground.

•Connected Load (kW Rating) @ 240 / 208 Volts = 14.5/10.9

•Recommended Circuit Breaker – 40 Amps

•Always consult local and national electric codes.

•Floor beneath range MUST be solid and level.

•Overhead cabinetry should not exceed a 13" maximum depth.

•Absolute minimum horizontal distance between overhead cabinets

installed to either side of appliance must be no less than maximum

width of appliance.

•Range can be installed flush to wall with 0" minimum rear clearance.

•Minimum 1" clearance required from edge of rangetop to nearest

combustible wall on either side of range above 36" height.

•Allow 30" minimum clearance between top of cooking surface and

bottom of unprotected wood or metal overhead cabinet; or 24"

minimum clearance when bottom of wood or metal overhead cabinet

is protected by not less than 1/4" flame retardant millboard covered

with not less than No. 28 MSG sheet steel, 0.015" stainless steel,

0.024" aluminum or 0.020" copper.

•To reduce risk of fire when using overhead cabinetry, install

range hood that projects horizontally a recommended minimum

of 5" beyond bottom of cabinets.

•Follow all dimension requirements provided to prevent property

damage, potential fire hazard, and incorrect countertop and

cabinet cuts.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

General Installation Guidelines

with French Door Refrigerator
