Frigidaire FGEF3041KF - Electric Range 5.4 Cu.ft Istruzioni per l'installazione

frigidaire.com

Signature Features

30" Electric

Product Dimensions

Height (Max.) 47-1/2"

Width 29-7/8"

Depth (Including Handle) 28-1/2"

More Easy-To-Use Features

Fits-More™ Cooktop

The Fits-More™ cooktop features five

elements so you can cook more at once.

Even Baking Technology

Our latest technology ensures even

baking every time.

Auto Shut-O

As an extra safety measure, the oven

will automatically shut off after 12 hours.

One-Touch Self Clean

Start the self-cleaning cycle with

just the touch of a button.

Quick Clean

For a quick, light oven cleaning.

Delay Start

Set your oven to begin cooking on

your schedule. It can be programmed

from 1 to 24 hours.

Available in:

Stainless

(F)

Elements

Right Front

Right Rear

Left Front

Left Rear

Center

Watts

2,700

1,200

3,000

1,200

100

Size

12"

Keep Warm

Zone

Quick Boil

Boils water faster.

Express-Select® Controls

Easily go from warm to boil.

Real Stainless Steel

Real stainless steel with a protective

coating that reduces fingerprints and

smudges so it’s easy to clean.

Keep Warm Zone

Keep food warm until everything —

and everyone — is ready.

Freestanding Range

FGEF3041K F

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Cutout Dimensions

Height (Standard)

Width (Min.)

Depth (Min.)

36"

30"

24"

Product Dimensions

A - Height (Max.)

B - Width

C - Depth (Including Handle)

Depth with Door Open 90˚

47-1/2"

29-7/8"

28-1/2"

48-3/8"

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

30" Electric Freestanding Ranges

Frigidaire Baseline

36"

(Adjustable)

Features

Oven Control / Timing System

Surface Type

Window

Exterior Door Finish

Handle Design

Exterior Finish (Side Panels)

Convection System

Oven Cleaning System

Drawer Functionality

Oven Controls

Bake / Broil

Eortless™ Convection Conversion

Convection Bake / Broil / Roast

Quick Bake Convection

Quick Preheat

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Bake

Self Clean

Quick Clean Option

Delay Clean

Kitchen Timer / Timed Cook Option

Auto Oven Shuto

Lower Drawe r Control

Cooktop Features

Right Front Element (Watts)

Right Rear Element (Watts)

Left Front Element (Watts)

Left Rear Element (Watts)

Bridge Element (Watts)

Center Element (Watts)

Oven Features

Capacity (Cu. Ft.)

Oven Light

Hidden Bake Element

Rack Conﬁguration

Baking System

Broiling System

Bake Element / Broil Element (Watts)

Drawer Racks

Certiﬁcations

Sabbath Mode (Star-K® Cert.)

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating)

@ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Express-Select®

Black Ceramic Glass

Extra-Large

Real Stainless Steel

Stainless Steel

Black

Self Clean

Storage

Yes /Low and High

Yes

2, 3 Hours

Yes / Yes

12 Hours

12" – 2,700

6" – 1,200

9" – 3,000

6" – 1,200

Keep Warm Zone – 100

5.4

Yes

2 Standard, 1 Oset

Even Baking Technology

Vari-Broil™ Hi / Lo

3,500 / 3,600

21" x 24-3/8" x 19-1/8"

Middle Bottom Rear

240V / 208V / 60 Hz

12.5 / 9.5

205 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Freestanding Range

FGEF3041K F 30" Electric

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

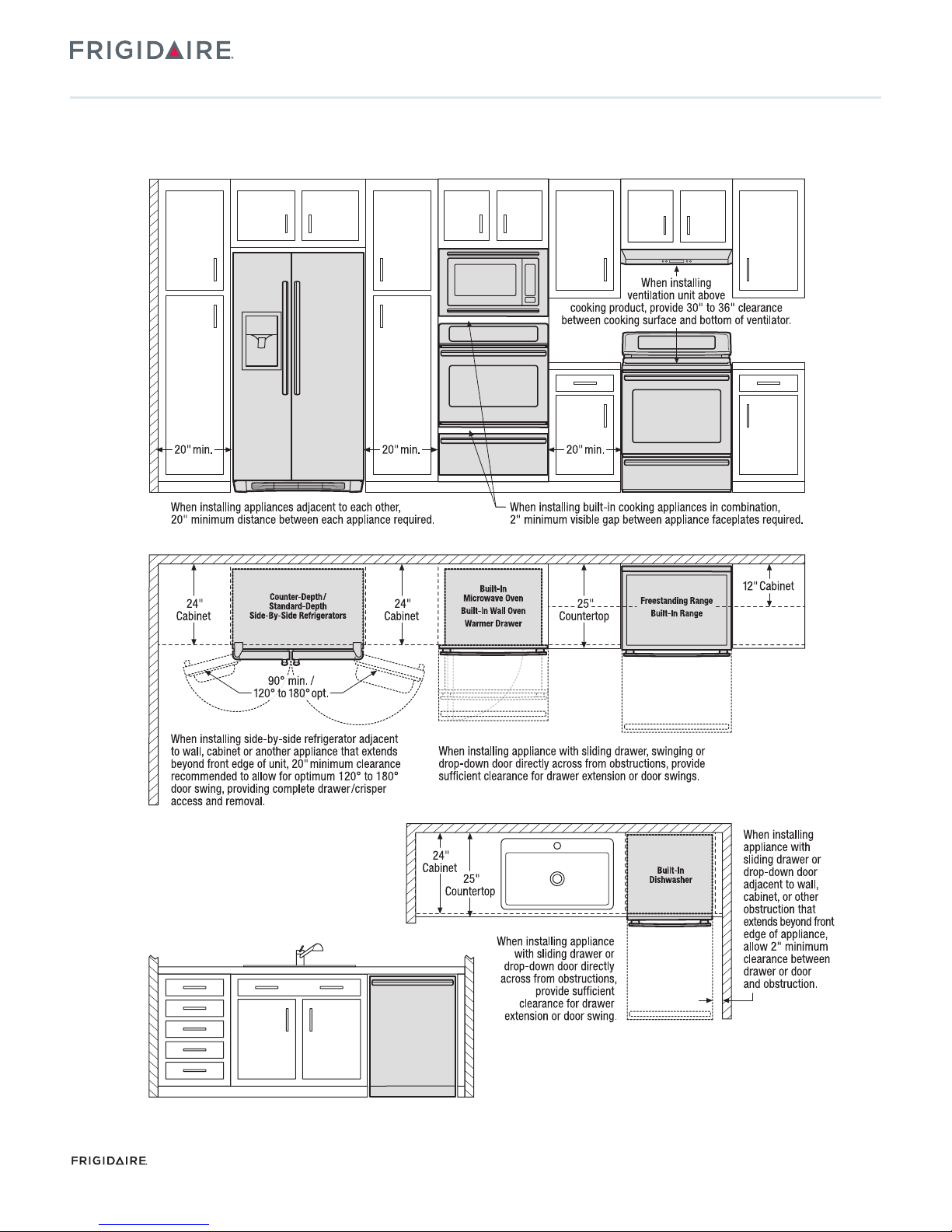

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator
