Frigidaire FGF311PHSA Manuale utente

FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF311PHTA FGF311PH ALMOND USA

FGF311PHTB FGF311PH ALMOND USA

FGF311PHTC FGF311PH ALMOND USA

FGF311PHSA FGF311PH WHITE USA

FGF311PHSB FGF311PH WHITE USA

FGF311PHSC FGF311PH WHITE USA

Publication No.

5995344396

001009

-EN/SERVICE /CML

369

WIRING DIAGRAM # - 316002153

OWNER’S GUIDE # - 316135900

INSTALLATION GUIDE # - 316105805 GAS - RANGE

FGF311PHTA

FGF311PHTB

FGF311PHTC

FGF311PHSA

FGF311PHSB

FGF311PHSC

10/00 2

Publication number

5665344396 FGF311PH

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 10/00

Publication number

FGF311PH 5665344396

CAUTION: Use the part number on all orders, not the position number.

A = FGF311PH (FGF311PHSA)

B = FGF311PH (FGF311PHSB)

C = FGF311PH (FGF311PHSC)

D = FGF311PH (FGF311PHTA)

E = FGF311PH (FGF311PHTB)

F = FGF311PH (FGF311PHTC)

POS. NO PART NO DESCRIPTION

* 316021105 A B C D E F Screw

* 316021108 A B C D E F Screw

* 316021110 A B C D E F Screw

* 316097602 A B C D E F Insulator

* 316105805 A B C D E F Instructions

9 316133501 A B C - - - Trim-splasher,white

9 316133505 ---DEF Trim-spasher,almond

11 316057003 A B C - - - Trim-wrapper,white

11 316057008 ---DEF Trim-wrapper,almond

12 # 316032404 A B C D E F Thermostat

19 316034130 A B C - - - Panel-control

19 316034132 ---DEF Panel-control

30A 316064300 A B C D E F Nut

32 316102303 A B C - - - Knob-thermostat

32 316102315 ---DEF Knob-thermostat

36 316009009 A B C - - - Knob-top valve

36 316102316 ---DEF Knob-top valve

40 316086820 A B C - - - Panel-manifold

40 316086840 ---DEF Panel-manifold

44 3131468 A B C D E F Bracket

45A 316056903 A B C - - - Bolt-fastener

45A 316056904 ---DEF Bolt-fastener

94 316111300 A B C D E F Stiffener-backguard

BACKGUARD

10/00 4

Publication number

5665344396 FGF311PH

CAUTION: Use the part number on all orders, not the position number.

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 10/00

Publication number

FGF311PH 5665344396

CAUTION: Use the part number on all orders, not the position number.

BURNER

A = FGF311PH (FGF311PHSA)

B = FGF311PH (FGF311PHSB)

C = FGF311PH (FGF311PHSC)

D = FGF311PH (FGF311PHTA)

E = FGF311PH (FGF311PHTB)

F = FGF311PH (FGF311PHTC)

POS. NO PART NO DESCRIPTION

* 5303271648 A B C D E F Screw

1 316113500 A B - D E - Manifold Pipe

1 316134400 - - C - - F Manifold Pipe

2 # 316098600 A B - D E - Valve-top burner

2 # 316134200 - - C - - F Valve-top burner

2* 316134300 - - C - - F Screw-valve mtg

2* 316048200 A B - D E - Screw-valve mtg

3 # 316103601 A - - D - - Switch-ignitor

3 316001828 - B C - E F Harness ignitor assy.

8 # 316135700 - - C - - F Spark Module

8 # 5303912606 A B - D E - Spark Module

10 # 316039002 A B - D E - Burner-top

10 316103800 - - C - - F Burner-top

10A# 316039003 A B - D E - Burner-top

10A 316103801 - - C - - F Burner-top

11 # 316081700 A B C D E F Ignitor-top burner

11A# 316081701 A B C D E F Ignitor-top burner

12 3016993 A B C D E F Retainer-ignitor

14 # 316082900 A B C D E F Regulator-pressure

14* 316021104 A B C D E F Screw-regulator/brkt

17 # 3203459 A B C D E F Valve-safety

18 # 316114300 A B C D E F Burner-oven

19 316119301 A B C D E F Ignitor-oven

20 3203265 A B C D E F Baffle-oven burner

21 5303013272 A B C D E F Nut

36 316083000 A B C D E F Tubing

48 3018603 A B C D E F Bracket-support

49 3131438 A B C D E F Bracket

10/00 6

Publication number

5665344396 FGF311PH

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 7 10/00

Publication number

FGF311PH 5665344396

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FGF311PH (FGF311PHSA)

B = FGF311PH (FGF311PHSB)

C = FGF311PH (FGF311PHSC)

D = FGF311PH (FGF311PHTA)

E = FGF311PH (FGF311PHTB)

F = FGF311PH (FGF311PHTC)

POS. NO PART NO DESCRIPTION

* 316021105 A B C D E F Screw

* 316021108 A B C D E F Screw

* 316021110 A B C D E F Screw

* 316021112 A B C - - - Screw-8-18x1/2 Tr Sqd White

* 316021113 ---DEF Screw-8-18x1/2 Tr Sqd Almond

* 316021120 A B C D E F Screw

* 5303280311 A B C D E F Screw

1 316110201 A B C D E F Carriage

2 316110101 A B C D E F Liner-low broil

2A 316110800 A B C D E F Shield-broiler

4 316056205 A B C - - - Panel-drawer

4 316056206 ---DEF Panel-drawer

5 316129100 A B C D E F Fastener-spacer

9 316081900 A B C D E F Pan-broiler

10 316082000 A B C D E F Insert-broiler pan

13 316111502 A B C D E F Glide-low broil

13A 316111600 A B C D E F Glide-drawer

13B 316111501 A B C D E F Glide-low broil

16 316104401 A B C - - - Main Top

16 316104402 ---DEF Main Top

17 316066900 A B C D E F Rod-maintop support

18 08067747 A B C D E F Bracket-hinge

18A 08067746 A B C D E F Bracket-hinge

20 # 316088900 A B C D E F Grate

25 316104500 A B C D E F Cover-vent

30 316111400 A B C D E F Insulation

39 316019505 A B C - - - Handle-drawer

39 316019508 ---DEF Handle-drawer

85 316115600 A B C D E F Rack-Low Broil

10/00 8

Publication number

5665344396 FGF311PH

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 9 10/00

Publication number

FGF311PH 5665344396

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF311PH (FGF311PHSA)

B = FGF311PH (FGF311PHSB)

C = FGF311PH (FGF311PHSC)

D = FGF311PH (FGF311PHTA)

E = FGF311PH (FGF311PHTB)

F = FGF311PH (FGF311PHTC)

POS. NO PART NO DESCRIPTION

* 316021105 A B C D E F Screw

* 316021108 A B C D E F Screw

* 316073400 A B C D E F Plate-weight

1 316029416 A B C D E F Back-main

3 316081034 A B C - - - Panel-bodyside

3 316081035 A B C - - - Panel-bodyside

3 316081036 ---DEF Panel-bodyside

3 316081037 ---DEF Panel-bodyside

4 316067206 A B C D E F Burner Box

5 316129100 A B C D E F Fastener-spacer

5 316129200 A B C D E F Screw-leveling

6 316067902 A B C D E F Rack-oven

7 316007007 A B C D E F Hinge-oven door

8 5303212540 A B C D E F Panel-oven bottom

8* 316064600 A B C D E F Support-oven bottom

21 3014099 A B C D E F Spacer-bodyside

27 5303284616 A B C D E F Clip-thermo bulb

32 316107501 A B C D E F Channel-burner supt

32* 5303289684 A B C D E F Fastener

33 316055600 A B C D E F Shield-spark module

34 3018607 A B C D E F Cover Plate

35 316116600 A B C D E F Gasket-flue

36 316103901 A B C D E F Flue

39 3202006 A B C D E F Cord-electric power

41 3131570 A B C D E F Cover-hinge cutout

43 3131732 A B C D E F Screw-oven bottom

58A 3017142 A B C D E F Insulation

58B 3203541 A B C D E F Insulation

69 3051218 A B C D E F Plate-oven light

73 316109902 A B C D E F Base-low broil

93 316110000 A B C D E F Shield

170 5303935180 A B C D E F Anti-tip Kit

170* 316107200 A B C D E F Bracket

170* 316112500 A B C D E F Template, Anti-tip bracket

170* 316116000 A B C D E F Screw

10/00 10

Publication number

5665344396 FGF311PH

CAUTION: Use the part number on all orders, not the position number.

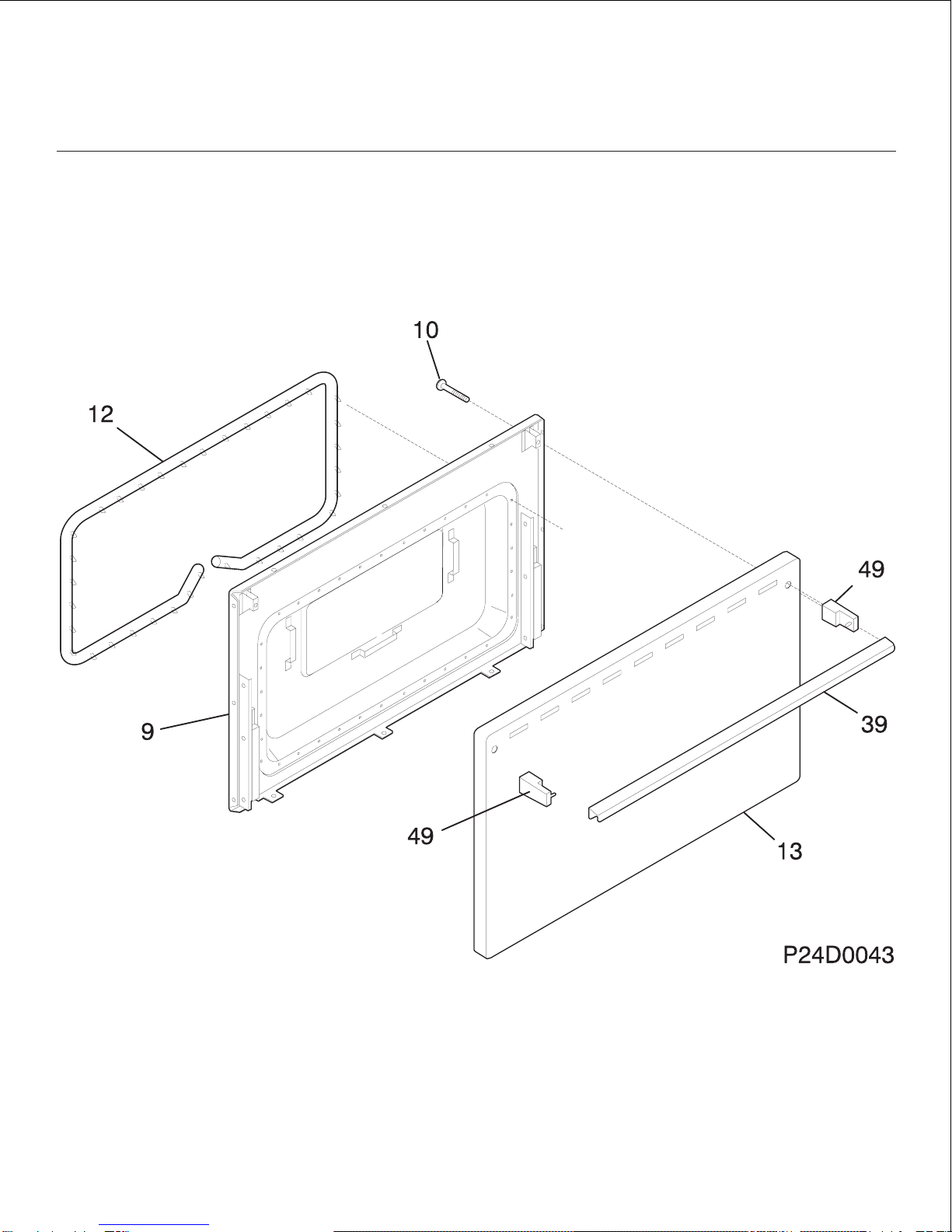

DOOR
