Frigidaire GLEFM385D Manuale utente

FEFLM605D.eps T20G0037.eps T20V0077.eps T20T0035.eps T20D0008.eps

316417762d.eps 316417762s.eps

Product No. GLEFM385DQB GLEFM385DSB

Series 30" f/s elec 30" f/s elec

Color bisque white

Market North America North America

Wiring Diagram 316417762 316417762

Owner's Guide 316417009 316417009

Installation Instructions 316259206 316259206

Service Data Sheet 316417614 316417614

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995424313

04/12/14

(EN/SERVICE/ECL)

369

30-INCH FREE-

STANDING ELECTRIC

RANGE

Model No.

GLEFM385D

Publication No: 5995424313 GLEFM385D

12/04 2

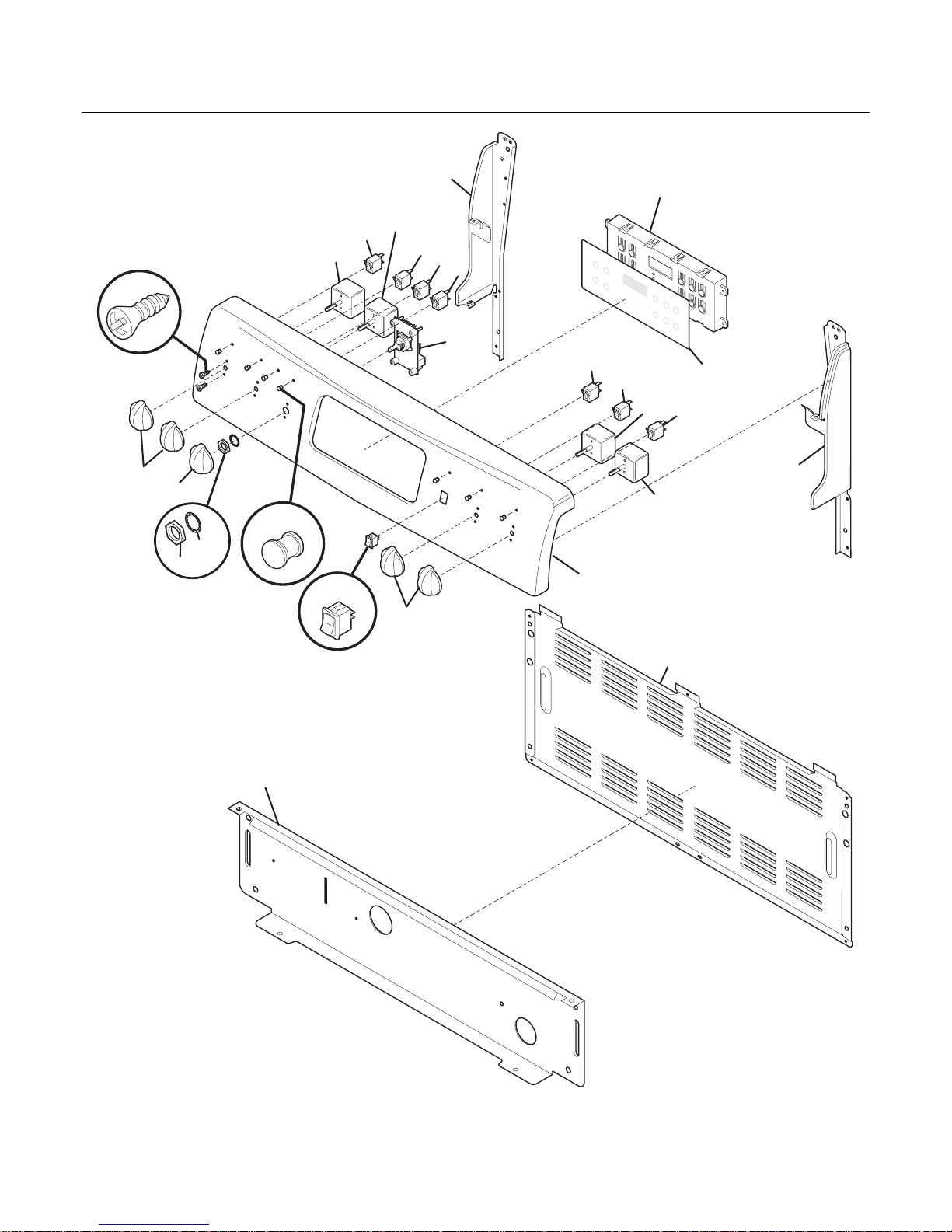

BACKGUARD

8.8.

24C

54B

141414

T20G0037

15A

20A

55A

GLEFM385D Publication No: 5995424313

# Functional Parts 3 12/04

* Non-Illustrated Parts

BACKGUARD

Model Index: AGLEFM385D (GLEFM385DSB)

BGLEFM385D (GLEFM385DQB)

POS. NO PART NO. DESCRIPTION

1 316416100 A B Shield, backguard, rear wall

13 316414400 A B Control, bake, mini oven

14 316022500 A B Light/Lamp, indicator, 125 V

15 316411403 A - Support, backguard, white, RH

15 316411407 - B Support, backguard, bisque, RH

15A 316411402 A - Support, backguard, white, LH

15A 316411406 - B Support, backguard, bisque, LH

19 316424145 A - Panel, control, white

19 316424147 - B Panel, control, bisque

20 # 316418305 A B Clock/Timer, electronic, ES340

20A 316419304 A - Overlay, clock, white, ES340

20A 316419305 - B Overlay, clock, bisque, ES340

24C# 316114000 A - Switch, speed bake, white

24C# 316114004 - B Switch, convection, bisque

31 316223000 A - Knob, control, white

31 316223003 - B Knob, control, bisque

36 316223017 A - Knob, control, white

36 316223020 - B Knob, control, bisque

46 316040201 A B Lens, indicator light, red

54B# 316238200 A B Switch, infinite, dual element

55 316247700 A B Nut, hex control mtg, (4)

55A 316247800 A B Washer, lock, control mtg

56 316234001 A - Shield, backguard, white, inner

56 316234004 - B Shield, backguard, bisque, inner

69 5303288565 A B Screw, truss sqdr, 8-32 x 3/16, switch mtg

* 316416906 A B Harness, mini oven cntl

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 A B Screw, 8-18 x 0.5, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

Publication No: 5995424313 GLEFM385D

12/04 4

BODY

33A

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

1716

107

164

113

112

170

151

T20V0077

59B

59A

110

109

111

106

108

GLEFM385D Publication No: 5995424313

# Functional Parts 5 12/04

* Non-Illustrated Parts

BODY

Model Index: AGLEFM385D (GLEFM385DSB)

BGLEFM385D (GLEFM385DQB)

POS. NO PART NO. DESCRIPTION

1 316401800 A B Panel, main back

3 316400102 A - Panel, bodyside, white, RH

3 316400103 A - Panel, bodyside, white, LH

3 316400106 - B Panel, bodyside, bisque, RH

3 316400107 - B Panel, bodyside, bisque, LH

5 316272900 A B Screw, leveling, plastic, rear, (2)

5A 316407200 A B Leveling Leg Assy, metal, front, (2), bracket & leg

6 316404500 A B Rack, oven

6B 316425400 A B Rack, oven

8A 316411102 A B Base, bake element

12 # 316407100 A B Switch, oven light/door

14 316116400 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, oven light

16 08011086 A B Lens, oven light, glass

17 316087500 A B Retainer, lens

18 # 316405800 A B Latch Assembly, oven door

21 316408000 A B Clip, bodyside

33A 316402100 A B Shield, rear wall, lower

37 # 316217001 A B Probe, oven temp

42 316407700 A B Shield, wool, lower

44 316246501 A B Spacer, oven door

45 316234100 A B Shield, wire, vent tube

57 316422400 A B Cover, access

58 316403801 A B Insulation, oven sump

58A 316406600 A B Insulation, oven wrapper

58B 316406500 A B Insulation, oven back

59 316208200 A B Tube, oven vent, lower

59A 316208302 A B Tube, oven vent, upper

59B 316247300 A B Catalyst, oven vent, ceramic

62 5303935238 A B Terminal Block Kit, w/ground plate

62* 316085600 A B Insulator

62* 316205500 A B Nut, hex flange, 3/8 10-32

63 316278800 A B Plate, grounding strap

66 # 316430900 A B Element, broil, 4000W

67 316415900 A B Element, bake, 3500W, 6 pass

68 316429100 A B Support, element, broil

71 316422300 A B Shield, rear wall

86 316407000 A B Receptacle, hinge

86* 316418901 A B Screw, trilobe, 10-32 x 5/16"

87 316081200 A B Bracket, cable mtg

88 316203500 A B Rod, auto latch

89 # 316415400 A B Motor, latch/lock

106 316404100 A B Bracket, motor mtg.

107 316026701 A B Cover, fan

108# 316415800 A B Motor, fan

109 316136400 A B Blade, fan

110 316136500 A B Washer, fan motor

111 316136600 A B Nut, fan retainer

112 316435200 A B Standoff, strike plate

Publication No: 5995424313 GLEFM385D

12/04 6

BODY

33A

5A 5

ANTI-TIP

BRACKET

ANTI-TIP

BRACKET

NOTE: Oven Liner N/A

Ass. du four N/A

170

151

58A

58B

1716

107

164

113

112

170

151

T20V0077

59B

59A

110

109

111

106

108

GLEFM385D Publication No: 5995424313

# Functional Parts 7 12/04

* Non-Illustrated Parts

BODY

Model Index: AGLEFM385D (GLEFM385DSB)

BGLEFM385D (GLEFM385DQB)

POS. NO PART NO. DESCRIPTION

113 316431600 A B Plate, strike, mini oven

113* 316436700 A B Screw, countersunk HD, #10-16 x 1/4, (2)

151 316404600 A B Shield, bodyside

164 316410301 A B Trim, front, mini oven

170 5303935180 A B Anti-tip Kit, w/bracket, screw

170* 316107200 A B Bracket, anti-tip

170* 316112500 A B Template, anti-tip

170* 316116000 A B Screw, concrete, 1.75", anti-tip brkt

* # 316416430 A B Harness, wiring, main

* 3203550 A B Plug, button, oven bottom

* 316231800 A B Cover, hole, conv. element

* 5303305324 A - Paint, touch-up, white

* 5304414035 - B Paint, touch-up, bisque

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

* 316021132 A B Screw, 8-18 X 11/16, black

* 316089500 A B Screw, 10-16 x .486

* 5303271648 A B Screw, wafer hd sq dr, 8-18AB x 0.5

* 5303285179 A B Screw, wafer head, 8-32T x 0.500, black

* 5308014215 A B Screw, 6-20 x 0.312

Publication No: 5995424313 GLEFM385D

12/04 8

TOP/DRAWER

26B

26A

100

110

109

T20T0035

108

105

107

106

103

102

101

15A

18A

GLEFM385D Publication No: 5995424313

# Functional Parts 9 12/04

* Non-Illustrated Parts

TOP/DRAWER

Model Index: AGLEFM385D (GLEFM385DSB)

BGLEFM385D (GLEFM385DQB)

POS. NO PART NO. DESCRIPTION

1 316414101 A B Drawer, mini oven

2 316409801 A B Liner, drawer, mini oven, solid

12 316410700 A B Seal, door, mini oven

13 316414000 A B Glide, drawer, mini oven, (2)

14 316414200 A B Insulation, door, mini oven

15 # 316418400 A B Element, dual, 6"/9", surface, 1200W/1300W, radiant

15A# 316419900 A B Element, dual, 5"/7", surface, 750W/1800W, radiant

16 316421260 A - Maintop, frame/glass, white

16 316421261 - B Maintop, frame/glass, bisque

18 316235900 A B Hinge, main top, RH

18A 316235901 A B Hinge, main top, LH

26 316427600 A B Channel, element support, (2)

26A 316099202 A B Bracket, chassis support, rear

26B 316214200 A B Bracket, chassis support, front

27 316409901 A - Trim, door, white

27 316409903 - B Trim, door, bisque

29 316429000 A B Spacer, handle, (2)

29* 316437600 A B Washer, shoulder, nylon, (2)

30 316431700 A B Magnet Assembly, mini oven

33 316410000 A - Glass, drawer, white, front

33 316410002 - B Glass, drawer, bisque, front

37 # 316217003 A B Probe, oven temp, mini oven

39 316203001 A - Handle, door, white

39 316203003 - B Handle, door, bisque

52 316278300 A B Clip, element mtg

60 316001015 A B Screw, waf hd sq, 10-24 x 1.25, (2), handle mtg

81 # 316413900 A B Element, bake, mini oven

85 316411000 A B Rack, mini oven

100 316410900 A B Insulation, wrapper, mini oven

101 316410201 A B Panel, top, mini oven

102 316431201 A B Panel, oven side, RH, mini oven

103 316431203 A B Panel, oven side, LH, mini oven

105 316431301 A B Panel, main back, mini oven

106 316431400 A B Insualtion, oven back, mini oven

107 316431307 A B Shield, main back, mini oven

108 316410101 A B Panel, bottom, mini oven

109 316410800 A B Insulation, floor, mini oven

110 316410400 A B Shield, floor, mini oven

* # 316416803 A B Harness, wiring, surface

* 316416907 A B Harness, mini oven cntl

* 316416908 A B Harness, mini oven, to probe

* 316264000 A B Cleaner, cooktop

* 316021105 A B Screw, hex head cup pt, 8-18 x 0.375, black

* 316021108 A B Screw, cup pt, 8-18 x 0.375, chrome

* 316021109 A B Screw, 8-18 x 0.5, chrome

* 316021110 A B Screw, 8-18 x 0.5, black

* 5308014215 A B Screw, 6-20 x 0.312

Publication No: 5995424313 GLEFM385D

12/04 10

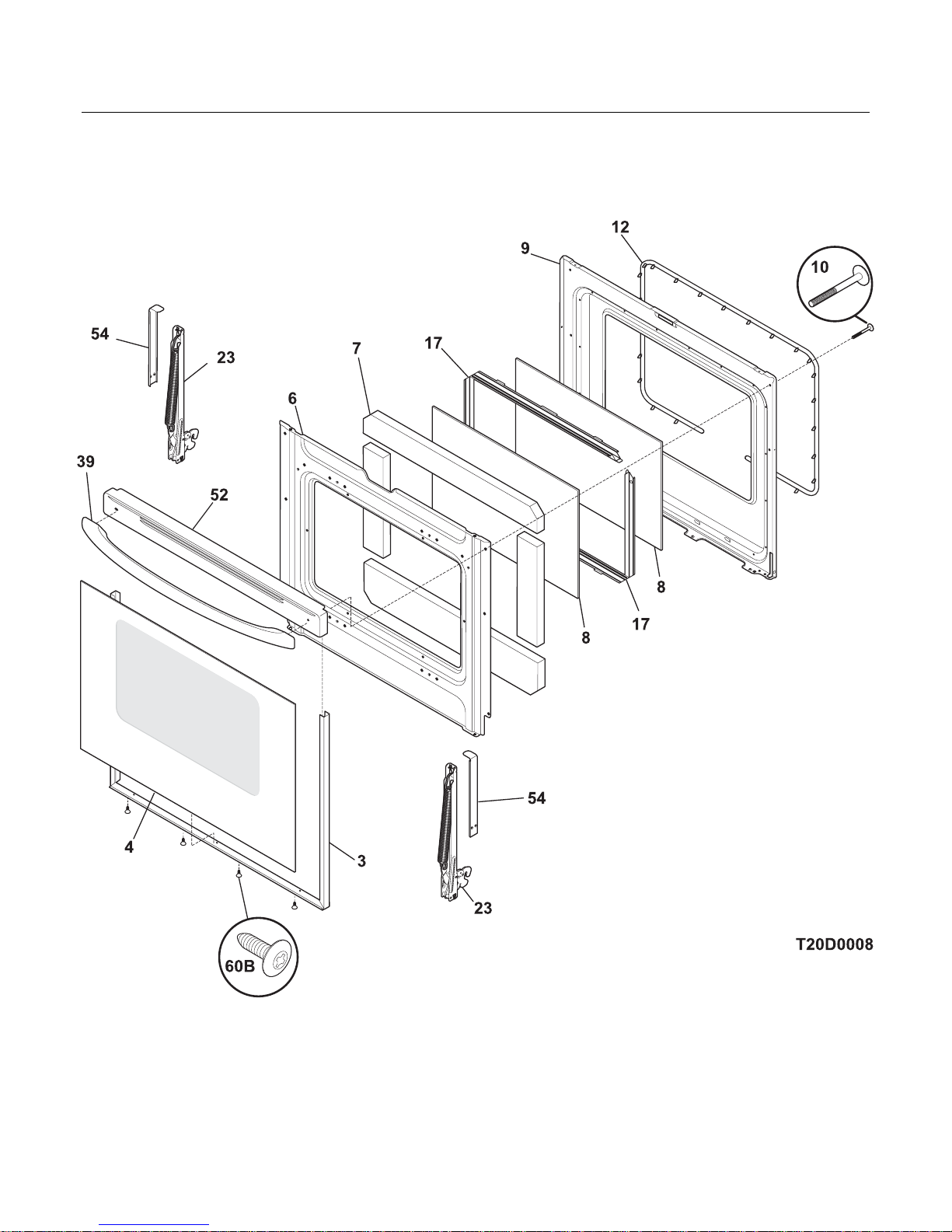

DOOR
