Frigidaire FRIGIDAIRE PL30DD50EC Manuale utente

Product No. PL30DD50EC PL36DD50EC

Market North America North America

Color stainless steel stainless steel

Exhaust-CFM 500 CFM 500 CFM

Volts 120 120

Owner's Guide 99043820 99043820

Installation Instructions 99043820 99043820

Wiring Diagram 5995459137 5995459137

CPL30DD.eps PL30DD.tif Downdraft Wiring.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459137

06/02/03

(EN/SERVICE/KC)

099

RANGE HOOD

Model No.

PL30DD50E

PL36DD50E

Publication No: 5995459137 PL30DD50E / PL36DD50E

02/06 2

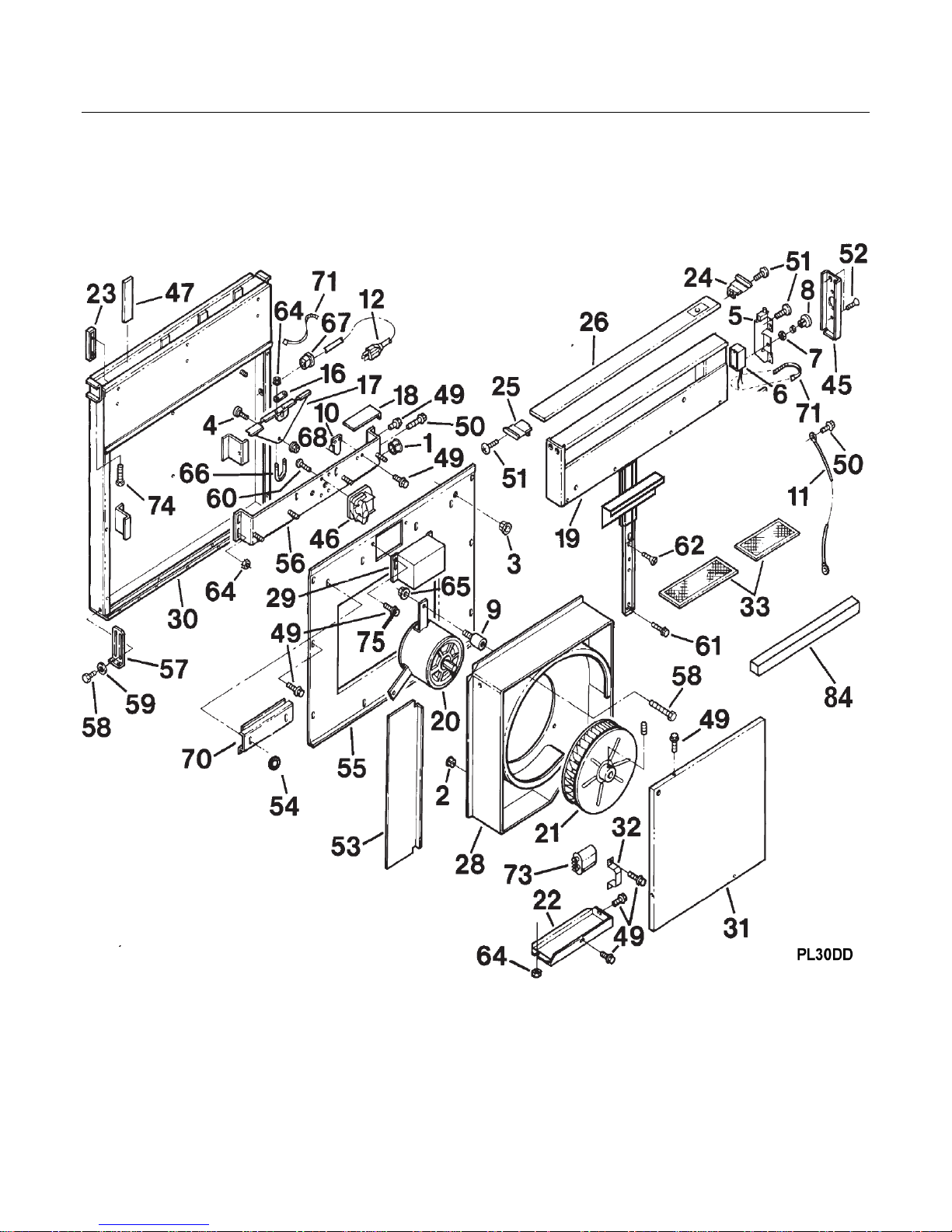

REPLACEMENT PARTS

PL30DD50E / PL36DD50E Publication No: 5995459137

# Functional Parts 3 02/06

* Non-Illustrated Parts

REPLACEMENT PARTS

Model Index: APL30DD50E (PL30DD50EC)

BPL36DD50E (PL36DD50EC)

POS. NO PART NO. DESCRIPTION

1 5303282136 A B Bushing, grommet, 7/8 inch

2 5303304156 A B Bushing, split, 5/8 inch

3 5303304157 A B Bushing, 1/2 inch

4 5303304158 A B Roller

5 # 5303304159 A B Switch Assembly, vent up/down

6 # 5303304160 A B Wiring Harness, speed control

7 5303303680 A B Nut, 3/8-32

8 5303282102 A B Knob, control, on/off/speed

9 5303304055 A B Isolator, motor mount

10 5303282119 A B Bracket, switch assembly, lower

11 5304452621 A B Wire, ground, green

12 # 5303304161 A B Wiring Harness, main

16 5303282118 A B Plate, back-up

17 5303282116 A B Crank

18 5303304164 A B Cover, switch

19 5303304165 A - Chimney Assy, 30 inch, w/slide

19 5303304166 - B Chimney Assy, 36 inch, w/slide

20 # 5303304167 A B Motor, with capacitor

21 # 5303304168 A B Blower Wheel, fan

22 5303304169 A B Extension, scroll box

23 5303282128 A B Spacer, air box

24 5303304170 A B Bracket, top cover, right side

25 5303304171 A B Bracket, top cover, left side

26 5304454055 A - Panel, top cover, stainless

26 5304452714 A - Panel, top cover, white(Optional Kit)

26 5304452716 A - Panel, top cover, black(Optional Kit)

26 5304454056 - B Panel, top cover, stainless

26 5304452717 - B Panel, top cover, white(Optional Kit)

26 5304452719 - B Panel, top cover, black(Optional Kit)

28 5303304173 A B Scroll Box, blower housing

29 5303303934 A B Cover, gear motor

30 5303304174 A - Air Box, 30 inch model

30 5303304175 - B Air Box, 36 inch model

31 5303304176 A B Cover, scroll box

32 5303304177 A B Strap, capacitor mount

33 # 5303282108 A - Filter, kit, with 2 filters

33 # 5303282109 - B Filter, kit, with 2 filters

45 5304454057 A B End Cap, switch cover

46 # 5303282122 A B Gearmotor

47 5303282129 A B Slide Strip, air box

49 5303281950 A B Screw, sheet metal, 8-18 x 0.375

50 5303282015 A B Screw, ground, 10-32 x 0.500

51 5304452625 A B Screw, 8-18 x 0.375

52 5303282099 A B Screw, 8-18 x 0.500

53 5303304178 A - Cover, air box opening, 30" unit

53 5303304179 - B Cover, air box opening, 36" unit

54 5303282107 A B Nut, 10-24

55 5303303935 A - Cover, air box, 30" unit

55 5303304180 - B Cover, air box, 36" unit

Publication No: 5995459137 PL30DD50E / PL36DD50E

02/06 4

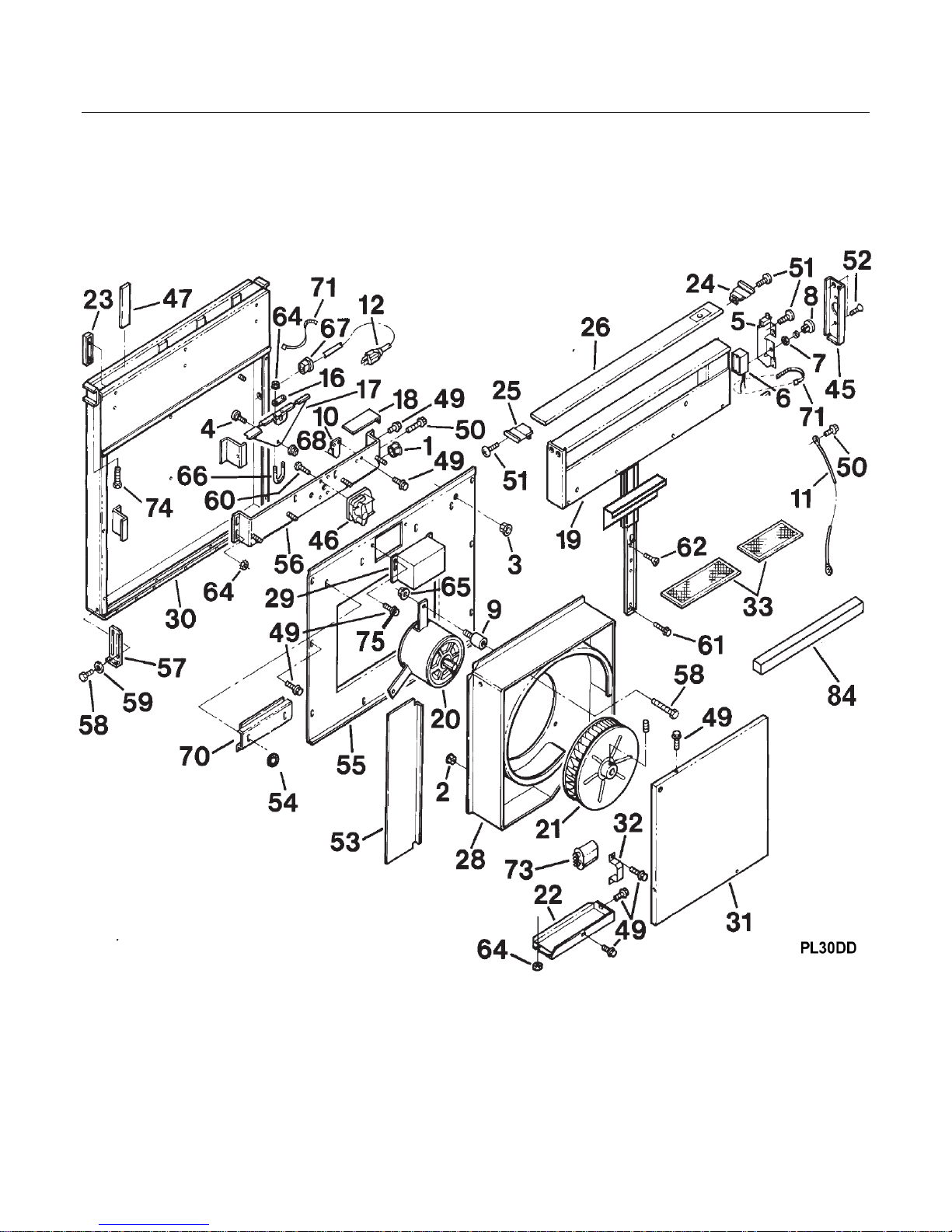

REPLACEMENT PARTS

PL30DD50E / PL36DD50E Publication No: 5995459137

# Functional Parts 5 02/06

* Non-Illustrated Parts

REPLACEMENT PARTS

Model Index: APL30DD50E (PL30DD50EC)

BPL36DD50E (PL36DD50EC)

POS. NO PART NO. DESCRIPTION

56 5303304181 A B Bracket, gearmotor mount

57 5303304182 A B Bracket, leveling leg

58 5303282089 A B Screw, 1/4-20 x 0.312

59 5303282126 A B Washer, flat, 1/4 inch dia.

60 5304452648 A B Screw, 8-32 x 0.500

61 5303282097 A B Screw, locking, 10-24 x 0.375

62 5303282096 A B Screw, 10-24 x 0.375

64 5303282117 A B Nut, hex, 10-24, w/lock washer

65 5303282085 A B Nut, locking, 1/4-20

66 5303282115 A B Bolt, U type, 10-24

67 5303282134 A B Bushing, strain relief

68 5303282131 A B Nut, hex flange, 5/16-18

70 5304452650 A B Clamp, wire channel

71 5303282098 A B Wire Tie

73 # 5303304184 A B Capacitor, motor

74 5304452651 A B Screw, 1/4-20 x 1.250

75 5303282121 A B Screw, 8-18B x 0.250, (2)

84 5304450342 A - Seal, 30 inch, foam

84 5304450341 - B Seal, 36 inch, foam

Publication No: 5995459137 PL30DD50E / PL36DD50E

02/06 6

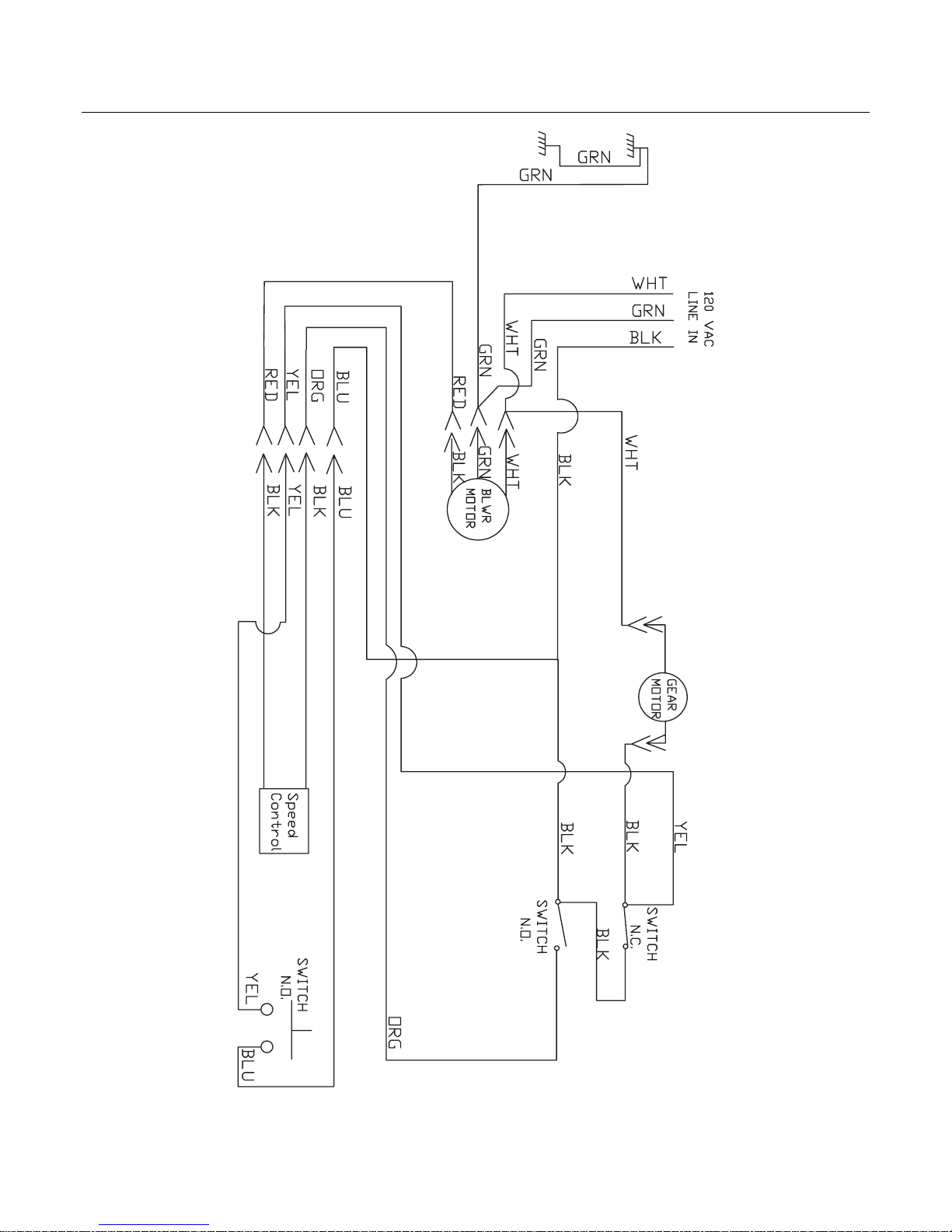

WIRING DIAGRAM
