Frigidaire ATF8000FS - Gallery - Washer Manuale utente

Product No. ATF8000FE1

Series Frigidaire

Market North America

Color black

Volts 115

Wiring Diagram 134879700

Owner's Guide 134850600

Energy Guide 134884800

Installation Instructions 134965600

Operating Instructions 134851000

P12L0054.eps P12C0373.eps P12V0105.eps P12T0101.eps 134879700-1.eps

134879700-2.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995498952

07/09/06

(EN/SERVICE/WTC)

361

FRONT-LOAD

WASHING MACHINE

Model No.

ATF8000F

Publication No: 5995498952 ATF8000FE1

09/07 2

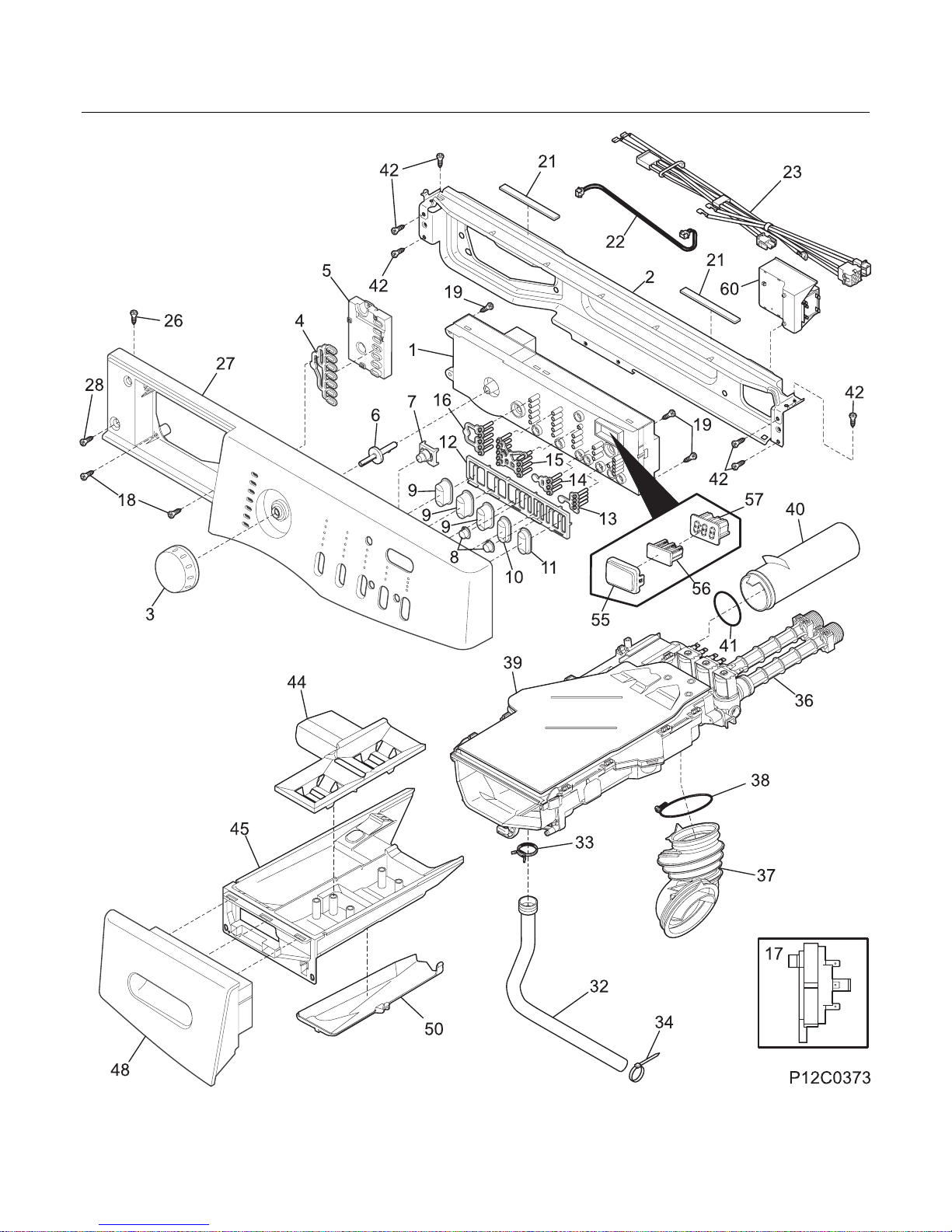

CONTROL PANEL

ATF8000FE1 Publication No: 5995498952

# Functional Parts 3 09/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 134855600 Control Board, pc, with housing

2 134364800 Bracket, top front

3 134551225 Knob, program, chrome

4 134553100 Light Pipe, program

5 # 134556500 Interface Board, pc, auxiliary

5* 134178901 Screw, 8-18AB x 0.455

6 134347700 Pin, program knob

7 134890400 Push Button, round, #2

8 134555525 Push Button, round, #1

9 134553425 Push Button, oval, #1

10 134555440 Push Button, oval, #2 (soil)

11 134864400 Push Button, oval, start

12 134884900 Spring, push button

13 134557500 Light Pipe, start group

14 134557400 Light Pipe, row of 3

15 134552800 Light Pipe, 5 x 4

16 134600000 Light Pipe, row of 5

17 # 134762000 Switch, pressure

18 131302800 Screw, 10-16AB x 0.375

19 134402900 Screw, phillips, 6-19 x 0.650

21 134407900 Dampener, vibration

22 # 134602100 Wiring Harness, interface board

23 # 134739500 Wiring Harness, controls

23*# 134887800 Wiring Harness, main

26 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

27 134556460 Panel, control console, black

28 131205300 Screw, 10-16 x 0.750

32 134586500 Hose, disp-to-bellows

33 131306216 Clamp

34 5303321209 Cable Tie, 5.60 inch

36 # 134371220 Valve, dispenser, NTC/short tube

36* 131311900 Screw, quadrex ph, 8-18AB x 0.500

37 134372300 Hose, disp-to-tub

38 134372400 Clamp, tub hose

39 134446120 Housing, dispenser, w/valve, cover

39* 134371300 Gasket, disp-to-valve

40 134372100 Tube, disp-to-overflo

41 134372200 O-ring, overflow tube

42 131168200 Screw, pan head, 8-18B x 0.31

44 134370200 Cover, dispenser

45 134370000 Drawer, dispenser

48 134556760 Handle/Drawer Assy, black

50 134370100 Conveyor, dispenser, lower

55 134553200 Lens, digital display

56 134557300 Light Pipe, digital display

57 # 134503300 Display, digital

60 # 134558200 Control, heater, w/transformer

Publication No: 5995498952 ATF8000FE1

09/07 4

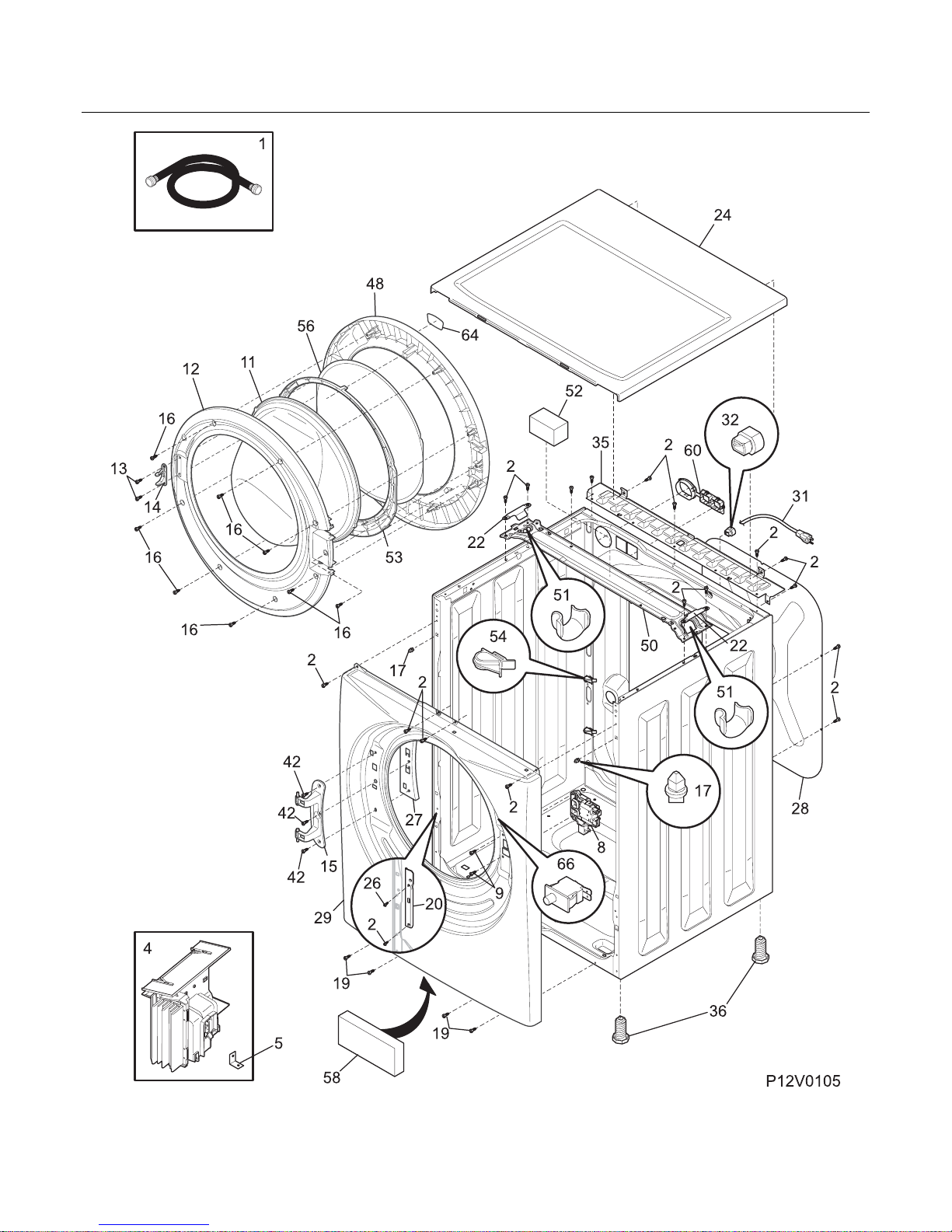

CABINET/TOP

ATF8000FE1 Publication No: 5995498952

# Functional Parts 5 09/07

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 131454100 Hose, water inlet, 4 ft., hose & washer

2 131168200 Screw, pan head, 8-18B x 0.31

4 # 134409904 Control Board, motor

4* # 134547600 Wiring Harness, motor control

5 134522900 Bracket, angle, motor control

5* 134178901 Screw, 8-18AB x 0.455

8 # 131763245 Door Lock/Switch Assy

8* # 134603100 Wiring Harness, door switch

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

11 134366400 Panel, door glass

12 134550740 Frame, inner door

13 131302901 Screw, 10-16 x 0.750

14 134456640 Striker, door/lock

15 134550800 Hinge, door, with bushings

16 131205300 Screw, 10-16 x 0.750

17 134408700 Clip, assembly

19 131258400 Screw, 10-16AB x 0.500

20 134434901 Bracket, LS panel, reinforcement

20* 134434900 Bracket, RS panel, reinforcement

22 134364700 Retainer, spring steel

24 134365060 Panel, work top, black

26 134521600 Screw, hex washer head, M5 0.8 x 15

27 134550900 Bracket, hinge, reinforcement

28 134364300 Panel, service access, rear

29 134550160 Panel, cabinet front, black

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

35 134365100 Bracket, top support, rear

36 134548800 Leveling Leg, screw, plastic

36* 131311900 Screw, quadrex ph, 8-18AB x 0.500

42 134601900 Screw, flat head, M5 x .8 x 17.5

48 134601560 Panel, outer door, chrome

50 134364600 Bracket, tub suspension

51 134562100 Protector, tub brkt, spring hook, (2)

52 131931202 Dampener, vibration, foam

53 134551300 Ring, door transition

54 134364900 Fastener, wire harn clip

56 134550600 Glass, outer door lens

58 131800405 Insulation, noise absorber

60 134372000 Grommet, dispenser, back panel

64 134601625 Nameplate, Affinity, chrome

66 # 131843146 Switch, door, with drum light

* 134591500 Plug Assy, shippingholes, back

* 134596200 Shipping Support Kit

* 134889700 Clip, hose, drain, rear-panel

Publication No: 5995498952 ATF8000FE1

09/07 6

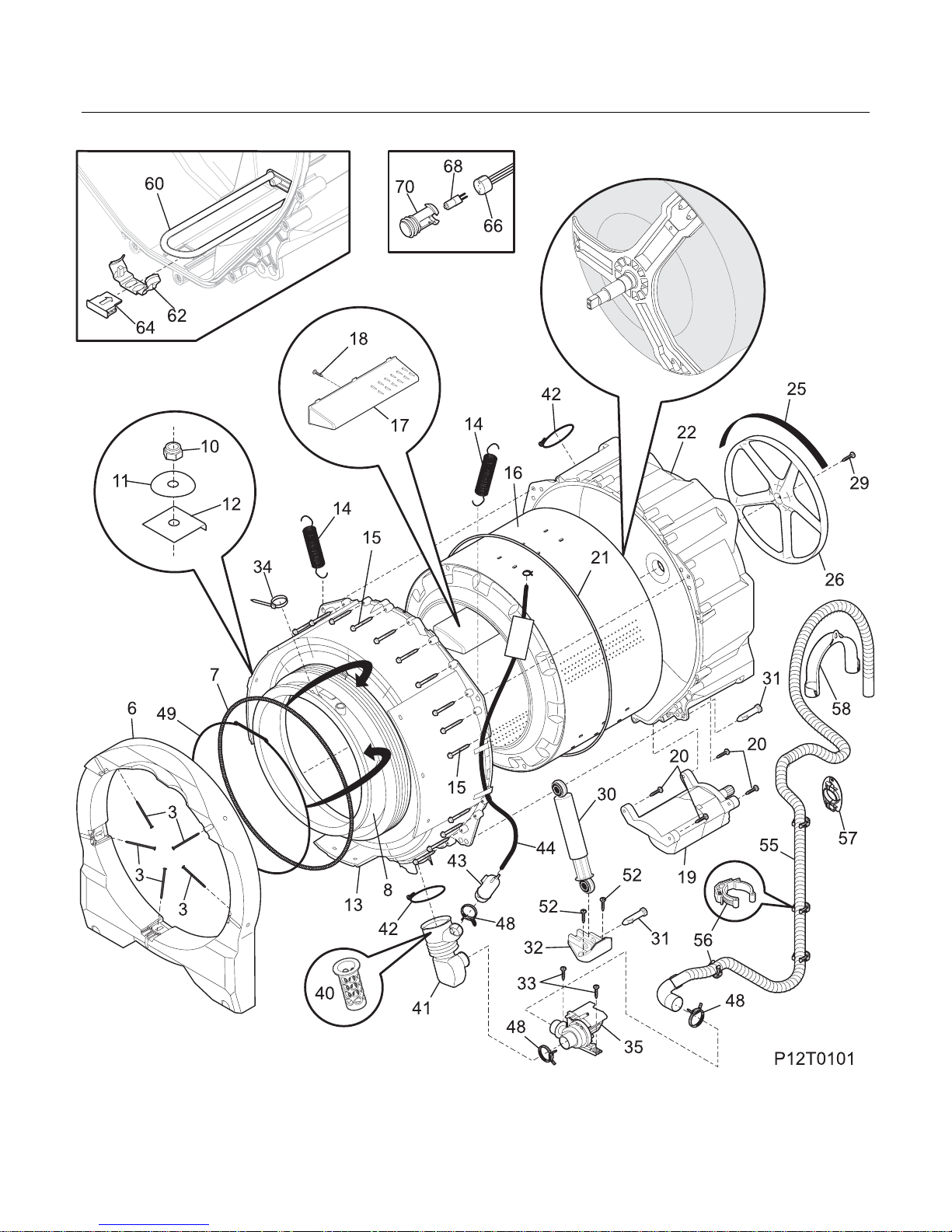

MOTOR/TUB

ATF8000FE1 Publication No: 5995498952

# Functional Parts 7 09/07

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131793303 Bolt, carriage, 1/4-20 x 2.60

6 134362200 Counterweight, front, one piece

7 134365300 Spring, bellows clamp, retainer

8 # 134739800 Bellows Kit, boot, w/light hole

10 131304700 Nut, hex, 1/4-20 UNC-2B, (2)

11 131276900 Washer, Bellville, spring steel

12 134430600 Plate, counterweight

13 134362000 Shell, tub, front

14 # 134362800 Spring Assy, suspension

15 134408300 Screw, hex head, 6.5 x 51 mm

16 134360910 Drum Assy, spin basket

17 134509600 Vane Kit, drum

18 131302800 Screw, 10-16AB x 0.375

19 # 134362500 Motor, 120 V

20 131303500 Screw, 12-14AB x 1.50, motor mtg.

21 134361900 O-ring, tub

22 134721310 Shell, tub, rear, w/bearing, seal

25 # 134051003 Belt, drive, 6-rib

26 # 134362600 Pulley, drum drive, large, rear

29 134408400 Screw, 10.9 class, M10 x 25 mm

30 134560400 Shock Absorber, dual stage

31 131268300 Pin, shock mtg.

32 134363200 Bracket, shock mtg.

33 134160900 Screw, washer hd, 10-16AB X 0.75

34 5303321209 Cable Tie, 5.60 inch

35 # 134051200 Pump, drain

40 134885800 Filter, pump

41 134455900 Hose, coin trap, tub-to-pump

42 134737300 Clamp, hose

43 134369000 Chamber, air

44 134369900 Hose, air pressure

48 131306234 Clamp, hose, wire

49 134527100 Clamp, bellows, spring held

52 131202300 Screw, 10-16AB x 0.625

55 # 134889600 Hose, drain-one piece

56 134369800 Fastener, hose clip, (3)

56* 134261300 Clip, drain hose, push-mount

57 134641100 Bracket, drain hose mtg, rear

58 134440700 Hanger, drain hose

60 # 134552300 Element, heating, 1000 W

62 134558000 Bracket, heating element

64 134558100 Stop, detente, heating element

66 # 134602000 Receptacle, lamp, door light

68 134554600 Lamp, G4 light bulb, 5 W, 12 V

70 134551600 Diffuser, lamp, door light

* 134884800 Energy Guide

Publication No: 5995498952 ATF8000FE1

09/07 8

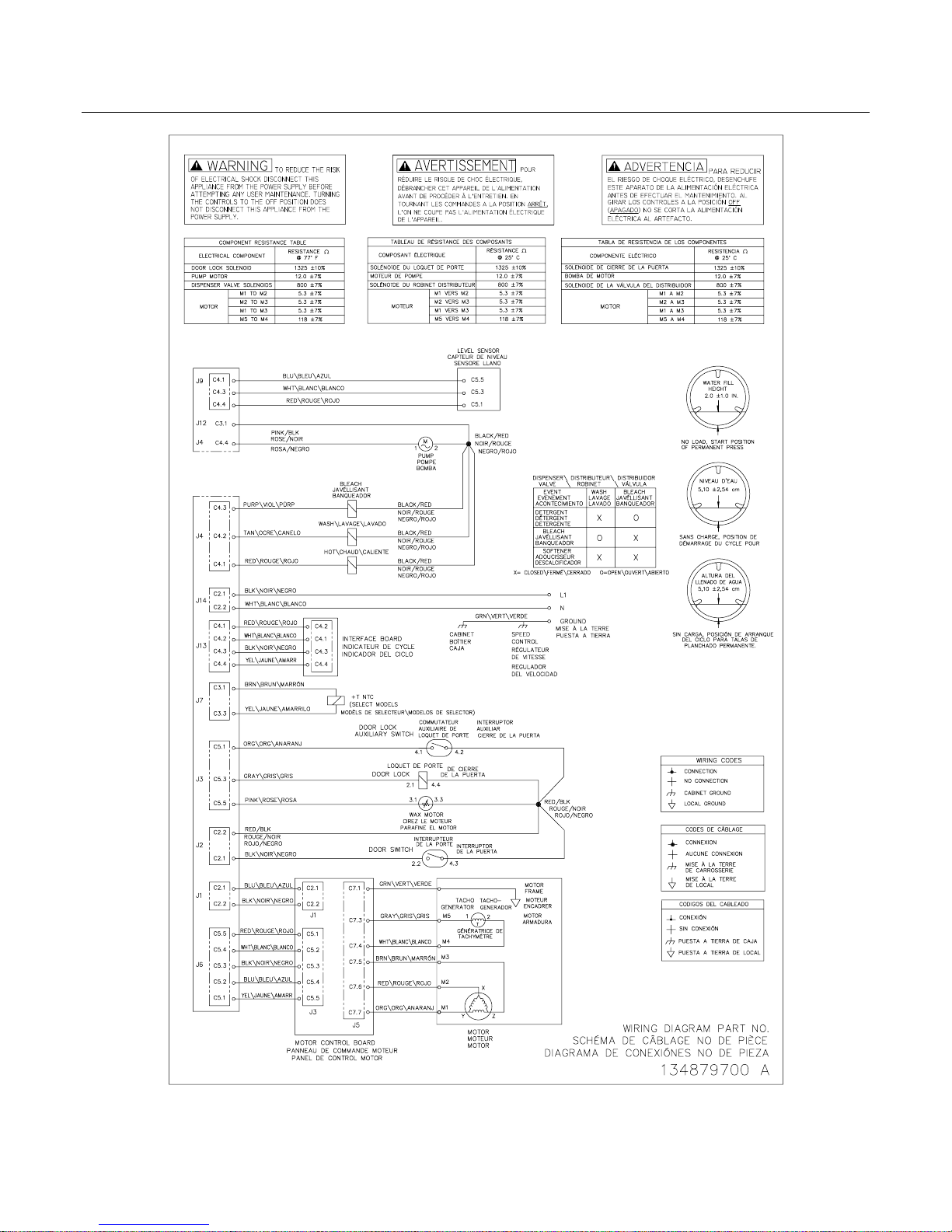

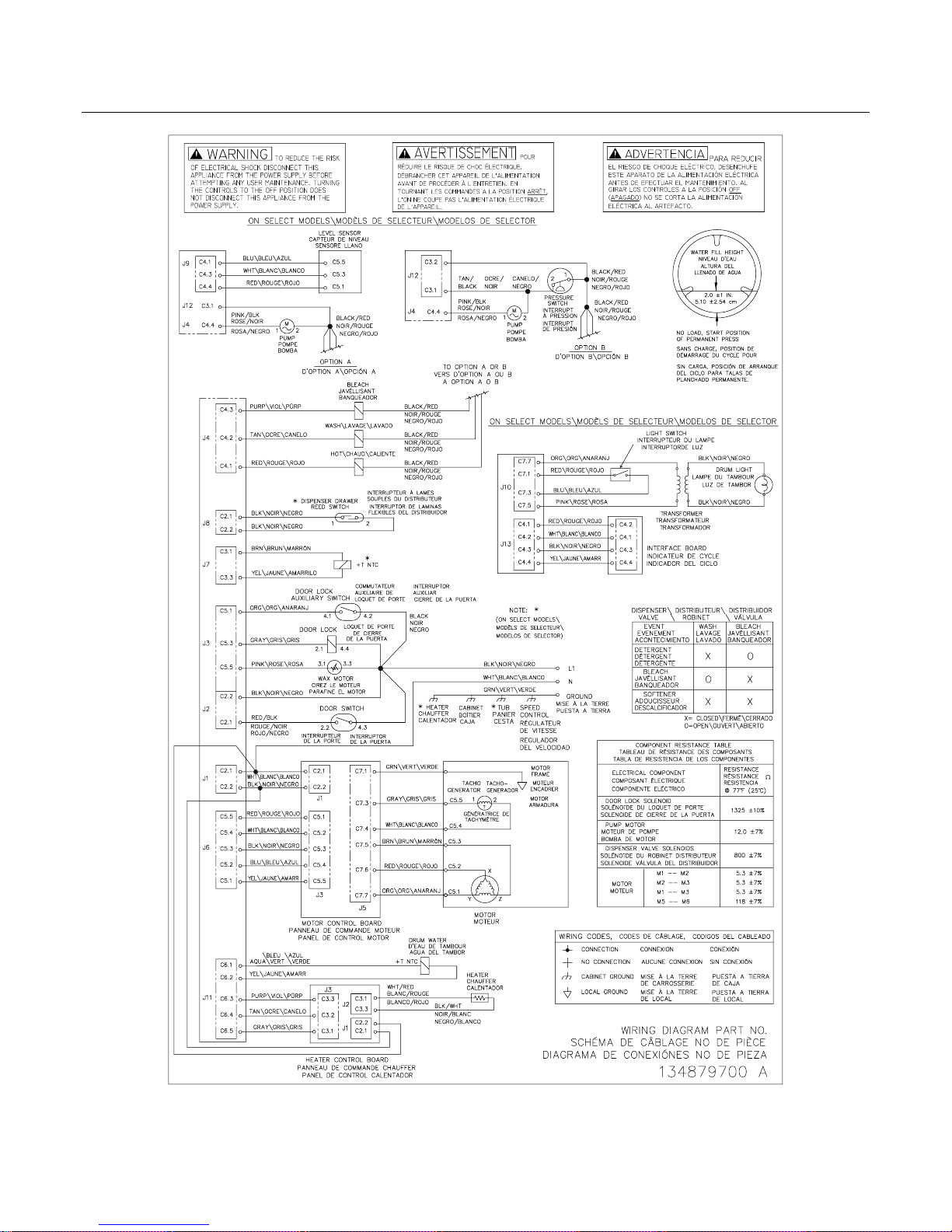

WIRING DIAGRAM

ATF8000FE1 Publication No: 5995498952

# Functional Parts 9 09/07

* Non-Illustrated Parts

WIRING DIAGRAM
