Frigidaire FTF2140ES0 Manuale utente

P12L0051.eps P12C0334.eps P12V0068.eps P12T0084.eps 134374100.eps

Product No. FTF2140ES0

Series Frigidaire

Market North America

Color white

Volts 120

Wiring Diagram 134374100

Owner's Guide 134454000

Energy Guide 134374400

Installation Instructions 134374600

Operating Instructions 134374500

ELECTROLUX MAJOR APPLIANCES

NORTH & LATIN AMERICA

P.O. Box 212378

Augusta, GA 30917 Publication No.

5995430336

05/02/28

(EN/SERVICE/KC)

361

FRONT-LOAD

WASHING MACHINE

Model No.

FTF2140E

Publication No: 5995430336 FTF2140ES0

02/05 2

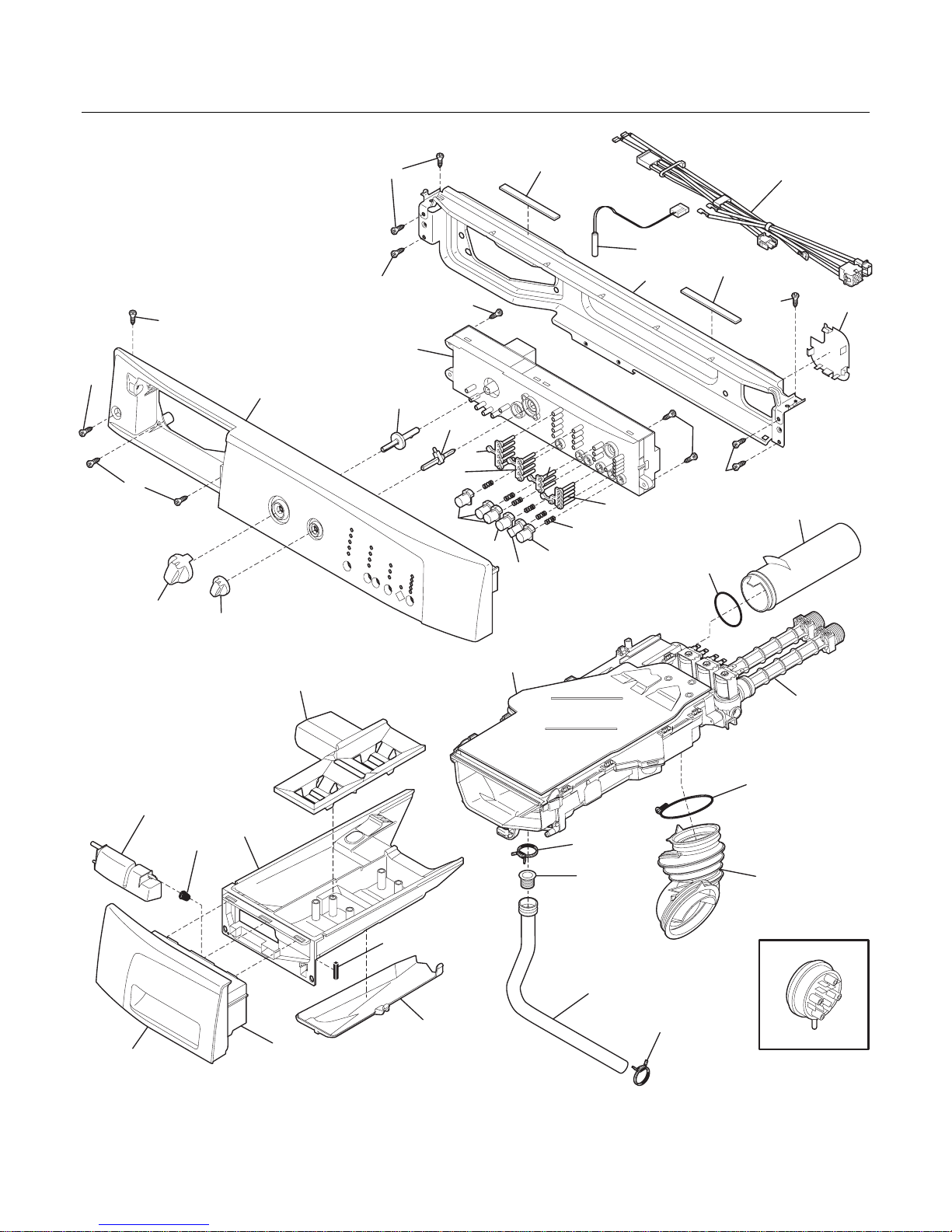

CONTROL PANEL

42 19

P12C0334

48 49

FTF2140ES0 Publication No: 5995430336

# Functional Parts 3 02/05

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 # 134484018 Control Board, printed circuit, with housing

2 134432000 Knob, function

3 134431900 Knob, program

4 134347700 Pin, program knob

5 134347300 Pin, function knob

6 134429100 Light Pipe, array, 1 row of 5

7 134429300 Light Pipe, array, 3 row of 3

8 134429200 Light Pipe, array, 2 row of 4

9 134429400 Light Pipe, array, 4 start group

10 134385100 Push Button, function

11 134385201 Push Button, start

12 134385301 Push Button, pause

13 134349400 Spring, push button

14 134385400 Push Button, soil

15 # 134399300 Switch, reed

16 134364800 Bracket, top front

17 # 134433700 Switch, pressure, w/o wtr optmztn

18 131302800 Screw, 10-16AB x 0.375

19 134402900 Screw, phillips pan hd, 6-19 x 0.650, type p

20 134452600 Cover, hole plug

21 134407900 Dampener, vibration

23 # 134435300 Wiring Harness, controls

* # 134436300 Wiring Harness, main

26 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

27 134442600 Panel, control console

28 131205300 Screw, 10-16 x 0.750

32 134371700 Hose, disp-to-bellows

33 131306215 Clamp

34 134446300 Clamp, hose, bellows

35 134371800 Gasket, disp hose seal

36 # 134371220 Valve, dispenser

36* 131311900 Screw, quadrex ph, 8-18AB x 0.500

37 134372300 Hose, disp-to-tub

38 134372400 Clamp, tub hose

39 134446110 Housing, dispenser, w/valve, cover

39* 134371300 Gasket, disp-to-valve

40 134372100 Tube, disp-to-overflo

41 134372200 O-ring, overflow tube

42 131168200 Screw, pan head, 8-18B x 0.31

44 134370200 Cover, disp drawer

45 134370000 Drawer, dispenser

46 134349500 Spring, door latch

47 134386500 Latch, disp drawer, slider lock

48 134453300 Handle, disp drawer, front

49 134386200 Frame, drawer handle

50 134370100 Conveyor, disp drawer, lower

51 131373800 Magnet

Publication No: 5995430336 FTF2140ES0

02/05 4

CABINET/TOP

15 16

40 39

P12V0068

FTF2140ES0 Publication No: 5995430336

# Functional Parts 5 02/05

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 131279602 Hose, water inlet, cold

2 131168200 Screw, pan head, 8-18B x 0.31

3 131279603 Hose, water inlet, hot

4 # 134409900 Control Board, motor

4* # 134372800 Wiring Harness, motor control

5 134522900 Bracket, L, motor control

8 # 131763200 Door Lock/Switch Assy

8* # 134367400 Wiring Harness, door switch

9 131303300 Screw, pan head, 10-16AB x 0.500, locking

10 134412103 Panel, outer door, white

11 134366400 Panel, door glass

12 134507300 Panel, inner door

13 131302901 Screw, 10-16 x 0.750

14 131763310 Striker, door/lock/sw

15 134412400 Hinge, door

16 131311900 Screw, quadrex ph, 8-18AB x 0.500

17 134408700 Clip, assembly

18 134321703 Panel, front service, white

19 131258400 Screw, 10-16AB x 0.500

20 134434901 Bracket, reinforcement, LH side panel

20* 134434900 Bracket, reinforcement, RH side panel

21 134424700 Screw, comb flat head, 8-18AB x 0.75

22 134364700 Retainer, spring steel

23 134522100 Screw, #12 flat head, 10-14P, quad drive

24 134365000 Panel, work top, white

26 134521600 Screw, hex washer head, M5 0.8 x 15

27 134408800 Bumper, rubber

28 134364300 Panel, service access, rear

29 134363300 Panel, cabinet front, white

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

35 134365100 Bracket, top support, rear

36 131841602 Leveling Leg Assy, bolt, pad & nut

38 134527200 Bushing, leveling leg

39 134364100 Washer, spring lock

40 134364000 Nut, leveling leg

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

45 # 134369400 Hose, drain, external

46 134412800 Handle, door

50 134364600 Bracket, tub suspension

52 131931201 Dampener, vibration, 3.5 x 2 x 2 in., foam

53 134507401 Adapter, door glass ring

54 134364900 Fastener, wire harn clip

60 134372000 Grommet, dispenser, back panel

* 134511500 Shipping Support Kit

* 134514100 Plug Assy, shippingholes, unit back

Publication No: 5995430336 FTF2140ES0

02/05 6

MOTOR/TUB

12 14

32 31

P12T0084

20 20

FTF2140ES0 Publication No: 5995430336

# Functional Parts 7 02/05

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131793303 Bolt, carriage, 1/4-20 x 2.60

6 134362200 Counterweight, front, one piece

7 134365300 Spring, bellows clamp, boot retainer

8 134365200 Bellows, door boot

10 131304700 Nut, hex, 1/4-20 UNC-2B

11 131276900 Washer, Bellville, spring steel

12 134430600 Plate, counterweight

13 134362000 Shell, tub, front

14 # 134362800 Spring Assy, suspension

15 134408300 Screw, hex head, 6.5 x 51 mm

16 134360900 Drum Assy, spin basket

17 134509600 Vane Kit, drum

18 131302800 Screw, 10-16AB x 0.375

19 # 134362500 Motor, 120 V

20 131303500 Screw, hex washer head, 12-14AB x 1.50, motor mtg.

21 134361900 O-ring, tub

22 134509500 Shell, outer tub, rear, w/bearing, seal

25 134051001 Belt, drive, elastic poly-V

26 # 134362600 Pulley, drum drive, large, rear

29 134408400 Screw, 10.9 class, M10 x 25 mm

30 131268200 Shock Absorber, air, stabilizer

31 131268300 Pin, shock mtg.

32 134363200 Bracket, shock mtg.

33 134160900 Screw, quadrex, 10-16AB X 0.750

34 134446300 Clamp, hose, bellows

35 # 134051200 Pump, drain

41 134455900 Hose, drain, tub-to-pump

42 131333101 Clamp

43 134369000 Chamber, air

44 134369900 Hose, air pressure

45 131306202 Clamp, hose

46 134436100 Syphon/Braker Assy, hose, with clamp

48 131306234 Clamp, pump to trap

49 134365400 Clamp, bellows, spring held

52 131202300 Screw, 10-16AB x 0.625

55 134458300 Hose, internal drain

56 134369800 Fastener, hose clip

* 134374400 Energy Guide

Publication No: 5995430336 FTF2140ES0

02/05 8

WIRING DIAGRAM
