Frigidaire Gallery GLWS1649A Manuale utente
WASHER
Model No.
GLWS1649A
©2003 Electrolux Home Products, Inc.
All rights reserved
FACTORY PARTS CATALOG
WASHER
WIRING DIAGRAM - # 134125700
OWNER’S GUIDE - # 131843000
INSTALLATION INSTRUCTIONS - # 131964000
OPERATING INSTRUCTIONS - # 134223500
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
GLWS1649AS2 GLWS1649A Gallery white 120
MARKET
North America
Publication No.
5995390894
030519
-EN/SERVICE /KC
361
05/03 2
Publication No. GLWS1649AS2
5995390894

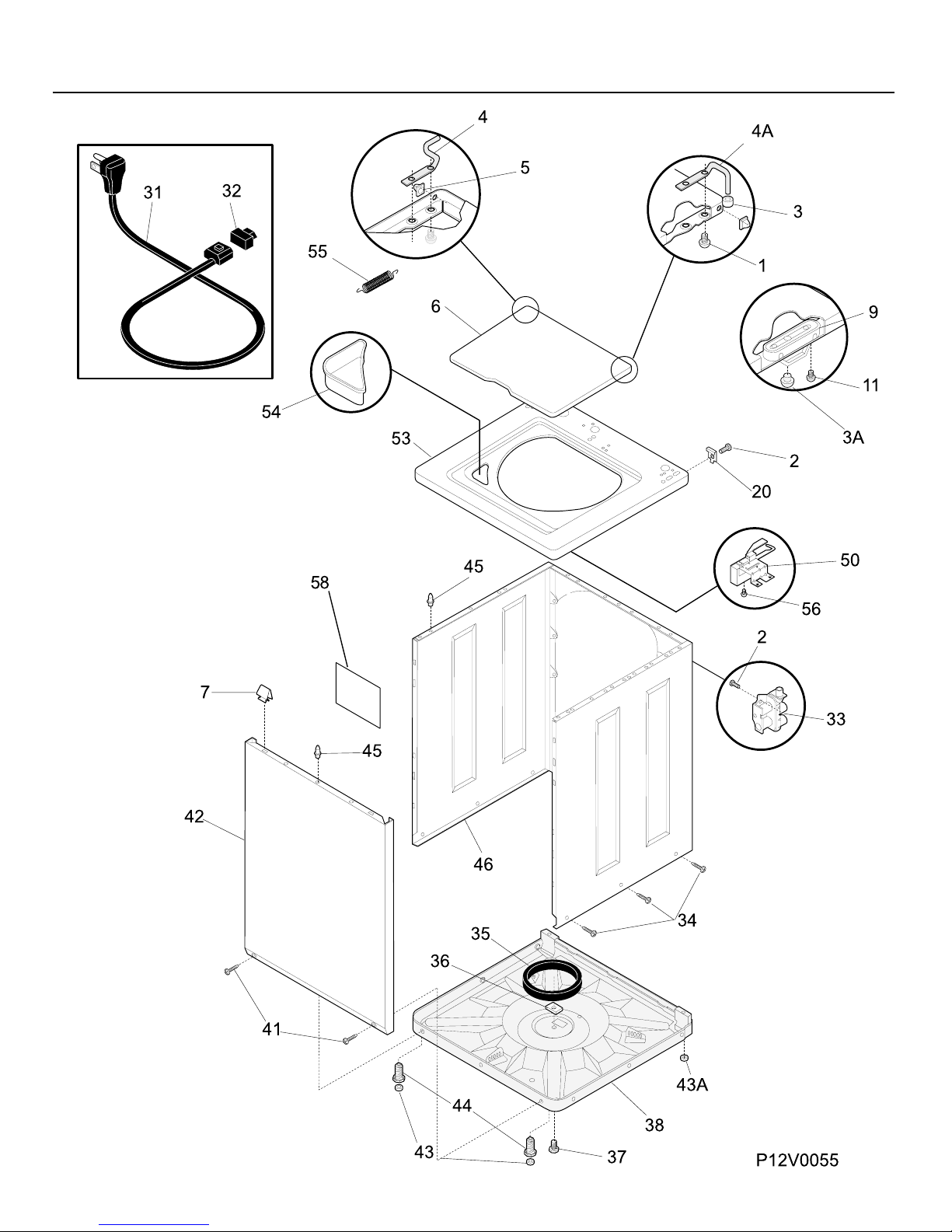

CABINET / TOP
# = Fast-moving Parts 3 05/03
* = Non-Illustrated Parts
GLWS1649AS2 Publication No.
5995390894
CABINET / TOP
POS. NO PART NO DESCRIPTION
1 134203900 Screw,pan hd phillips ,6-32 x 0.337 ,dog point
2 131168200 Screw,pan head ,8-18B x 0.31
3 131433300 Bumper,lid hinge
3A 134075500 Bumper,lid ,front
4 131385910 Hinge Bar,LH
4A 131374220 Hinge Bar,RH
5 5303208743 Grommet,hinge
6 131374401 Lid,white ,no inst.
7 3205821 Clip,top-to-front
9 131390000 Lid Strike
11 3204368 Screw,lid strike mtg ,6-20B X 0.375
20 5303208751 Hinge,top panel ,cabinet rear
31 134100800 Power Cord,electric svce
32 5303209428 Bushing,power cord
33 # 131900200 Valve,water ,115 V
34 131205500 Screw,cab body ,1/4-14 x 0.625 ,side-to-base
35 5308002385 Snubber Ring
36 3204380 Shipping Block
37 131658900 Screw,shipping ,1/4-20 x 1.001 ,yellow ,unit base,thread forming
38 5303311213 Base Assembly
41 131258400 Screw,10-16AB x 0.500
42 131104303 Panel,front ,white
43 131422100 Pad,leveling leg ,front
43A 131422200 Pad,self lvlg leg ,rear
44 5303309673 Screw,leveling leg ,with pad
45 131346400 Pin,panel locator ,side
46 134046600 Cabinet Assy,white ,back and sides
50 # 134101800 Lock,lid ,w/ext switch
53 131452692 Panel,white ,top
54 5303208778 Dispenser,bleach
55 5303212876 Spring,lid assist
56 131243700 Screw,pan head ,8-18AB x 0.375 ,cr/sq drive
58 131744202 Damper,vibration
05/03 4
Publication No. GLWS1649AS2
5995390894
MOTOR / TUB
# = Fast-moving Parts 5 05/03
* = Non-Illustrated Parts
GLWS1649AS2 Publication No.
5995390894
MOTOR / TUB
POS. NO PART NO DESCRIPTION
3 131551102 Cover,splash tub ,with seal
3* 131901400 Seal,splash cover
4 # 131212301 Capacitor,motor
6 5303271009 Hose,inlet ,48 inch long
7 5303161296 Washer,inlet hose
9 5303304824 Clamp,blower wheel
10 131726300 Hose Assy,w/nozzle,clamp
11 # 131605901 Agitator Assy,dual action
12 131221300 Tub,spin
13 5303283293 Screw,trunion ,5/16-18 x 0.625 ,(5)
14 131192800 Screw,lockplate ,5/16-18 x 1.625
15 5308001923 Plate,lock
16 131545101 Trunnion
18 131557201 Tub,splash ,w/air dome,brg
19 131205300 Screw,10-16 x 0.750
20 3205150 Screw,tub bearing ,8-12B x 0.750
21 5308002401 Washer,spin bearing ,upper
22 131373610 Leg & Dome Assy
23 5303208858 Spring,vertical ,short
23* 5303212877 Insert,spring adjuster ,vertical
23A 5303208860 Spring,vertical
24 131373900 Spring,horizontal
26 # 3204405 Bearing,outer tub
27 5303304825 Screw,set,hx hd cp ,5/16-18 x 0.85 ,xmsn pulley,hex head cup pt
28 # 134161100 V-Belt,washer drive ,standard 4L
29 # 131498301 Pulley,xmsn drive
30 # 131862900 Idler Arm Assy,VAW ,with pulley
33 3204425 Spring,torsional
34 3204426 Sleeve,idler pivot
35 3161433 Ring,retaining
36 5303261031 Washer,pivot shaft
37 5303161306 Washer,spring type
38 5303318708 Nut,hex flange ,motor mounting
40 # 134159500 Motor,3/4 hp,2 speed ,with pulley
41 131513300 Shield,motor assy ,w/speed nuts
41* 5303283052 Speed Nut,motor shield ,steel clip
43 # 134051200 Pump,drain
45 134049200 Hose,drain
45* 131453000 Bushing,snap-in ,drain hose
45* 131462500 Clip,drain hose ,base
45* 131506500 Clip,drain hose ,back sheet ,(2)
45* 131663500 Cushion,drain hose ,base
48 131306234 Clamp,pump to trap
49 # 131494800 Hose,pump to tub
51 131659000 Screw,leg,hex wshr hd ,5/16-18 x 0.875 ,type 23
52 131315800 Washer,leg ,1.25 OD x 0.335 ,0.040 ID
53 5300771996 Tube-pressure
56 131468900 Screw,agitator mtg ,5/16-18 x 1.250
57 131339600 Spacer,agitator mtg ,rubber
58 134160900 Screw,quadrex ,10-16AB X 0.750
60 131304300 Washer,0.21 x 0.71 ,0.06 thick
62 131258400 Screw,10-16AB x 0.500
66 131624500 Agitator Cap Assy,dispenser cup ,dual action
67 131606210 Mechanism,disp cap assy ,dual action
68 131707800 Ring,drain hose
68* 5303309503 Clip,drain hose ,back sheet
05/03 6
Publication No. GLWS1649AS2
5995390894
TRANSMISSION
# = Fast-moving Parts 7 05/03
* = Non-Illustrated Parts
GLWS1649AS2 Publication No.
5995390894
TRANSMISSION
POS. NO PART NO DESCRIPTION
2 # 131475100 Hub,drive ,agitator
3 # 131878402 Transmission Assy,H+helical gear
6 134197900 Screw,hex washer head ,1/4-20 x 0.437
26 # 5303279394 Seal Assy,tub ,transmission
27 131784300 Washer,bearing block ,transmission
28 131784400 Spacer,bearing block ,transmission
05/03 8
Publication No. GLWS1649AS2
5995390894
CONTROL PANEL
# = Fast-moving Parts 9 05/03
* = Non-Illustrated Parts
GLWS1649AS2 Publication No.
5995390894
CONTROL PANEL
POS. NO PART NO DESCRIPTION
1 # 131157900 Switch,speed control ,3 posn rotary
2 134096100 Spacer,console mtg
4 134034900 Knob,rotary ,white
5 # 131396200 Switch,pressure ,infinite
8 # 131856400 Timer,5-off
9 131992910 Panel,backsheet ,console
11 134019900 Closure,console trim ,white ,front
12 131168200 Screw,pan head ,8-18B x 0.31
15 # 131081200 Switch,temp selector ,4 posn rotary
16 131477001 Screw,pan head ,10-16AB x 0.375
17 131993000 Bracket,control mtg.
18 134074200 Panel,trimplate ,console front
20 134019610 End Cap,white ,LH
21 134035200 Knob,timer ,white ,assy
22 131266330 Screw,8-18 x 1.250
25 134035100 Pointer,timer knob ,white ,dark gray ind.
27 131197000 Clip,console mtg
29 # 134123100 Wiring Harness,controls
31 134019600 End Cap,white ,RH
33 # 131243200 Switch,xrinse/temp/bzr ,2 position ,(2)
39 131205100 Screw,#8 pan head ,10-10B x 0.500 ,cr/sq drive
56 131243800 Screw,pan hd locking ,8-32CA x 0.375 ,cup point
* 134220200 Energy Guide
05/03 10
Publication No. GLWS1649AS2
5995390894
WIRING DIAGRAM
