Frigidaire GLWS1749F Manuale utente

Product No. GLWS1749FS0

Series Frig Gallery

Market North America

Color white

Volts 120

Wiring Diagram 134755600

Owner's Guide 134752500

Installation Instructions 134752400

Operating Instructions 134753300

Energy Guide 134757300

P12L0040.eps P12V0093.eps P12T0091.eps P12M0014.eps P12C0367.eps

134755600.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995482519

07/01/17

(EN/SERVICE/WC)

361

TOP-LOAD WASHING

MACHINE

Model No.

GLWS1749F

Publication No: 5995482519 GLWS1749FS0

01/07 2

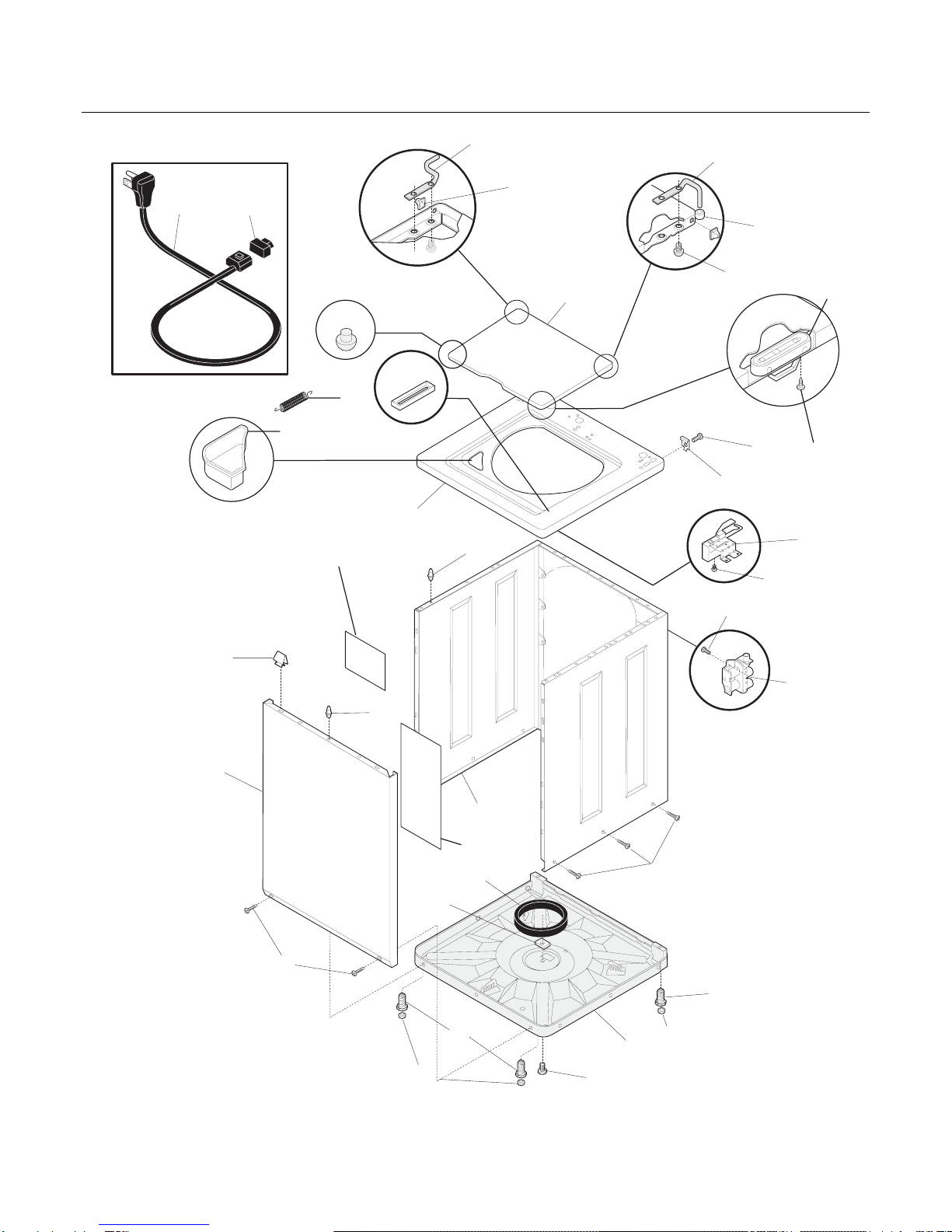

CABINET/TOP

P12V0093

31 32

GLWS1749FS0 Publication No: 5995482519

# Functional Parts 3 01/07

* Non-Illustrated Parts

CABINET/TOP

POS. NO PART NO. DESCRIPTION

1 134203900 Screw, pan hd phillips, 6-32 x 0.337, dog point

2 131168200 Screw, pan head, 8-18B x 0.31

3 131433300 Bumper, lid hinge

3A 134075500 Bumper, lid, front

4 131385910 Hinge Bar, LH

4A 131374220 Hinge Bar, RH

5 5303208743 Grommet, hinge

6 131374401 Lid, white

7 3205821 Clip, top-to-front

9 131390000 Lid Strike

9A 134768500 Insert, striker plate, lid slot

11 3204368 Screw, lid strike mtg, 6-20B X 0.375

20 5303208751 Hinge, top panel, cabinet rear

31 # 134501000 Power Cord, electric svce

32 5303209428 Bushing, power cord

33 # 134210800 Valve, water, 115 V

34 131205500 Screw, cab body, 1/4-14 x 0.625, side-to-base

35 5308002385 Snubber Ring

36 3204380 Shipping Block

37 131658900 Screw, shipping, 1/4-20 x 1.001, yellow, unit base, thread forming

38 134773500 Base Assembly

41 131258400 Screw, 10-16AB x 0.500

42 131104303 Panel, front, white

43 131422100 Pad, leveling leg

44 5303309673 Screw, leveling leg, with pad

45 131346400 Pin, panel locator

46 134046600 Cabinet Assy, white, back and sides

50 # 134101800 Lock, lid, w/ext switch

53 131452692 Panel, white, top

54 5303208778 Dispenser, bleach

55 5303212876 Spring, lid assist

56 131243700 Screw, pan head, 8-18AB x 0.375

57 131800405 Insulation, noise absorber

58 131744202 Damper, vibration

Publication No: 5995482519 GLWS1749FS0

01/07 4

MOTOR/TUB

P12T0091

35 36 37

23A

GLWS1749FS0 Publication No: 5995482519

# Functional Parts 5 01/07

* Non-Illustrated Parts

MOTOR/TUB

POS. NO PART NO. DESCRIPTION

3 131551102 Cover, splash tub, with seal

3* 131901400 •Seal, splash cover

4 # 131212301 Capacitor, motor

6 131454100 Hose, water inlet, 4 ft., hose & washer

7 5303161296 Washer, inlet hose

9 5303304824 Clamp

10 134211701 Hose Assy, ATC, w/nozzle, clamp

11 # 131605901 Agitator Assy, dual action

12 131221300 Tub, spin

13 5303283293 Screw, trunion, 5/16-18 x 0.625, (5)

14 131192800 Screw, lockplate, 5/16-18 x 1.625

15 5308001923 Plate, lock

16 131545101 Trunnion

18 131557201 Tub, splash, w/air dome, brg

19 131205300 Screw, 10-16 x 0.750

20 3205150 Screw, tub bearing, 8-12B x 0.750

21 5308002401 Washer, spin bearing, upper

22 131373610 Leg & Dome Assy

23 5303208858 Spring, vertical, short

23* 5303212877 Insert, spring adjuster, vertical

23A 5303208860 Spring, vertical

24 131373900 Spring, horizontal

26 # 3204405 Bearing, outer tub

27 5303304825 Screw, set, hex hd cup, 5/16-18 x 0.85, xmsn pulley, hex head cup pt

28 # 134511600 V-Belt, washer drive, standard 4L

29 # 131498301 Pulley, xmsn drive

30 # 131862900 Idler Arm Assy, VAW, with pulley

33 3204425 Spring, torsional

34 3204426 Sleeve, idler pivot

35 3161433 Ring, retaining

36 5303261031 Washer, pivot shaft

37 5303161306 Washer, spring type

38 5303318708 Nut, hex flange, motor mounting

40 # 134159500 Motor, 3/4 hp, 2 speed, with pulley

41 131513300 •Shield, motor assy, w/speed nuts

41 5303283052 •Speed Nut, motor shield, steel clip

41 # 131715800 Shield, motor assy, w/capacitor, nut

43 # 134740500 Pump, drain

45 # 134592700 Hose, drain

45* 131453000 Bushing, snap-in

45* 131663500 Cushion, drain hose, base

45* 134261300 Clip, drain hose, push-mount

45* 134745300 Clip, drain hose

48 131306234 Clamp, hose, wire

49 # 131494800 Hose, pump to tub

51 134164400 Screw, hex washer head, 5/16-18 x 0.625

53 5300771996 Tube, pressure, vinyl

56 131468900 Screw, agitator mtg, 5/16-18 x 1.250

57 131339600 Spacer, agitator mtg, rubber

58 134160900 Screw, washer hd, 10-16AB X 0.75

62 131258400 Screw, 10-16AB x 0.500

66 131624500 Agitator Cap Assy, dispenser cup, dual action

67 131606210 Mechanism, disp cap assy, dual action

68 131707800 Ring, drain hose

68* 5303309503 Clip, drain hose, back sheet

Publication No: 5995482519 GLWS1749FS0

01/07 6

TRANSMISSION

P12M0014

GLWS1749FS0 Publication No: 5995482519

# Functional Parts 7 01/07

* Non-Illustrated Parts

TRANSMISSION

POS. NO PART NO. DESCRIPTION

2 # 134418700 Hub, drive, agitator

3 # 134737100 Transmission, service kit

6 134197900 Screw, hex washer head, 1/4-20 x 0.437

26 # 5303279394 Seal Assy, tub, transmission

Publication No: 5995482519 GLWS1749FS0

01/07 8

CONTROL/PANEL

P12C0367

17 5

12 12

GLWS1749FS0 Publication No: 5995482519

# Functional Parts 9 01/07

* Non-Illustrated Parts

CONTROL/PANEL

POS. NO PART NO. DESCRIPTION

1 # 134404200 Switch, speed control, 4 posn rotary

2 134096100 Spacer, console mtg

4 134034910 Knob, rotary, white

5 # 134421000 Switch, pressure, infinite

8 # 134173100 Timer

9 131992910 Panel, backsheet, console

11 134019900 Closure, console trim, white, front

12 131168200 Screw, pan head, 8-18B x 0.31

14 # 134086900 Buzzer, non adjustable

15 # 134769200 Switch, temp selector, 4 posn rotary

17 131993040 Bracket, control mtg.

18 134773200 Panel, trimplate, console front

20 134019610 End Cap, white, LH

21 134034800 Knob, timer, white, assy

22 131266330 Screw, 8-18 x 1.250

25 134034700 Pointer, timer

26 5308015493 Spacer, washer, timer shaft

27 131197000 Clip, console mtg

29 # 134762600 Wiring Harness

31 134019600 End Cap, white, RH

33 # 134402400 Switch, option selector, 4 posn rotary

56 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

64 # 131891000 Control Board, temperature, ATC

* 134757300 Energy Guide

Publication No: 5995482519 GLWS1749FS0

01/07 10

WIRING DIAGRAM
