Installation

Instructions

Full

Size

Tumble

Action

Washers

Before

beginning

installation,

carefully

read

these

instructions.

This

will

simplify

the

installation

and

ensure

the

washer

is

installed

correctly

and

safely.

Leave

these

instructions

near

the

washer

after

installation

for

future

reference.

NOTE:

The

electrical

service

to

the

washer

must

conform

with

local

codes

and

ordinances

and

the

latest

edition

of

the

National

Electrical

Code,

ANSI/NFPA

70.

For

your

safety

the

information

in

this

manual

must

be

followed

to

minimize

the

risk

of

fire

or

explosion

or to

prevent

property

damage,

personal

injury

or

loss

of

life.

-

Do

not

store

or

use

gasoline

or

other

flammable

vapors

and

liquid

in

the

vicinity

of

this

or

any

other

appliance.

-

WHAT

TO

DO

IF

YOU

SMELL

GAS

-

Do

not

try

to

light

any

appliance.

-

Do

not

touch

any

electrical

switch;

do not

use

any

phone

in

your

building.

-

Clear

the

room,

building

or

area

of

all

occupants.

-

Immediately

call

your

gas

supplier

from

a

neighbor's

phone.

Follow

the gas

suppliers

instructions.

-

If

you

cannot

reach

your

gas

supplier,

call

the

fire

department.

Installation

and

service

must

be

performed

by

a

qualified

installer,

service

agency

or

the

gas

supplier.

Printed

in

U.S.A.

Contents

SUBJECT

Pre-Installation

Requirements

Electrical

Requirements

Grounding

Requirements

Water

Supply

Requirements

Drain

Requirements

Rough-In

Dimensions

Location

Of

Your

Washer

Unpacking

Installation

Replacement

Parts

PAGE

gs

NARaPRWNNNNN

P/N

134595000A

(0509)

PRE-INSTALLATION

REQUIREMENTS

Tools

Required

for

Installation:

Phillips

screwdriver

10

mm

socket

with

ratchet.

Channel-lock

adjustable

pliers.

Carpenter's

level.

PWN

>

ELECTRICAL

REQUIREMENTS

CIRCUIT

-

Individual,

properly

polarized

and

grounded

15

amp.

branch

circuit

fused

with

15

amp.

time

delay

fuse

or

circuit

breaker.

POWER

SUPPLY

-

2

wire,

with

ground,

120

volt,

single

phase,

60

Hz,

Alternating

Current.

NOTE:

The

use

of

this

washer

with

power

created

by

gas

powered

generators,

solar

powered

generators,

wind

powered

generators

or

any

other

generator

other

than

the

local

utility

company

is

not

recommended.

OUTLET

RECEPTACLE

-

Properly

grounded

3-prong

receptacle

to

be

located

so

the

power

supply

cord

is

accessible

when

the

washer

is

in

an

installed

position.

NOTE:

GFI

(Ground

Fault

Interrupter)

receptacle

is

not

required.

GROUNDING

REQUIREMENTS

FUNAENAMIM

CE

Improper

connection

of

the

equipment

grounding

conductor

can

result

in

a

risk

of

electrical

shock.

Check

with

a

licensed

electrician

if

you

are

in

doubt

as

to

whether

the

appliance

is

properly

grounded.

1.

The

washer

MUST

be

grounded.

In

the

event

of

malfunction

or

breakdown,

grounding

will

reduce

the

risk

of

electrical

shock

by

a

path

of

least

resistance

for

electrical

current.

2.

Since

your

washer

is

equipped

with

a

power

supply

cord

having

an

equipment-grounding

conductor

and

a

grounding

plug,

the

plug

MUST

be

plugged

into

an

appropriate,

copper

wired

receptacle

that

is

properly

installed

and

grounded

in

accordance

with

all

local

codes

and

ordinances

or

in

the

absence

of

local

codes,

with

the

National

Electrical

Codes,

ANSI/NFPA

70

(latest

edition).

If

in

doubt,

call

a

licensed

electrician.

DO

NOT

cut

off

or

alter

the

grounding

prong

on

the

power

supply

cord.

In

situations

where

a

two-slot

receptacle

is

present,

it

is

the

owner’s

responsibility

to

have

a

licensed

electrician

replace

it

with

a

properly

grounded

three

prong

grounding

type

receptacle.

WATER

SUPPLY

REQUIREMENTS

Hot

and

cold

water

faucets

MUST

be

installed

within

42

inches

(107

cm)

of

your

washer’s

water

inlet.

The

faucets

MUST

be

3/4

inch

(1.9

cm)

garden

hose

type

so

inlet

hoses

can

be

connected.

Water

pressure

MUST

be

between

30

and 120

pounds

per

square

inch

(maximum

unbalance

pressure,

hot

vs.

cold,

10

psi.)

Your

water

department

can

advise

you

of

your

water

pressure.

The

hot

water

temperature

should

be

about

140

degrees

F

(60

degrees

C).

DRAIN

REQUIREMENTS

1.

Drain

capable

of

eliminating

17

gals

(64.3

L)

per

minute.

2.

A

standpipe

diameter

of

1-1/4

in.

(3.18

cm)

minimum.

3.

The

standpipe

height

above

the

floor

should

be:

Minimum

height:

24

in.

(61

cm)

Maximum

height:

96

in.

(244

cm)

—

+74

i

t

i

t

rt

ro

96

in.

to

(244

cm)

°

oo

tt

Max.

°

°

;

1

t

i

1

24

in.

0

°

(61

cm)

Min.

BACK

|

NOTE:

Drain

hose

attached

to

the

washer

can

reach

a

90

in.

(229

cm)

high

standpipe.

For

higher

standpipe,

use

hose

P/N

134369410,

available

from

an

authorized

parts

distributor.

ROUGH-IN

DIMENSIONS

27.75

(70.5)

3.75"

245

0

60"

(9.5)

(61)

NOTE:

For

pedestal

or

undercounter

installation,

reference

page

5

"Installation".

(68.6)

36"

575

a

~,

water

‘Iniete

@)

(91.3)

YFP

oR

oy

33.5°

With

leveling

leg

(85.1)

lock

nuts

removed

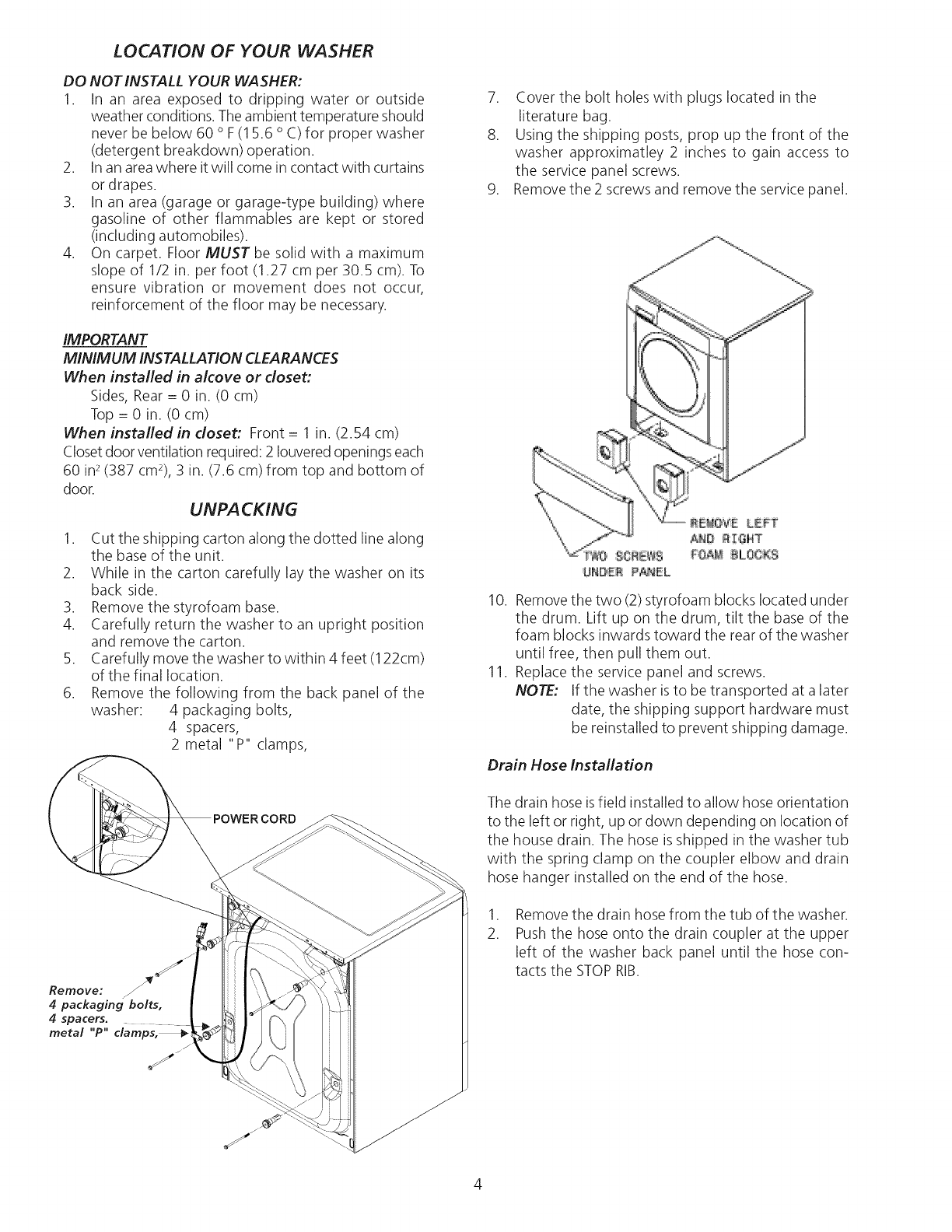

LOCATION

OF

YOUR

WASHER

DO

NOT

INSTALL

YOUR

WASHER:

1.

In

an

area

exposed

to

dripping

water

or

outside

weather

conditions.

The

ambient

temperature

should

never

be

below

60

°

F

(15.6

°

C)

for

proper

washer

(detergent

breakdown)

operation.

2.

Inan

area

where

it

will

come

in

contact

with

curtains

or

drapes.

3.

In

an

area

(garage

or

garage-type

building)

where

gasoline

of

other

flammables

are

kept

or

stored

(including

automobiles).

4.

On

carpet.

Floor

MUST

be

solid

with

a

maximum

slope

of

1/2

in.

per

foot

(1.27

cm

per

30.5

cm).

To

ensure

vibration

or

movement

does

not

occur,

reinforcement

of

the

floor

may

be

necessary.

IMPORTANT

MINIMUM

INSTALLATION

CLEARANCES

When

installed

in

alcove

or

closet:

Sides,

Rear

=

0

in.

(0

cm)

Top

=

0

in.

(0

cm)

When

installed

in

closet:

Front

=

1

in.

(2.54

cm)

Closet

door

ventilation

required:

2

louvered

openings

each

60

in?

(387

cm),

3

in.

(7.6

cm)

from

top

and

bottom

of

door.

UNPACKING

1.

Cut

the

shipping

carton

along

the

dotted

line

along

the

base

of

the

unit.

2.

While

in

the

carton

carefully

lay

the

washer

on

its

back

side.

3.

Remove

the

styrofoam

base.

4.

Carefully

return

the

washer

to

an

upright

position

and

remove

the

carton.

5.

Carefully

move

the

washer

to

within

4

feet

(1

22cm)

of

the

final

location.

6.

Remove

the

following from

the

back

panel

of

the

washer:

4

packaging

bolts,

A

spacers,

2

metal

"P"

clamps,

POWER

CORD

Remove:

4

packaging

bolts,

4

spacers.

ce

metal

"P"

clamps,»

&¢

”

a

7.

Cover

the

bolt

holes

with

plugs

located

in

the

literature

bag.

8.

Using

the

shipping

posts,

prop

up

the

front

of

the

washer

approximatley

2

inches

to

gain

access

to

the

service

panel

screws.

9.

Remove

the

2

screws

and

remove

the

service

panel.

oe

AND

ALIGHT

‘="TW

SCREWS

FOAM

BLOCKS

UNDER

PANEL

10.

Remove

the

two

(2)

styrofoam

blocks

located

under

the

drum.

Lift

up on

the

drum,

tilt

the

base

of

the

foam

blocks

inwards

toward

the

rear

of

the

washer

until

free,

then

pull

them

out.

11.

Replace

the

service

panel

and

screws.

NOTE:

\f

the

washer

is

to

be

transported

at

a

later

date,

the

shipping

support

hardware

must

be

reinstalled

to

prevent

shipping

damage.

Drain

Hose

Installation

The

drain

hose

is

field

installed

to

allow

hose

orientation

to

the

left

or

right,

up

or

down

depending

on

location

of

the

house

drain.

The

hose

is

shipped

in

the

washer

tub

with

the

spring

clamp

on

the

coupler

elbow

and

drain

hose

hanger

installed

on

the

end

of

the

hose.

1.

Remove

the

drain

hose

from

the

tub

of

the

washer.

2.

Push

the

hose

onto

the

drain

coupler

at

the

upper

left

of

the

washer

back

panel

until

the

hose

con-

tacts

the

STOP

RIB.

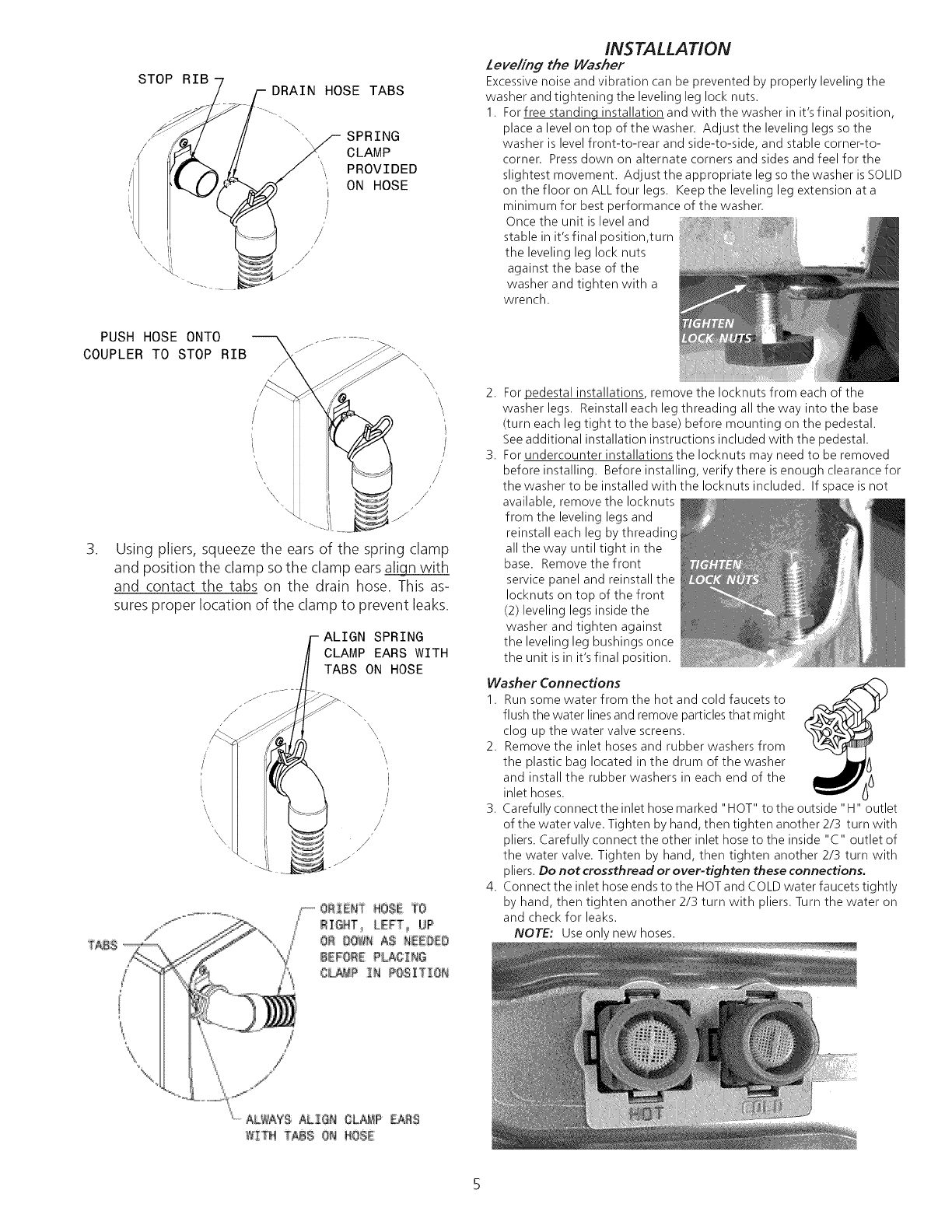

STOP

RIB

DRAIN

HOSE

TABS

SPRING

CLAMP

PROVIDED

ON

HOSE

PUSH HOSE

ONTO

COUPLER

TO

STOP

RIB

and

position

the

clamp

so

the

clamp

ears

align

with

and

contact

the

tabs

on

the

drain

hose.

This

as-

sures

proper

location

of

the

clamp

to

prevent

leaks.

ALIGN

SPRING

CLAMP

EARS

WITH

TABS

ON

HOSE

a

j~

ORIENT

HOSE

TO

RIGHT,

LEFT,

UP

On

DOWN

AS

NEEDED

BEFORE

PLACING

SLAWP

IN

POSITION

\~

ALWAYS

ALIGN

CLAMP

EARS

WITH

TABS

ON

HOSE

.

For

pedestal

installations,

remove

the

locknuts

from

each

of

the

Washer

Connections

1.

Run

some

water

from

the hot

and

cold

faucets

to

.

Remove

the

inlet

hoses

and

rubber

washers

from

INSTALLATION

Leveling

the

Washer

Excessive

noise

and

vibration

can

be

prevented

by

properly

leveling

the

washer

and

tightening

the

leveling

leg

lock

nuts.

1.

For

free

standing

installation

and

with

the

washer

in

it’s

final

position,

place

a

level

on

top

of

the

washer.

Adjust

the

leveling

legs

so

the

washer

is

level

front-to-rear

and

side-to-side,

and

stable

corner-to-

corner.

Press

down

on

alternate

corners

and

sides

and

feel

for

the

slightest

movement.

Adjust

the

appropriate

leg so

the

washer

is

SOLID

on

the

floor

on

ALL

four

legs.

Keep

the

leveling

leg

extension

at

a

minimum

for

best

performance

of

the

washer.

Once

the

unit

is

level

and

stable

in

it’s

final

position,turn

the

leveling

leg

lock

nuts

against

the

base

of

the

washer

and

tighten

with

a

wrench.

washer

legs.

Reinstall

each

leg

threading

all

the

way

into

the

base

(turn

each

leg

tight

to

the

base)

before

mounting

on

the

pedestal.

See

additional

installation

instructions

included

with

the

pedestal.

.

For

undercounter

installations

the

locknuts

may

need

to

be

removed

before

installing.

Before

installing,

verify

there

is

enough

clearance

for

the

washer

to

be

installed

with

the

locknuts

included.

If

space

is

not

available,

remove

the

locknuts

from

the

leveling

legs

and

reinstall

each

leg

by

threading

all

the

way

until

tight

in

the

base.

Remove

the

front

service

panel

and

reinstall

the

locknuts

on

top

of

the

front

(2)

leveling

legs

inside

the

washer

and tighten

against

the

leveling

leg

bushings

once

the

unit

is

in

it’s

final

position.

flush

the

water

lines

and

remove

particles

that

might

clog

up

the

water

valve

screens.

the

plastic

bag

located

in

the

drum

of

the

washer

and

install

the

rubber

washers

in

each

end

of

the

inlet

hoses.

.

Carefully

connect

the

inlet

hose

marked

“HOT"

to

the

outside

"H"

outlet

of

the

water

valve.

Tighten

by

hand,

then

tighten

another

2/3

turn

with

pliers.

Carefully

connect

the

other

inlet

hose

to

the

inside

"C"

outlet

of

the

water

valve.

Tighten

by

hand,

then

tighten

another

2/3

turn

with

pliers.

Do

not

crossthread

or

over-tighten

these

connections.

.

Connect

the

inlet

hose

ends

to

the

HOT

and

COLD

water

faucets

tightly

by

hand,

then

tighten

another

2/3

turn

with

pliers.

Turn

the

water

on

and

check

for

leaks.

NOTE:

Use

only

new

hoses.

Cable

Tie

Cable

Tie

Cable

Tie

INSTALLATION

(CON'T)

5.

Place

the

hook

end

of

the

drain

hose

in

the

drain

opening.

Secure

the

drain

hose

with

the

cable

tie

(provided

in

the

enclosure

package)

to

the

standpipe,

inlet

hose,

laundry

tub,

etc.

so

the

hose

does

not

pull

out

from

the

force

of

the

water.

6.

Plug

the

power

cord

into

a

grounded

outlet.

NOTE:

—

Check

to

ensure

the

power

is

off

at

a

circuit

breaker/

fuse

box

before

plugging

the

power

cord

into

an

outlet.

7.

Turn

on

the

power

at

a

circuit

breaker/fuse

box.

8.

Read

the

Operating

Instructions and

Owner's

Guide

provided

with

the

washer.

They

contain

valuable

and

helpful

information

that

will

save

you

time

and

money.

9.

Run

the

washer

through

a

complete

cycle.

Check

for

water

leaks

and

proper

operation.

10.

If

your

washer

does

not

operate,

please

review

the

“Avoid

Service

Checklist”

in

your

Owner's

Guide

before

calling

for

service.

11.

Place

these

instructions

in

a

location

near

the

washer

for

future

reference.

NOTE:

Avwiring

diagram

and technical

data

sheet

are

located

in

an

envelope

attached

to

the

left

hand

side

panel

on

the

inside

of

the

washer.

Pedestal

A

pedestal

accessory,

Model

No.

NLPW/D15,

specifically

designed

for

this

washer

may

be

used

when

elevating

the

washer

for

ease

of

use.

Failure

to

use

accessories

certified

by

the

manufacturer

could

result

in

personal

injury,

property

damage

or

damage

to

the

washer.

REPLACEMENT

PARTS

If

replacements

parts

are

needed

for

your

washer,

contact

the

source

where

you

purchased

your

washer,

call

1-800-944-9044,

or

visit

our

website,

www.frigidaire.com,

for

the

Frigidaire

Company

Authorized

Parts

Distributor

nearest

you.

Destroy

the

carton

and

plastic

bags

after

the

washer

is

unpacked.

Children

might

use

them

for

play.

Cartons

covered

with

rugs,

bedspreads,

or

plastic

sheets

can

become

airtight

chambers

causing

suffocation.

Place

all

materials

in

a

garbage

container

or

make

materials

inaccessible

to

children.

PRWWZSGIIOTS

The

instructions

in

this

manual

and

all

other

literature

included

with

this

washer

are

not

meant

to

cover

every

possible

condition

and

situation

that

may

occur.

Good

safe

practice

and

caution

MUST

be

applied

when

installing,

operating

and

maintaining

any

appliance.

Maximum

benefits

and

enjoyment

are

achieved

when

all

the

Safety

and

Operating

instructions

are

understood

and practiced

as

a

routine

with

your

laundering

tasks.

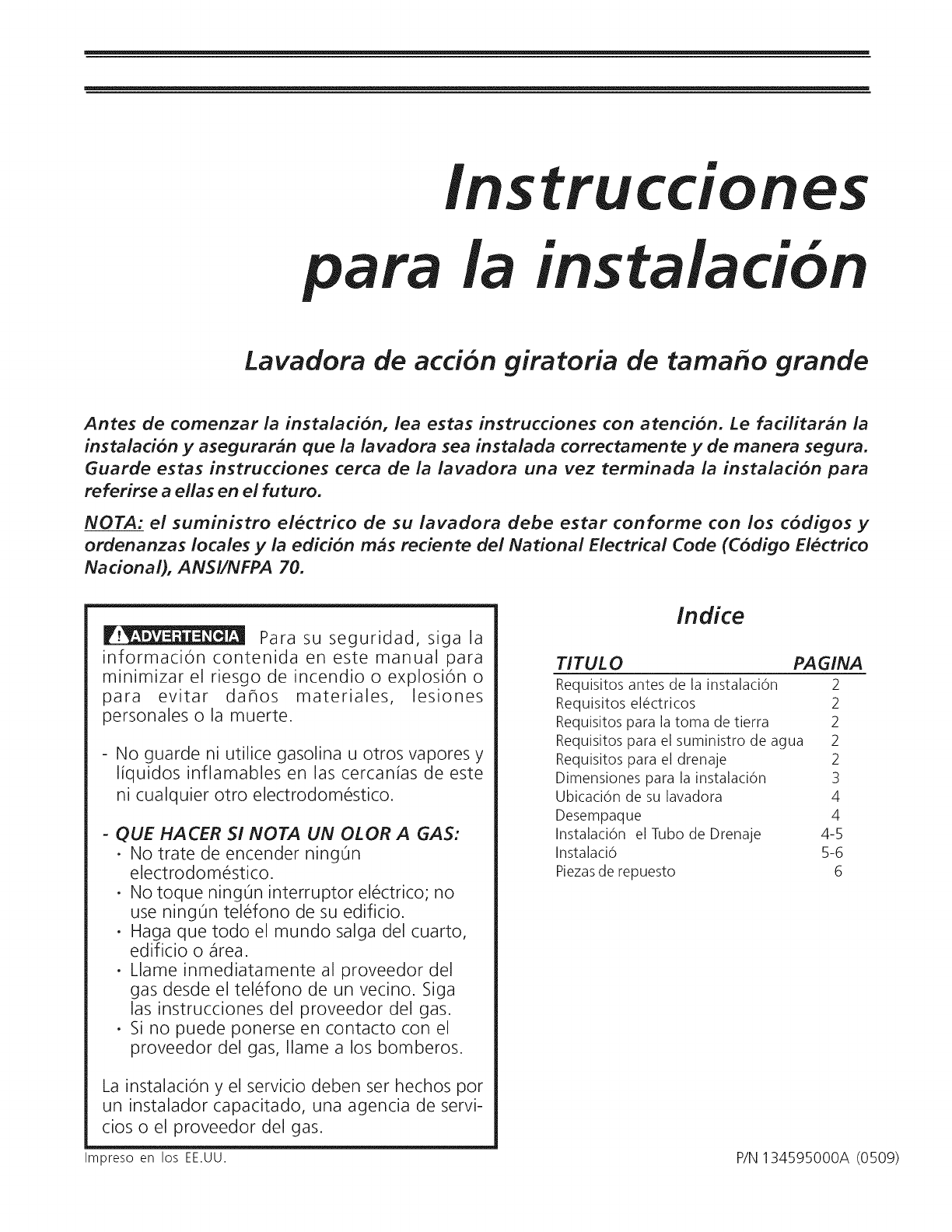

Instrucciones

para

la

instalacion

Lavadora

de

accion

giratoria

de

tamano

grande

Antes

de

comenzar

Ia

instalacién,

lea

estas

instrucciones

con

atencion.

Le

facilitaran

la

instalacion

y

aseguraran

que

la

lavadora

sea

instalada

correctamente

y

de

manera

segura.

Guarde

estas

instrucciones

cerca

de

la

lavadora

una

vez

terminada

la

instalacién

para

referirse

a

ellas

en

el

futuro.

NOTA:

el

suministro

eléctrico

de

su

lavadora

debe

estar

conforme

con

los

cédigos

y

ordenanzas

locales

y

la

edicién

mas

reciente

del

National

Electrical

Code

(Cédigo

Eléctrico

Nacional),

ANSI/NFPA

70.

Indice

Para

su

seguridad,

siga

la

informacion

contenida

en

este

manual

para

TITULO

PAGINA

minimizar

el

riesgo

de

incendio

o

explosidn

o

.

;

Requisitos

antes

de

la

instalacién

2

para

evitar

dafios

materiales,

lesiones

Requisitos

eléctricos

5

personales

o

la

muerte.

Requisitos

para

la

toma

de

tierra

2

oan

;

Requisitos

para

el

suministro

de

agua

2

-

No

guarde

ni

utilice

gasolina

u

otros

vapores

y

Requisitos

para

el

drenaje

2

liquidos

inflamables

en

las

cercanias

de

este

Dimensiones

para

la

instalacién

3

ni

cualquier

otro

electrodoméstico.

Ubicacién

de

su

lavadora

4

Desempaque

4

-

QUE

HACER

SI

NOTA

UN

OLOR

A

GAS:

Instalacién

el

Tubo

de

Drenaje

4-5

-

No

trate

de

encender

ningun

Instalacio

5-6

electrodoméstico.

Piezas

de

repuesto

6

-

No

toque

ningun

interruptor

eléctrico;

no

use

ningun

teléfono

de

su

edificio.

-

Haga

que

todo

el

mundo

salga

del

cuarto,

edificio

o

area.

-

Llame

inmediatamente

al

proveedor

del

gas

desde

el

teléfono

de un

vecino.

Siga

las

instrucciones

del

proveedor

del

gas.

-

Sino

puede

ponerse

en

contacto

con

el

proveedor

del

gas,

llame

a

los

bomberos.

La

instalacion

y el

servicio

deben

ser

hechos

por

un

instalador

capacitado,

una

agencia

de

servi-

clos

o

el

proveedor

del

gas.

Impreso

en

los

EE.UU.

P/N

134595000A

(0509)

REQUISITOS

ANTES

DE

LA

INSTALACION

Herramientas

necesarias

para

la

instalacién:

Destornillador

Phillips

Casquillo

con

trinquetede

10mm

Alicates

ajustables

Channel-lock

Nivel

de

carpintero

PWN

>

REQUISITOS

ELECTRICOS

CIRCUITO

-

Circuito

derivado

individual,

correctamente

polarizado

y

con

toma

de

tierra,

de

15

amperios

con

fusible

de

15

amperios

con

retardo

o

disyuntor.

ALIMENTACION

ELECTRICA

-

Corriente

alterna

monofdasica,

60

Hz,

120

voltios,

bifilar,

con

toma

de

tierra.

NOTA:

El

uso

dellavacora

con

energia

de

generador

de

gas,

generador

de

solar,

generador

de

viento,

o

cualquier

otros

generador

con

excepcién

de

le

central

eléctrica

no

es

recomendar.

TOMACORRIENTES

-

El

tornacorrientes

con

3

orificiosy

toma

de

tierra

correcta,

debe

estar

ubicado

de

manera

que

el

cable

eléctrico

sea

accesible

cuando

la

lavacora

esté

instalada.

NOTA:

GFl

(Ground

Fault

Interrupter)

receptaculo

noes

requerido.

REQUISITOS

PARA

LA

TOMA

DE

TIERRA

La

conexion

incorrecta

del

conductor

de

toma

de

tierra

de

este

equipo

puede

causar

un

riesgo

de

descargas

eléctricas.

Consulte

a

un

electricista

licenciado

si

no

esta

seguro

si

el

electrodoméstico

esta

bien

conectado

a

tierra.

1.

La

lavadora

DEBE

ser

conectada

a

una

toma

de

tierra.

En

caso

de un

mal

funcionamiento

o

una

falla,

la

toma

de

tierra

reduce

el

riesgo

de

descargas

eléctricas

proporcionando

a

la

corriente

eléctrica

una

via

con

menos

resistencia.

2.

Ya

que

su

lavadora

esta

equipada

con

un

cable

eléctrico

que

lleva

un

conductor

para

toma

de

tierra

y

un

enchufe

para

toma

de

tierra,

el

enchufe

DEBE

ser

insertado

en

un

tomacorrientes

adecuado,

con

hilos

de

cobre,

que

esté

instalado

y

conectado

atierra

segtin

todos

los

cddigos

y

ordenanzas

locales,

o

sino

existen

cddigos

locales,

con

los

National

Electrical

Codes

(Cddigos

Eléctricos

Nacionales),

ANSI/NFPA

70

(la

edicidn

mas

reciente).

Si

no

esta

seguro,

llame

a

un

electricista

licenciado.

NO

corte

ni

modifique

la

clavija

de

toma

de

tierra

del

cable

eléctrico.

En

casos

en

que

sdélo

haya

un

tomacorrientes

de

dos

orificios,

sera

responsa-bilidad

del

propietario

hacer

que

un

electricista

licenciado

lo

cambie

por

un

tomacorrientes

de

3

orificios

con

la

toma

de

tierra

adecuada.

REQUISITOS

PARA

EL

SUMINISTRO

DE

AGUA

Las

llaves

de

agua

caliente

y

fria

DEBEN

estar

instaladas

a

menos

de

42

pulgadas

(107

cm)

de

la

toma

de

agua

de

la

lavadora.

Las

llaves

DEBEN

ser del

tipo

manquera

de

jardin

de

3/4

de

pulgada

(1,9

cm)

para

que

se

les

puedan

conectar

los

tubos

de

entrada

de

aguaLa

presion

del

agua

DEBE

estar

entre

10

y

120

libras

por

pulgada

cuadrada

(presi6n

maxima

de

desequilibrio,

caliente

contra

fria,

10

libras

por

pulgada

cuadrada).

Su

compafia

de

suministro

de

agua

puede

decirle

cual

es

la

presion

del

aqua.

La

temperatura

del

agua

caliente

debe

ser

de

unos

120

grados

F

(49

grados

C).

REQUISITOS

PARA

EL

DRENAJE

1.

Drenaje

que

pueda

eliminar

17

galones

(64,3

L)

por

minuto.

2.

Diametro

de

la

tuberfa

vertical

de

1-1/4

pulqadas

(3,18

cm)

como

minimo.

1

1

j

t

i

t

i

t

i

t

to

96

pulg

;

(244

cm)

|

Max.

ro

j

t

i

t

{

t

24

pulg

PARTE

on

POSTERIOR

in.

NOTA:

El

tubo

de

drenaje

conectado

ala

lavadora

puede

llegar

a

una

tuberfa

vertical

de

90

pulgadas

(229

cm). Para

una

tuberfa

vertical

mas

alta,

use

el

tubo

con

N°

de

pieza

134369410,

disponible

en

distribuidores

autorizados

de

piezas.

DIMENSIONES

PARA

LA

INSTALACION

3.75"

24!

60°

(9.5)

|

|

3

|

|

Cable

Eléctrico

33.40

(84.8)

PO

(CM)

LA

LADO

|

NOTA:

Para

la

instalaci6n

del

pedestal

o

del

undercounter,

pagina

5

de

la

referencia

“instalacion”.

8.5"

(21.6)

So"

0

875

Digits)

34

Con

la

nivelacién

las

tuercas

de

fijacién

de

la

pierna

quitaron

DRENAJE

32,25"

(81.9)

PO

(CM)

re

seonaveninrosininanansinistitnerre

mgs

f

.

os

Entradas

de

agua

\

Qs

{85.74

3

UBICACION

DE

SU

LAVADORA

NO

INSTALE

SU

LAVADORA:

1.

En

un

area

expuesta

a

goteos

de

qqua

o

a

la

intemperie.

La

temperature

ambiente

nunca

debera

estar

por

debajo

de

los

60

grados

F

(15,6

C)

para

que

su

lavadora

funcione

correctamente.

2.

En

un

area

donde

estara

en

contacto

con

persianas

©

cortinas.

3.

En

un

area

(garaje

o

construccién

similar)

donde

haya

o

se

almacene

gasolina

u

otros

productos

inflamables

(inclusive

automdviles).

4.

Sobre

una

alfombra.

El

piso

DEBE

ser

duro

con

una

inclinacién

maxima

cde

1/2

pulgaga

por

pie

(1,27

cm

por

cada

30,5

cm).

Para

asegurarse

de

que

no

existan

vibraciones

ni

ruidos,

puede

ser

necesario

reforzar

al

piso.

IMPORTANTE

DESPEJES

MINIMOS

DE

INSTALACION

Instalacidn

en

una

alcoba:

Lados,

Parte

Trasera,

Parte

Superior

=

0

cm

(0

pulg.)

Instalacidn

en

un

armario:

Lados,

Parte

Trasera,

Parte

Superior

=

0

cm

(0

pulg.),

Parte

Delantera

=

2.54

com

(1

pulg.)

Aberturas

de

ventilacién

requeridas

en

la

puerta

del

armario:

Dos

rejillas

de

ventilaci6n

cada

387

cm?

(60

pulg.2)

-

7.6

cm

(3

pulg.)

desde

la

parte

inferior

y

superior

de

la

puerta.

DESEMPAQUE

1.

Corte

la

caja

de

envio

a

lo

largo

de

la

linea

punteada

en

la

base

del

aparato.

2.

Conlalavadora

todavia

en

la

caja,

coldquela

con

cuidado

sobre

su

parte

posterior.

3.

Saque

la

base

de

espuma.

4.

Con

cuidado,

vuelva

a

colocar

la

lavadora

en

posicién

vertical

y

saque

la

caja.

5.

Con

cuidado,

mueva

la

lavadora

a

unos

4

pies

(122cm)

de

su

ubicacién

definitiva.

6.

Saque

lo

siguiente

de

la

parte

posterior

de

la

lavacora:

e

4

pernos

e

4

separadores

®

2

abrazaderas

de

presion

a

liberar

cord6n

del

servicio

7.

Cubra

los

agujeros

de

perno

con

los

enchufes

situados

en

el

bolso

de

la

literatura.

8.

Quite

los

4

tapdns

pequefos

del

agujero

del

paquete

de

la

literatura

e

instalelos

en

los

agujeros

del

panel

lateral

desocupados

por

el

fijacione

de

empaquetado.

9.

Usando

los

postes

del

envio,

el

apoyo

encima

del

frente

del

approximatley

2

de

la

arandela

avanza

a

poquitos

para

acceder

a

los

tornillos

del

panel

del

servicio.

10.

Quite

los

2

tornillos

y

quite

el

panel

del

servicio

kee

Quite

los

bloques

izquierdos

y

derechos

de

la

espuma

\

|

ee

‘”

Dos

tornillos

debajo

del

panel

11.

Quite

el

dos

(2)

bloques

del

styrofoam

situados

debajo

del

tambor

(una

cinta

amarilla

rodea

los

articulos

que

se

quitaran).

Levante

para

arriba

en

el

tambor,

incline

la

base

de

los

bloques

de

la

espuma

hacia

adentro

hacia

la

parte

posterior

de

la

lavadora

hasta

libre,

después

saquelo.

12.

Saque

y

deseche

la

cinta

amarillo

de

la

partre

delantera

de

la

lavadora.

13.

Vuelva

a

colocar

el

panel

de

servico

y

los

tornillos.

NOTA:

En

caso

de

que

la

lavadora

tiene

que

estar

transportada

en

el

futuro,

es

necesario

que

vuelva

a

instalar

la

quincalla

de

la

fijacidn

de

Quite:

4

pernos,

expedicién

para

empedir

dafios

a

la

lavadora

4

separadores,

durante

la

expedicién.

abrazaderas

——>

ae

.

de

“Pp”

Instalacién

el

Tubo

de

Drenaje

La

tubo

de

drenajees

campo

instalado

para

permitir

la

orientacién

de

la

tubo

el al

izquierdo

o

derecho,

encima

o

abajo

dependiendo

de

la

localizaci6n

del

dren

de

la

casa.

La

tubo

se

envia

en

la

tina

de

la

lavadora

con

la

abrazadera

del

resorte

en

la

suspensidn

de

la

tubo

del

codo

y

de

drenaje

del

acoplador

instalada

en

el

extremo

de

la

tubo.
