Frymaster LOV BIEL14 SERIES Manuale utente

BIEL14 Series

Manual LOV™ Electric Fryer

Wiring Diagrams

This manual is updated as new information and models are released. Visit our website at

www.frymaster.com for the latest manual. This equipment chapter is to be installed in the Fryer Section of

the Equipment Manual.

Part Number: FRY_D_8197223 01/2022

*8197223*

DANGER

Improper installation, adjustment, maintenance or service, and unauthorized alterations

or modifications can cause property damage, injury, or death. Read the installation,

operating, and service instructions thoroughly before installing or servicing this

equipment.

DANGER

This fryer has a power cord (three-phase) for each frypot and may have a single five-wire

cord for the entire system. Prior to movement, testing, maintenance and any repair on

your Frymaster fryer; disconnect ALL electrical power cords from the electrical power

supply.

BIEL14 SERIES MANUAL LOV™ ELECTRIC FRYER

Table of Contents

SECTION 1: Wiring Diagrams

1.1 BIEL14 Series Simplified Wiring with MLOV M3000 ................................................ 1-1

1.2 BIEL14 Series Simplified Wiring with MLOV M3000 with LON ............................... 1-2

1.3a Component Wiring with Manual LOV M3000 .......................................................... 1-3

1.3b Component Wiring with Manual LOV M3000 with LON ......................................... 1-4

1.4 Contactor Box-Delta Configuration .......................................................................... 1-5

1.5 Contactor Box-WYE Configuration............................................................................ 1-6

1.6 Solid Shortening ......................................................................................................... 1-7

1.7 Single Component Wiring with Manual LOV M3000............................................... 1-8

1-1

BIEL14 SERIES MANUAL LOV™ ELECTRIC FRYER

SECTION 1: WIRING DIAGRAMS

1.1 BIEL14 Series Simplified Wiring with MLOV M3000

1-2

1.2 BIEL14 Series Simplified Wiring with Manual MLOV M3000 with LON

1-3

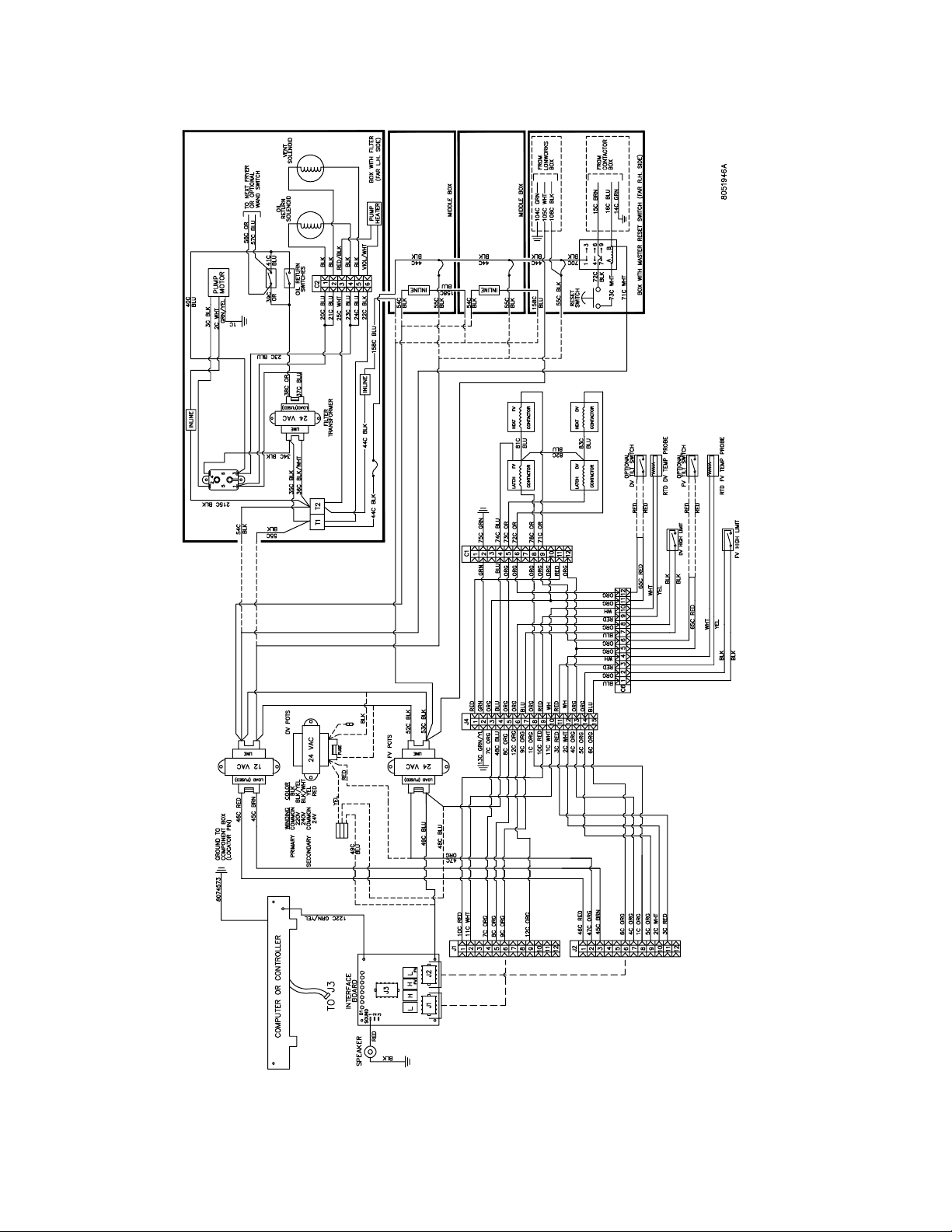

1.3a Component Wiring with Manual LOV M3000 controller

1-4

1.3b Component Wiring with Manual LOV M3000 controller with LON

1-5

1.4 Contactor Box – Delta Configuration

FULL VAT

DUAL VAT

1-6

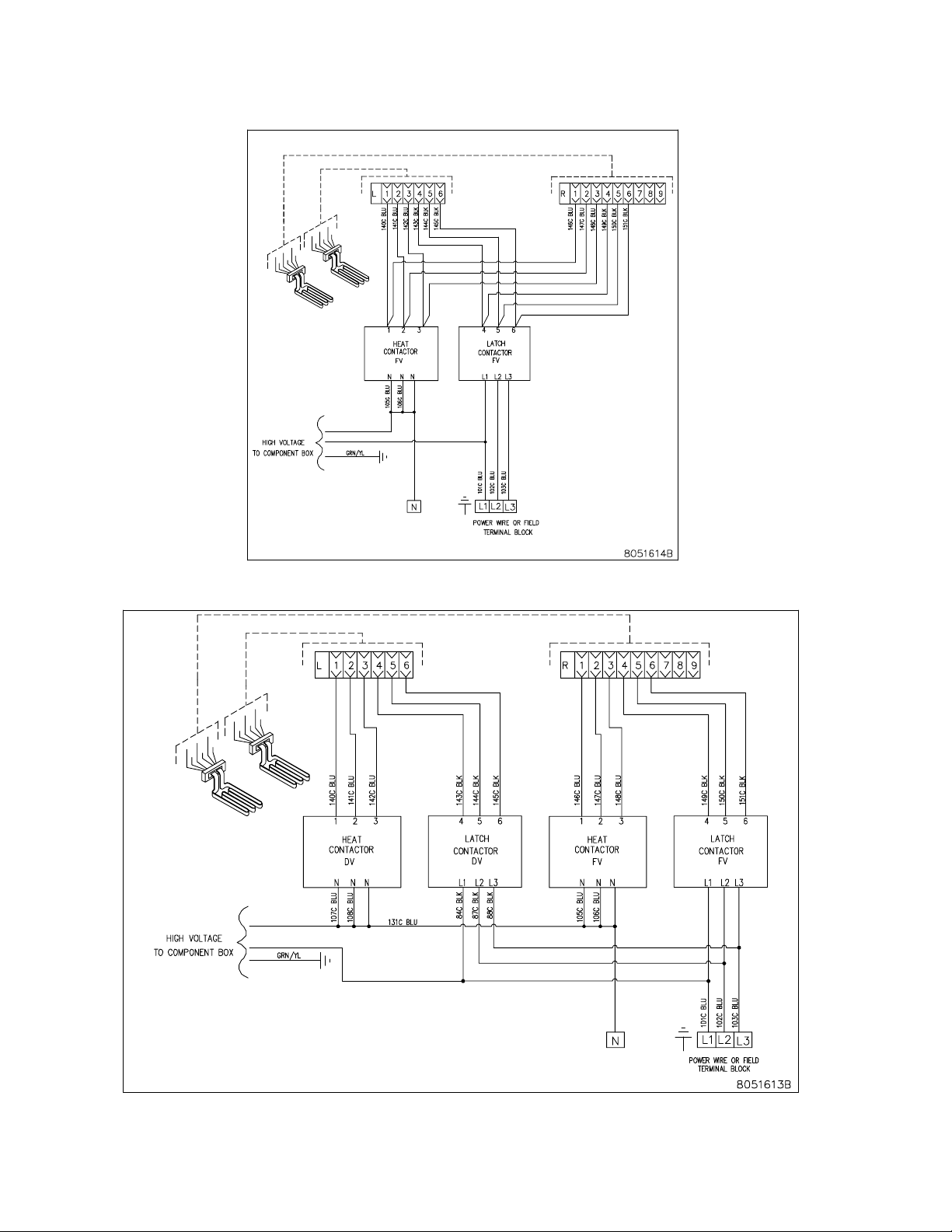

1.5 Contactor Box – WYE Configuration

FULL VAT

DUAL VAT

1-7

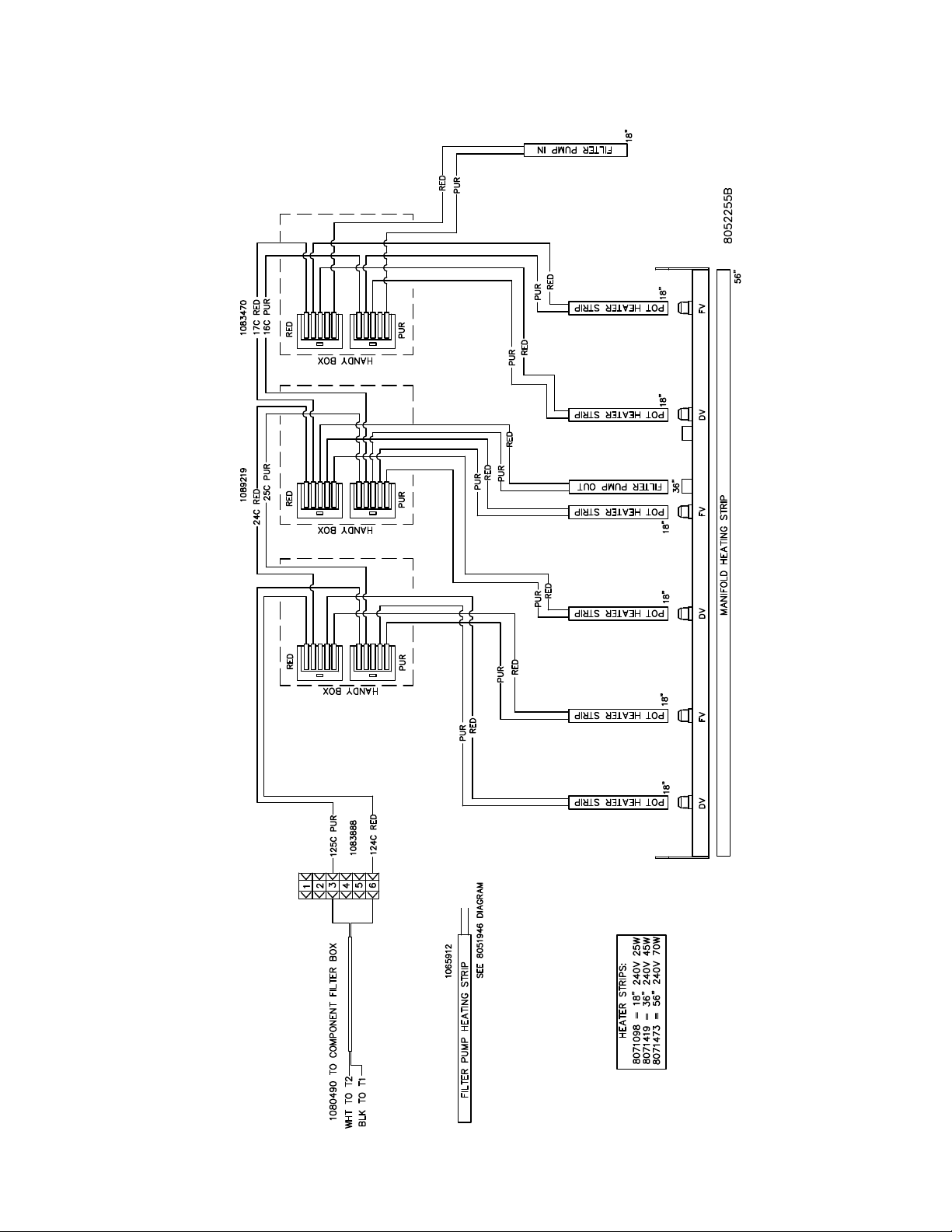

1.6 Solid Shortening
