COLOUR TELEVISION WITH REMOTE CONTROL

OPERATING INSTRUCTIONS

FJ2205

English - 1 -

Contents 14:9................................................................... 15

Cinema ............................................................. 15

Subtitle.............................................................. 15

Zoom................................................................. 15

Teletext................................................................. 15

Tips....................................................................... 16

Image Persistence............................................ 16

No Power.......................................................... 16

Poor Picture...................................................... 16

No Picture......................................................... 16

Sound ............................................................... 16

Remote Control................................................. 16

Input Sources.................................................... 16

Appendix A: PC Input Typical Display Modes....... 17

Appendix B: AV and HDMI Signal Compatibility

(Input Signal Types).............................................. 18

Speciﬁcations ....................................................... 19

Accessories............................................................ 2

Features ................................................................. 2

Introduction............................................................. 2

Preparation............................................................. 2

Safety Precautions ................................................. 2

Power Source..................................................... 2

Power Cord......................................................... 2

Moisture and Water ............................................2

Cleaning.............................................................. 3

Heat and Flames ................................................3

Lightning............................................................. 3

Replacement Parts............................................. 3

Servicing............................................................. 3

Waste Disposal................................................... 3

Information for Users in European Union

Countries ............................................................ 3

Disconnecting the Device...................................3

Headphone Volume............................................ 3

Installation........................................................... 3

LCD Screen........................................................ 3

Warning .............................................................. 3

Overview of the Remote Control ............................ 4

LCD TV and Operating Buttons.............................. 5

Viewing the Connections- Back Connectors ..........5

Viewing the Connections - Side Connectors..........6

Power Connection.................................................. 6

Aerial Connection................................................... 6

Connecting the LCD TV to a PC............................. 7

Connecting to a DVD Player................................... 7

Using Side AV Connectors ..................................... 8

Connecting Other Equipment via Scart.................. 8

Inserting Batteries into the Remote Control ...........8

Switching the TV On/Off.........................................8

To Switch the TV On........................................... 8

To Switch the TV Off...........................................8

First Time Installation.............................................. 9

Input Selection........................................................ 9

Basic Operations.................................................... 9

Operation with the Buttons on the TV................. 9

TV Menu System.................................................. 10

Picture Menu..................................................... 10

Sound Menu ..................................................... 10

Feature Menu ....................................................11

Source Menu .................................................... 13

PC Mode Menu System........................................ 14

PC Position Menu............................................. 14

Displaying TV Information .................................... 14

Mute Function....................................................... 14

Picture Mode Selection......................................... 15

Freezing Picture ................................................... 15

Zoom Modes......................................................... 15

Auto .................................................................. 15

16:9................................................................... 15

4:3..................................................................... 15

Panoramic......................................................... 15

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 101_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 1 05.01.2010 13:07:3405.01.2010 13:07:34

English - 2 -

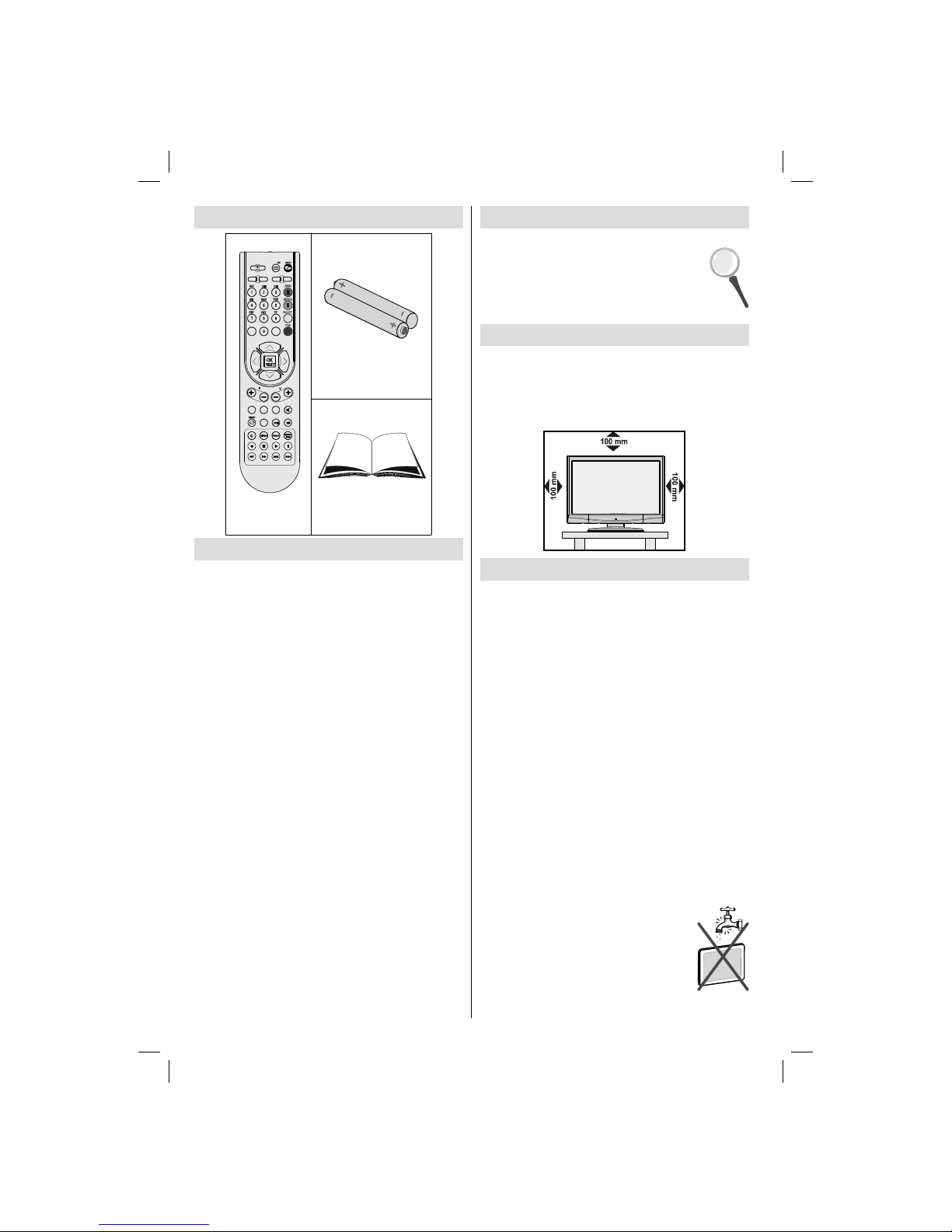

Accessories

INFO

EPG

FAV

PRESETS

SUBTITLE

RETURN

SOURCE

SLEEP SCREEN

LANG.

Remote

Control

Batteries: 2 X AAA

Instruction Book

Features

• Remote controlled colour LCD TV.

• HDMI connector for digital video and audio. This

connectionisalso designedtoaccept highdeﬁnition

signals.

•200 programmes from VHF, UHF.

• OSD menu system.

• Scart socket for external devices (such as video,

video games, audio set, etc.).

• Stereo sound system.

• Teletext, fastext, TOP text.

• Headphone connection.

• Automatic programming system.

• Forward or backward manual tuning.

• Sleep timer.

• Child lock.

•Automatic sound mute when no transmission.

• NTSC playback.

• AVL (Automatic Volume Limiting).

•Whenno valid signalisdetected, after5minutes the

TV switches automatically to standby mode.

• PLL (Frequency Search).

• PC input.

• Plug&Play for Windows 98,ME,2000,XP, Vista.

• Game Mode (optional).

Introduction

Thank you for choosing this product.This manual will

guide you for the proper operation of your

TV. Before operating the TV, please read

this manual thoroughly.

Please do keep this manual in a safe place

for future references.

Preparation

For ventilation, leave a free space of at least 10 cm

all around the set. To prevent any fault and unsafe

situations, please do not place any objects on top

of the set.

Use this device in moderate climates.

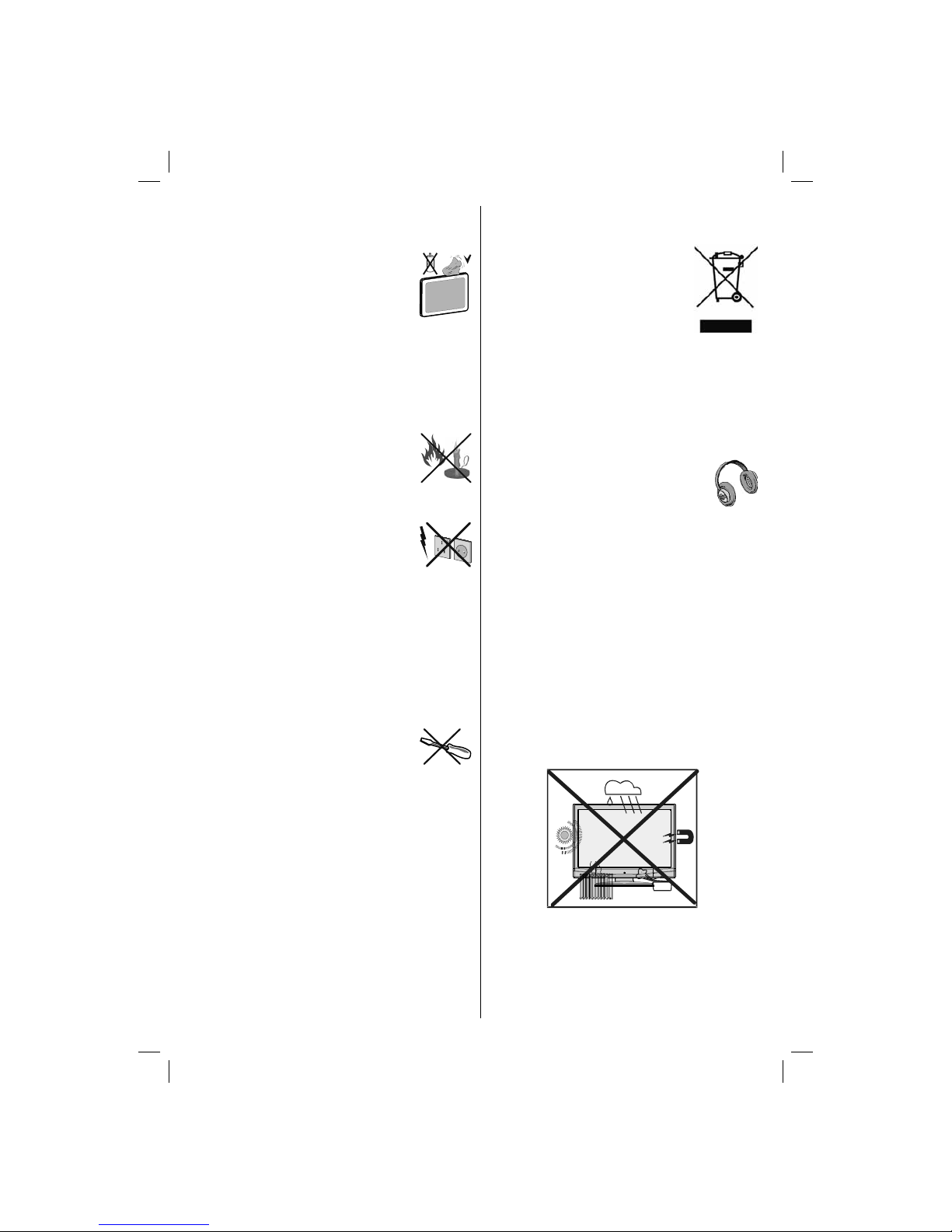

Safety Precautions

Read the following recommended safety

precautions carefully for your safety.

Power Source

The TV set should be operated only from a 220-240

VAC, 50 Hz outlet. Ensure that you select the correct

voltage setting for your convenience.

Power Cord

Do not place the set, a piece of furniture, etc. on the

powercord(mains lead)orpinch thecord.Handle the

power cord by the plug. Do not unplug the appliance

by pulling from the power cord and never touch the

powercordwith wethandsas thiscouldcause ashort

circuitorelectric shock.Nevermake aknotin thecord

or tie it with other cords. The power cords should be

placed in such a way that they are not likely to be

stepped on.Adamaged power cord can cause ﬁre or

give you an electric shock. When it is damaged and

needs to be replaced, it should be done by qualiﬁed

personnel.

Moisture and Water

Do not use this device in a humid and

damp place (avoid the bathroom, the

sink in the kitchen, and near the washing

machine). Do not expose this device to

rain or water, as this may be dangerous

anddonot placeobjects ﬁlledwithliquids,

such as ﬂower vases, on top. Avoid from

dripping or splashing.

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 201_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 2 05.01.2010 13:07:3405.01.2010 13:07:34

English - 3 -

Information for Users in European

Union Countries

This symbol on the product or on its

packaging means that your electrical

and electronic device should be

disposed at the end of its service

life separately from your household

wastes. There are separate collection

systems for recycling in EU.

For more information, please contact

thelocalauthority or the dealerwhereyou purchased

the product.

Disconnecting the Device

The mains plug is used to disconnect TV set from

the mains and therefore it must remain readily

operable.

Headphone Volume

Excessive sound pressure from earphones

and headphones can cause hearing loss.

Installation

To prevent injury, this device must be securely

attachedtothe wallinaccordance withtheinstallation

instructions when mounted to the wall (if the option

is available).

LCD Screen

TheLCDpanel is averyhigh technology productwith

about a million thin ﬁlm transistors, giving you ﬁne

picture details. Occasionally, a few non-active pixels

may appear on the screen as a ﬁxed blue, green or

red point. Please note that this does not affect the

performance of your product.

Warning

Do not leave your TV in standby or operating mode

when you leave your house.

Ifanysolid objector liquidfallsinto thecabinet, unplug

the TV and have it checked by qualiﬁed personnel

before operating it any further.

Cleaning

Before cleaning, unplug the TV set

from the wall outlet. Do not use liquid or

aerosol cleaners. Use soft and dry cloth.

Ventilation

Theslotsand openings onthe TVsetare intended for

ventilationand toensurereliable operation.Toprevent

overheating, these openings must not be blocked or

covered in anyway.

Heat and Flames

Thesetshould notbeplaced nearto open

ﬂames and sources of intense heat such

asanelectric heater. Ensure thatnoopen

ﬂame sources, such as lighted candles,

are placed on top of the TV. Batteries

should not be exposed to excessive heat

such as sunshine, ﬁre or the like.

Lightning

In case of storm and lightning or when

going on holiday, disconnect the power

cord from the wall outlet.

Replacement Parts

Whenreplacementparts arerequired,make surethat

the service technician has used replacement parts,

which are speciﬁed by the manufacturer or have the

samespeciﬁcationsas theoriginalone. Unauthorized

substitutions may result in ﬁre, electrical shock or

other hazards.

Servicing

Please refer all servicing to qualified

personnel. Do not remove the cover

yourself as this may result in an electric

shock.

Waste Disposal

Instructions for waste disposal:

• Packaging and packaging aids are recyclable and

shouldprincipallybe recycled.Packagingmaterials,

such as foil bag, must be kept away from children.

• Batteries, including those which are heavy metal-

free, should not be disposed of with household

waste. Please dispose of used battery in an

environment friendly manner. Find out about the

legal regulations which apply in your area.

• Cold cathode fluorescent lamp in LCD PANEL

contains a small amount of mercury; please follow

the local laws or regulations for disposal.

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 301_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 3 05.01.2010 13:07:3605.01.2010 13:07:36

English - 4 -

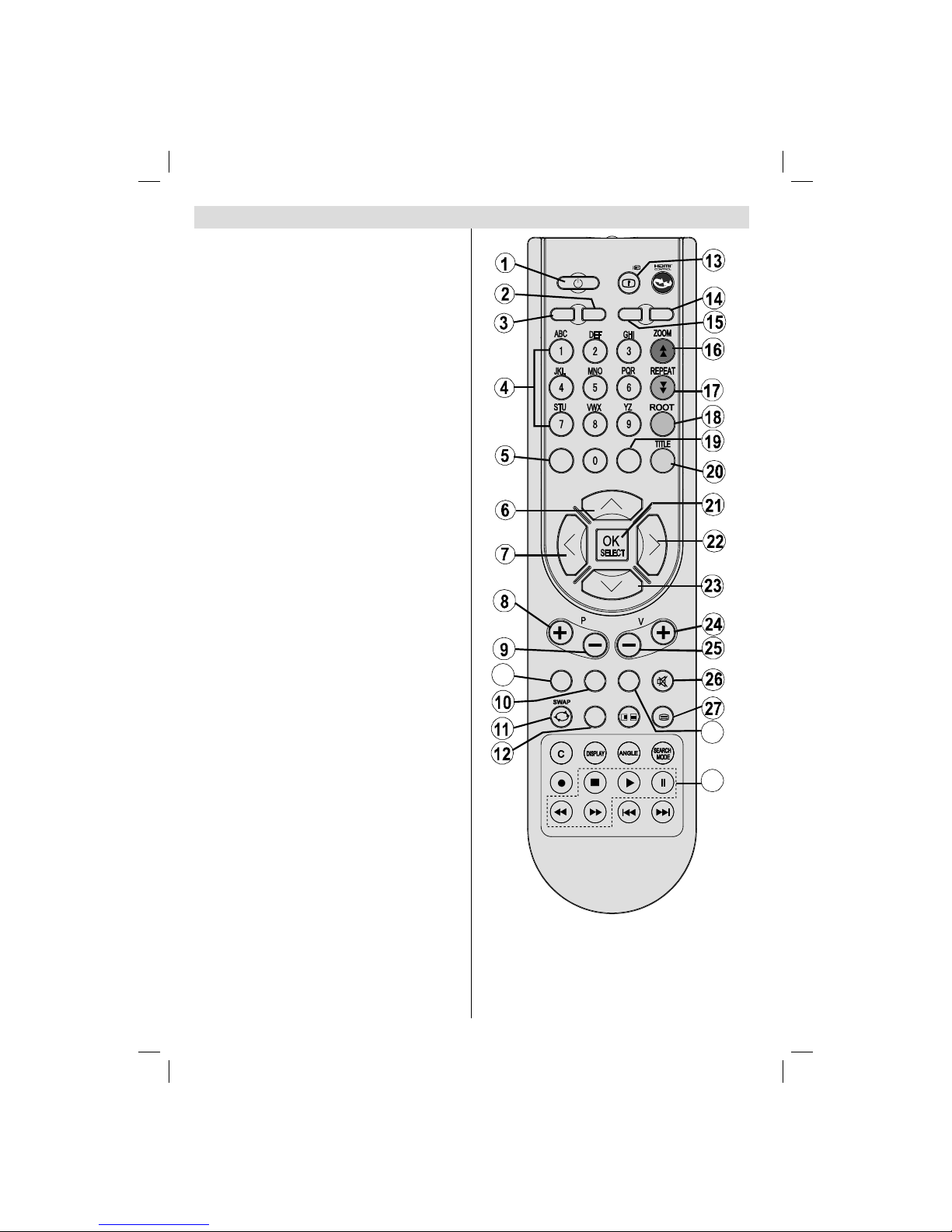

Overview of the Remote Control

INFO

EPG

FAV

PRESETS

SUBTITLE

RETURN

SOURCE

SLEEP SCREEN

LANG.

Standby1. Image size2. Sleep timer3. Numeric buttons4. Return / TXT Index5. Cursor up / TXT up page6. Cursor left7. Programme up8. Programme down9. Mono-Stereo / Dual I-II10.Swap11. No function12.Info / TXT reveal13.Picture mode selection14.Source selection15.Red / Sound16.Green / Picture17.Yellow / Feature18.Menu19.Blue / Install20.OK /Select21.Cursor righ / TXT Subpage22.Cursor down / TXT Downpage23.Volume up24.Volume down25.Mute26.Teletext / Mix27.TXT Subtitle28.No function29.Media Player buttons30.

Note: Buttons that are not indicated with a

number on the remote control illustration

are not functional in TV mode.

Remote range is approximately 7m/23ft

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 401_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 4 05.01.2010 13:07:3605.01.2010 13:07:36

English - 5 -

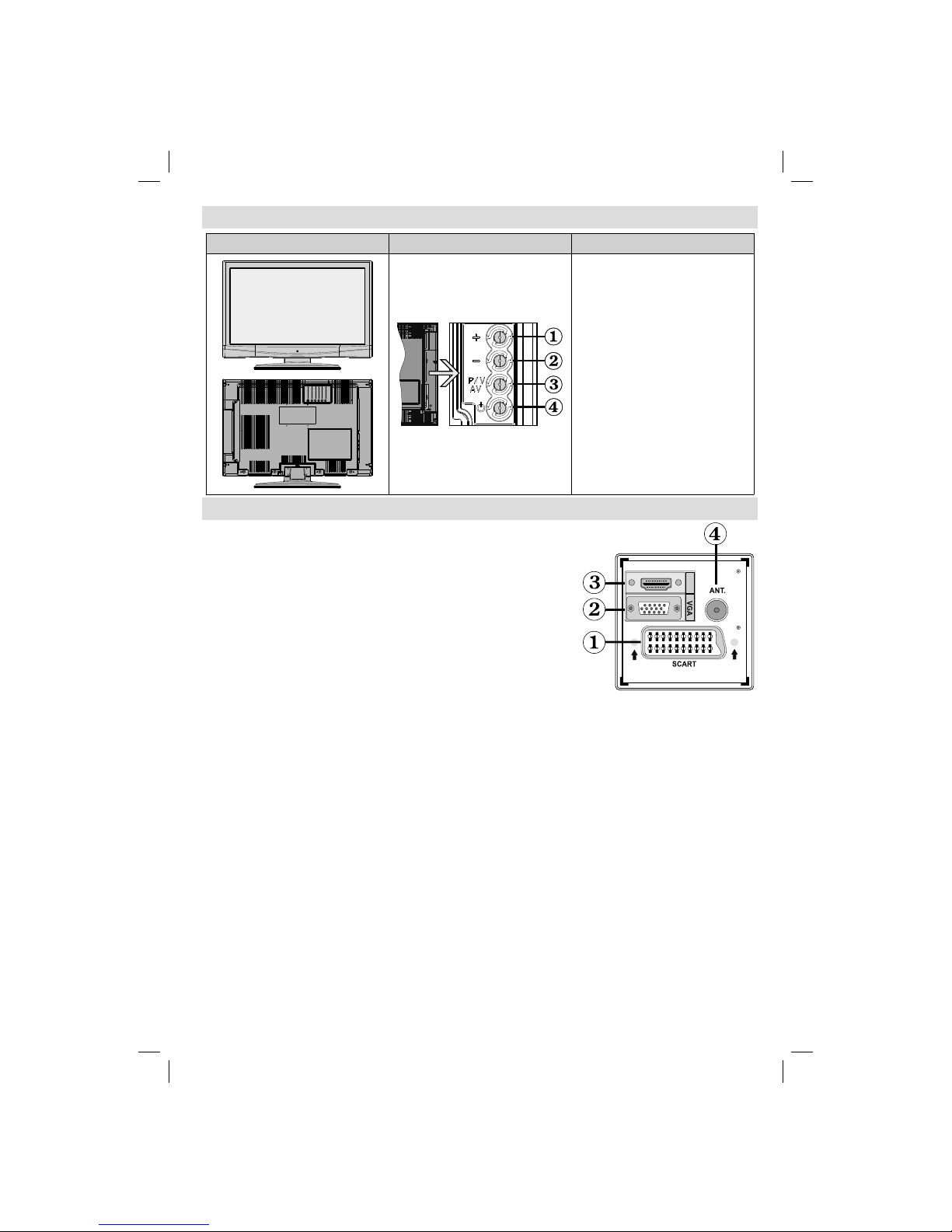

LCD TV and Operating Buttons

FRONT and REAR VIEW SIDE VIEW Control Buttons

Up button1. Down button2. Programme/Volume / AV3. selection button

Standby button4.

Note:You can use “+/-” buttons to

change volume. If you want to change

channels, press P/V/AV button once

and then use “+/-” buttons. If you hold

theP/V/AV buttonaboutafewseconds,

source OSD will be displayed. Main

menu OSD cannot be displayed via

control buttons.

Viewing the Connections- Back Connectors

SCART socket inputs or outputs for external devices.1.

HDMI

Connect the SCART cable between SCART socket on TV and

SCART socket on your external device (such as a decoder, a VCR

or a DVD player).

Note: If an external device is connected via the SCART socket, the

TV will automatically switch to AV mode.

PC Input is for connecting a personal computer to the TV set.2. Connect the PC cable between the PC INPUT on the TV and the

PC output on your PC. Component Video Inputs (YPbPr) are used

for connecting component video.

You can use PC input to enable YPbPr signal connection with a

device that has component output. Connect the YPbPr to PC cable

between the PC INPUT on the TV and the component video outputs

of your device. (YPbPr cable is not supplied)

HDMI3. : HDMI input

HDMI Input is for connecting a device that has an HDMI socket.

Your LCD Television is capable of displaying High Deﬁnition pictures from devices such as a High

Deﬁnition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets

or Component Socket. These sockets can accept either 480i, 480p, 576p, 576i, 720p, 1080i, 1080p

(optional) signals. No sound connection is needed for an HDMI to HDMI connection.

RF Input connects to an antenna or a cable system.4. Note that if you use a decoder or a media recorder, you should connect the aerial cable through the

device to the television with an appropriate antenna cable, as shown in the illustration in the following

pages.

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 501_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 5 05.01.2010 13:07:3705.01.2010 13:07:37

English - 6 -

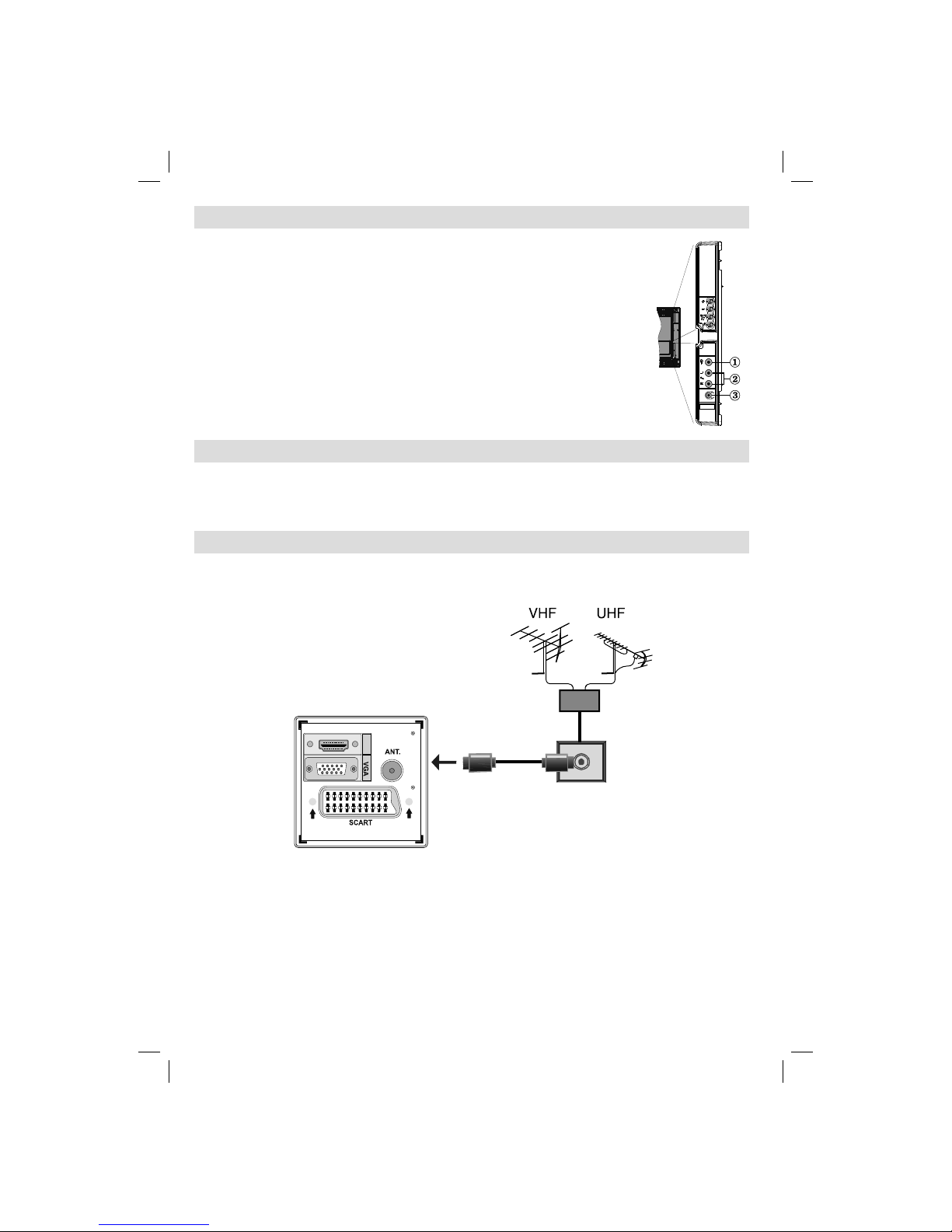

Viewing the Connections - Side Connectors

Video Input is used for connecting video signals of external devices.Connect the1. video cable between the VIDEO IN socket on the TV and the VIDEO OUT jack on

your device.

Audio Inputs are used for connecting audio signals of external devices. Connect the2. audio cable between the AUDIO INPUTS on the TV and theAUDIO OUTPUT jacks

on your device.

Also to enable PC/YPbPr sound connection in such a case, use an appropriate

audio cable between the connected device’s audio outputs and the TV’s audio

inputs

Note: If you connect a device to the TV via the VIDEO or PC/YPbPr cable (YPbPr

cable is not supplied) you should also connect your device with an audio cable to

the AUDIO INPUTS of the TV to enable audio.

Headphone jack is used for connecting an external headphone to the system.3. Connect to the HEADPHONE jack to use headphones.

Power Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.

• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the

mains.

• Plug the power cable to the mains socket outlet.

Aerial Connection

• Connect the aerial or cable TV plug to theAERIAL INPUT socket located at the rear of the TV.

HDMI

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 601_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 6 05.01.2010 13:07:3905.01.2010 13:07:39

English - 7 -

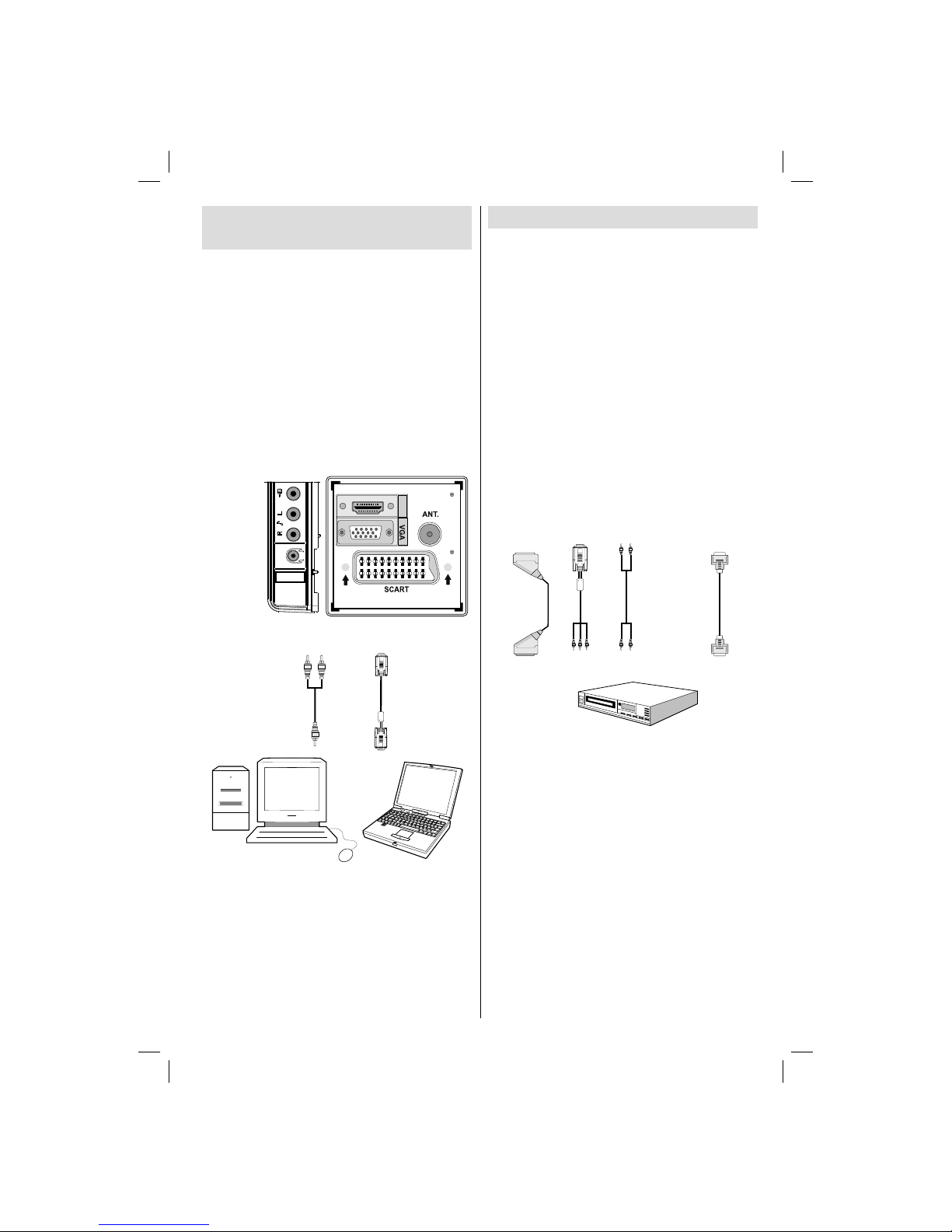

Connecting the LCD TV to a

For displaying your computer’s screen image on

your LCD TV, you can connect your computer to the

TV set.

• Power off both computer and display before making

any connections.

• Use 15-pin D-sub display cable to connect a PC

to the LCD TV.Use an audio cable between audio

inputs of the TV (side) and audio output of your PC

to enable sound connection.

• When the connection is made, switch to PC source.

See “Input selection” section.

•Settheresolutionthatsuitsyourviewingrequirements.

Resolutioninformationcan befoundin theappendix

parts.

HDMI

PC audio cable

(not supplied)

to AUDIO INPUTS

on the TV

PC RGB cable

(not supplied)

to PC input

Audio

Inputs

PC Input

Connecting to a DVD Player

If you want to connect a DVD player to your LCD

TV, you can use connectors of the TV set. DVD

players may have different connectors. Please refer

to your DVD player’s instruction book for additional

information. Power off both the TV and the device

before making any connections.

Note: Cables shown in the illustration are not supplied.

• If your DVD player has an HDMI socket, you can

connectviaHDMI. Whenyou connecttoDVD player

as illustrated below, switch to HDMI source. See,

“Input Selection” section.

• Most DVD players are connected through

COMPONENT SOCKETS. YPbPr can be use only

whenyouconnect a devicethathas aYPbProutput

through the PC input with YPbPr to PC cable. To

enable sound connection, use AUDIO IN located

side of the TV (YPbPr cable is not supplied).

. When the connection is made, switch to YPbPr

source. See, “Input selection” section.

• You may also connect through the SCART socket.

Use a SCART cable as shown below.

HDMI

input

Scart socket YPbPr to PC

cable (optional)

Component

audio

inputs

DVD Player

Note: These methods of connection perform the same

function but in different levels of quality. It is not necessary

to connect by all three methods.

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 701_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 7 05.01.2010 13:07:3905.01.2010 13:07:39

English - 8 -

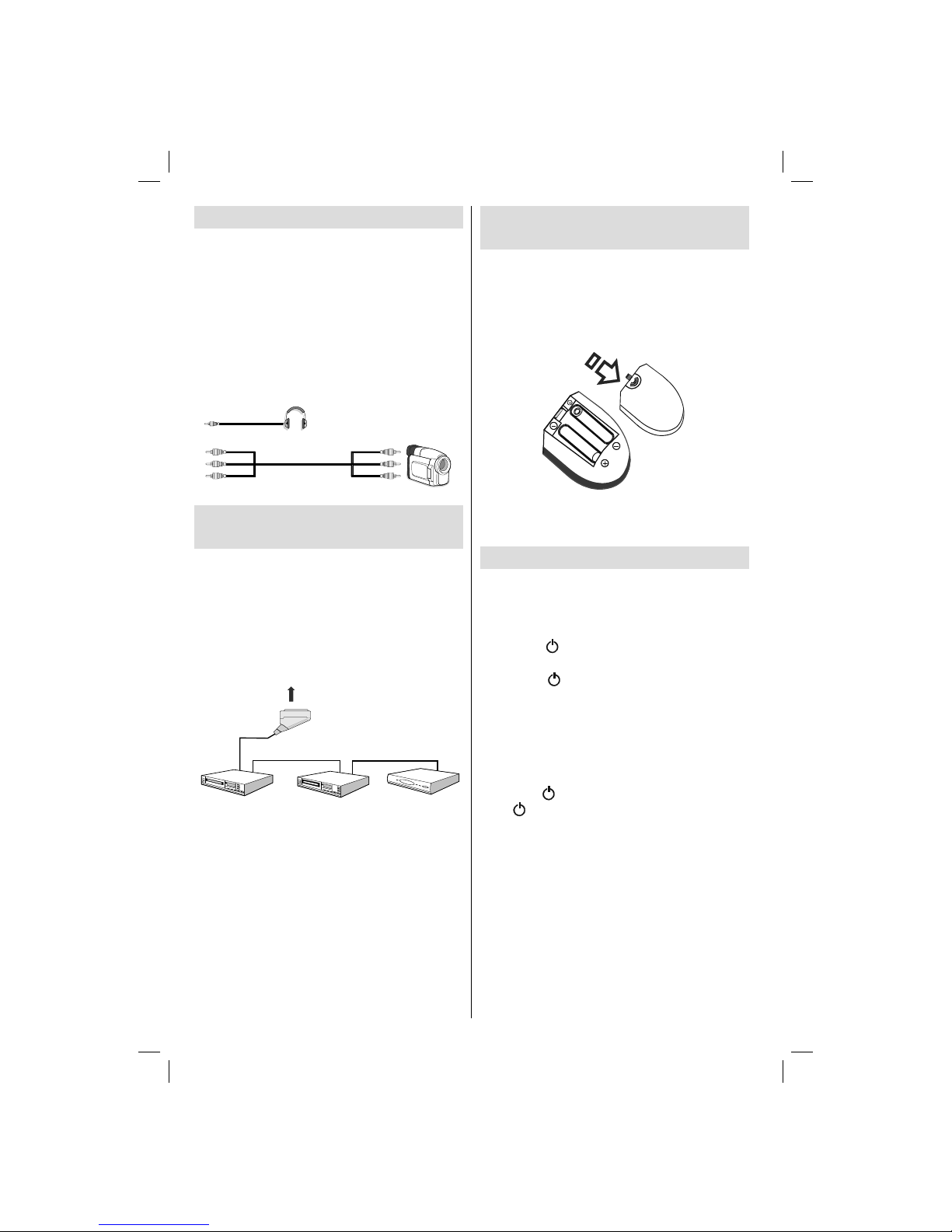

Using Side AV Connectors

You can connect a range of optional equipment

to your LCD TV. Possible connections are shown

below. Note that cables shown in the illustration are

not supplied.

• For connecting a camcorder, connect to the VIDEO

IN socket and theAUDIO SOCKETS. For selecting

the related source, see the section “Input selection”

in the following parts.

• To listen the TV sound from headphones, connect

to the HEADPHONE jack of theTV

Camcorder

Headphone

Connecting Other Equipment

via Scart

Most devices support SCART connection. You can

connect a; DVD recorder, a VCR or a decoder to

your LCD TV by using the SCART socket. Note that

cables shown in the illustration are not supplied.

Power off both theTV and the devices before making

any connections.

For more information, refer to your device’s own

instruction book.

Scart socket

Decoder

DVD Recorder Video Recorder

Inserting Batteries into the

Remote Control

• Remove the battery cover located on the back of

the by gently pulling backwards from the indicated

part.

• Insert two AAA/R3 or equivalent type batteries

inside.Placethe batteries intheright directions and

replace the battery cover.

Note: Remove the battery from remote control when it is not

to be used for a long period. Otherwise it can be damaged

due to any leakage of batteries.

Switching the TV On/Off

To Switch the TV On

•Connectthepower cord tothe220-240VAC, 50Hz.

Then the standby LED lights up.

• To switch on the TV from standby mode either:

• Press the “ ” button, P+ / P- or a numeric button

on the remote control.

• Press the “ ” button, -P/CH or P/CH+ button on

the TV. The TV will then switch on.

Note: If you switch on your TV via standby button on the

remotecontrol,theprogramme/source that you werewatching

last will be reselected.

By either method the TV will switch on.

To Switch the TV Off

•Pressthe“ ” button on theremotecontrol or press

the “ ” switch on the TV, so the TV will switch to

standby mode.

• To power down the TV completely, unplug the

power cord from the mains socket.

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 801_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 8 05.01.2010 13:07:4005.01.2010 13:07:40

English - 9 -

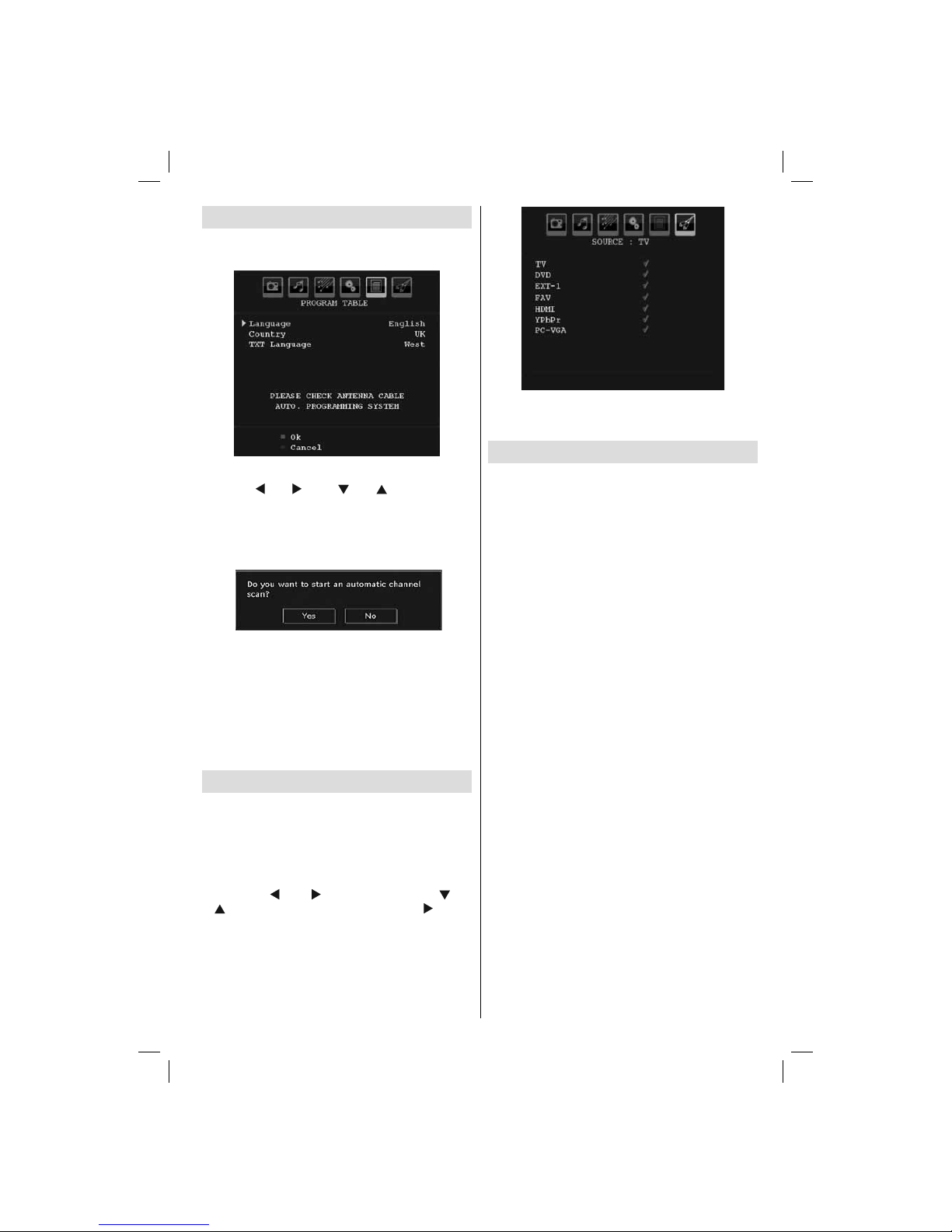

First Time Installation

When the TV set is operated for the ﬁrst time, the

following menu screen will be displayed:

Select your Country, Language and Text language

by using “ ” or “ ” and “ ” or “ ” buttons. Press

OK or RED button to continue. To cancel, press the

BLUE button.

The following menu will be displayed during the

automatic tuning:

AfterAPSisﬁnalized,theprogramme tablewill appear

on the screen. In the programme table you will see

the programme numbers and names assigned to the

programmes.

If you do not accept the locations and/or the

programme names, you can change them via the

program table.

Do not turn off the TV while initializing ﬁrs time installation.

Input Selection

Once you have connected external systems to your

TV, you can switch to different input sources.

• Press SOURCE button on your remote control for

directly changing sources.

• Select “Source” option from the main menu

by using “ ” or “ ” button. Use then “ ” or

“”buttonto highlightaninput and press“ ”button

to select.

Note: You can mark desired source options by pressing the

OK button. Therefore, when SOURCE button is pressed,

only the marked source options will be available (except for

the TV source).

Note : YPbPr mode can be use only when you connect a

device that has a YPbPr output through the PC input with

YPbPr to PC cable (YPbPr cable is not supplied).

Basic Operations

You canoperate yourTV usingboth theremote

control and onset buttons.

Operation with the Buttons on the TV

Main menu OSD cannot be displayed via control

buttons.“+/-”buttons willfunctionas volume up/down

as default. Even if you set other functions for these

buttons, “+/-” buttons will perform as default after a

short while.

Volume Setting

•Press “P/V/AV”button onceand thenuse“+/-”buttons

to increase or decrease volume, so a volume level

scale (slider) will be displayed on the screen.

Programme Selection

• Press “+/-” to select the next or previous programme.

AV Mode

• Hold the “P/V/AV” button, source OSD will be

displayed.

Operation with the Remote Control

• The remote control of yourTV is designed to control

all the functions of the model you selected. The

functions will be described in accordance with the

menu system of your TV.

• Functions of the menu system are described in the

following sections.

Volume Setting

•Press“V+” button toincrease the volume.Press“V-”

buttontodecrease thevolume.Avolume level scale

(slider) will be displayed on the screen.

Programme Selection (Previous or Next

Programme)

• Press “P -” button to select the previous programme.

• Press “P +” button to select the next programme.

01_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 901_MB45_[GB]_(01-TV)_1900UK_ANALOG_BRONZE11_22880W_10067059_50162270.indd 9 05.01.2010 13:07:4105.01.2010 13:07:41
