Fujitsu ASU9RL2 Manuale utente

SPLIT TYPE

ROOM AIR CONDITIONER

WALL MOUNTED TYPE

CONTENTS

SPECIFICATIONS. . . . . . . . . . . . . . . . . . .

DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . 2

REFRIGERANT SYSTEM DIAGRAM. . . .3

CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . 4

ERROR DETECTION . . . . . . . . . . . . . . .

INDOOR PCB CIRCUIT DIAGRAM . . . . .

OUTDOOR PCB CIRCUIT DIAGRAM . . .

PARTS (INDOOR UNIT) . . . . . . . . . . . . .11

PARTS (OUTDOOR UNIT) . . . . . . . . . . .16

ACCESSORIES . . . . . . . . . . . . . . . . . . .

Indoor unit Outdoor unit

ASU9RL2

ASU12RL2

AOU9RL2

AOU12RL2

SPECIFICATIONS

TYPE Cool & heat inverter

INDOOR UNIT ASU12RL2

OUTDOOR UNIT AOU12RL2

COOLING CAPACITY 12,000 Btu/h

HEATING CAPACITY 14,000 Btu/h

POWER SOURCE

FREQUENCY

RUNNING

CURRENT

MAXIMUM

CURRENT

10.9 A

11.0 A

INPUT

WATTS

1.200 kW

1.210 kW

E.E.R.

Cooling

10.00 Btu/Wh

COP

Heating

Cooling

Heating

Cooling

Heating

Cooling

Heating

Cooling

Heating

11.55 Btu/Wh

MOISTURE REMOVAL

3.8 Pts/h

1.8 L/h

AIR

CIRCULATION

HIGH

424 CFM, 720 m3/h

435 CFM, 740 m3/h

ASU9RL2

AOU9RL2

9,000 Btu/h

10,000 Btu/h

115 V

60 Hz

7.5 A

7.0 A

13.0 A

15.0 A

13.0 A

13.5 A

0.830 kW

0.770 kW

10.85 Btu/Wh

13.0 Btu/Wh

2.7 Pts/h

1.3 L/h

FAN MOTOR

POWER SOURCE 115 V

High

INDOOR

UNIT

Cooling

Medium

Low

Quiet

High

INDOOR

UNIT

Heating

Medium

Low

Quiet

High

Medium

Low

Quiet

1,320 r.p.m.

1,120 r.p.m.

840 r.p.m.

700 r.p.m.

1,360 r.p.m.

1,120 r.p.m.

900 r.p.m.

700 r.p.m.

OUTDOOR UNIT Heating

650 r.p.m.

OUTDOOR UNIT Cooling

730 r.p.m.

1,320 r.p.m.

1,120 r.p.m.

860 r.p.m.

700 r.p.m.

1,360 r.p.m.

1,120 r.p.m.

900 r.p.m.

700 r.p.m.

760 r.p.m.

860 r.p.m.

ELECTRICAL DATA

INDOOR

UNIT

OUTDOOR UNIT Heating

NOISE LEVEL

43 dB

38 dB

33 dB

23 dB

48 dB 51 dB

OUTDOOR UNIT Cooling

47 dB 51 dB

2012.11.07 1

COMPRESSOR TYPE

Hermetic type,

4 pole, 3 phase,

DC inverter motor, Rotary

DISCRIMINATION ASM89D10UFZ

PRECHARGED REFRIGERANT

REFRIGERANT TYPE R410AR410A

28 oz., 800 g

23 oz., 650 g

WEIGHT (with oil) 19 lb. 10 oz., 8.9 kg

COMPRESSOR AND REFRIGERANT

Pipe length

66 ft., 20 m

FULL CHARGE

49 ft., 15 m

32 oz., 900 g

26 oz., 750 g

MAXIMUM PIPING HEIGHT

49 ft., 15 m

ADDITIONAL CHARGE 0.22 oz./ft., 20 g/m

WEIGHT

INDOOR UNIT

Net / Shipping

15 lb. / 20 lb.

7 kg / 9 kg

OUTDOOR UNIT 68 lb. / 73 lb.

31 kg / 33 kg

64 lb. / 68 lb.

29 kg / 31 kg

INDOOR UNIT

H x W x D

10-5/16 x 32-9/32 x 8-1/8 in.

262 x 820 x 206 mm

OUTDOOR UNIT 21-1/4 x 26 x 11-11/32 in.

540 x 660 x 290 mm

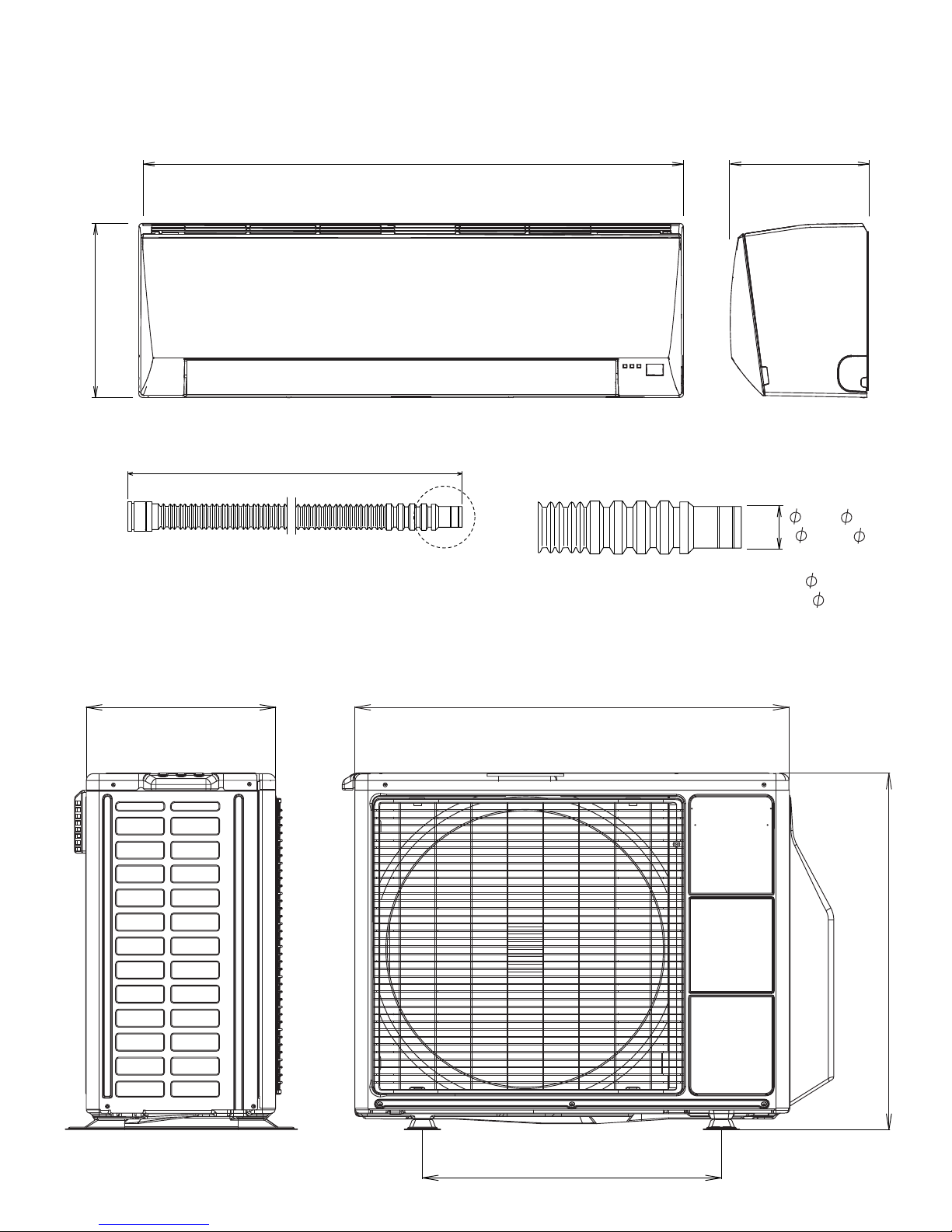

DIMENSIONS

unit : inch (mm)

10-5/16 (262)

5/8 to 21/32

( 15.8 to 16.7)

8-1/8 (206)32-9/32 (820)

2012.11.07 2

INDOOR UNIT

Drain hose

OUTDOOR UNIT

Diameter

Outside

Inside : 17/32 inch

( 13.8 mm)

23-5/8 (600)

26 (660)

18 (454)

21-1/4 (540)

11-11/32 (290)

REFRIGERANT

SYSTEM DIAGRAM

2-way valve

Strainer

3-way valve

Muffler

4-way valve Pulse motor valve

Refrigerant flow

Heat exchanger

(indoor unit)

Heat exchanger

(outdoor unit)

Compressor

Cooling

Heating

Refrigerant pipe diameter

Liquid : 1/4" (6.35 mm)

Gas : 3/8" (9.52 mm)

2012.10.31 3

BLACK

WHITE

RED

BLACK

WHITE

GREEN

WHITE

RED

BLACK

RED

BLUE

ORANGE

YELLOW

WHITE

RED

WHITE

BLACK

YELLOW

BROWN

RED

WHITE

BLACK

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( DISCHARGE )

THERMISTOR

( OUTDOOR )

REACTOR

TERMINAL

12 3 L N

POWER SOURCE

4-WAY VALVE

EXPANSION

VALVE

FAN MOTOR

COMPRESSOR

PMV

4WV

U(R)

V(S)

W(C)

W10

W11

CN71

CN70

W101

W102

CN800

CN40

CN30

MAIN PCB

TERMINAL 1 2 3 EARTH

TERMINAL

TEST

THERMISTOR

( ROOM TEMP. )

THERMISTOR

( PIPE TEMP. )

LOUVER

( UP / DOWN )

FAN MOTOR

INDICATOR

PCB

MAIN PCB

CN201

CN3

CN7

CN1 W4

CN6

CN4

CN5

12 3 4 5

BLACK

WHITE

RED

GREEN

RED

ORANGE

YELLOW

PINK

BLUE

BLACK

WHITE

BLUE

YELLOW

WHITE

BLACK

RED

INDOOR UNIT

OUTDOOR UNIT

2012.10.12 4

CIRCUIT DIAGRAM

BLACK

RED

ORANGE

YELLOW

PINK

BLUE

WHITE

RED

BLACK

WHITE

YELLOW

BLUE

CN201

S7B-PH-K-S

LOUVER

( UP / DOWN )

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( ROOM TEMP. )

TEST

CN6

B5B-PH-K-R

RED

CN3

B7B-PH-K-S

RED

CN5

B5B-PH-K-S

RED

CN4

B4B-PH-K-S

WHITE

CN7

B5 ( 6-5 ) B-XARK-1-A

RED

FAN MOTOR

F M

INDICATOR PCB

K11CO-1100HSE-D0

MAIN PCB

ASU9RL2 : K11CN-1200HSE-C1

ASU12RL2 : K11CN-1201HSE-C1

CN1

SC25-05WSA

WHITE

12 3 4 5

TERMINAL

1BLACK

WHITE

RED

GREEN

ERATH

OUTDOOR UNIT

CONTROL UNIT

ASU9RL2 : EZ-0120PHSE

ASU12RL2 : EZ-0120RHSE

INDOOR PCB

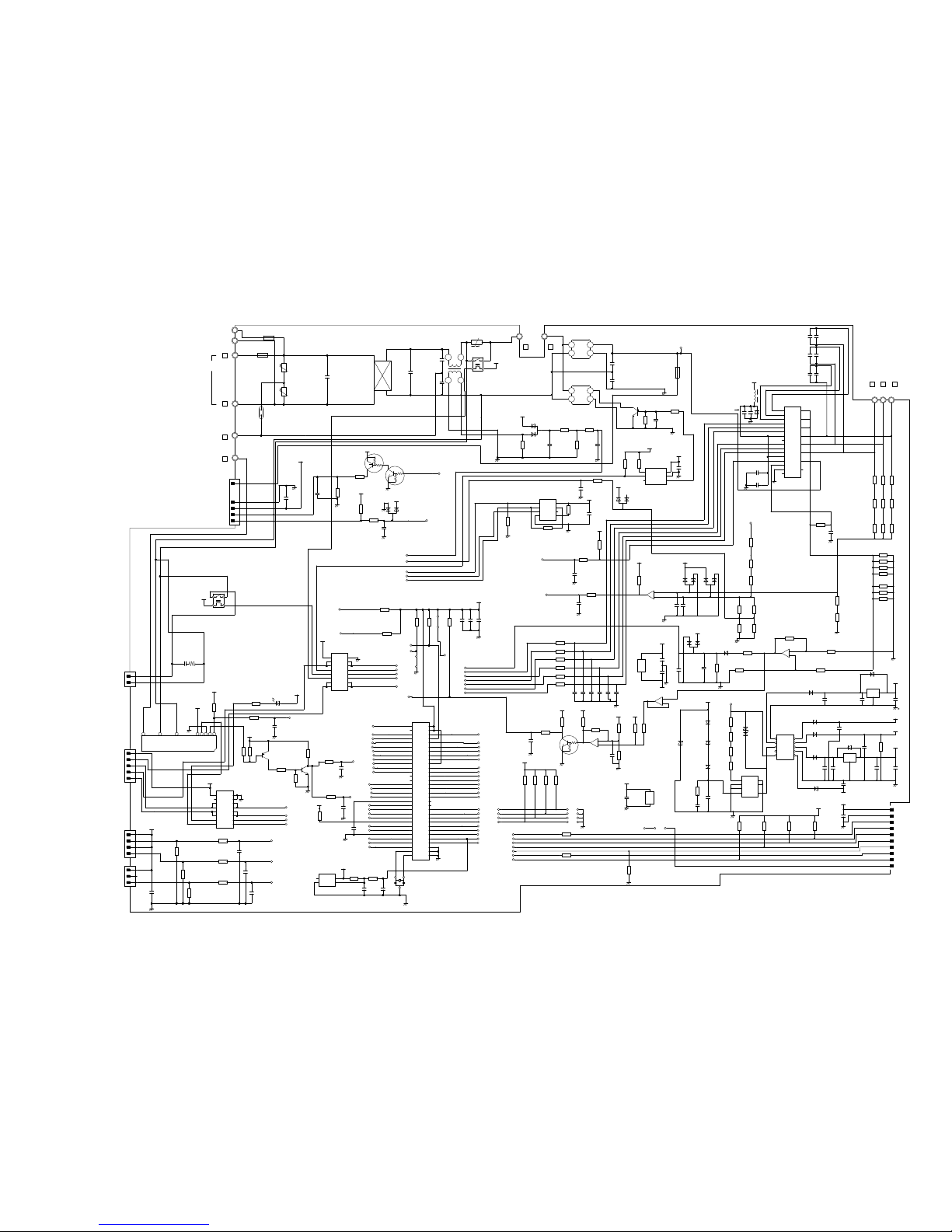

CIRCUIT DIAGRAM

2012.09.11 5

I C8

TNY274PN

C12

0.1

<F> R8

1.0k

<1/10W>

2SC4081

<R>

BP_M

EN_UV

S1NBC60

340V

SS21V-R060330 JP1

I C16

PC357N4

D12

DAN202U

R61

1.0k

<1/10W>

R62

12k

<1/10W>

C53

0.047

<R>

R15

1.0k

<1/10W>

C21

0.01

R65

200

<1/8W>

R64

12k

<1/10W>

C54

0.022

<R>

16 1

VA1

220V

<TNR>

3.15A

250V

C29

1000p

<E>

R12

1.0k

<1/2W>

D10

D1F60

R590 - R592

13k 1% x 3

R69

100

<1/10W>

C55

1000p

<X7R>

R67

5.1k

<1/10W>

R593 - R595

13k 1% x 3

D11

D1F60

I C15

PC357N4

I C17

TLP165J

I C13-1

uLN2003A

DTC124EUA

C20

0.01

R14

1.0k

<1/10W>

R13

10k

<1/10W>

R44

10k

<1/10W>

R55

10k

<1/10W>

C36

0.1

<F>

I C12

S-93C66BD0 I

D I

VCC

TEST

GND

5V 5V

R49, R51

10k <1/10W> x 2

15V

C17

0.1

<F>

R48

<1/10W>

8.00MHz

<CSTLS>

C24

0.1

<F>

82/

200V

D20

ST03D-200-4060

MY082N 15V

D1FL20U

C10

220/

25V

D1FL20U

330/

25V

150

<1/10W>

1.0k

<1/10W>

2SA1576A

<R>

REF

I C6

TL431

C11

0.1

<F>

R10

10k

<1/10W>

10k

<1/10W>

15V

I C13

uLN2003A

I C13-2 - I C13-5

uLN2003A x 4

R31 - R34

33 <1/10W> 1% x 4

15V

R29, R28, R27

220 <1/10W> x 3

A A

R36

10k

<1/10W>

C25

1000p

<R>

R37

<1/10W>

C50

1000p

<R>

15V-2 R25

1.8k

<1/10W>

R26

2.2k

<1/10W>

DTA124EUA

DTC124EUA

15V

47/

35V

340V

R20

1.0k

<1/10W>

C23

1000p

<R>

R21

10k

<1/10W>

215

3 14

413

5 12

15V-2

15V R57

470

<1/8W>

C26

0.1

<F>

UDZS12B

BLm18

<BD102>

C19

0.1

<F>

R43

10k

<1/10W>

BZ1

PS1240P02BT

I C13-7

uLN2003A

10 7

R38

1.0k

<1/10W>

R40

1.0k

<1/10W>

R39

10k

<1/10W>

R41

49.9k

<1/10W>

C28

0.1

<F>

C31

0.1

<F>

C41

0.1

<F>

R46

1.0k

<1/10W>

R45

10k

<1/10W>

I C 1

u P D 7 8 F 0 5 1 5

12 11 10 98765 4 3 2 1

25 26 27 28 29 30 31 32 33 34 35 36

P31

P30

P17

P16

P15

P14

P13

P12

P11

P10

AVDD

AVSS

VDD

VSS

MD0

P123

P124

*RST

P40

P41

P120

P27 P26 P25 P24 P23 P22 P21 P20 P130 P01 P00 P140

P32 P70 P71 P72 P73 P74 P75 P33 P63 P62 P61 P60

W - I N

W - OUT

CN1

SC25-05WSA

WHITE

BLACK

WHITE

RED

TO TERMINAL

0.1

<LE>

0.01

<KH>

0.01

<KH>

CN5

B5B-PH-K-S

WHITE

LOUVER ( UP / DOWN )

CN3

B7B-PH-K-S

WHITE

TO I NDICATOR PCB

DC FAN MOTOR

CN7

B5 ( 6-5 ) B-XARK-1-A

RED

CN4

B4B-PH-K-S

WHITE

THERMISTOR ( ROOM TEMP. )

THERMISTOR ( PIPE TEMP. )

TEST

CN6

B5B-PH-K-R

RED

<1/10W>

INDOOR UNIT

MAIN PCB

ASU9RL2 : K11CN-1200HSE-C1

ASU12RL2 : K11CN-1201HSE-C1

2012.08.09 6

VCC

OUT

GND

I C201

GP1UM261R

R202

<1/4W>

C203

0.1

<F>

+C202

47/

10V

SW201

KSHC611BT-PBT

D201 SLR-343MC GREEN

D203 SLR-343MC GREEN

D202 SLR-343DC ORANGE

XN201

S7B-PH-K-S ( LF ) ( SF )

WHITE

INDOOR UNIT

INDICATOR PCB

K11CO-1100HSE-D0

2012.08.09 6

REACTOR

6mH 15A

UL3271

AWG14

RED

UL3271

AWG14

WHITE

UL1015

AWG16

GREEN

UL1015

AWG14

WHITE

UL1015

AWG14

BLACK

UL1015

AWG20

RED

UL1015

AWG20

WHITE

UL1015

AWG20

BLACK

UL3271

AWG16

RED

UL3271

AWG16

WHITE

UL3271

AWG16

BLACK

RED

WHITE

YELLOW

BROWN

RED

BLUE

ORANGE

YELLOW

WHITE

BLACK

W10

W11

W101

W102

TERMINAL

FRAME FRAME

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( DISCHARGE TEMP. )

THERMISTOR

( OUTDOOR TEMP. )

CN71

B04B-PL I SK-1

RED

CN70

B03B-PL I SK-1

WHITE

CN40

B05B-PL I SK-1

WHITE

CN800

B5 ( 7-2.3 ) B-XASK-1-A

WHITE

CN30

1747052-1

WHITE

4-WAY VALVE

DC FAN

MOTOR

EXPANSION

VALVE

COMPRESSOR

SERIAL

TO INDOOR UNIT

MAIN PCB

AOU9RL2 : K12HZ-1200HUE-C1

AOU12RL2 : K12HZ-1201HUE-C1

EMI FILTER

ZCAT1518-0730

1 T

EMI FILTER

TRCB-25-15-12

EMI FILTER

ZCAT2132-1130

1 T

POWER

SOURCE

EARTH

INVERTER ASSEMBLY

AOU9RL2 : EZ-012FHUE

AOU12RL2 : EZ-012LHUE

OUTDOOR PCB

CIRCUIT DIAGRAM

2012.11.07 8

VDD

OUT

GND

VCC

G / V

VCC

VEE

VCC

TEST

D I

GND

VCC

G / V

R801

27k

<1/10W>

Q801

DTA143EUA

15V

Q800

DTC143EUA

D600

DAN217U

C800

4.7/

50V

15V

2 1

4 3

18 14 10 54321

G / V

VCC

2 1

15V

-8V

15V

15V I C301

BA2903F

C84

0.1

<F>

5V 15V

C86

470p

C87

330p

D301

DAN217U

I C300

BA4560RF C306

0.1

<F>

C305

0.1

<F>

C311

1000p

C320

0.15

<ECQV>

R331

47k

R327

22k

I C300

BA4560RF

D302

RB751V

R328

1.0k

R321

5.6k

<1/10W>

R322

4.3k

<1/10W>

R311

33k

<1/10W>

R312

39k

<1/10W>

R329

47k

I C300

BA4560RF

R330

4.7k

<1/10W>

R332

4.7k

<1/10W>

D63

D1FL20U

C57

220/

50V

R584

22k

<1/10W>

R583

1.0k

<1/10W>

R582

10k

<1/10W>

R581

10k

<1/10W>

C580

0.1

<F>

-8V

C69

100/

25V

D64

1SS355

T60

RPZ-2F

I C50

TOP243PN

C53

0.1

<F>

D60

D1FL20U

D61

D1FL20U

D62

D1FL20U

C66

100/

25V

+C70

0.1

<F>

C67

0.1

<F>

D54

1SS355

I C60

BA17805

C65

470/

25V

+R61

10k

C68

100/

25V

12V

15V

C64

330/

25V

15V-2

C58

0.1

<F>

C59

10/

50V

D65

1SS355

I C61

BA17815

DCV

D66

RD24FM

D50

1SS355

D51

UDZS8.2B

D52

1SS355

R51

<1/10W>

C50

47/

35V

R52

470k

<1/8W>

R53

510k

<1/8W>

R54

510k

<1/8W>

R55

510k

<1/8W>

R333

10k

R336

10k

R338

5.6k

C331

0.01

Q300

DTC114EUA

5V5V

R339

10k

<1/10W>

R220

1.0k

<1/10W>

C303

4700p

R334

10k

<1/10W>

R337

100k

I C301

BA2903F

R335

10k

R93, R92, R91, R90

10k <1/10W> x 4

C802

0.1

<F>

R802

22k

<1/10W>

R803

10k

<1/10W>

R804

1.0k

<1/10w>

C801

0.01

SC-18-E15J

1.0

<LE>

1.0

<LE>

25A 125A

F100

3.15A 250V

SA1

RA-242M

12V

K30

FTR-F3

CR30

RE1201

0.1/120

HYIC1 HU1002R2

5V R23

4.7k

<1/10W>

I C80

uLN2003ADR

12V

R80

2.2k

<1/10W>

D80

SML-310VT

<RED>

12V

C21

0.1

<F>

R22

1.0k

<1/10W>

R700, R701

4.7k x 2

R900

10k

<1/10W>

Q700

2SA1576A

<R> Q701

2SC4081

<R>

R702

1.0k

R703

10k

<1/10W>

R704

560

<1/10W>

R706

1.0k

<1/10W>

C702

4700p

R705

1.0k

<1/10W>

C701

0.1

<F>

C500

0.1

<F>

I C560

S-80842

5V R560

100k

R561

1.0k

C560, C561

0.1 <F> x 2

X500

4.00MHz

<FCR>

I C500

MB90F462

C501

10/

25V

C502, C503

0.1 <F> x 2

R503

10k

<1/10W>

R500

10k

<1/10W>

R505

10k

<1/10W>

R502

0R0

R506

10k

<1/10W>

R238

10k

<1/10W> R204 - R209

470 <1/10W> x 6

C206 - C208, C215 - C217

1000p x 6

C300

470p

C219

4700p

R83

4.7k

<1/10W>

R219

1.0k

<1/10W>

R218

4.7k

<1/10W>

R570

10k

<1/10W>

I C570

S-93C66B0 I

R111

1.0k

<1/10W>

C109

0.1

<F>

R572

10k

<1/10W>

C570

0.1

<F>

D106

DAN217U

15V-2

C110

0.1

<F>

PC100

PS9306L

R102

10k

<1/10W>

R103

300

<1/10W>

VCC

AVCC

P00

P01

P17

P13

P14

P15

P16

AVR

P24

P25

P30

P31

P32

P33

P34

P35

P60

P61

MD0

MD1

P44

P43

P42

P41

P45

RSTX

P27

AGND

GND

P63

P62

P46

P12

P50

P37

P36

P40

MD2

P11

P26

P02

P03

P04

P05

P06

P07

P10

P20

P21

P22

P23

P57

P56

P55

P54

P52

P53

P51

VUFB

VVFB

VWFB

VP1

VNCA

VN1

C I N

VNC

NCA

NCB

NCC

I C200

PS219B3-AS

15V

L300

47uH

C229, C227

0.1 <F> x 2

C214

2200p

R210

820

R313 - R315

150k <1/3W>

1% x 3

R305 - R307

120k <1/3W>

1% x 3

R301 - R303

120k <1/3W>

1% x 3

DCV

R104

150k

<1/3W>

R308

120k

<1/3W>

R304

120k

<1/3W>

D304, D303

DA217U x 2

I C301

BA2903F

R81

1.0k

<1/10W>

D55

ST03D-140

R214 - R217, R221 - R223

0.2 <1/2W> 1% x 7

R309

5.76k

<1/10W>

R310

143

<1/10W>

3.15A

250V

Q100

GT30J122

R101

100

<1/10W>

C111

1000p

R100

4.7k

<1/10W>

C100

1600/

210V

C102

1600/

210V

DCV

D100

D15XB60

D101

D15XB60

D120

DAN217U

R121

1.0k

<1/10W>

R123

22k

<1/10W>

C121

0.1

<F>

R122

4.75k

<1/10W>

C120

220/

25V

R120

1.0k

<1/10W>

( REACTOR )

12V

J512Q35E400X290

0.01

<F>

0.01

<F>

CT1

CTS-EE0904

DX12D1-O(M)

12V I C40

uLN2003ADR

R75

10k

<1/10W>

R76

10k

<1/10W>

R77

10k

<1/10W>

R72

13k

<1/10W>

R73

38.3k

<1/10W>

C75

0.1

<F>

C73

0.1

<F>

C72

0.1

<F>

C71

0.1

<F>

R587

100

R586

100

JM101

JM102

JM103

JM100

R571

10k

<1/10W>

W10

WHITE

W11

RED

WHITE

GREEN

RED

BLACK

W101

W102

CN800

B5 ( 7-2.3 ) B-XASK-1-A

FAN MOTOR

CN30

1747052-1

4-WAY VALVE

CN40

B05B-PL I SK-1

EXPANSION VALVE

CN71

B04B-PL I RK-1

THERMISTOR ( PIPE TEMP. )

THERMISTOR ( DISGHARGR TEMP. )

CN70

B03B-PL I SK-1

THERMISTOR

( OUTDOOR TEMP. )

R585

1.0k

<1/10W>

FLASH

1 2

I PM-TR I P/33P

CP-POS/47P

I PM-CR/9P

U/50P

X/51P

V/52P

Y/53P

W/54P

Z/55P

20P

34P

36P

FAN I N/17P

FANPWM/2P

35P

CT/3P

TEST/59P

PFCEN/58P

TTXD/60P

TAUX3/21P

34P

CP-POS/47P

V4-AC/27P

37P

LED/30P

PR/31P

SO/32P

I PM-TR I P/33P

E2CS/41P

EPV2/42P

EPV4/43P

EPV3/44P

I PM-CR/9P

DCV/8P

TE/5P

TA/6P

TD/4P

48P

35P

46P

CT/3P

DCV/8P

E2CS/41P

E2SK/40P

E2D I/39P

FANPWM/2P

FAN I N/17P

EPV2/42P

PFCEN/58P

V4-AC/27P

PR/31P

EPV4/43P

SERVICE/38P

FLASH

JM2

TAUX/25P

E2SK/40P

36P

37P

SERVICE/38P

E2D I/39P

EPV1/45P

46P

U/50P

X/51P

V/52P

Y/53P

W/54P

Z/55P

TMODE/18P

20P

MD1/64P

MD2/63P

TCK/62P

TRXD/61P

MD0/1P

TRES/19P

48P

R71

4.75k

<1/10W>

EPV3/44P

EPV1/45P

LED/30P

SO/32P

TE/5P

TD/4P

TA/6P

MD0/1P

MD1/64P

MD2/63P

TEST/59P

TAUX/25P

TTXD/60P

TRXD/61P

TMODE/18P

TAUX3/21P

TCK/62P

TRES/19P

WHITE

BLACK

RED

C222

0.1

<F>

C220

220/

50V

D203

RD24FM

C204

22/

50V

C202

22/

50V

C200

22/

50V

C201

0.1

<F>

C203

0.1

<F>

C205

0.1

<F>

VA2

200V

VA1

200V

POWER SOURCE

AC115V

60Hz

EARTH

SERIAL

OUTDOOR UNIT

MAIN PCB

AOU9RL2 : K12HZ-1200HUE-C1

AOU12RL2 : K12HZ-1201HUE-C1

2012.09.24 9

Altri manuali per ASU9RL2

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Fujitsu Condizionatore d'aria

Fujitsu

Fujitsu AUTH09KVLA Manuale utente

Fujitsu

Fujitsu Halcyon 12RLS Manuale utente

Fujitsu

Fujitsu Inverter Halcyon ASU9RLS Manuale utente

Fujitsu

Fujitsu AB A30LBT Series Manuale operativo originale

Fujitsu

Fujitsu ABY30LBAG Manuale utente

Fujitsu

Fujitsu ARYA45LCTU Manuale utente

Fujitsu

Fujitsu AOY9FSBC Manuale utente

Fujitsu

Fujitsu AIRSTAGE K00250LW Istruzioni per l'installazione e il funzionamento

Fujitsu

Fujitsu General ABG36UIAT-LR Manuale utente

Fujitsu

Fujitsu R407C Manuale utente

Fujitsu

Fujitsu General ASHG30KMTA Manuale di servizio

Fujitsu

Fujitsu Inverter Halcyon ASU24RLQ Manuale utente

Fujitsu

Fujitsu ASUH24LPAS Manuale utente

Fujitsu

Fujitsu AirStage AJY040LCLAH Manuale utente

Fujitsu

Fujitsu AWY14LSACW Manuale utente

Fujitsu

Fujitsu Lifestyle Series Manuale utente

Fujitsu

Fujitsu ASHA18GBCH Manuale utente

Fujitsu

Fujitsu ABT30RG Manuale utente

Fujitsu

Fujitsu AOU18RLXFWH Manuale utente

Fujitsu

Fujitsu ASYA09LEC Manuale di servizio

Fujitsu

Fujitsu Airstage ASUA4TLAV2 Manuale utente

Fujitsu

Fujitsu 9333003030-02 Manuale utente

Fujitsu

Fujitsu ASYG07KMTA Manuale di servizio

Fujitsu

Fujitsu ASUH18LPAS Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente

Webasto

Webasto Frigo Top 25 DS Manuale utente
