Fujitsu ASY10FSACW Manuale utente

SPLIT TYPE ROOM AIR

CONDITIONER

WALL MOUNTED TYPE

CONTENTS

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . . . .

DIMENSIONS

. . . . . . . . . . . . . . . . . . . . . . . . . . .

REFRIGERANT SYSTEM DIAGRAM

. . . . .

CIRCUIT DIAGRAM

. . . . . . . . . . . . . . . . . . . . .

INDOOR PCB CIRCUIT DIAGRAM

. . . . . . .

DISASSEMBLY ILLUSTRATION

. . . . . . . . .

PARTS LIST

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indoor unit Outdoor unit

ASY10FSACW AOY10FSAC

ASY12FSACW AOY12FSAC

12008.05.29

SPECIFICATIONS

TYPE Cool Cool

INDOOR UNIT ASY10FSACW ASY12FSACW

OUTDOOR UNIT AOY10FSAC AOY12FSAC

COOLING CAPACITY 2.90 kW - 2.95 kW 3.45 kW - 3.50 kW

POWER SOURCE

220 V - 240 V

FREQUENCY 50 Hz

220 V - 240 V

50 Hz

RUNNING CURRENT

4.7 A - 4.6 A 6.1 A - 6.1 A

INPUT WATTS 1.015 kW - 1.045 kW 1.27 kW - 1.32 kW

EER

2.86 - 2.82 kW/kW 2.72 - 2.65 kW/kW

MOISTURE REMOVAL

1.3 L/hr

1.8 L/hr

AIR CIRCULATION HIGH

490 - 490 m3/hr 500 - 500 m3/hr

ELECTRICAL DATA COMPRESSOR AND REFRIGERANT

Note : Always use s vacuum pump to purge the air.

Refrigerant for purging air is not charged in

an outdoor unit at a factory.

DIMENSIONS

TYPE

Hermetic type,

Permanent split condenser

2 pole, Single phase,

Induction motor

POWER SOURCE

DISCRIMINATION 80230135

80235035

220-240V 50Hz

PRECHARGED REFRIGERANT

REFRIGERANT TYPE

R410A R410A

590 g 720 g

690 g 820 g

790 g 920 g

POWER SOURCE

220 V - 240 V 220 V - 240 V

High speed 1,300 - 1,300 r.p.m. 1,330 - 1,330 r.p.m.

Middle 1,200 - 1,200 r.p.m. 1,250 - 1,250 r.p.m.

INDOOR

UNIT

Low 1,100 - 1,100 r.p.m. 1,170 - 1,170 r.p.m.

Quiet 1,040 - 1,040 r.p.m. 1,080 - 1,080 r.p.m.

OUTDOOR UNIT

730 - 765 r.p.m. 725 - 760 r.p.m.

INDOOR UNIT

H x W x D

H x W x D 260 x 815 x 175 mm

OUTDOOR UNIT 535 x 695 x 250 mm

FAN MOTOR

High speed 39 - 39 dB 40 - 40 dB

Middle 38 - 38 dB 39 - 39 dB

INDOOR

UNIT Low 36 - 36 dB 37 - 37 dB

Quiet 34 - 34 dB 35 - 35 dB

OUTDOOR UNIT 45 - 46 dB 47 - 48 dB

NOISE LEVEL

Note : Noise was measured in accordance with JIS standards, Japan.

20 g/m20 g/m

Pipe length 5 m

10 m

15 m

ADDITIONAL CHARGE

FULL CHARGE

WEIGHTS

INDOOR UNIT Gross / Net

Gross / Net

10 kg / 8 kg

OUTDOOR UNIT 33 kg / 30 kg 35 kg / 32 kg

22008.05.29

175

815

260

695 250

500

290

265

535

INDOOR UNIT

Unit : mm

OUTDOOR UNIT

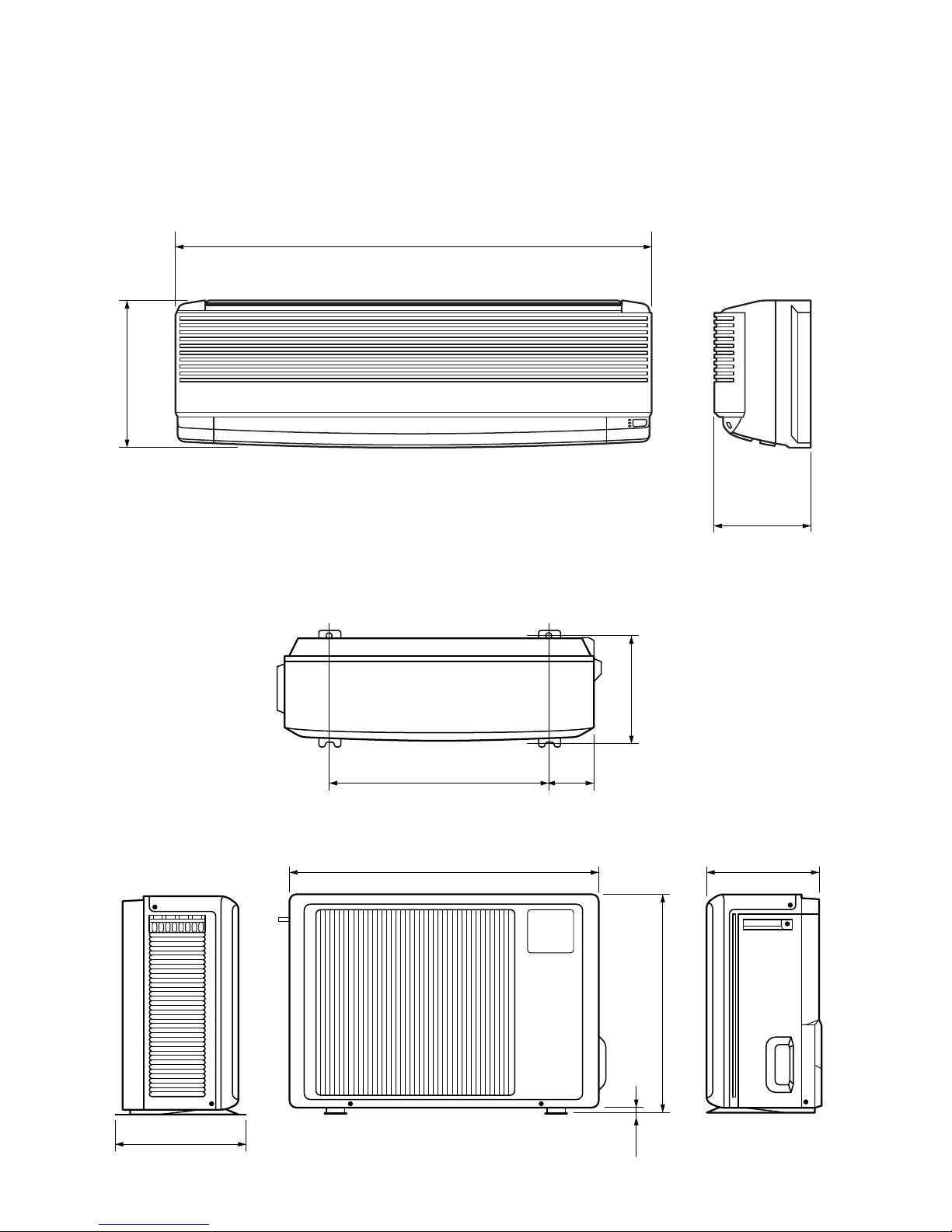

DIMENSIONS

32008.05.29

3-Way valve

(with charging port)

Condenser

Dryer

Capillary tube

2-Way valve

(Flare connection)

Gas pipe (9.52 dia.)

(Flare connection)

Liquid pipe (6.35 dia.)

(Flare connection)

INDOOR UNIT

OUTDOOR UNIT

[ Connecting pipe ]

Evaporator

Com-

pressor

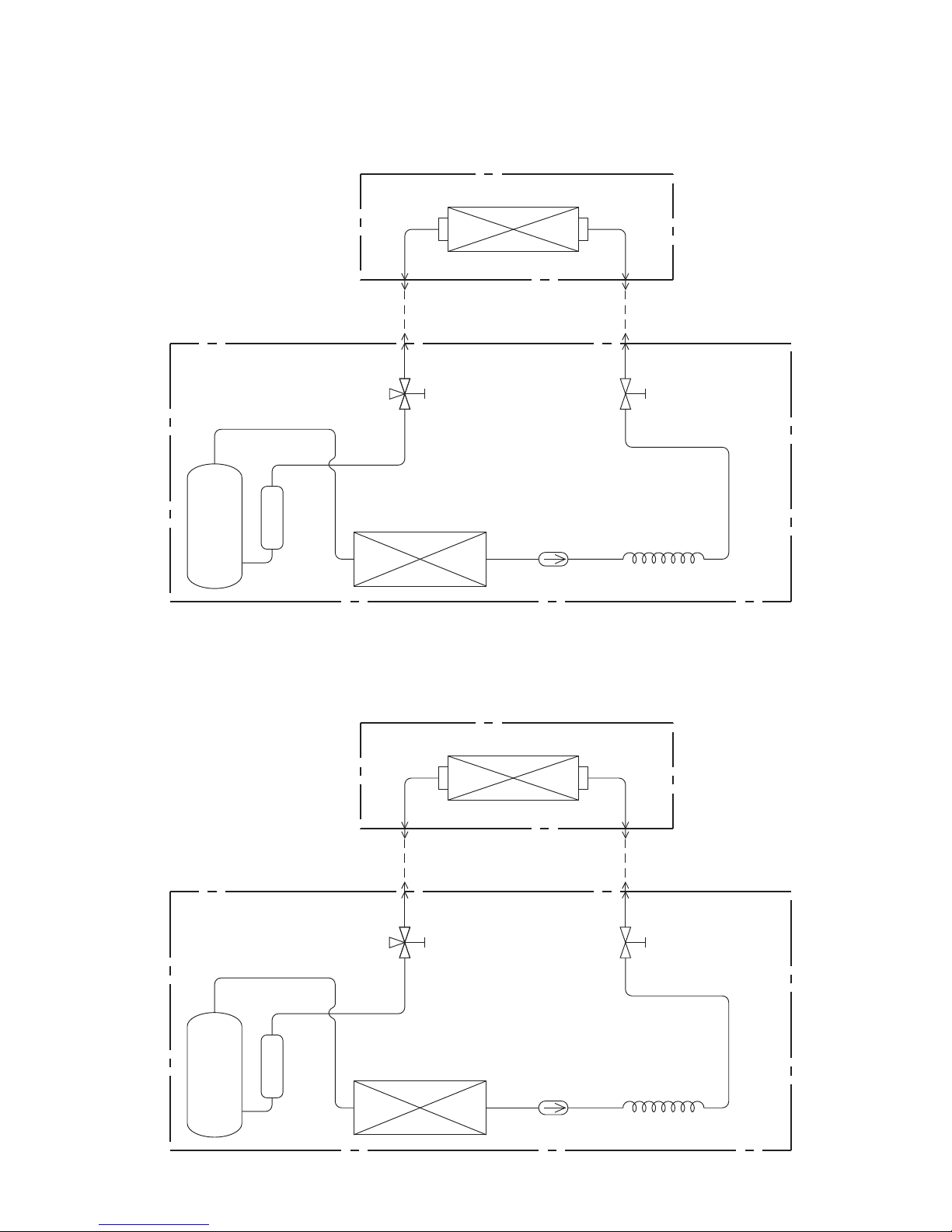

REFRIGERANT SYSTEM DIAGRAM

ASY10FSACW / AOY10FSAC

3-Way valve

(with charging port)

Condenser

Dryer

Capillary tube

2-Way valve

(Flare connection)

Gas pipe (9.52 dia.)

(Flare connection)

Liquid pipe (6.35 dia.)

(Flare connection)

INDOOR UNIT

OUTDOOR UNIT

[ Connecting pipe ]

Evaporator

Com-

pressor

ASY12FSACW / AOY12FSAC

THERMISTOR

(ROOM TEMP.)

12345678910

CN5

1 2 3 4 5

123

4 5

1 2

CN8

CN1

CN9

CN106

TEST

2 1

CN2

2 1

CN3

BLACK

THERMISTOR

(PIPE TEMP.)

GRAY

1 2

CN4

1 2

BROWN

RED

3 4

ORANGE

1 2

CN7

1 2

BLACKBLACK

BROWN

BLACK

WHITE BLACK

WHITE

RED

ORANGE

WHITE RED

BLUE 34

BLUE

WHITE

RED

WHITE

CONTROL BOARD

POWER SUPPLY BOARD

LOUVER MOTOR

FAN MOTOR

INDOOR UNIT

OUTDOOR UNIT

RELAY

BOARD

POWER

RELAY

FAN MOTOR

CAPACITOR

TRANSFORMER

TERMINAL

THERMAL FUSE

WHITE

THERMAL

FUSE 102ϒC

YELLOW

5 6

GREEN

BLUE

PURPLE

GRAY

WHITE

BLACK

1 2

CN101

1 2

3 4

1 2

RED

GREEN

RED

YELLOW

1 2

CN102CN104CN103

1 2

PURPLE

BLUE

1 2

CN201

DISPLAY BOARD

3 4 5 6 7

PURPLE

1 2

GRAY

BROWN

WHITE

1 2

CN105

ORANGE

CN301

W301

W104

W101

BLACK

W103

GREEN/YELLOW

TERMINAL

COMPRESSOR

FAN MOTOR FAN MOTOR

CAPACITOR

OVERLOAD

RELAY

COMPRESSOR

CAPACITOR

42008.05.29

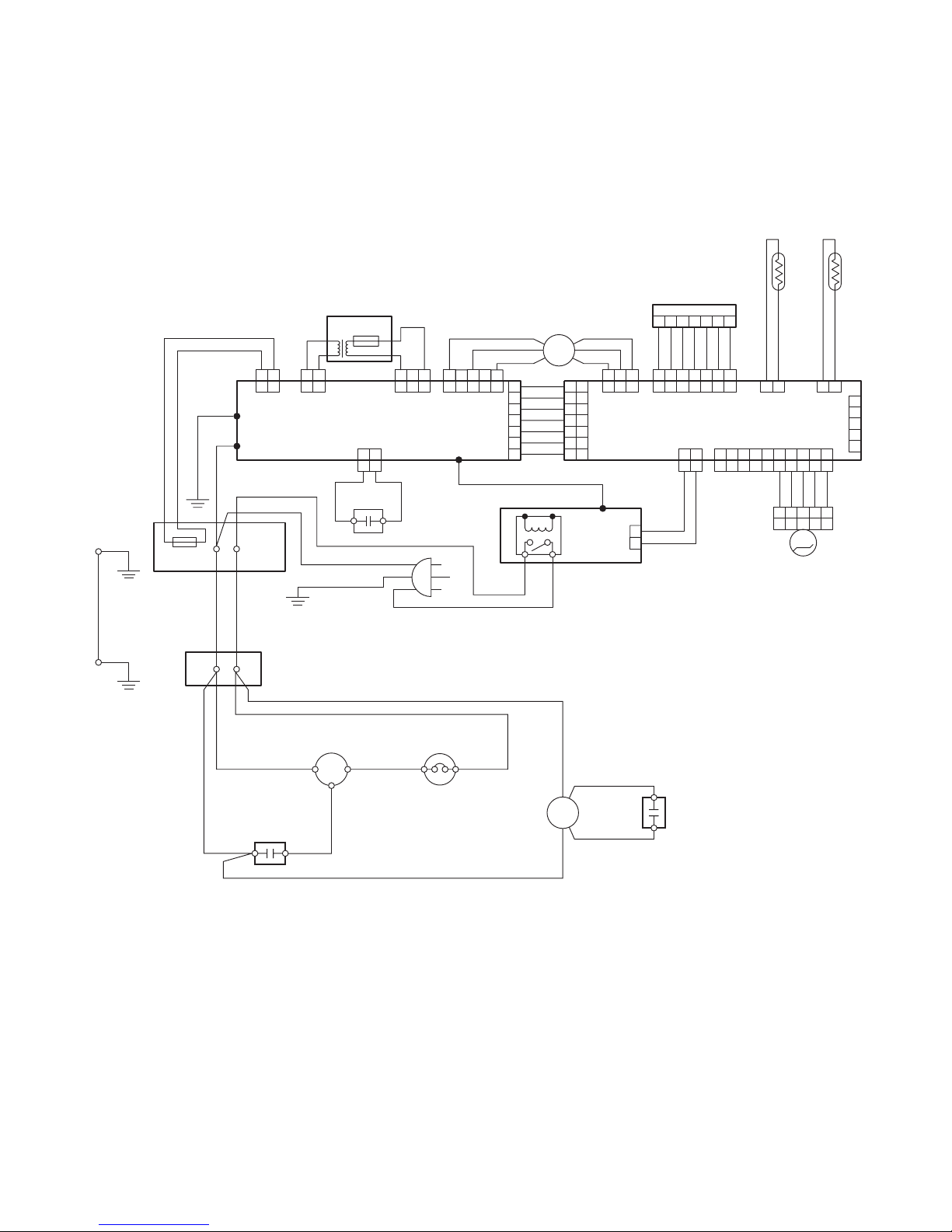

CIRCUIT DIAGRAM

– 8 –

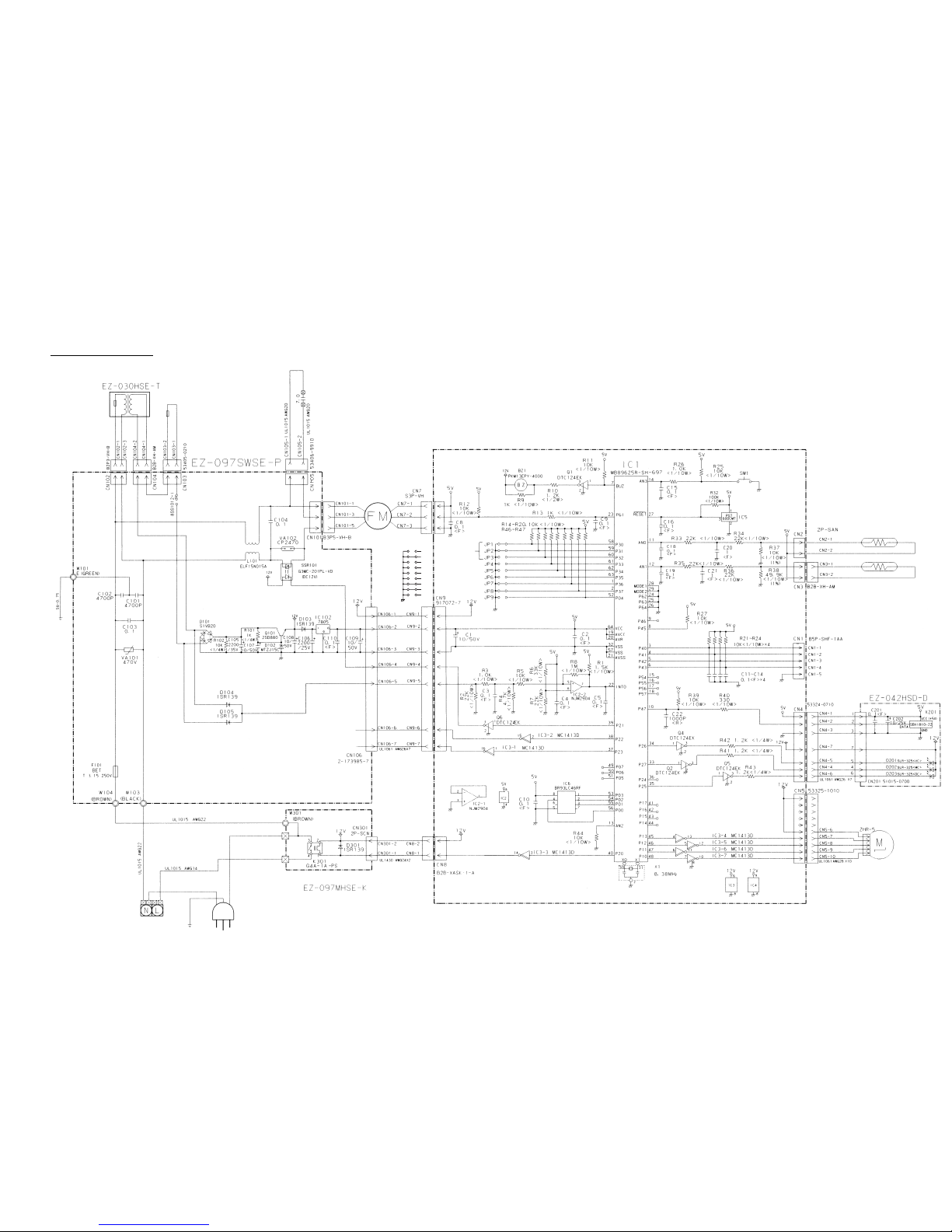

INDOOR PRINTED CIRCUIT BOARD

CIRCUIT DIAGRAM

POWER TRANSFORMER

POWER TRANS.

PRIMARY THERMAL FUSE

POWER TRANS.

SECONDARY

POWER SUPPLY PCB

(PRL)

(RED)

(GRY)

POWER

SWITCH

(ORG)

FAN CAPACITOR

(BLK) (RED)

(WHT)

(BLK)

(GRY)

MANUAL

AUTO SWITCH

(BRN)

(RED)

(ORG)

(PRL)

(GRN)

OPERATE

(RED)

TIMER (GRN)

SWING (ORG)

(YEL)

(BLU)

(PRL)

(GRY)

(WHT)

(BLK)

(WHT)

(BRN)

(BLU)

(BLK)

ASY12FSACW

ASY10FSACW

JP1

JP2

JP3

JP4

JP5

JP6

JP7

JP8

JP9

(YEL)

(WHT)

(BLU)

(BRN)

(BLU)

To Earth terminal

(GREEN / YELLOW)

(BRN)

(BLK)

(WHT)

(ORG)

THERMAL

FUSE (102°C)

FAN MOTOR

ROOM TEMPERATURE

THERMISTOR

PIPE TEMPERATURE

THERMISTOR

CHECKER

LOUVER

INDICATOR PCB

TERMINAL

BOARD

RELAY PCB

220/240V

50Hz

CONTROLLER PCB ASSEMBLY

ASY10FSACW : EZ-0980KWSE-C (GM-60089)

ASY12FSACW : EZ-0980LWSE-C (GM-60090)

SW101

VCC

TEST

GND

MODEL CHANGING CODE

AUTO CHANGE OVER

HEATING TEMPERATURE CORRECTION 1

HEATING TEMPERATURE CORRECTION 2

AUTO RESTART

REMOTE CONTROL / CUSTOM CODE

MULTI / SINGLE

Models : ASY10FSACW

ASY12FSACW

– 12 –

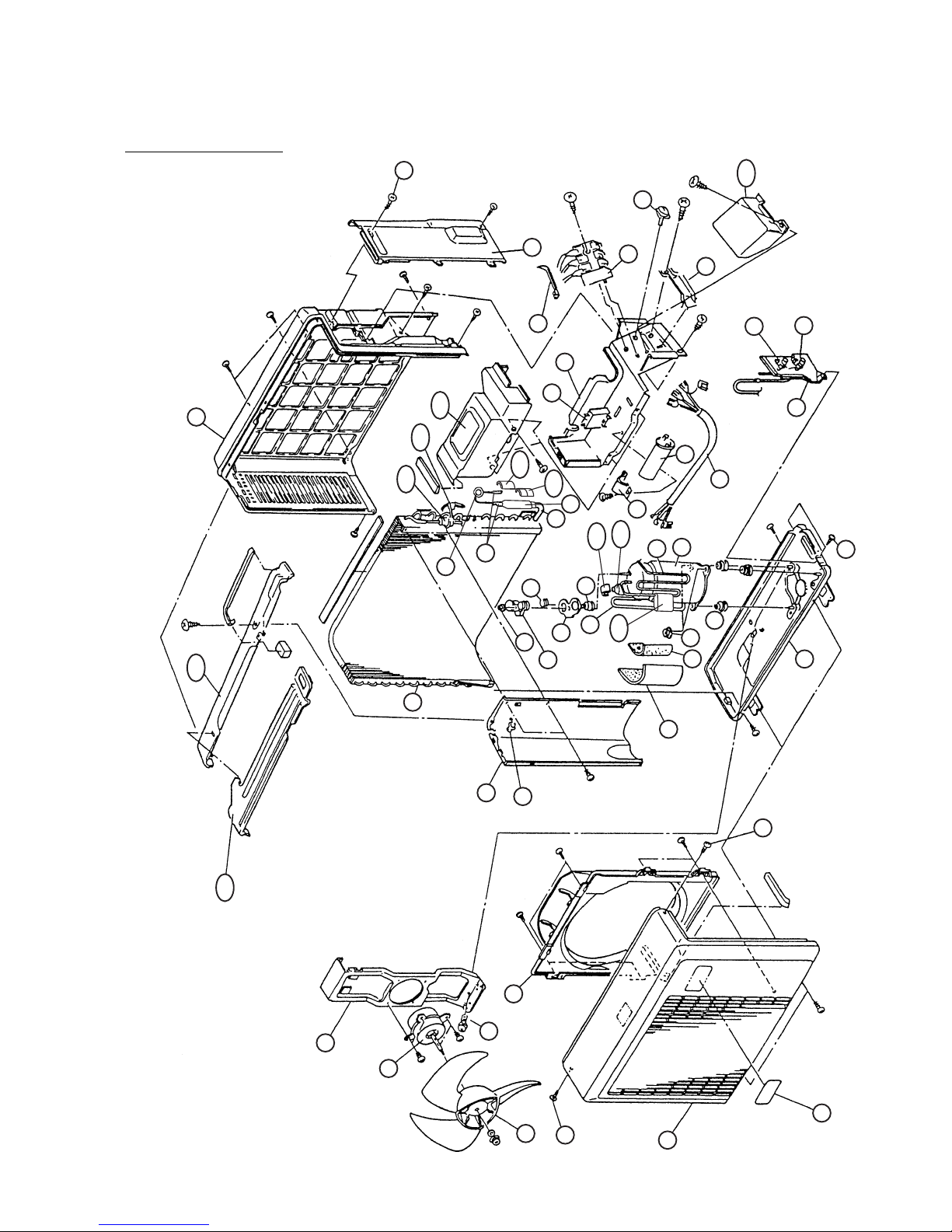

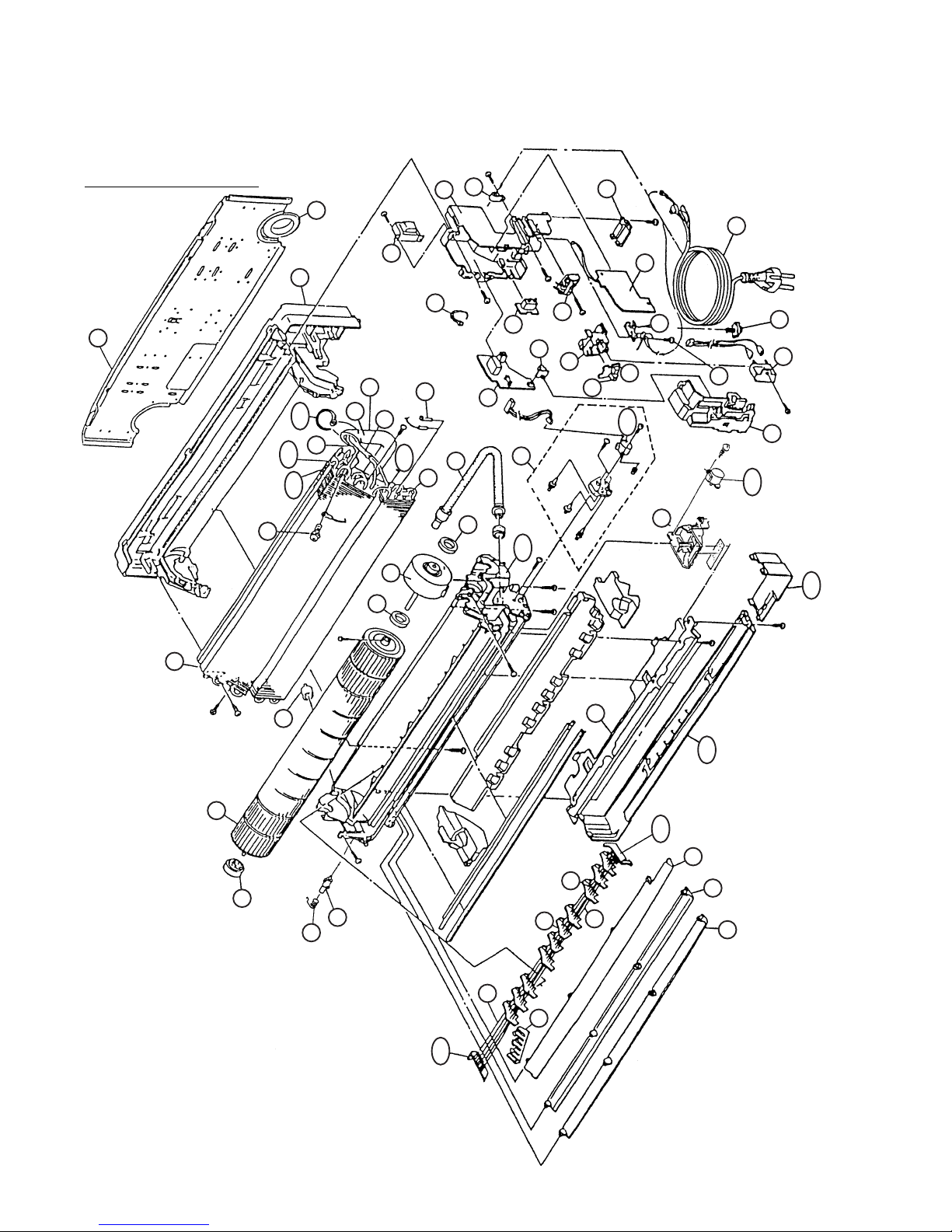

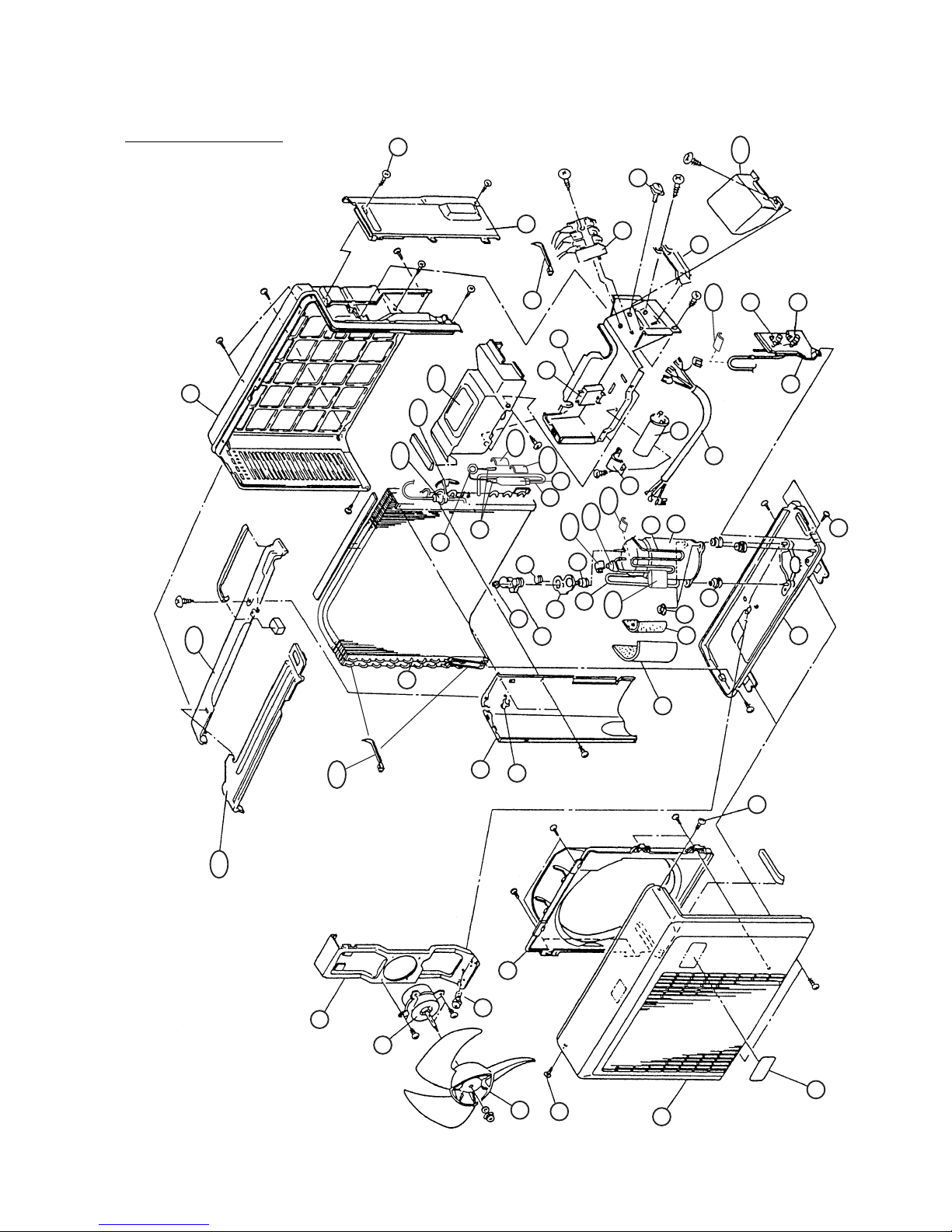

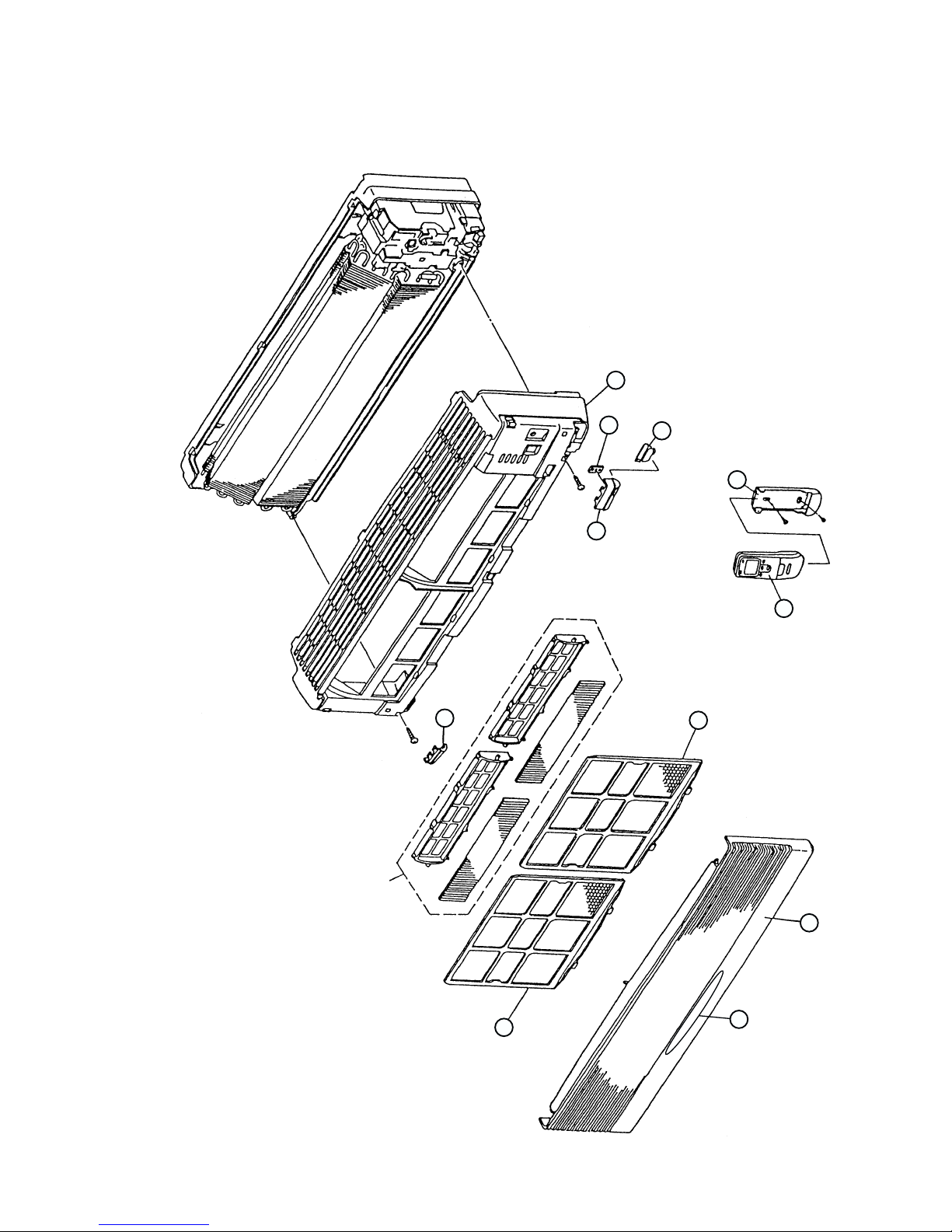

DISASSEMBLY ILLUSTRATION

976

850

761

762

Air Cleaning filter (optional)

Model APS-03B

759

743

240

– 13 –

401

282

108

233

195

151

466

185

188

236

815

968

688

425

385

873

874

932

281

960

440

974

323

963

961

973

127

652

872

780

875

163

336

760

158

593

178

164

178

764

169

122

146

930-1

767-1

767-2

962-2

962-1

929-1

196-2

928-1

109-1

876-1

876-2

Models : ASY10FSACW

ASY10USACW

ASY12FSACW

ASY12USACW

– 14 –

674

195

582

138

187

423

674

815

688

982

365

942-2

942-1

196-2

47-2

935-1

26-B

26-6

26-9

X-1

26-C

935-2

26-10

109

412

227

230

916 55

107

Model : AOY10FSAC

– 16 –

674

195

582

138

187

423

674

815

688

982

365

942-2

942-1

196-2

47-2

935-1

196-2

26-B

26-6

26-9

X-1

26-C

935-2

26-10

109

412

227

230

916 55

107 26-7

26-7

Model : AOY12FSAC
