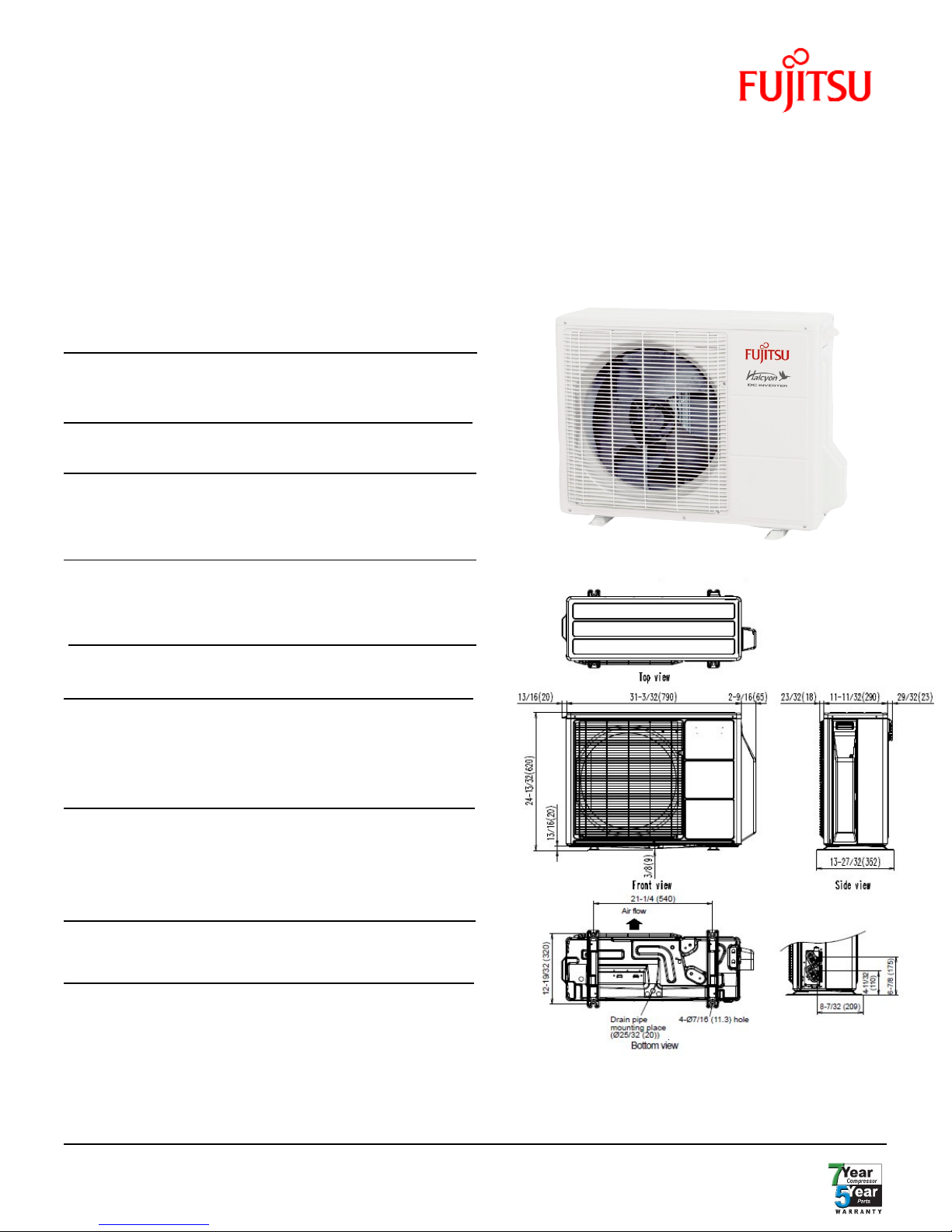

9RLS2 Submittal

Inverter Driven Heat Pump

Job Name:_______________________________

Location: ________________________________

Engineer:________________________________

Submitted to:_____________________________

Submitted by:_____________________________

Reference:_______________________________

Outdoor Unit Power 208-230/VAC-1Ph-60Hz

Available Voltage Range 187-253VAC

Fuse Size, Max. 20A

MCA 10.5A

Compressor Inverter Driven Variable Speed DC Rotary

No. used 1

Output 850W

Lubrican Oil POE (RB68)

Fan type Propeller

Motor Output 115W

Airflow Rate Cooling/Heating (High) 1082 / 1840CFM

Refrigerant 410A

Outdoor Unit 2lbs 10oz

Contrlol Electronic Expansion Valve

O.D. Discharge (in) 1/4”(Flare)

O.D Suction (in) 3/8”(Flare)

Dimensions H x W x D

Uncrated (in) 24-1/2 x 31-3/32 x 11-11/32

(mm) (620 x 790 x 290)

Crated (in) 28-1/16 x 37-7/32 x 15-9/16

(mm) (713 x 945 x 395)

Weight Outdoor

Net 84lbs (38kg)

Gross Shipping 93lbs (42kg)

Cooling

Rated Capacity 9,000BTU/h

Min-Max Capacity 3,100~12,000BTU/h

Rated Power Input 2.64kw

Max. Power Input 3.60kw

SEER 27.2

Outdoor Sound Rating 48dB

Heating

Rated Capacity 12,000BTU/h

Min-Max Capacity 3,100~22,000BTU/h

Rated Power Input 3.52kw

Max. Power Input 6.45kw

HSPF 12.5

Outdoor Sound Rating 49dB

Piping Lengths

Max. Piping Length (Total) 66ft

Max. Pipe Height Difference 49ft

Connection method (Flared)

Operating Range . .

Cooling 14°F~115°F DB

Heating -5°F~75°F DB

Approval:________________________________

Date:___________________________________

Construction: ____________________________

Unit #:__________________________________

Drawing #:_______________________________

Fujitsu General America, Inc.

Fairfield, NJ 07004

Toll Free: 1-888-888-3424

Fax: (973) 836-0447

www.fujitsugeneral.com

Fujitsu products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications

and information in this data sheet without notice and without incuring any obligations.

Note: Specifications are based on the following conditions.

Power source of specifications : 230V

Cooling: Indoor temperature of 80°F(26.67°C)DB / 67°F(19.44°C)WB, and outdoor temperature of 95°F(35°C)DB/75°F(23.89°C)WB.

Heating: Indoor temperature of 70°F(21.11°C)DB / 60°F(15.56°C)WB, and outdoor temperature of 47°F(8.33°C)DB/43°F(6.11°C)WB.

Pipe length : 24ft. 7in.(7.5m),Height difference : 0 ft.(0m) [Outdoor unit - Indoor unit]

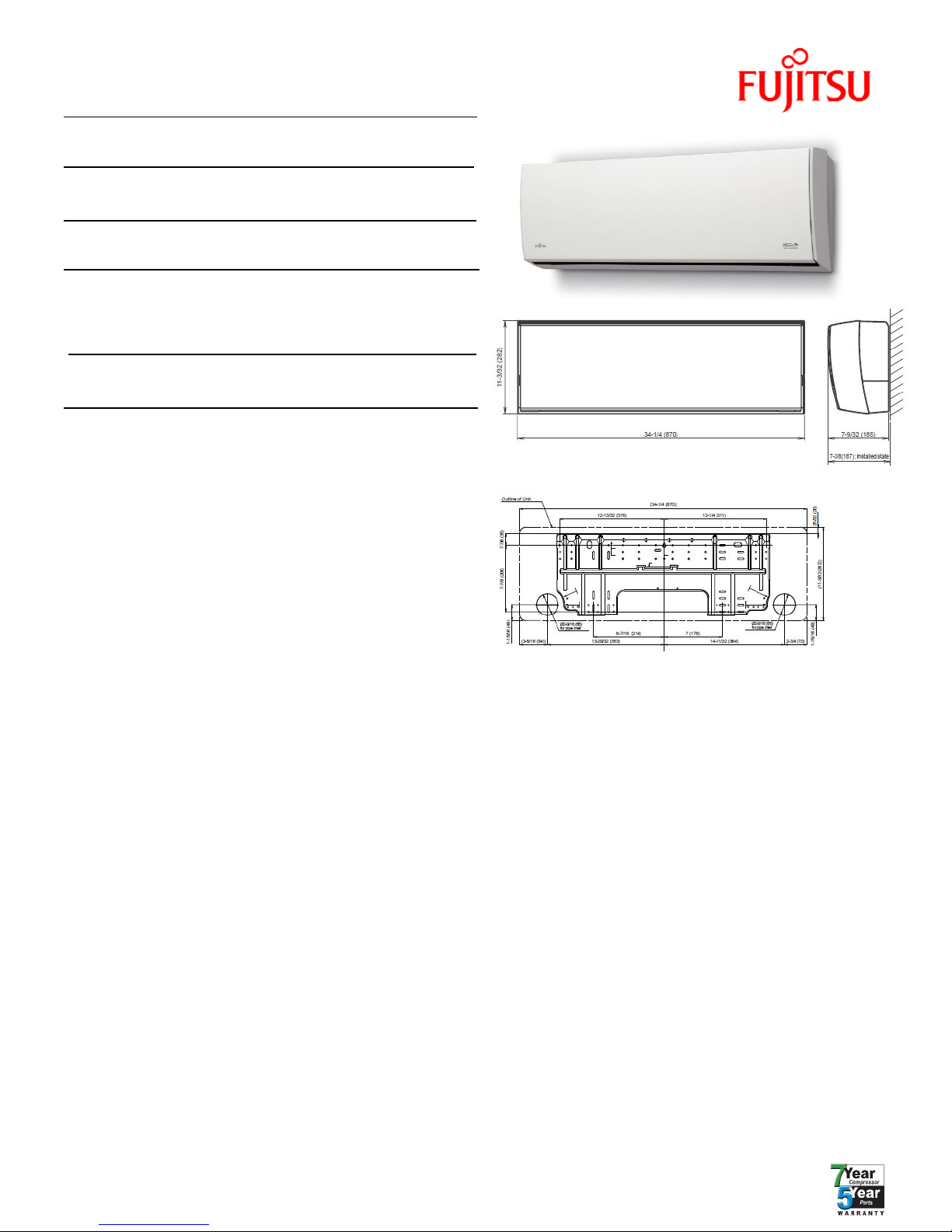

AOU9RLS2, ASU9RLS2

Indoor Unit Power 208-230/VAC-1Ph-60Hz

Available Voltage Range 187-253VAC

Fan type Cross flow

Motor Output 29W

MCA 0.4A

Sound Pressure Level

Cooling Lo-Hi 21-43dB

Heating Lo-Hi 21-43dB

Airflow rate

Cooling Lo-Hi 194-500dB

Heating Lo-Hi 194-500dB

Dimensions H x W x D

Uncrated (in) 11-3/32 x 34-1/4 x 7-9/32

(mm) (282 x 870 x 185)

Crated (in) 9-23/32 x 36-7/32 x 14-11/16

(mm) (247 x 920 x 373)

Weight Indoor

Net 21lbs (9.5kg)

Gross Shipping 27lbs (12kg)

Fujitsu General America, Inc.

Fairfield, NJ 07004

Toll Free: 1-888-888-3424

Fax: (973) 836-0447

www.fujitsugeneral.com

Fujitsu products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications

and information in this data sheet without notice and without incuring any obligations.
