LifeBook P7000 Series

Disassembly

This LifeBook is also available in black, so the one you are working on may not be

the same color as the model shown here.

Be sure to power off the LifeBook before beginning this disassembly procedure.

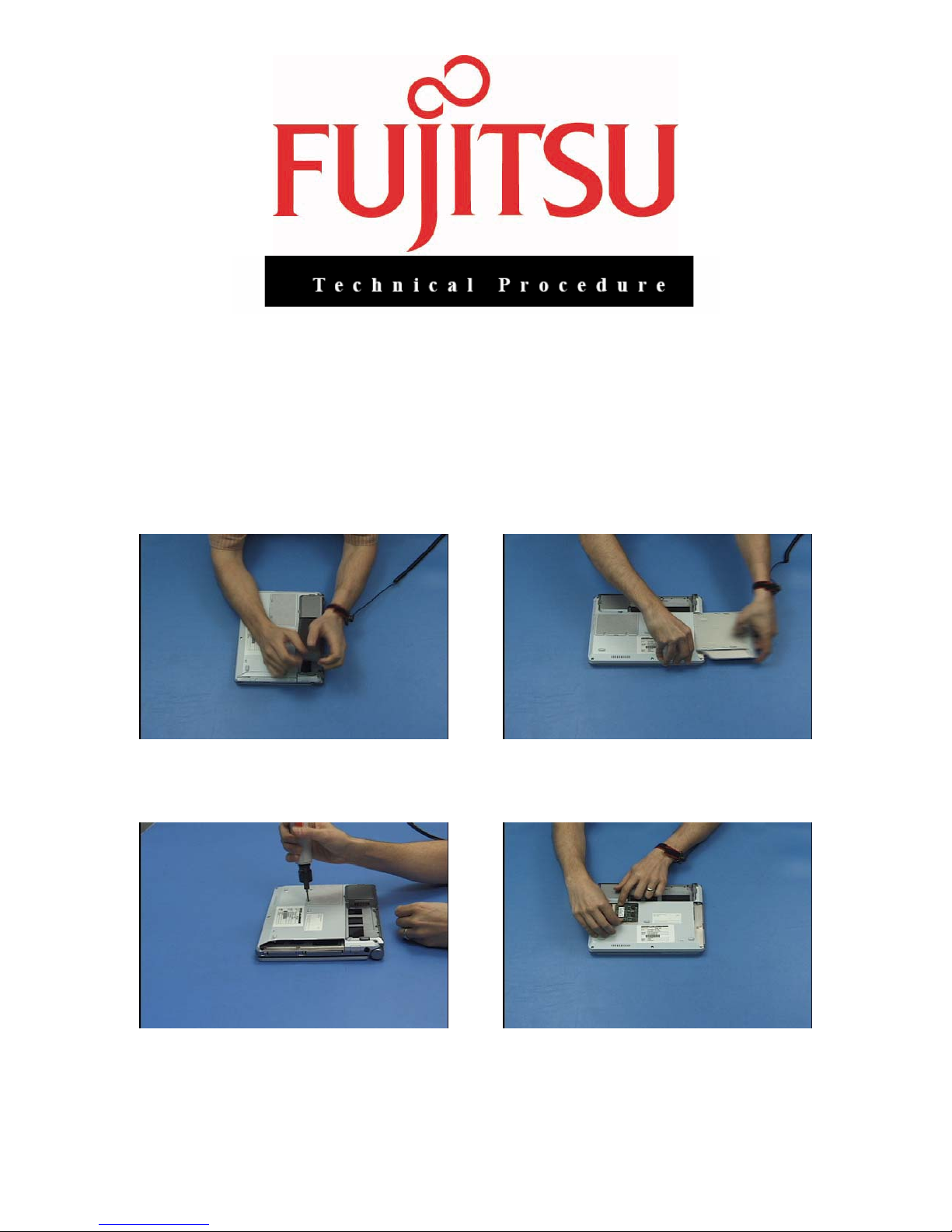

1. Turn the unit over and remove the

battery.

3. Extract 2 screws from the RAM

cover and remove it.

2. Remove the optical drive.

4. Remove the RAM by pressing out

on the locking clips.

5. Remove all 8 screws from the

lower case.

7. Using a plastic screwdriver, pry up

and remove the speaker/status LED

cover.

9. Disconnect the 2 antenna cables

from the WLAN card, disconnect the

speaker cable and un-tape it from

the top of the card.

11. Lift up the adhesive backed wire

guide, disconnect the display cable

and free it and the antenna cables

from underneath.

6. Turn the unit over, open the cover

and lay it flat.

8. Tilt up the keyboard, slide it

forward to release it, disconnect its

cable and remove it.

10. Remove the WLAN card by

pressing outward on the locking

clips.

12. Turn the unit up on its front and

remove 2 screws from the rear of the

case.

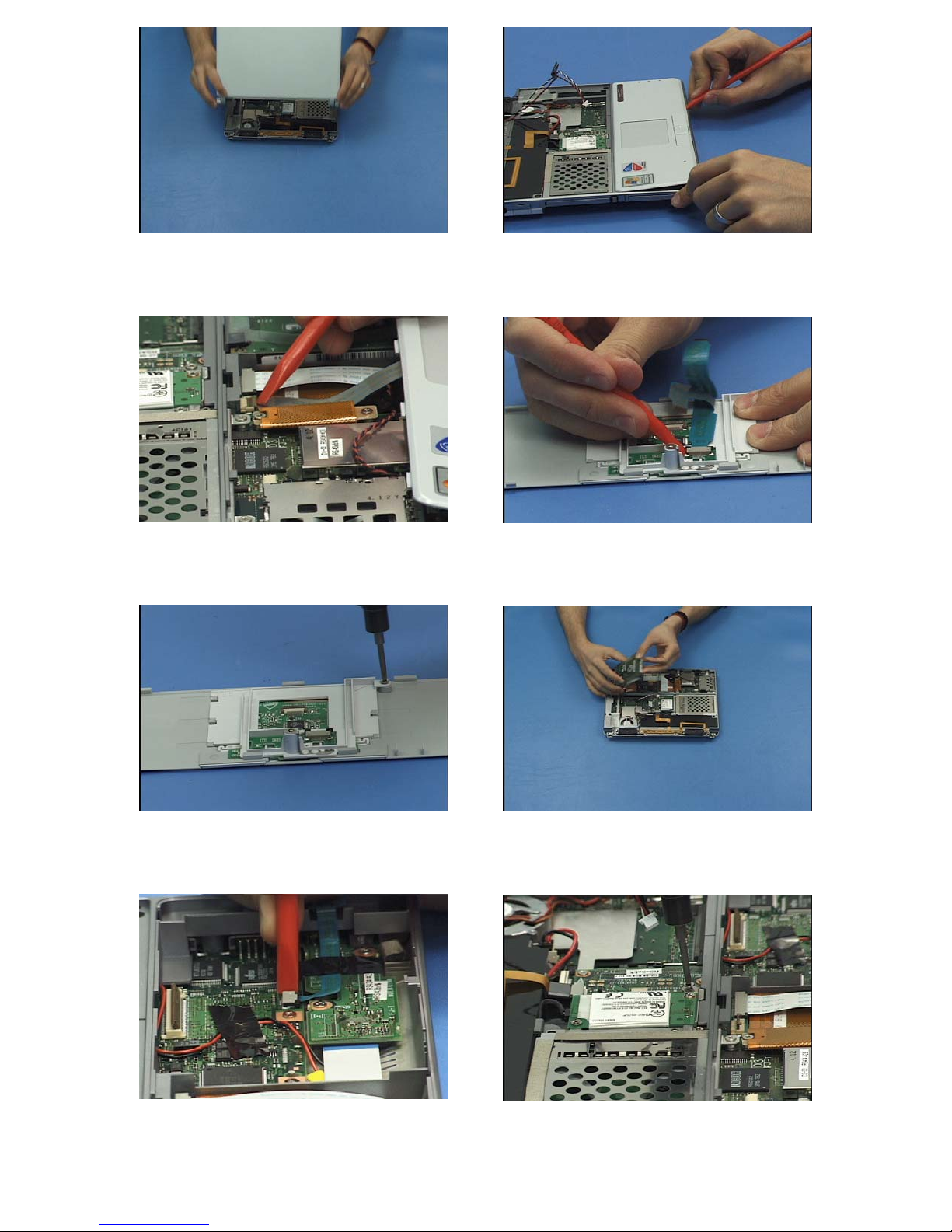

13. Lift off the display and set it

aside.

15. Disconnect the GlidePoint cable.

17. Remove 1 screw from the

GlidePoint bracket, lift it out and lift

out the GlidePoint sensor and button

board.

19. Disconnect the key lock LED

cable, remove the tape from it and

remove the LED board.

14. Use the plastic screwdriver to pry

off the palm rest

16. Turn the palm rest over and

disconnect and remove the

GlidePoint cable.

18. Lift up the Hard Disk Drive,

disconnect its cable and remove it.

20. Remove 3 screws from the

modem, disconnect the RJ11 cable

from it and remove it.

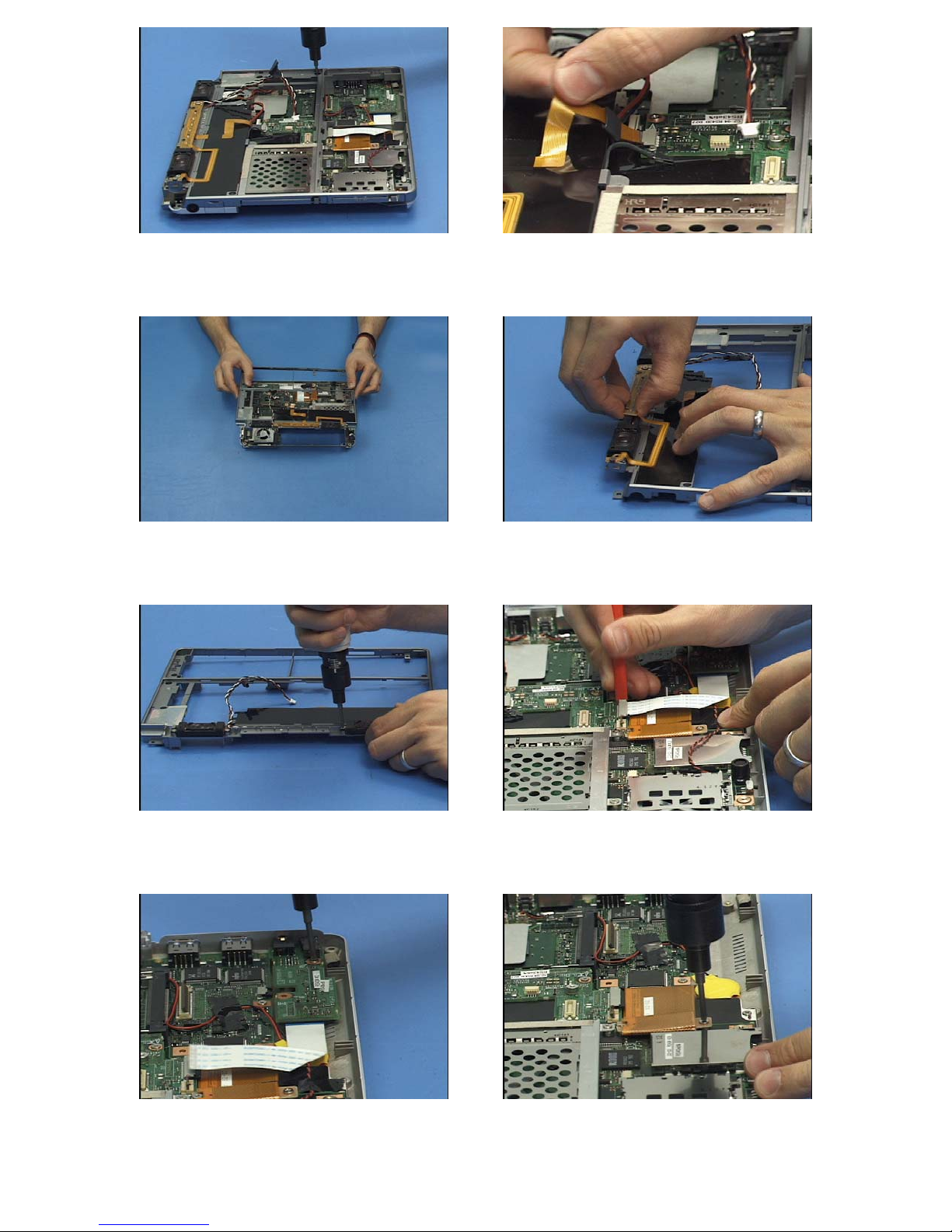

21. Remove 13 screws from the

upper cover.

23. Lift off the top cover.

25. Remove 1 screw from the left

speaker and 2 from right and lift both

out.

27. Remove 2 screws from the audio

board, un-tape the microphone

cable and remove them both.

22. Disconnect the status LED cable,

remove the screw from underneath.

24. Remove 1 screw from the hinge

switch, remove the tape from the

status LED cable and lift them out.

26. Disconnect the audio board’s

cable from the system board.

28. Remove 2 screws from the

Expansion Card Daughterboard’s

cable and disconnect it.

29. Lift out the Expansion Card

Daughterboard.

31. Remove 2 screws from the Bay

Daughterboard and pull it up to

disconnect it from the system board.

33. Disconnect the DC power cable

from the system board and lift it and

the connector out of the case.

35. Remove 2 hex screws from the

external VGA connector.

30. Extract 2 screws from the

PCMCIA bracket and remove it.

32. Pry up the BIOS battery to

remove it from the case and

disconnect its cable.

34. Lift out the RJ11 connector and

cable.

36. Remove 4 screws from the

system board and lift it out.

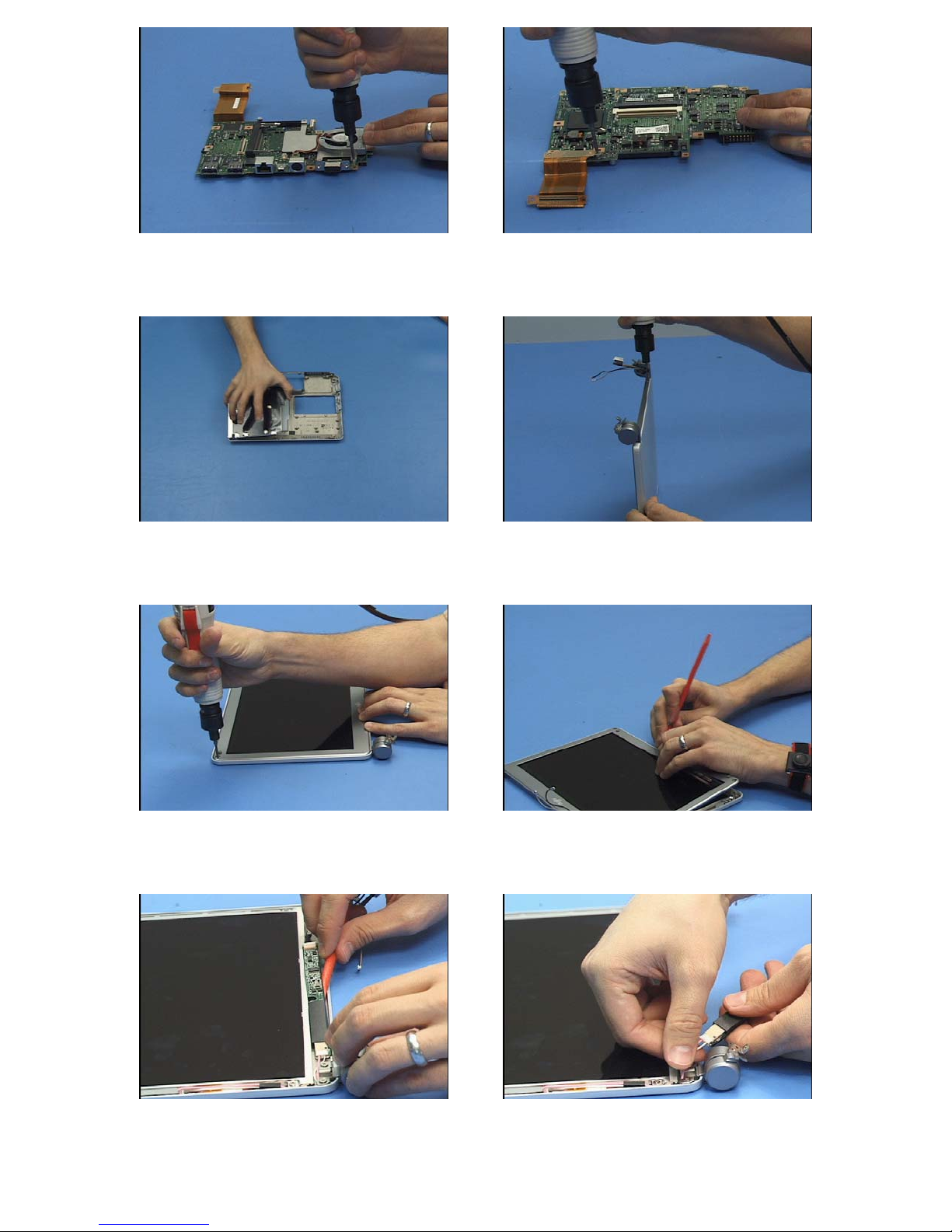

37. Remove 2 screws from the CPU

fan/heat sink, disconnect its cable

and remove it.

39. Remove 1 screw from the Bay

shield and remove it.

41. Remove 2 screw covers from the

front of the Display and the 2 screws

underneath.

43. Pry up the inverter with the

plastic screwdriver.

38. Turn the system board over,

remove 2 screws from the Expansion

Card Daughterboard cable and

remove it.

40. Stand the display on its top and

remove 2 screws from the bottom.

42. Pry around the perimeter of

cover to remove it. Be careful of

tape holding the cover to the LCD

along the top and bottom edges.

44. Disconnect the power cable

and backlight cable from the

inverter.

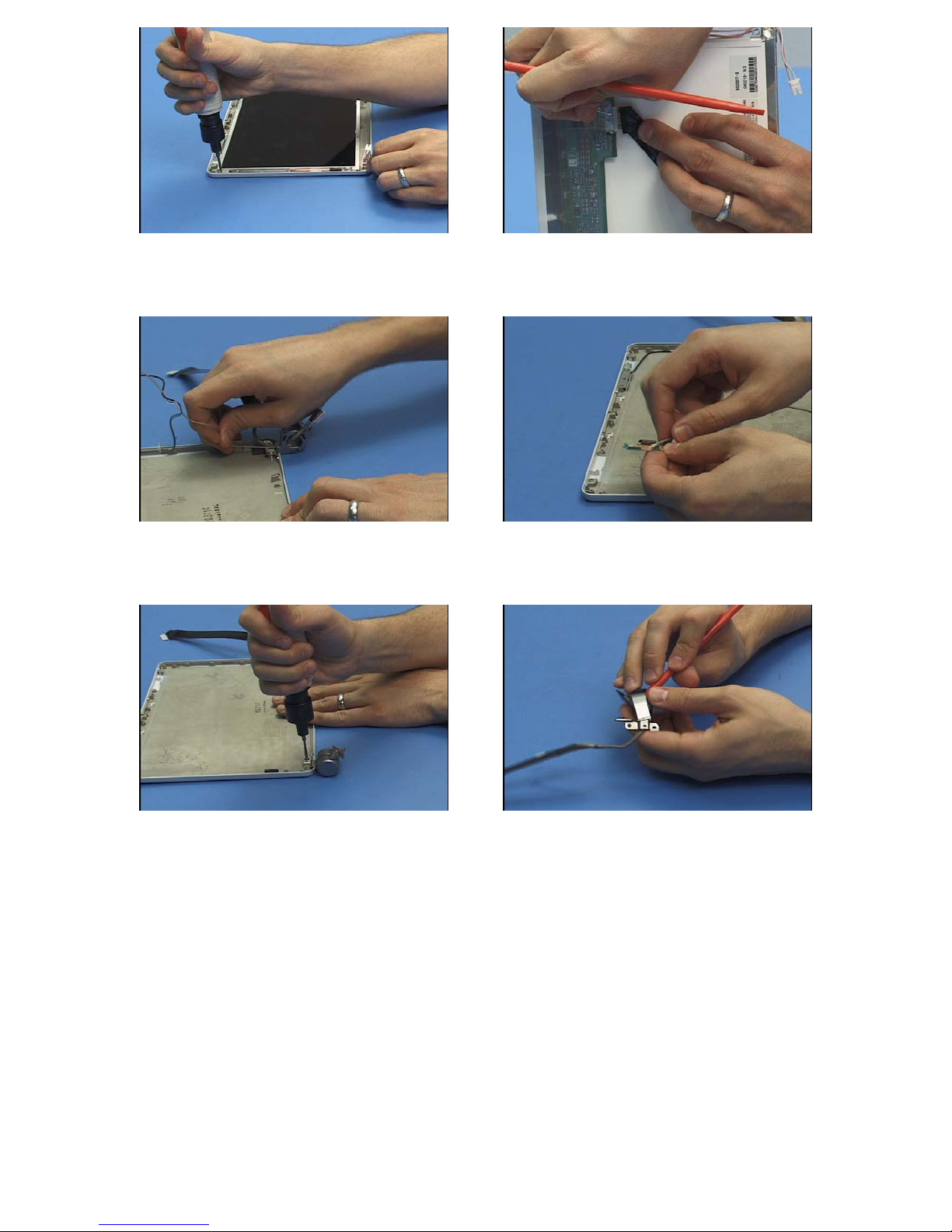

45. Remove 4 screws from the LCD

and tilt it up.

47. Route the antenna cables out of

the hinge cover.

49. Remove 2 screws from each of

the 2 hinges and lift them out.

46. Remove the tape from cable

and disconnect it.

48. Remove one screw from each of

the 2 antennas, remove them, and

disconnect their cables.

50. Pry the hinge cover off of the

right hinge with the plastic

screwdriver and remove the Display

cable from it.
