Fujitsu ScanPartner 15C Manuale utente

ScanPartner 15C

Image Scanner

User's Manual

Version 1.0

(Doc. No. 250-0062-E)

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a

class B digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communication. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Any changes or modifications not expressly approved by the

manufacture of this device could void the user's authority to operate the

equipment.

iii

Table of Contents

1. INTRODUCTION...........................................................................................1-1

2. INSTALLATION AND CONNECTIONS...................................................2-1

2.1SHIPPING BRACKET......................................................................................2-1

2.1.1 Removing the Shipping Bracket (refer to figures 2-1 and 2-2)....2-1

2.1.2 Refitting the Shipping Bracket:.......................................................2-3

2.2 SCSI INTERFACE DEVICE ID........................................................................2-3

2.3 ADF PAPER CHUTE (FIGURE 2-4)................................................................2-5

2.4 ADF OUTPUT TRAY (FIGURE 2-5) ...............................................................2-6

2.5 DOCUMENT LOADING .................................................................................2-7

2.6 ADF SCANNING..........................................................................................2-8

2.7 CONNECTING THE CABLE ............................................................................2-9

3. MAINTENANCE............................................................................................3-1

3.1 CLEANING THE ADF....................................................................................3-1

3.2 CLEANING THE GLASS .................................................................................3-3

3.3 REPLACING THE SNAP-IN PAD MODULE .......................................................3-4

4. TROUBLESHOOTING..................................................................................4-1

4.1 QUESTION AND ANSWER.............................................................................4-1

4.2 PAPER JAM IN THE ADF...............................................................................4-3

5. SPECIFICATIONS..........................................................................................5-1

5.1 SCANPARTNER 15C SPECIFICATIONS...........................................................5-2

1-1

INTRODUCTION

Congratulations on your purchase of Fujitsu ScanPartner 15C scanner.

Before you install and operate the new scanner, please take a few minutes to

read through this manual. It provides you with the proper instructions on

how to unpack, install, operate and maintain the scanner.

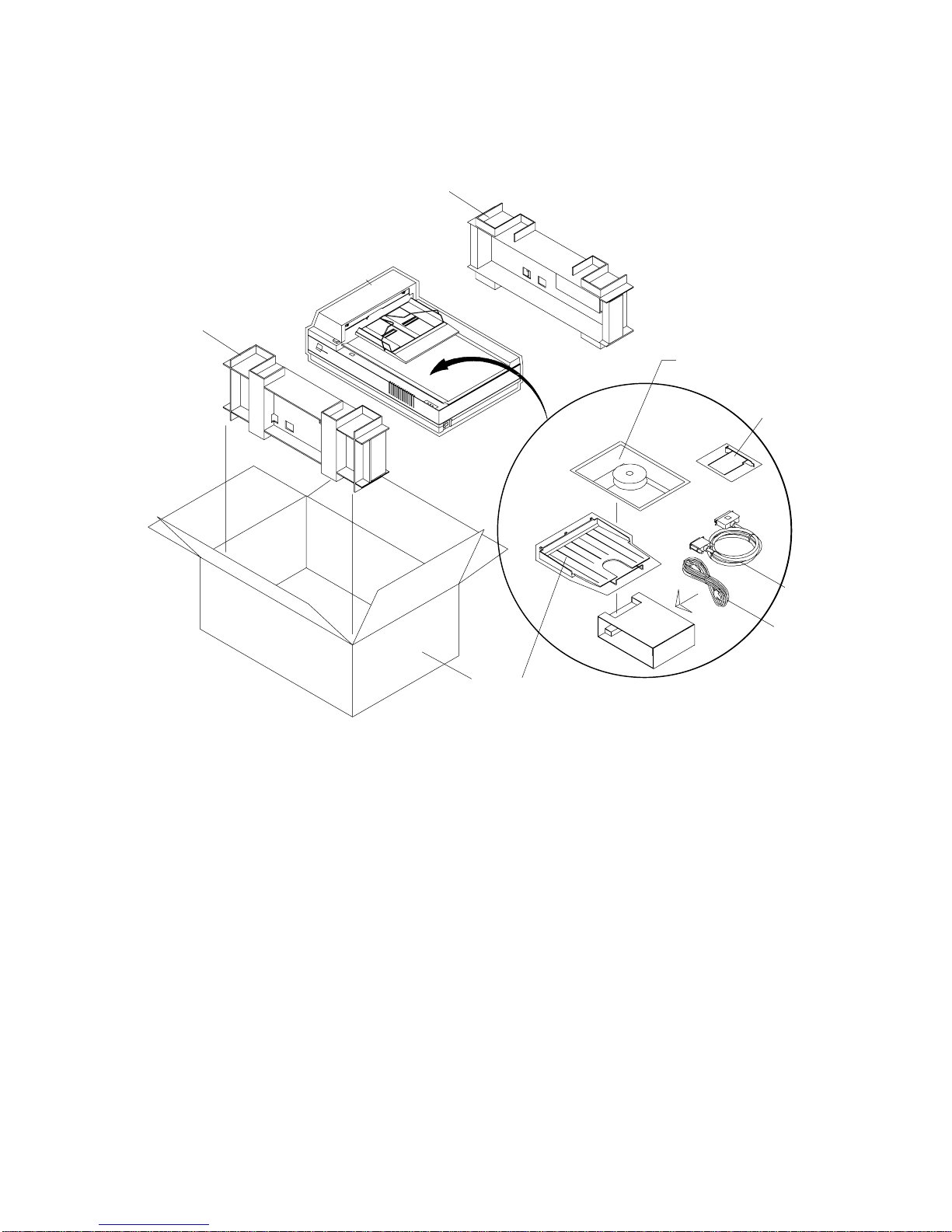

Figure 1-1 shows how the scanner is packed. You can check all items

against your “checklist”, included with your scanner.

1-2

Stacker

Output Paper

S/W PACKAGE

Scanner Body

Figure 1-1 Scanner Packing

A. Power Cable

B. SCSI Cable

C. SCSI Host Adapter

D. ScanRight Kit

E. Carton

F. Cushion

G. Output Paper Stacker

2-1

INSTALLATION AND CONNECTIONS

Please unpack the scanner carefully, and check the contents against the c

hecklist.

If any

items are missing or damaged, please contact your authorized local dealer

immediately.

Precautions

❖ Keep the scanner out of direct sunlight. Direct exposure to the sun or excessive

heat may cause damage to the unit.

❖ Do not install the scanner in a humid or dusty place.

❖ Be sure to use the proper AC power source.

❖ Place the scanner securely on an even, flat surface. Tilted or uneven surfaces may

cause mechanical or paper-feeding problems.

❖ Retain the scanner box and packing materials for shipping purposes.

2.1 Shipping Bracket

The scanner has a bracket that locks the carrier mechanism for transportation

purposes. This bracket must be put into the use position before using the scanner.

If the power is turned on before the bracket has been removed the PAPER JAM light

will turn on. Before proceeding, turn the power off, disconnect all cables and follow

the instructions below to remove the shipping bracket.

2.1.1 Removing the Shipping Bracket (refer to figures 2-1 and 2-2)

i). Carefully place the scanner in an upright position on its front.

ii). Using a suitable screwdriver, remove the screw and pull out the shipping

bracket.

iii). Put the shipping bracket into the use positions with the short side extending

into the scanner base and secure it with the screw.

iv). Carefully place the scanner back into its normal position.

2-2

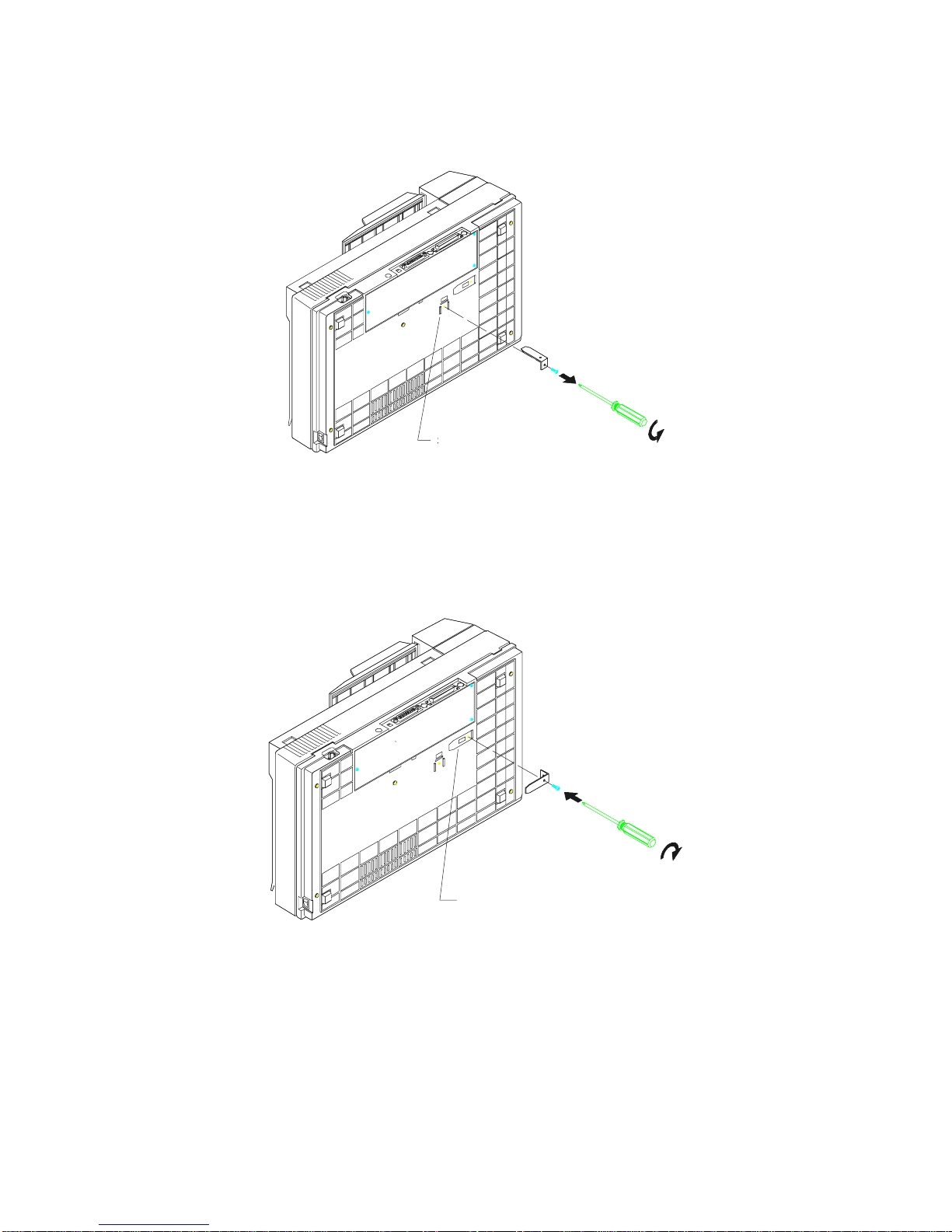

Figure 2-1 Removing the Shipping Bracket

Figure 2-2 Securing the Shipping Bracket

Shipping Position

Use Position

2-3

2.1.2 Refitting the Shipping Bracket:

Whenever you need to move the scanner to a new location it is advisable to refit

the shipping bracket to avoid causing damage to the scanners’ internal

mechanism. Please follow the instructions below to refit the shipping bracket.

i). Turn off the scanner power at the power on/off switch.

ii). Open the document cover.

iii). Turn off the scanner.

Note: For steps (iv) to (vi) please refer to figure 2-1 and 2-2

iv). Carefully place the scanner in an upright position on its front side.

v). Use a suitable screwdriver to remove the screw holding the shipping

bracket in the use position.

vi). Put the shipping bracket into the shipping position, with the long side

extending into the scanner base. Secure it with the screw.

vii). Carefully place the scanner back into its normal position.

2.2 SCSI Interface Device ID

When you have several devices on a SCSI chain, you may need to adjust

the SCSI ID selector setting located on the back of the scanner. This setting assigns a

specific "device ID" to the scanner. If the assignment conflicts with an existing SCSI

device, please select a new ID. (See Figure 2-3)

Note: The factory setting for scanner is ID 6. Usually, ID 0 is assigned to an internal

hard disk drive, and ID 7, to SCSI adapter or host. ID 8 and 9 are not in actual

use.

Using a suitable tool, turn the selector switch until the arrow points to the desired ID

number.

2-4

SISI ID Selector

Figure 2-3 Adjusting the SCSI ID setting.

SCSI Terminator

Switch

SCSI ID Selector

2-5

2.3 ADF Paper Chute (Figure 2-4)

i). Raise the right side of the paper chute to about 45 degrees.

ii). Pull down the wire leg from under the paper chute.

iii). Insert the wire leg into the grips on the document cover.

iv). Pull out the paper chute extension to the length you want.

Figure 2-4 Setting the ADF Paper Chute

ADF paper chute

Document cover
