Fujitsu LTO-5 Manuale utente

User Guide

LTO-5Half-Height

SAS Tape Drive

English

Comments…Suggestions…Corrections…

The User Documentation Department would like to

know your opinion of this manual. Your feedback helps

us optimize our documentation to suit your individual

needs.

Feel free to send us your comments by e-mail to

[email protected]ujitsu.com.

Certified documentation

according to DIN EN ISO 9001:2000

To ensure a consistently high quality standard and

user-friendliness, this documentation was created to

meet the regulations of a quality management system

which complies with the requirements of the standard

DIN EN ISO 9001:2000.

cognitas. Gesellschaft für Technik-Dokumentation mbH

www.cognitas.de

Delivery subject to availability; right of technical modifications reserved.

All hardware and software names used are trademarks of their respective manufacturers.

The information contained herein is subject to change without notice. The only warranties for HP

products and services are set forth in the express warranty statements accompanying such

products and services. Nothing herein should be construed as constituting an additional

warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Linear Tape-Open, LTO, LTO Logo, Ultrium and Ultrium Logo are trademarks of Quantum, HP

and IBM in the US, other countries or both.

Patented under one or more of U.S. Patents Nos. 5,003,307; 5,016,009; 5,463,390; 5,506,580;

held by Hi/fn, Inc.

Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation.

UNIX® is a registered trademark of The Open Group.

LTO-5 Half-Height SAS Tape Drives

Contents

Intended audience . . . . . . . . . . . . . . . . . . . . . . . . . 5

Document conventions and symbols . . . . . . . . . . . . . . . 5

1 Getting started . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.1 Your LTO-5 tape drive . . . . . . . . . . . . . . . . . . . . . . 7

1.2 How do I connect the drive to my server? . . . . . . . . . . . 8

1.3 Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.3.1 Installing on Windows . . . . . . . . . . . . . . . . . . . . . . . 9

1.3.2 Installing on Red Hat Enterprise Linux . . . . . . . . . . . . . . 9

2 Verify installation . . . . . . . . . . . . . . . . . . . . . . . . 11

3 Operating your tape drive . . . . . . . . . . . . . . . . . . . 13

3.1 Loading a cartridge . . . . . . . . . . . . . . . . . . . . . . 13

3.2 Unloading a cartridge . . . . . . . . . . . . . . . . . . . . . 14

3.3 Removing power from the drive . . . . . . . . . . . . . . . . 14

4 Cautions concerning backup . . . . . . . . . . . . . . . . . 15

4.1 Ejecting the data cartridge after backup . . . . . . . . . . . 15

4.2 Data compression rate . . . . . . . . . . . . . . . . . . . . . 15

4.3 Backup performance/capacity . . . . . . . . . . . . . . . . . 16

4.4 Points to note during system configuration . . . . . . . . . 16

5 Use the correct media . . . . . . . . . . . . . . . . . . . . . 17

5.1 Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.1.1 Cleaning cartridges . . . . . . . . . . . . . . . . . . . . . . . 17

5.1.2 Data cartridges . . . . . . . . . . . . . . . . . . . . . . . . . 17

LTO-5 Half-Height SAS Tape Drives

5.2 Cartridge life . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.3 Write protecting cartridges . . . . . . . . . . . . . . . . . . . 19

5.4 WORM data cartridges . . . . . . . . . . . . . . . . . . . . . 20

5.5 LTO-5 tape drives and encryption . . . . . . . . . . . . . . . 20

5.5.1 When should I use encryption? . . . . . . . . . . . . . . . . . . 21

5.5.2 How do I enable encryption? . . . . . . . . . . . . . . . . . . . 21

5.5.3 What happens if I don't remember the key? . . . . . . . . . . . 21

5.5.4 Does encryption affect tape drive performance? . . . . . . . . . 21

5.5.5 Does the tape drive encrypt media in an earlier LTO format? . . 22

5.5.6 Where can I get more information? . . . . . . . . . . . . . . . . 22

5.6 Cleaning the tape drive . . . . . . . . . . . . . . . . . . . . . 23

5.7 Handling cartridges . . . . . . . . . . . . . . . . . . . . . . . 23

5.8 Storage environment . . . . . . . . . . . . . . . . . . . . . . 24

6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 25

6.1 General Procedure . . . . . . . . . . . . . . . . . . . . . . . 25

6.2 Understanding LED sequences . . . . . . . . . . . . . . . . 27

6.2.1 Encryption LED . . . . . . . . . . . . . . . . . . . . . . . . . . 31

6.3 Problems with cartridges . . . . . . . . . . . . . . . . . . . . 32

6.3.1 The cartridge is jammed . . . . . . . . . . . . . . . . . . . . . 32

6.3.2 The drive will not accept the cartridge (or ejects it immediately) . 34

LTO-5 Half-Height SAS Tape Drives 5

About this guide

This guide provides information about:

●Installing the LTO-5 SAS half-height tape drive

●Using the LTO-5 SAS half-height tape drive

●Troubleshooting the LTO-5 SAS half-height tape drive

Intended audience

This guide is intended for users who install, operate and maintain the LTO-5

half-height tape drive.

Document conventions and symbols

Convention Element

Blue text: table 1 on page 5 Cross-reference links and e-mail addresses

Bold text ●Keys that are pressed

●Text typed into a GUI element, such as a box

●GUI elements that are clicked or selected,

such as menu and list items, buttons, tabs,

and check boxes

Italic text Text emphasis

Monospace text ●File and directory names

●System output

●Code

●Commands, their arguments, and argument

values

Monospace, italic text ●Code variables

●Command variables

Monospace, bold text Emphasized monospace text

Table 1: Document conventions

6 LTO-5 Half-Height SAS Tape Drives

WWARNING! Indicates that failure to follow directions could result

in bodily harm or death.

VCAUTION: Indicates that failure to follow directions could result

in damage to equipment or data.

IIMPORTANT: Provides clarifying information or specific

instructions.

NOTE: Provides additional information.

LTO-5 Half-Height SAS Tape Drives 7

1 Getting started

In this chapter:

●"Your LTO-5 tape drive" on page 7

●"How do I connect the drive to my server?" on page 8

1.1 Your LTO-5 tape drive

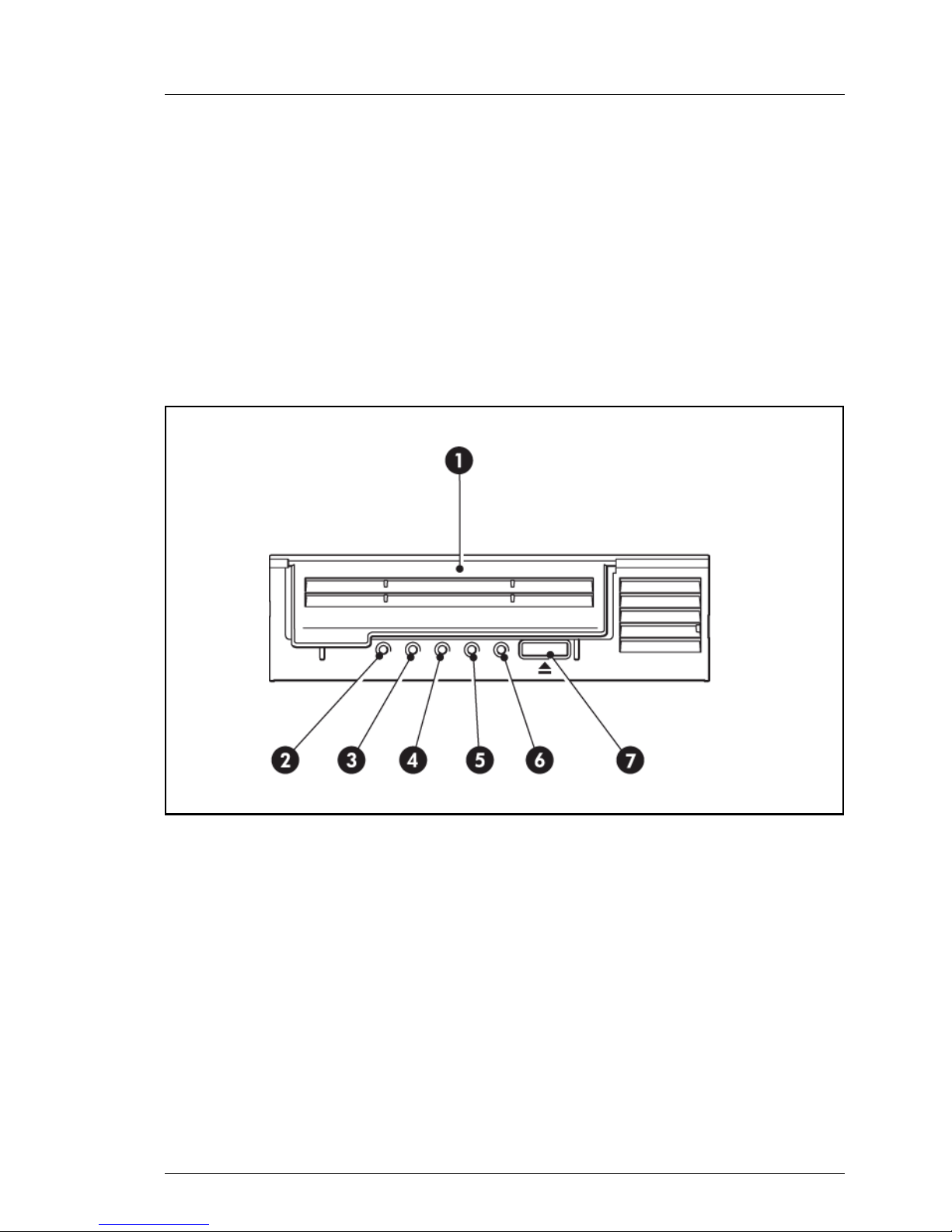

Figure 1: Front view of LTO–5 SAS tape drive

1. Drive door 5. Drive LED

2. Encryption LED 6. Ready LED

3. Clean LED 7. Eject button

4. Tape LED

8 LTO-5 Half-Height SAS Tape Drives

How do I connect the drive to my server?

1.2 How do I connect the drive to my server?

The tape drive is installed into a 5¼-inch drive bay in your server and is attached

to the host server's internal SAS controller or SAS host bus adapter, as

illustrated below.

Connect a spare power cable from the server's internal power supply to the

power connector on the SAS data cable.

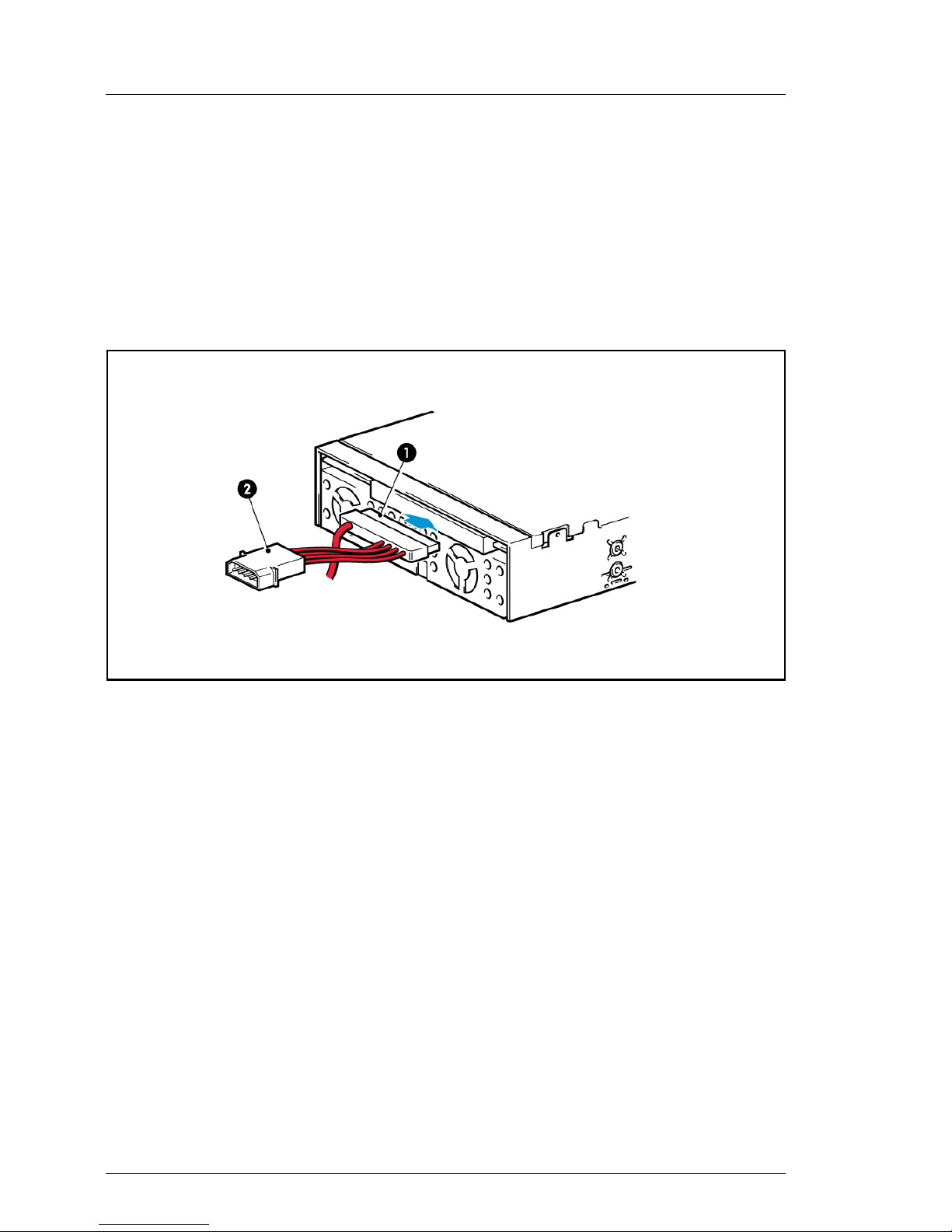

Figure 2: Connecting cables to the LTO—5 tape drive

1. Power connector on data cable 2. SAS connector to tape drive (SFF-8482

SAS cable with power)

LTO-5 Half-Height SAS Tape Drives 9

Drivers

1.3 Drivers

The driver can be obtained from the Fujitsu ServerView Suite DVD, for updates

please check http://support.ts.fujitsu.com. Refer also to the documentation of your

software application to ensure you are using the recommended driver.

1.3.1 Installing on Windows

Install as instructed in the readme file in the drivers directory.

1.3.2 Installing on Red Hat Enterprise Linux

Drivers are included with the operating system and should be loaded

automatically.

10 LTO-5 Half-Height SAS Tape Drives

Drivers
