Full Boar FBMD-1600 Manuale utente

KNOW YOUR PRODUCT

WARNING: Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, ﬁre and/or serious injury.

Save all warnings and instructions for future reference.

1220

MULTI

PURPOSE

MIXER

• 1600W HIGH POWER

• IDEAL FOR MIXING

CONCRETE, MORTAR,

PAINT & ADHESIVES

• 2 SPEED GEARBOX

FOR HIGH TORQUE

INSTRUCTION MANUAL

Mains voltage: 220-240V ~50Hz

Input power: 1600W

No load speed: 0 –460min-1 / 0 –750min-1

Variable speeds: 6

Gears: 2

Soft start: Yes

Mixing paddle size: Ø133mm x 580mm

Mixing paddle thread: M14 x 2.0mm

Weight (tool only): 3.48kg

SPECIFICATIONS - MODEL NO. FBMD-1600

KNOW YOUR PRODUCT

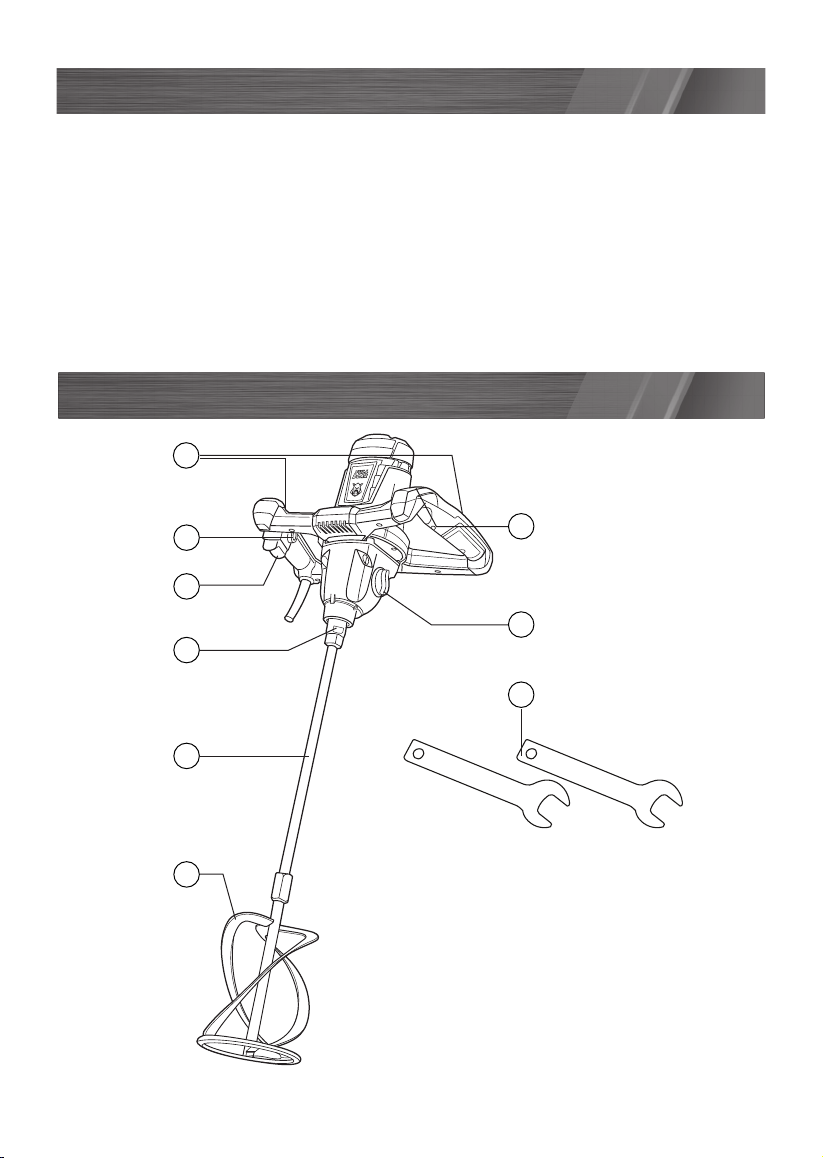

1. Side handles

2. Lock-off button

3. On/off trigger

4. Collet

5. Mixing shaft

6. Mixing Paddle

7. Variable speed dial

8. Gear selecting dial

9. Open-ended spanners 22mm

SPECIFICATIONS....................................................... Page 02

KNOW YOUR PRODUCT........................................... Page 02

INTRODUCTION........................................................ Page 04

SAFETY INSTRUCTIONS........................................... Page 04

ASSEMBLY.................................................................. Page 08

OPERATION............................................................... Page 09

MAINTENANCE......................................................... Page 11

TROUBLE SHOOTING .............................................. Page 12

DESCRIPTION OF SYMBOLS.....................................Page 12

CONTENTS................................................................ Page 13

WARRANTY................................................................ Page 14

TABLE OF CONTENTS

Congratulations on purchasing a Full Boar Multi Purpose

Mixer.

Your Full Boar Multi Purpose Mixer FBMD-1600 has been

designed to mix various materials such as paint, mortar,

adhesives and plaster into consistent batches as required for

the end user. Read and understand the Owner’s Manual

before operating the Multi Purpose Mixer. Failure to do so

could result in personal injury or equipment damage.

INTRODUCTION

ELECTRICAL SAFETY

SAFETY INSTRUCTIONS

WARNING! When using mains-powered equipment, basic safety precautions,

including the following, should always be followed to reduce risk of ﬁre, electric

shock, personal injury and material damage.

Read and understand the manual prior to operating this tool.

Save these instructions and other documents supplied with this tool for future reference.

The manufacturer cannot accept any liability for damage or accidents which arise due to a

failure to follow these instructions and the safety information.

The electric motor has been designed for 220V and 240V only. Always check that the power

supply corresponds to the voltage on the rating plate.

Note: The supply of 220V and 240V is interchangeable for Australia and New Zealand.

This tool is double insulated, therefore no earth wire is required.

If the supply cord of this power tool is damaged, it must be replaced by a specially prepared

cord available through the service organization.

Note: Double insulation does not take the place of normal safety precautions when

operating this tool. The insulation system is for added protection against injury resulting from

a possible electrical insulation failure within the tool.

Using an Extension Lead

Always use an approved heavy duty extension lead suitable for the power input of this tool.

Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the

extension lead if damaged or defective. When using an extension lead on a reel, always

unwind the lead completely. Use of an extension lead not suitable for the power input of the

tool or which is damaged or defective may result in a risk of ﬁre and electric shock.

GENERAL POWER TOOL SAFETY WARNING

SAVE THESE INSTRUCTIONS

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of ﬂammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you

to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools. Unmodiﬁed plugs and matching outlets

will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase

the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power

tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled

cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use

of a cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device

(RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the inﬂuence of drugs, alcohol or

medication. A moment of inattention while operating power tools may result in serious personal

injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment

such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate

conditions will reduce personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to

power source and/or battery pack, picking up or carrying the tool. Carrying power tools with

your ﬁnger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of

the power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves

away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure

these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h. Do not let familiarity gained from frequent use of tools allow you to become complacent

and ignore tool safety principles. A careless action can cause severe injury within a fraction of a

second.

WARNING! Read all safety warnings and instructions. Failure to follow all

instructions listed below may result in electric shock, ﬁre and/or serious injury. The

term “Power Tool” in all of the warnings listed below refers to your mains operated

(corded) power tool or battery operated (cordless) power tool.

GENERAL POWER TOOL SAFETY WARNING

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct

power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot

be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or the battery pack from the power tool

before making any adjustments, changing accessories, or storing power tools. Such preventive

safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with

the power tool or these instructions to operate the power tool. Power tools are dangerous in

the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts

and any other condition that may affect the power tool’s operation. If damaged, have the

power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges

are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,

taking into account the working conditions and the work to be performed. Use of the power

tool for operations different from those intended could result in a hazardous situation.

h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles

and grasping surfaces do not allow for safe handling and control of the tool in unexpected

situations.

5. Service

a. Have your power tool serviced by a qualiﬁed repair person using only identical replacement

parts. This will ensure that the safety of the power tool is maintained.

b. If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in

order to avoid a hazard.

Hold power tool by insulated gripping surfaces, when performing an operation where the

accessory may contact hidden wiring or its own cord. Accessory contacting a “live” wire may make

exposed metal parts of the power tool “live“ and could give the operator an electric shock.

WARNING! This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

Recommendations for the use of a residual current device with a rated residual current of 30mA or

less.

a) Hold the tool with both hands at the intended handles. Loss of control can cause personal injury.

b) Ensure sufﬁcient ventilation when mixing ﬂammable materials to avoid a hazardous

atmosphere. Developing vapour may be inhaled or be ignited by the sparks the power tool

produces.

c) Do not mix food. Power tools and their accessories are not designed for processing food.

d) Keep the cord away from working area. The cord may be entangled by the mixer basket.

e) Ensure that the mixing container is placed in a ﬁrm and secure position. A container that is not

properly secure may move unexpectedly.

f) Ensure that no liquid splashes against the housing of the power tool. Liquid that has penetrated

the power tool can cause damage and lead to electric shock.

g) Follow the instructions and warnings for the material to be mixed. Material to be mixed may be

harmful.

h) If the power tool falls into the material to be mixed, unplug the tool immediately and have

the power tool checked by a qualiﬁed repair person. Reaching into the bucket with the tool still

plugged in can lead to electrical shock.

i) Do not reach into the mixing container with your hands or insert any other objects into it while

mixing. Contact with the mixer basket may lead to serous personal injury.

j) Start up and run down the tool in the mixing container only. The mixer basket may bend or spin in

an uncontrolled manner.

MULTI PURPOSE MIXER SAFETY WARNINGS

ASSEMBLY

Assembling and fitting the mixing paddle

The Full Boar FBMD-1600 comes with a mixing paddle that needs assembly

before ﬁtting to the multi purpose mixer.

1. Screw the mixing paddle (6) into the end of

the mixing shaft (5) by rotating in a clockwise

direction by hand (ﬁg. 1).

2. Screw the mixing shaft (5) into the collet (5) at

the base of the mixer housing (Fig. 2).

3. Tighten onto the collet (4) using the provided

22mm open-end spanners (9) in opposite

directions (fig. 2).

4. While holding the 22mm open-end spanner (9) on the collet (4), tighten the

mixing paddle (6) to the mixing shaft (5), fitted in step 1 using the other 22mm

open-end spanner (9).

Fig. 1

Fig. 2

WARNING! Ensure the tool is switched off and disconnected from the

power supply and completely stopped before performing any of the

following operations.

OPERATION

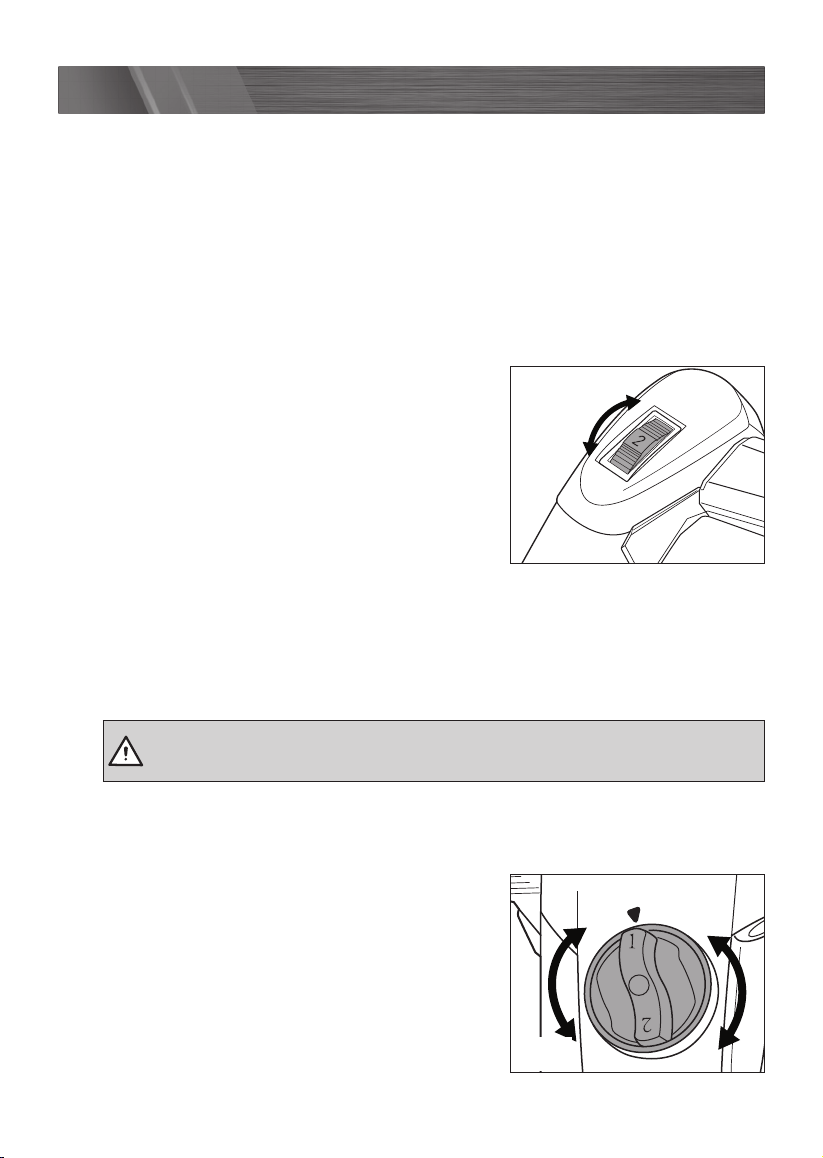

On/off trigger

Always firmly hold the tool by handles (1) during operations. The multi purpose

mixer is fitted with a lock-off button (2) to avoid accidental start up.

1. To start the mixer, ﬁrst press and hold the

lock-off button (2), then squeeze the On/off

trigger (3) to start the tool. Hold the trigger in

this position for continuous use (ﬁg. 3).

Note: Once the tool has started, you can release

the lock-off button (2).

2. To stop the mixer, simply release the on/off

trigger (3) (fig. 4).

WARNING! The mixing may take a few

seconds to come to a complete stop

once the on/off trigger (3) is released.

Ensure the motor has come to a standstill

before sitting the mixer down.

Fig. 3

Fig. 4

WARNING! The power supply for this product should be protected by a

residual current device (rated at 30mA or less). A residual current device

reduces the risk of electric shock.

OPERATION

Varying the speed

The multi purpose mixer has a variable speed dial (7) with constant electronics and

a gear selecting dial (8), which allows the mixer to obtain speeds from 0-750/min

(1st gear: 0-460/min, 2nd gear: 0-750/min).

Adjusting the variable speed dial

With constant electronics the set speed is kept constant even when working under

load.

To adjust the speed rotate the variable speed

dial (7) (ﬁg. 5).

1. To increase the speed rotate the variable

speed dial (7) to a higher speed, or the

highest number “6” setting.

2. To reduce the speed rotate the variable

speed dial (7) to a lower speed, or “1”

setting.

Note: Always reduce the speed when submerging the mixer in the material or

lifting it out. Once the mixer is fully submerged, increase the speed again to ensure

that the motor is adequately cooled.

Changing gears

The gear selector dial (8) enables you to work within a specific speed range. To

adjust the speed rotate the gear selector dial (8) (fig. 6)

1. Dial position, setting 1 - low speed

(0-460/min), high torque.

2. Dial position, setting 2 - high speed

(0-750/min), low torque.

Note: The gears may require the mixing shaft to

be slightly rotated to allow the gears to change.

Fig. 5

Fig. 6

WARNING! To avoid damaging any gears, ensure the mixer has

completely stopped before changing gears.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Full Boar Miscelatore

Full Boar

Full Boar FBT-1600 Manuale utente

Manuali Miscelatore popolari di altre marche

Bosch

Bosch GRW 9 Manuale utente

MULTIQUIP

MULTIQUIP Whiteman WM45E Guida

KitchenAid

KitchenAid KSM7581BZ0 Guida rapida

Jay-Lor

Jay-Lor 5050 Manuale utente

Sunbeam

Sunbeam FPSBSM210X Manuale utente

MULTIQUIP

MULTIQUIP Whiteman MC94S Guida

Thinky

Thinky ARE-250 Manuale utente

Midas

Midas XL4 Manuale utente

bianco

bianco PURO 4 Manuale utente

Paso

Paso DAG9200 Manuale utente

Sima

Sima SFX-9A Manuale utente

better chef

better chef IM-815WC Istruzioni per l'installazione

ALLEN & HEATH

ALLEN & HEATH GR1 Manuale utente

Lacor

Lacor 69083 Scheda tecnica

M-Audio

M-Audio Midiman SAM Manuale utente

Buffalo

Buffalo CP921 Manuale utente

Pentair

Pentair HYPRO Cleanload 3376-0870 Istruzioni operative

Cuisinart

Cuisinart SM50WHE Manuale utente
