Furuno GP-170 Manuale

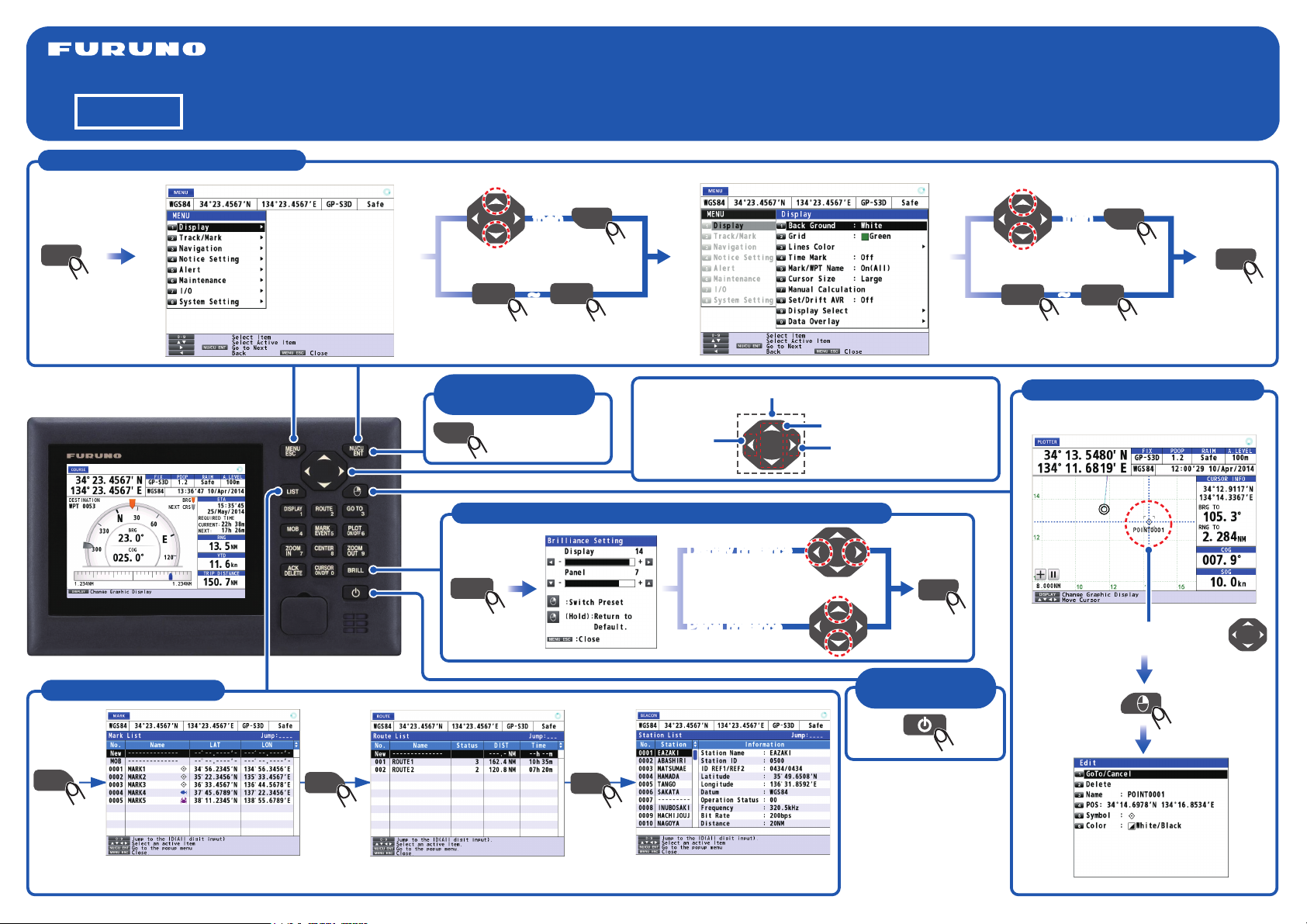

The purpose of this guide is to provide the

basic operation for this equipment. For more

detailed information, see the Operator's Manual.

All brand and product names are trademarks,

registered trademarks or service marks of their

respective holders.

GNSS NAVIGATOR

English GP-170 Operator's Guide

Model

How to adjust the brilliance of the display and panel

Display brilliance

Panel brilliance

How to operate the main menu

then

If needed, repeat one of these steps.

NU/CU

ENT

DISPLAY

CENTER

NU/CU

ENT

ZOOM

OUT

ESC

BRILL

NU/CU

ENT

NU: North up

CU: Course up

How to open the context menu

For example, context menu for a mark.

Select a mark with the cursorpad.

How to switch the

operation mode

ESC

Mark List Route List Station List

How to open the list

How to turn the

power on/off

Select the menu item.

Goes forward to one

layer in multi-layer menu.

Shifts display or cursor.

Goes back

one layer in

multi-layer

menu.

Press appropriate numeric key.

LIST LIST LIST

CURSOR

ON/OFF

(Requires internal beacon receiver.)

(numeric key)

Pub. NO. OSE-44820-B

(2005, YOTA) GP-170

ACK

DELETE

- Acknowledges an unacknowledged alert.

- Deletes all setting values on the setting window.

- Deletes registered data at the cursor-selected position.

Cursor on: Large Cursor on: Small

CURSOR

ON/OFF

ZOOM

OUT

CURSOR

ON/OFF

- Selects and confirms the menu item.

- Enters a numeric character.

: Select the display mode.

DISPLAY

ROUTE

Long press

: Create a new route.

ROUTE

Select the location for a route point.

NU/CU

ENT ROUTE

Repeat these steps to complete the route.

: Set a destination.

GO TO

Select the location

for a destination.

GO TO

: Set MOB as destination.

MOB

4Select [1 Yes].

: Put a mark.

MARK

EVENT

With cursor on

Select the location for a mark.

MARK

EVENT

With cursor off

MARK

EVENT

The mark is put at own ship’s position.

: Plot and record ship’s track.

PLOT

ON/OFF

PLOT

ON/OFF

The pop-up message “Resuming

Track Plot” appears.

PLOT

ON/OFF

The pop-up message “Stopping

Track Plot” appears.

To stop plotting,

: Turn the cursor on/off.

CURSOR

ON/OFF

: Zoom in/out the display.

ZOOM

OUT

ZOOM

OUT

Zoom in Zoom out

: Center the cursor position or own ship’s position.

CENTER

With cursor on

With cursor off

Center the cursor position.

Center own ship’s position.

DISPLAY

SAT VIEW Highway Data

Course

(Size selectable from menu.)

Plotter

00017791111
