Installation Manual

COLOR GPS PLOTTER GP-7000

SAFETY INSTRUCTIONS............................................................................i

SYSTEM CONFIGURATION.......................................................................ii

EQUIPMENT LISTS....................................................................................iii

1. INSTALLATION.....................................................................................1

1.1 Display Unit ..................................................................................................................1

1.2 Antenna Unit.................................................................................................................4

2. WIRING..................................................................................................5

3. ADJUSTMENTS ....................................................................................9

3.1 Choosing Position Data Source....................................................................................9

3.2 Choosing Port I/O Format...........................................................................................11

3.3 Calibrating NMEA Depth, Speed and Water Temperature Data................................13

3.4 Waypoint, Route Format.............................................................................................14

3.5 External Event Format................................................................................................14

3.6 C-link (primary and secondary stations).....................................................................15

PACKING LIST........................................................................................ A-1

OUTLINE DRAWINGS.............................................................................D-1

INTERCONNECTION DIAGRAM ............................................................ S-1

SAFETY INSTRUCTIONS

WARNING

ELECTRICAL SHOCK HAZARD

Do not open the equipment

unless totally familiar with

electrical circuits and

service manual.

Only qualified personnel

should work inside the

equipment.

Turn off the power at the switchboard

before beginning the installation.

Fire or electrical shock can result if the

power is left on.

CAUTION

Observe the following compass safe

distances to prevent interference to a

magnetic compass:

Use the power cable supplied with the

installation materials.

Use of other power cables may cause fire

or damage the equipment.

Use the proper fuse.

Use of the wrong fuse may damage the

equipment.

Display

unit

Standard Steering

compass compass

0.70 m 0.45 m

Organic solvent

Do not apply paint, anti-corrosive sealant

or contact spray to coating or plastic

parts of the equipment.

Those items contain organic solvents that

can damage coating and plastic parts,

especially plastic connectors.

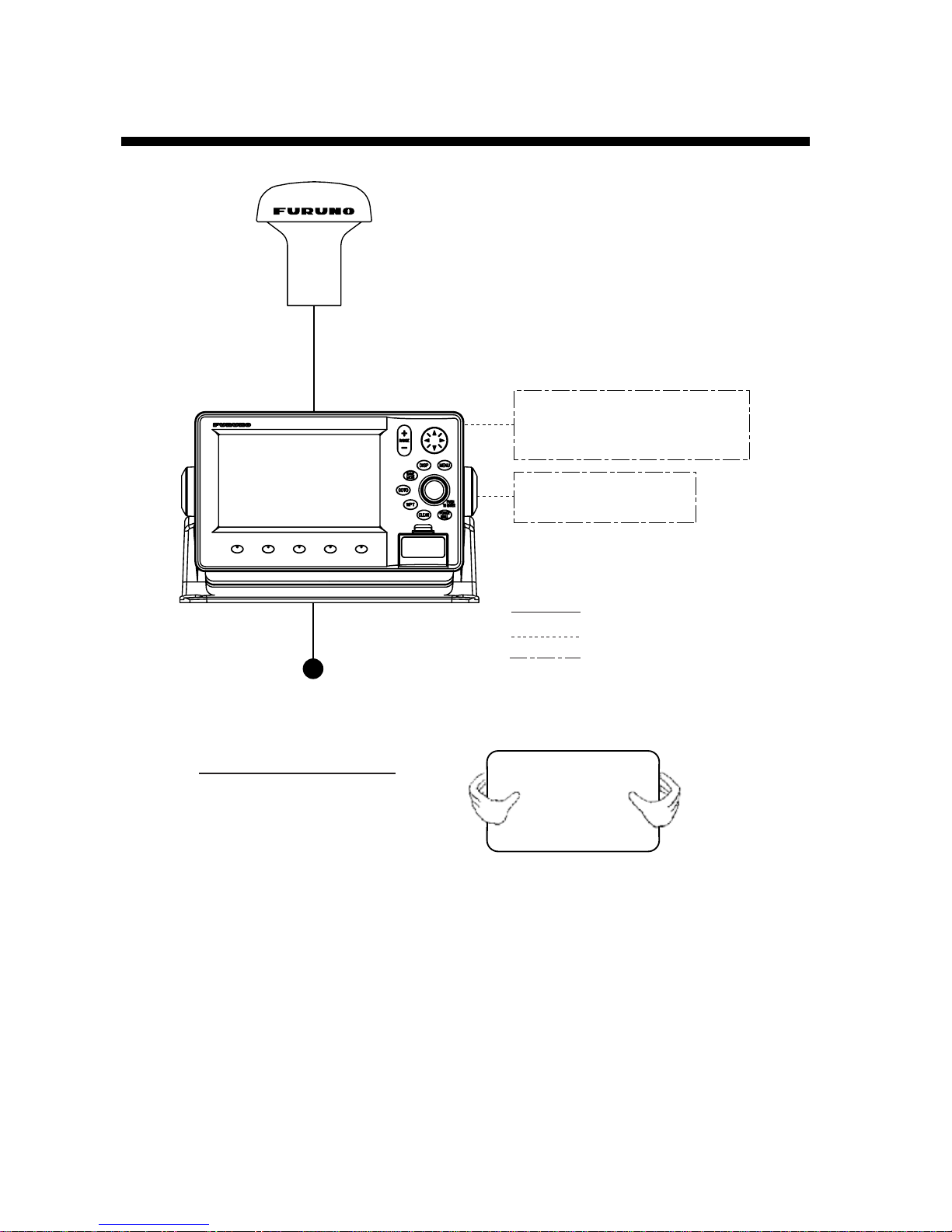

SYSTEM CONFIGURATION

Power Source

12-24 VDC

: Option

: Standard

: User Supply

ANTENNA UNIT GPA-017

DISPLAY UNIT

GP-7000

How to remove the hard cover

Place your thumbs at the center

of the cover, and then lift the cover

while pressing it with your thumbs.

NMEA1 and NMEA2 ports:

Radar, autopilot, video sounder,

temperature indicator, etc.

PC/NMEA IN port:

PC, NMEA device, buzzer

iii

EQUIPMENT LISTS

Standard supply

Name Type Code No. Qty Remarks

Display Unit GP-7000 — 1

Antenna Unit

GPA-017

— 1

System also available

without antenna (for boats

which already have an

appropriate antenna)

Installation

Materials*

CP14-06400 000-041-183 1

Accessories* FP20-01100 000-042-239 1

Spare Parts* SP14-03201 004-371-980 1

* See packing list at back of this manual.

Optional equipment

Name Type Code No. Qty

GPS Antenna GPA-017S 000-040-541

CP20-01700 004-372-110 30 m, antenna cable extensionAntenna Cable Set

CP20-01710 004-372-120 50 m, antenna cable extension

Right Angle Antenna

Base No.13-QA330 000-803-239

L-angle Antenna

Base No.13-QA310 000-803-240

Antenna Base for

Rail Mounting No.13-RC5160 000-806-114

For mounting antenna unit

Mast Mounting Kit CP20-01111 004-365-780 For mounting antenna unit on a

mast

MJ-A6SPF0012-050C 000-154-053-10 6P – 6P, 5 m

MJ-A6SPF0012-100C 000-154-037-10 6P – 6P, 10 m

MJ-A6SPF0003-050C 000-154-054-10 6P, 5 m

Cable Assy.

MJ-A7SPF0007-050C 000-154-028-10 For connecting a PC, 5 m, with

7P connector

1. INSTALLATION

1.1 Display Unit

The display unit may be mounted on a desktop, overhead or flush mounted in a console.

Mounting considerations

Choose a mounting location for the display unit considering the following points:

• Choose a location where the controls can be easily operated.

• Leave sufficient space around the unit to facilitate checking and maintenance. See the

outline drawing at the back of this manual for recommended maintenance space.

• Locate the unit out of direct sunlight because of heat that can build up inside the cabinet.

• The operating temperature range is -15°C to 55°C (5°F to 131°F).

• Locate the unit well away from exhaust gases and other active gases.

• The location should be well ventilated.

• Choose a location where shock and vibration are minimal.

• Be sure the mounting location is strong enough to support the weight of the unit,

particularly in overhead mounting. If necessary reinforce the mounting location.

• A magnetic compass will be affected if the display unit is placed too close to the compass.

Observe the following compass safe distances to prevent deviation to the compass.

Standard compass, 0.70 m, Steering compass, 0.45 m.

Mounting

Desktop, overhead mounting

1. Fix the hanger to the mounting location with four self-tapping screws (5X20). See the

outline drawing on page D-1 for complete mounting dimensions.

2. Loosely screw the knob bolts into the display unit.

3. Set the display unit to the hanger and tighten the knob bolts.

4. Attach the hard cover to the display unit to protect the LCD.

FIXING

HOLE

Unit: mm

Display unit, mounting dimensions for desktop or overhead mounting

Flush mounting

If the thickness of the console is 11-14 mm, use the washer

head screws (M4X20) supplied with the installation materials.

If it is thicker than those dimensions, the length of the screws

should be the thickness of the console plus 7.3 mm ±1.5 mm.

The length of the threaded portion to be inserted to the display

unit should not exceed 7 mm (B≤7).

1. Prepare a cutout in the mounting location using the template provided.

2. Fix the display unit with six washer head screws (M4X20) provided.

A: Thickness of console

52 80 150

Service

Clearance

Unit: mm

Mounting dimensions for flush mounting

1.2 Antenna Unit

Refer to the antenna unit outline drawing at the back of this manual for mounting

instructions.

When selecting a mounting location consider the following points:

• Select a location out of the radar and Inmarsat beams. Those beams will obstruct or

prevent reception of the GPS satellite signal.

• There should be no interfering object within the line-of-sight to the satellites. Objects

within line-of-sight to a satellite, for example, a mast, may block reception or prolong

acquisition time.

• Locate the antenna well away from the antenna of a VHF radiotelephone to prevent

interference.

• Mount the antenna unit as high as possible. Mounting it this way keeps it free of

interfering objects and water spray, which can interrupt reception of GPS satellite signal if

the water freezes.

Note: If the antenna cable is to be passed through a hole in a bulkhead which is too small

to pass the connector, disassemble the connector with radio pincers and a monkey

wrench. After passing the cable through the hole assemble the connector as below.

Pin (Solder.)

Clamping Nut

Housing

Gasket

Washer

Shield

How to assemble the antenna connector

2. WIRING

The figure below shows the basic wiring scheme.

Display unit, rear view

Power source

The power source is a 12-24 VDC battery. Be sure the power cable is tightly fastened to the power

source and the polarity (plus and minus) is correct. Connect the white lead to the positive terminal

(+) and the black lead to the negative terminal (-).

Shield

White

Black

Ground

ANTENNA UNIT

GPA-017

MJ-A15A3F0013-035-3A,

3.5 m

FROM LEFT

PC/NMEA IN: PC, NMEA device, buzzer, AIS

NMEA 2: Radar, autopilot, video sounder,

temperature indicator, etc.

NMEA 1: Same as NMEA 2

Power

Source

Antenna Cable, 10 m

Ground

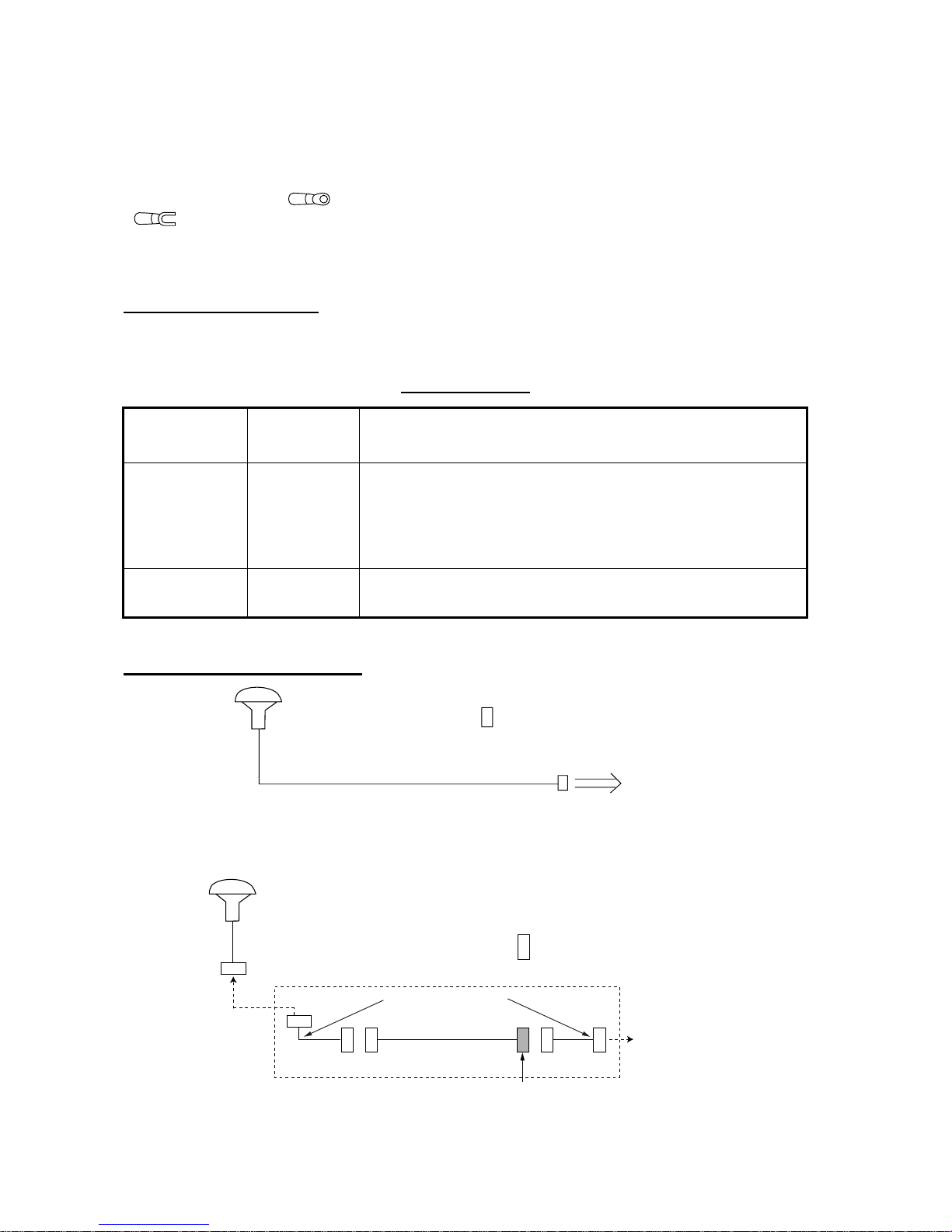

Connect the ground wire to the boat's grounding bus. If the unit is not grounded, noise may result.

If noise is a problem on an FRP vessel, fasten a ground plate of 20 cm x 30 cm to the outside of

the ship's hull and connect the ground wire there.

Use a closed-typelug ( ) for the connection on the displayunit.Do not use an open-type lug

().

Antenna cable

Types of antenna cables

If a longer length of antenna cable is required, use the optional antenna cable set, which is avail-

able in 30 and 50 m lengths.

Connecting the antenna cable

Connection of antenna unit GPA-017

Connection of antenna cable set on antenna unit GPA-017S (option)

Antenna cable set

Antenna cable

set Code no. Contents

CP20-01700 004-372-110

1) Converter cable assy. NJ-T-3DX-1, Code No. 000-123

2) Vinyl tape NO.360 Code No. 000-835-215

3) Connector N-P-8DFB-CF, Code No. 000-156-918-10

4) Self-bonding tape U-tape, Code No. 000-165-833-10

5) Antenna cable assy. 8D-FB-CV*30m*, Code No. 000-117-547

CP20-01710 004-372-120 Items 1) - 4) above plus:

Antenna cable assy. 8D-FB-CV*50m*, Code No. 000-117-549

Antenna Unit

GPA-017

Antenna Cable

10 m Connect at

rear of

display unit

Connector fitted at factory.

Connect at

rear of

display unit

Connector fitted at factory

1 m

Attached during installation

(See pa

e 8.)

Antenna Cable

30 m or 50 m

Conversion Cable

Assy.

ANTENNA CABLE KIT

Antenna Unit

GPA-017S

20 cm
