Gadspot ND614E Manuale utente
User’s Manual
H.264 Series 2-Megapixel
Network Camera
ND614E
Version 1.3
Date: 12/26/2011
Contents
Notices ...........................................................................................................................3
Introduction....................................................................................................................4
Installation......................................................................................................................5
1. Hardware............................................................................................................5
2. Software Installation..........................................................................................6
3. Network Configuration......................................................................................7
Using the Web UI.........................................................................................13
1. Live View.........................................................................................................14
2.Video.................................................................................................................17
3.Camera..............................................................................................................20
General.........................................................................................................20
Advanced .....................................................................................................22
4 .Event ................................................................................................................23
Event Configuration.....................................................................................27
5. Schedule...........................................................................................................30
General.........................................................................................................30
Storage .........................................................................................................31
5. Network........................................................................................................34
General.........................................................................................................34
Advanced .....................................................................................................35
SMTP (E-Mail)............................................................................................36
DDNS...........................................................................................................37
7. System..............................................................................................................38
User..............................................................................................................38
Date & Time.................................................................................................39
Server Maintenance .....................................................................................40
Log Service..................................................................................................40
8. Customize ........................................................................................................41
FAQ..............................................................................................................................43
1.Restore Factory Default Settings ......................................................................43
2.Video Streams Specification......................................... 錯誤! 尚未定義書籤。
3
Notices
This user manual is intended for administrators and users of the ND614 Series Network
Camera, including instructions for using and managing the camera on your network. The use
of surveillance devices may be prohibited by law in your country. It is the user’s responsibility
to ensure that the operation of such devices is legal before installing this unit for its intended
use.
Before the Network Camera is installed, all the safety and operating instructions should be
carefully read and followed to avoid damage due to faulty assembly and installation. This also
ensures the product is used properly as intended.
Heed all warnings
Do not drop or strike this equipment
Sensitive electronics inside the camera are vulnerable to excessive strike.
Do not install the equipment near any flames or heat sources
Excessive heat could damage this equipment.
Do not cover cloth or to install this equipment in poorly ventilated places.
Overheating could damage this equipment.
Do not expose this equipment to rain or moisture. Do not touch the power
connection with wet hands
Risk of short circuit, electric shock or fire
Do not damage the power cord or leave it under pressure
Risk of fire or shock circuit
To reduce the risk of electric shock, do not remove the Cover (or Back).
No user-serviceable parts inside. Misusage, improper, and negligence could
damage this equipment. Need to refer servicing to qualified service personnel.
Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
All work related to the installation of this product should be made by qualified
service personnel or system installers.
4
Introduction

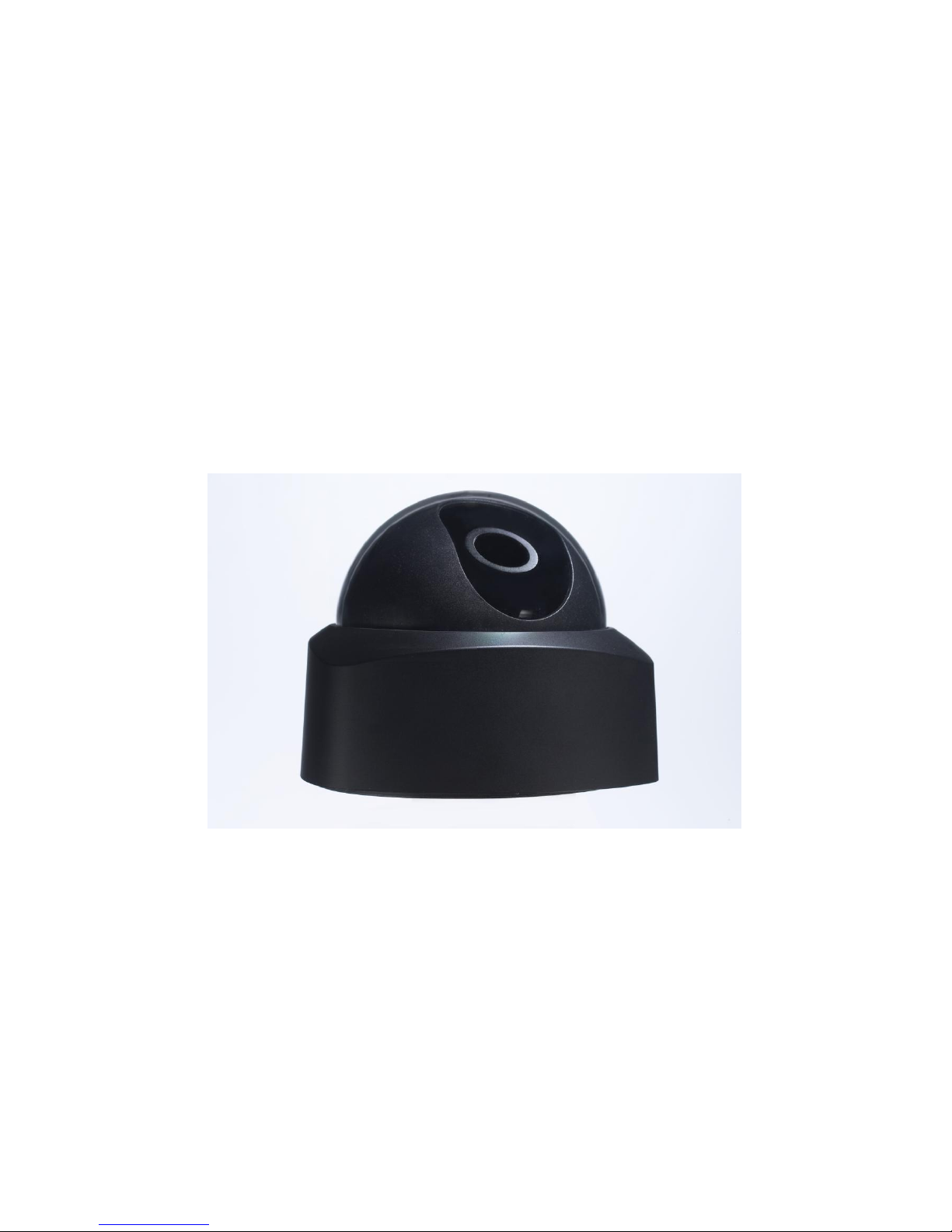

The ND614 Series Network Camera delivers superior H.264-AVC performance, state of the
art design and function. ND614 Series is specifically adapted for maximum performance
indoor applications, such as commercial, banking, government buildings, schools,
universities and airports.
H.264-AVC video compression can lower bandwidth and storage requirements without
compromising image quality; Motion JPEG is supported for increased flexibility, as well as
multiple independent video streaming.
ND614 value-added features include; on-board video motion detection, two-way audio,
Micro SD card storage and PoE model is available with full PoE (IEEE-802.3af) feature that
supplies function of power to the camera via the network, eliminating the need for power
cables, reducing installation costs and complexity. Consequently, ND614 is “Best in Class”
for maximum performance IP video surveillance systems, demanding superior image
quality, ease of installation, and intelligent video capabilities.
5
Installation
1. Hardware
6
2. Software Installation
The following software is necessary for the proper display and use of the ND614 from the Web
site. The software will be available from the Software Package CD.
IP Installer
The IP Installer is used to locate and configure network cameras and video servers on
the LAN. This utility is useful for conveniently configuring the network settings of the
device, or for finding a device once the network settings have been modified. To install
the IP Installer, from the Software Package CD UI, select IP installer, then follow the on
screen instructions.
XVID Codec
An H.264 codec is applied for displaying the video stream and playing the recoded AVI
files. If the video stream can’t be displayed or the recorded AVI files can’t be play on PC,
install this software from the Software Package CD.
VLC
Though not necessary, this can be used for viewing the streaming without a Web
browser.
7
3. Network Configuration
IP Installer is a utility that provides an easier, more efficient way to configure the IP
address and network settings of the devices. It even provides a convenient way to set the
network settings for multiple devices simultaneously using the batch setting function.
NOTE: Default mode is DHCP.
Preparation before IP Assignment
1. Always consult your network administrator before assigning an IP address to your server
in order to avoid using a previously assigned IP address.
2. Ensure the device is powered on and correctly connected to the network.
3. MAC Address: Each device has a unique Ethernet address (MAC address) shown on the
label of the device as the serial number (S/N) with 12 digits (e.g. 000429-XXXXXX).
4. Although the IP Installer is able to find and configure any Pixord devices on the LAN
except those that are behind a router, it is a good idea to set the host PC to the same
subnet. In order to connect to the Web-based user interface of the camera, the host PC
must be in the same subnet. For more information about subnets, please consult your
network administrator.
Using IP Installer to Assign an IP Address to ND614
1. Once IP Installer has been successfully installed on the PC, double click the IP Installer
icon on the desktop,

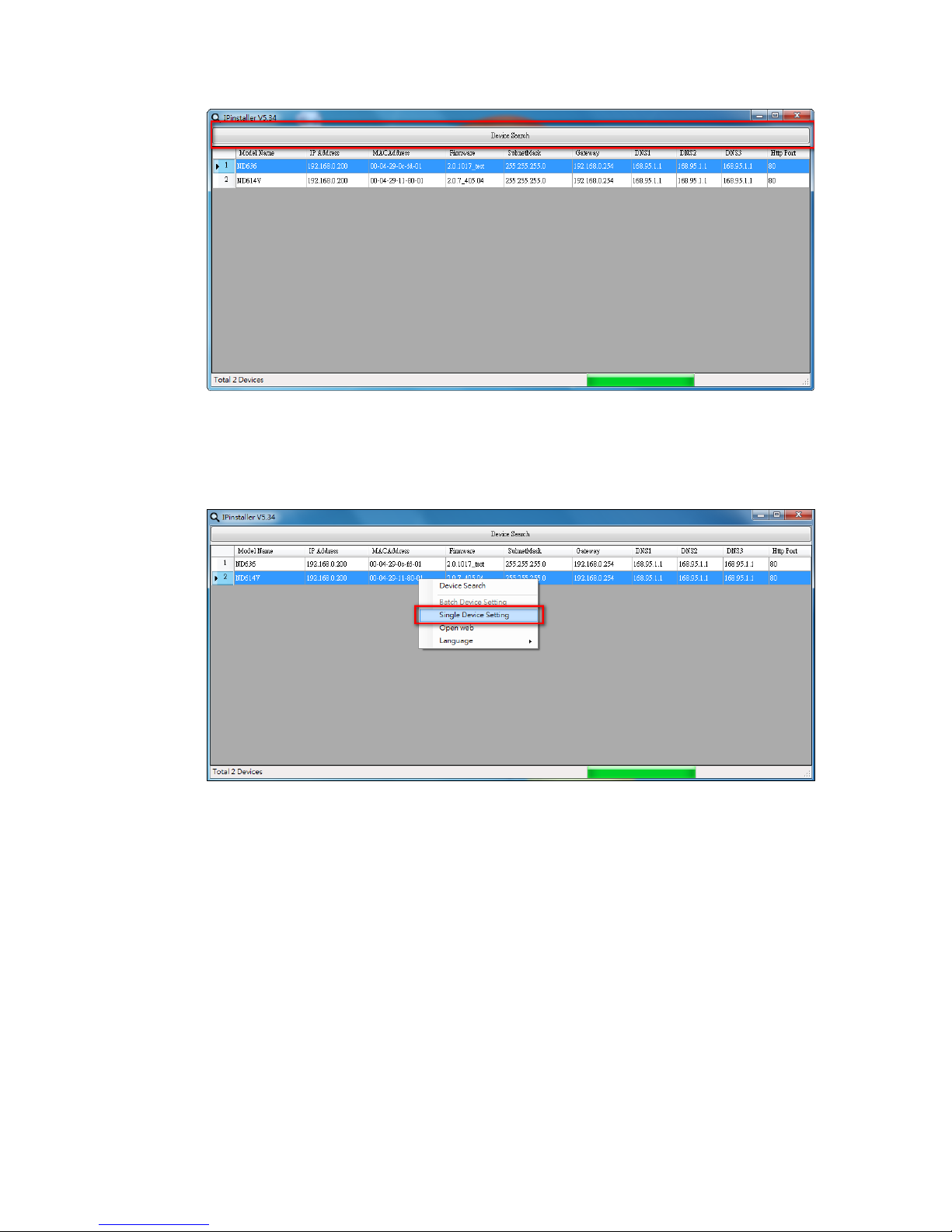

2. Click the [Device Search] to search the device in the LAN.
*0004290000
B1
8
3. From the list, select the device with the MAC Address that corresponds to the device that
is to be configured. The MAC Address is identical to the unit’s S/N (Serial Number).
4. Double click the select item to open the Property Page or right click the item to select the
[Single Device Setting].

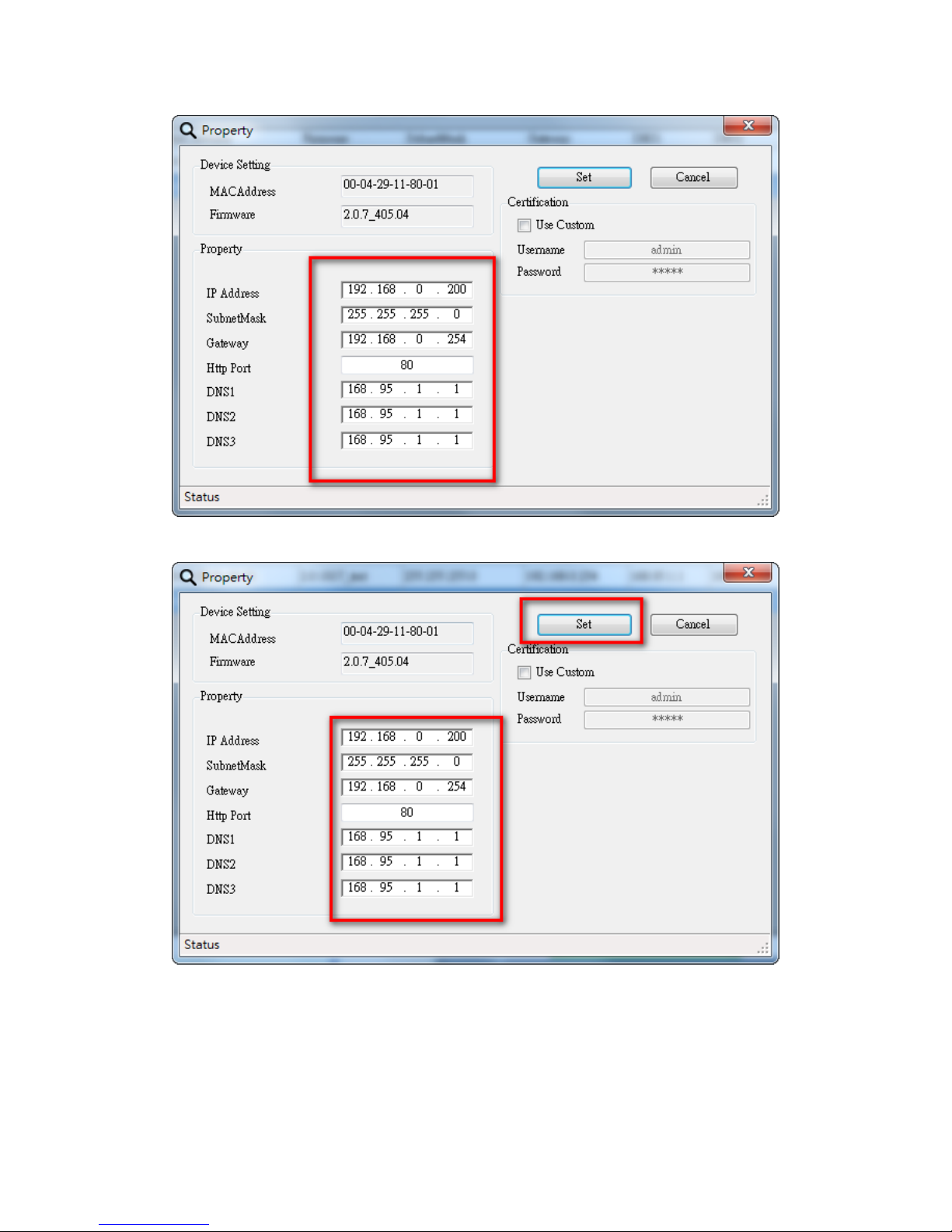

5. Modify the network settings of the camera
9
6. After filling in the properties, click [Set] button to complete the configuration settings.
7. Click the [Batch Device Setting] to set several devices.
10
8. Language support for Chinese, English and Spanish.
Open the Web-based UI of the selected camera
1. To access the Web-based UI of the selected unit, run the View > Open Web on the menu
bar.
