1. Safety and Care Information

▲

The safety of the user/installer relies on the isolation of the telephone

network and not on the earthing of the case

▲

Please read these instructions thoroughly before starting installation.

These products must be installed by competent personnel familiar with

telephone installation.

▲

Telephone network voltages can be hazardous. Take adequate

precautions when opening the case or installing. If in doubt, disconnect

the telephone line elsewhere before accessing the line connections.

▲

For increased protection against lightning transients, attach a local

earth to the main terminal block (see section 6.1)

2. Product Description

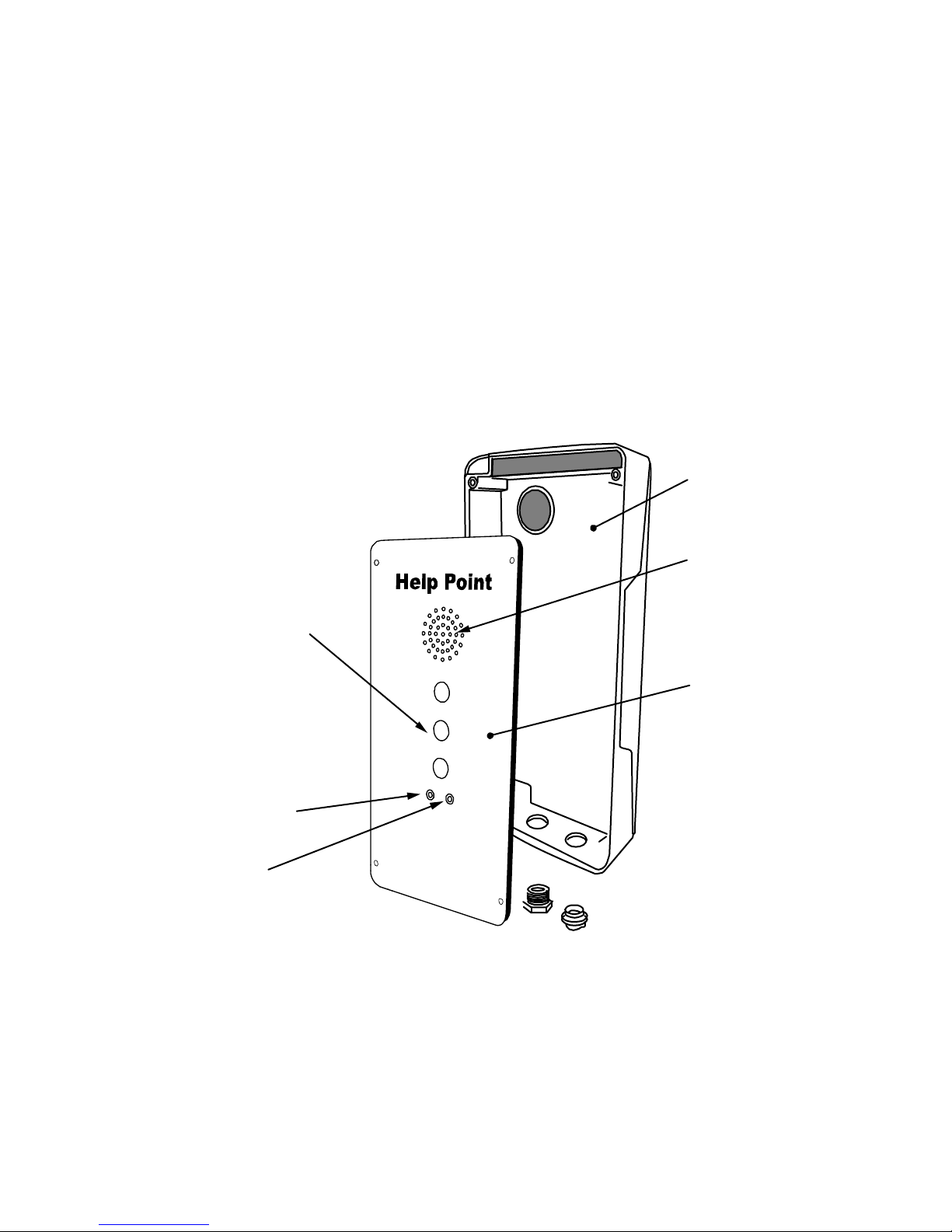

FRONTPLATE

MICROPHONE

SPEAKER

LED

REAR

ENCLOSURE

STAINLESS STEEL

CALL BUTTONS

This manual describes Help Point and VR (Vandal Resistant) ranges of

hands-free telephone products. These units offer high degrees of resistance

to weather and abuse, having only a microphone, speaker and one or more

metal buttons mounted on a flat, metal faceplate, in place of a traditional

handset and keypad. Main features include:

•4mm thick aluminium faceplate

•Waterproof speaker, protected by stainless steel mesh

4 VR & Help Point

•Sensitive microphone, protected by semi porous membrane and

aluminium grille

•Stainless steel auto-dial button(s)

•Call status LED

•Auto-dial numbers are remotely programmable

•Line powered operation (optional supplementary power supply available)

•Optional cast aluminium rear enclosure

•Optional induction loop for the hearing impaired.

•Optional isolated input for power supply

•Optional relay outputs (2)

•Optional logic inputs (4)

2.1. Changes from previous versions

This manual describes an updated range of products introduced in December

2007. For those familiar with GAI-Tronics’ products, the list of new or

changed features is as follows:

•New terminal layout (section 6).

•Increased lightning protection (section 9).

•Compliance with railway EMC standards (section 9)

•Optional additional relay outputs and logic inputs (section 6.3 & 6.4)

•Optional isolated input for power supply (section 6.2)

•Improved clear-down mechanisms (section 3.3)

•RoHS compliant

For the full list of product features, please see the specifications in section 9.

3. Operation / Testing

3.1. Making a Call

To make a call, press the required button and wait for connection. The unit

will seize the line and then automatically dial the pre-programmed number.

3.2. Answering calls

To receive a call, press any button when ringing is heard.

VR & Help Point 5

3.3. Ending the Call

There is no direct way for a user to end a call from the unit. The unit will close

down and release the line on receipt of the following signals, usually when the

remote party clears:

•Line polarity reversal

•A line break (sometimes referred to as a “k break”).

•Receipt of exchange call progress tones (see section 9 for specification)

3.4. Call timer

The phone has a programmable call timer that can limit the maximum call

duration.

When ON, the timer forces the phone back off line after the preset time. This

prevents the line remaining tied if the neither party ends the call. The timer is

factory-set to 7mins by default, but can be set to any value (up to 2¾hrs) or

disabled. See section 7.2.1.

4. SMART features

This family of products has a wide range of intelligent features including:

•Monitoring of faults and health status

•Remote programming of auto-dial numbers and configuration parameters

•Alternate day / night autodial numbers

•Call logs for calls made to and from the telephones

These features are all available over standard, 2 wire telephone lines with no

external power required at the phone.

To use these features, GAI-Tronics provide a Telephone Management

Application (TMA) available separately, see section 7.3.

5. Installation

5.1. General

IMPORTANT

All possible measures must be taken to ensure water, fluid or dust

does not contaminate the internal components of the telephone whilst

unpacking, preparing and installing the telephone in inclement weather

conditions or by negligence.

Failure to do so may invalidate your warranty.

These telephones are supplied without connection leads – cabling to the

telephone network must be supplied and installed by the installer. Because of

this, extra precautions must be observed: installers must ensure that they

have the permission of the owner of the PABX or telephone network to which

the telephone is to be connected, and that installation is carried out by

6 VR & Help Point

competent personnel. Where the telephone faceplate is mounted into an

enclosure or recess other than the standard GAI-Tronics backbox, then

additional care must be taken that wiring and proximity to conducting surfaces

complies with the requirements of the R&TTE Directive - 1999/5/EC.

Contact GAI-Tronics if installation service is required.

From a mounting and installation point of view, VR and Help Point products

are identical.

5.2. Wall/Pole Mounting

When wall or pole mounted, VR and Help Point units must be fitted inside a

dedicated rear enclosure.

Before mounting the telephone, check the cable routing and requirements. If

glands are required, fit them to the case as follows:

1. Remove the RED blanking plug leaving the other (usually BLACK) in

place.

Only fit a second gland if a separate cable is required to the phone (for

example for an additional hook contact).

2. Select the appropriate sized gland:

Use the smaller gland for cables

diameters 4 - 7mm.

Use the larger gland for cable

diameters 8 - 13mm.

3. From the outside of the case, insert

the selected gland into the threaded

VR & Help Point 7

cable entry hole and tighten, so that its sealing washer is compressed

against the enclosure surface.

4. Proceed with chosen mounting method below

5.2.1 Wall mounting

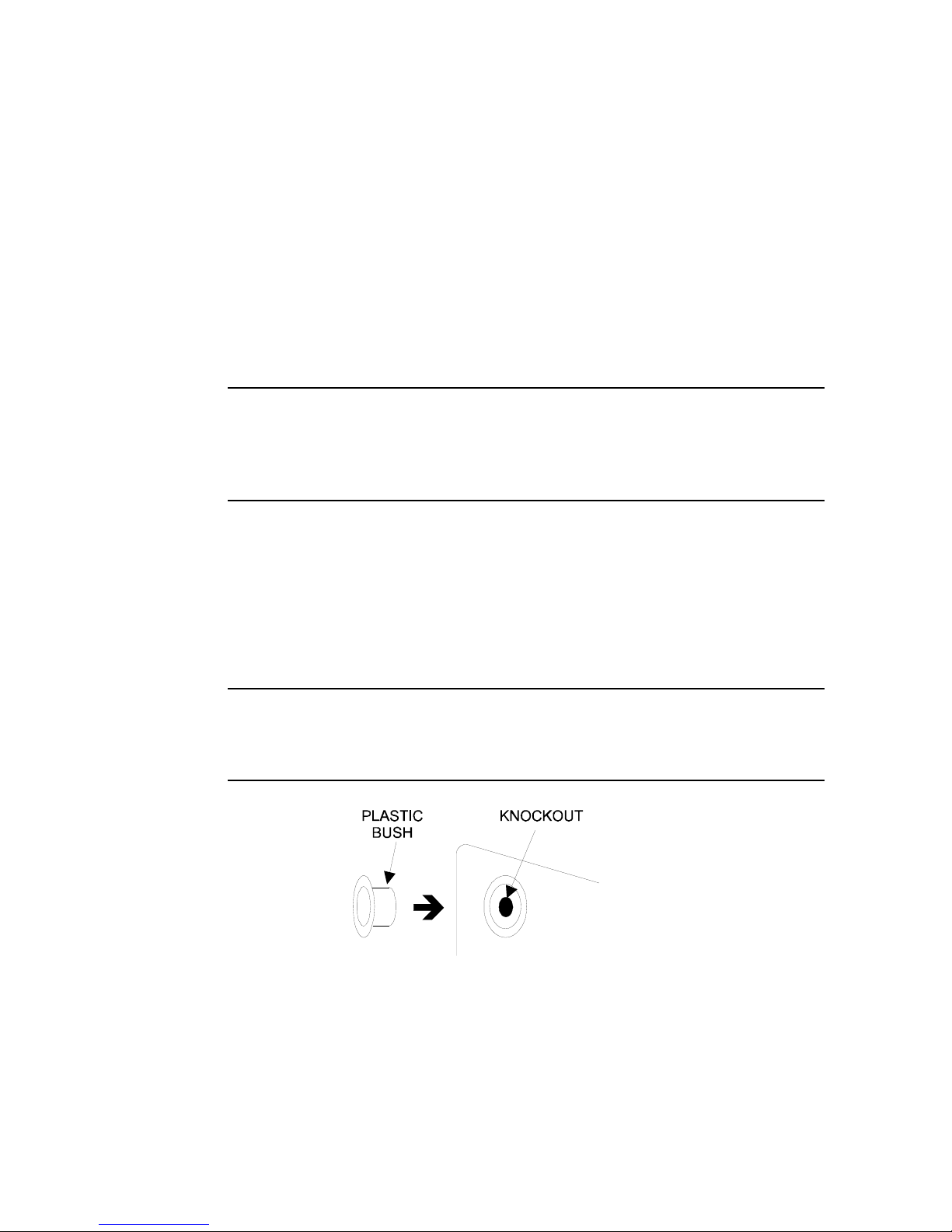

1. Using a suitable tool, punch out the 4 holes in the rear enclosure,

taking care not to damage or dislodge the plastic bushes. Only four

of the eight holes are required - the outer ones are recommended.

The inner holes are provided to be compatible with older-style

mounting posts, and should be left intact if not used. If the inner

holes are used they must be fitted with the supplied plastic bushes.

WARNING:.An unsafe condition could occur (and your warranty will be

invalidated) if :-

1. Any fixing hole made in the rear enclosure is left unused.

2. Any additional holes are drilled into the telephone enclosure.

3. Plastic bushes are not used on all fixing holes.

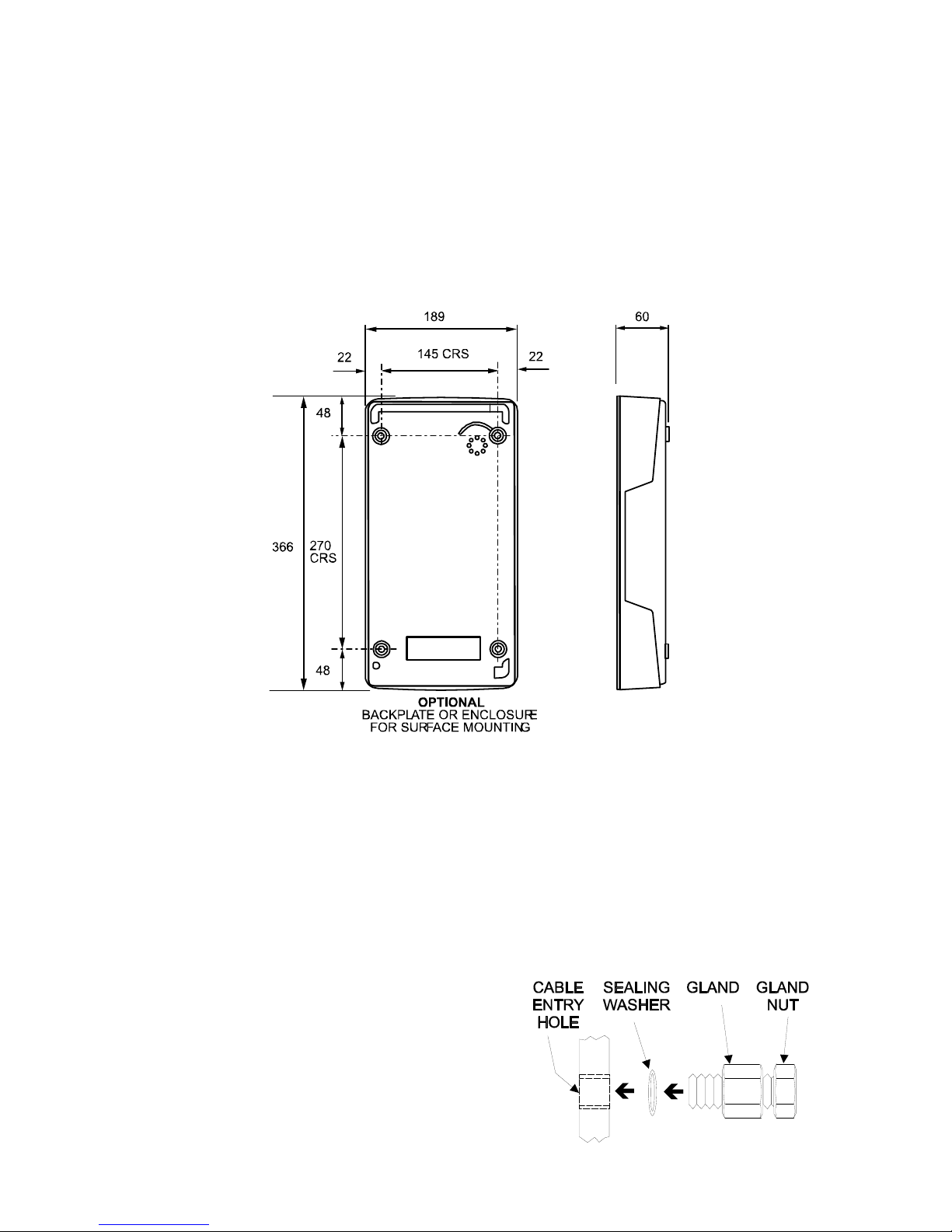

2. Mark the wall with hole centres based on the dimensions shown

(145 x 270mm). If necessary offer the rear enclosure up to the wall

to check alignment. Do not use the enclosure as a template for

drilling.

3. Drill holes in the wall on the marked positions. Select appropriate

screws, wall plugs etc., for the type of wall, bearing in mind that the

weight of the complete phone is around 5kg.

IMPORTANT:USE ONLY countersunk-headed fixing screws. Check

that screws seat properly in the plastic bushes to ensure a

watertight seal. Do not use excessive tightening force, as this may

crack the case.

4. Ensure that all four plastic flanged bushes are in place and the rear

enclosure is screwed tightly to the surface to prevent any water

ingress through the punched holes.

5. Complete the installation by making the appropriate connections

(section 6) and re-fitting the face plate.

8 VR & Help Point

5.2.2 Pole mounting

Kit No 100-02-0208-001

This accessory is for mounting GAI-Tronics telephones on to the side of

round poles of 100mm to 200mm diameter, or on to square or

rectangular section uprights of 100mm to 150mm across the mounting

surface.

NOTE:

Banding straps (large scale worm-drive clamps) are not included in this

kit and must be obtained separately. For details of where banding can

be obtained, refer to GAI-Tronics.

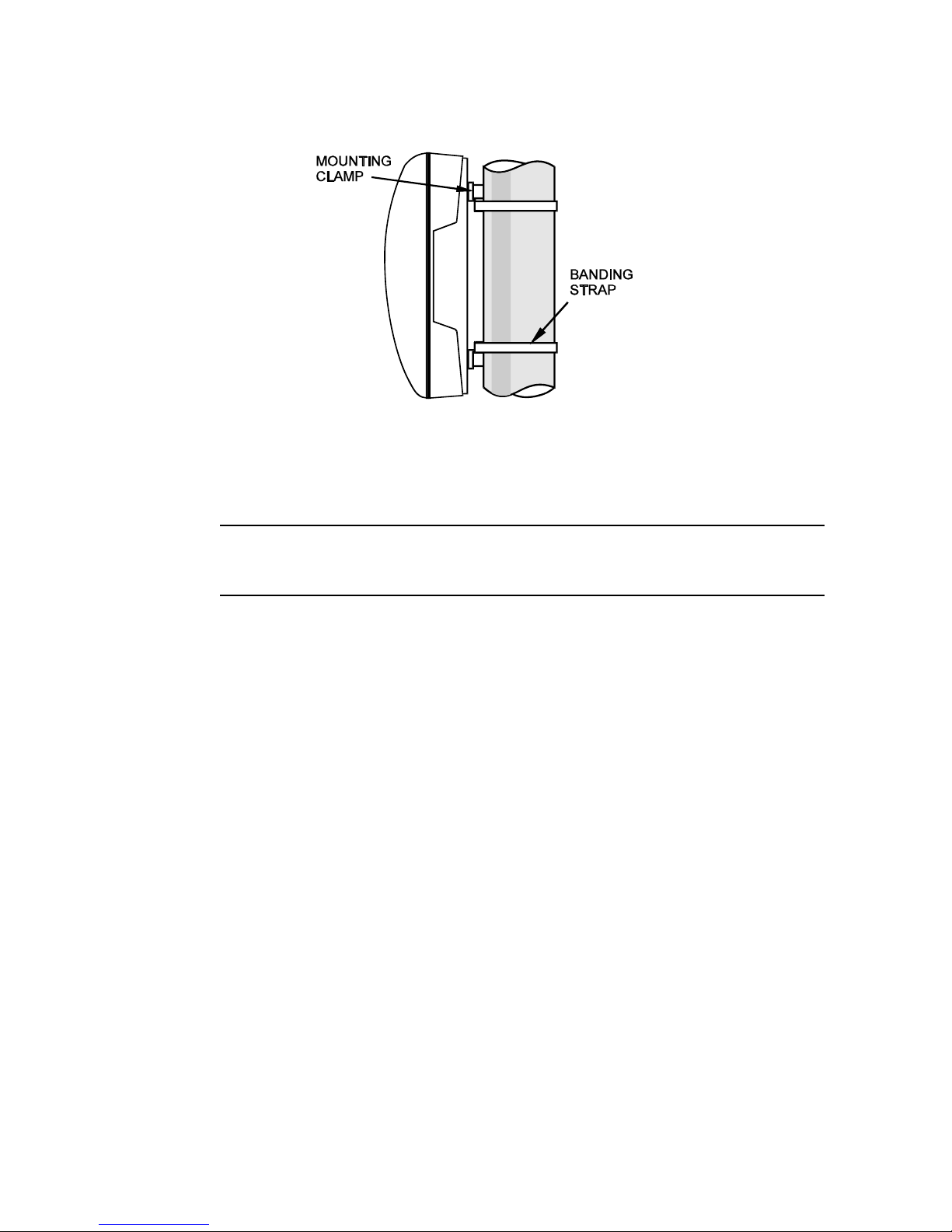

1. After punching through the flanged bushes in the rear enclosure (as

described in WALL MOUNTING), attach the pole mounting clamp

assemblies to the rear enclosure using the M6 x 25 screws

provided. Tighten to a torque of 4.5Nm max.

Note: only use the outer four holes, and ensure that the screws seat

properly in the plastic bushes to avoid water ingress.

2. Ensuring that the glands are at the bottom, pass a proprietary

banding strap round each of the pole mounting clamps and the

support pole. Tighten securely.

3. Continue the installation by making the appropriate connections

(section 6) and re-fitting the face plate.

4. Re-tighten the straps firmly and trim off any excess band material.

For security the driving head of the band may also be sawn off.

VR & Help Point 9

5.3. Flush mounting

To flush-mount the telephone to a wall:

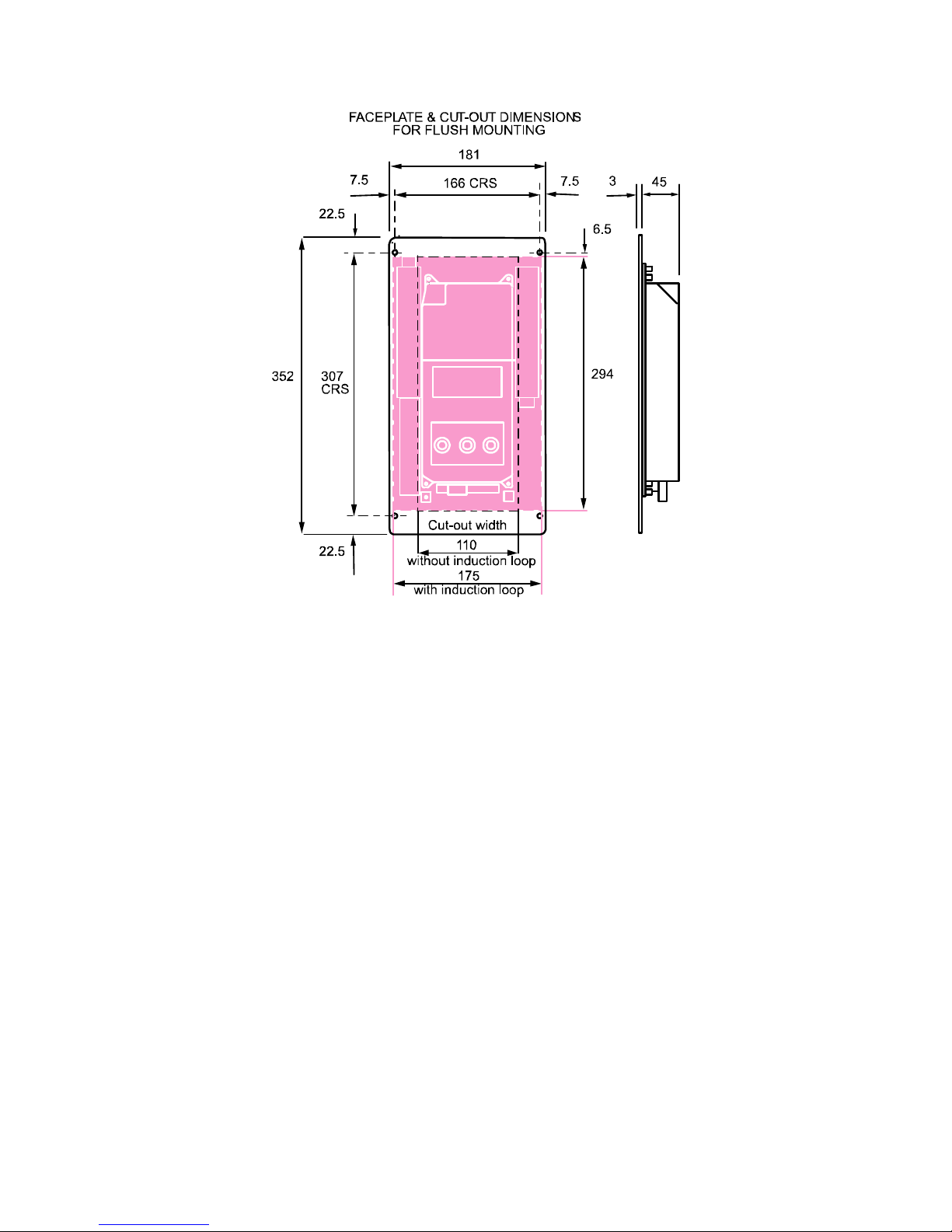

1. Prepare a recess (at least 50mm deep) in the wall according to the

dimensions shown.

2. Mark the wall with hole centres based on the dimensions shown

(155 x 326mm). If necessary offer the faceplate up to the wall to

check alignment. Do not use the telephone as a template for

drilling.

3. Drill holes in the wall at the marked positions. Select appropriate

screws, wall plugs etc., for the type of wall, bearing in mind that the

weight of the complete phone is around 1.5kg.

4. Route the cable to within the recess, and make connections to the

telephone as shown in section 6.

Secure the telephone to the wall taking care not to trap any wires. Note

that the gasket on the rear of the faceplate is intended to make a

weather seal when compressed against a smooth surface. Do not rely

on this gasket to keep water out if mounting directly to rough surfaces

such as brickwork – in these cases use additional sealant around the

edges to ensure a weatherproof seal.

10 VR & Help Point

6. Connections

6.1. Standard Connections

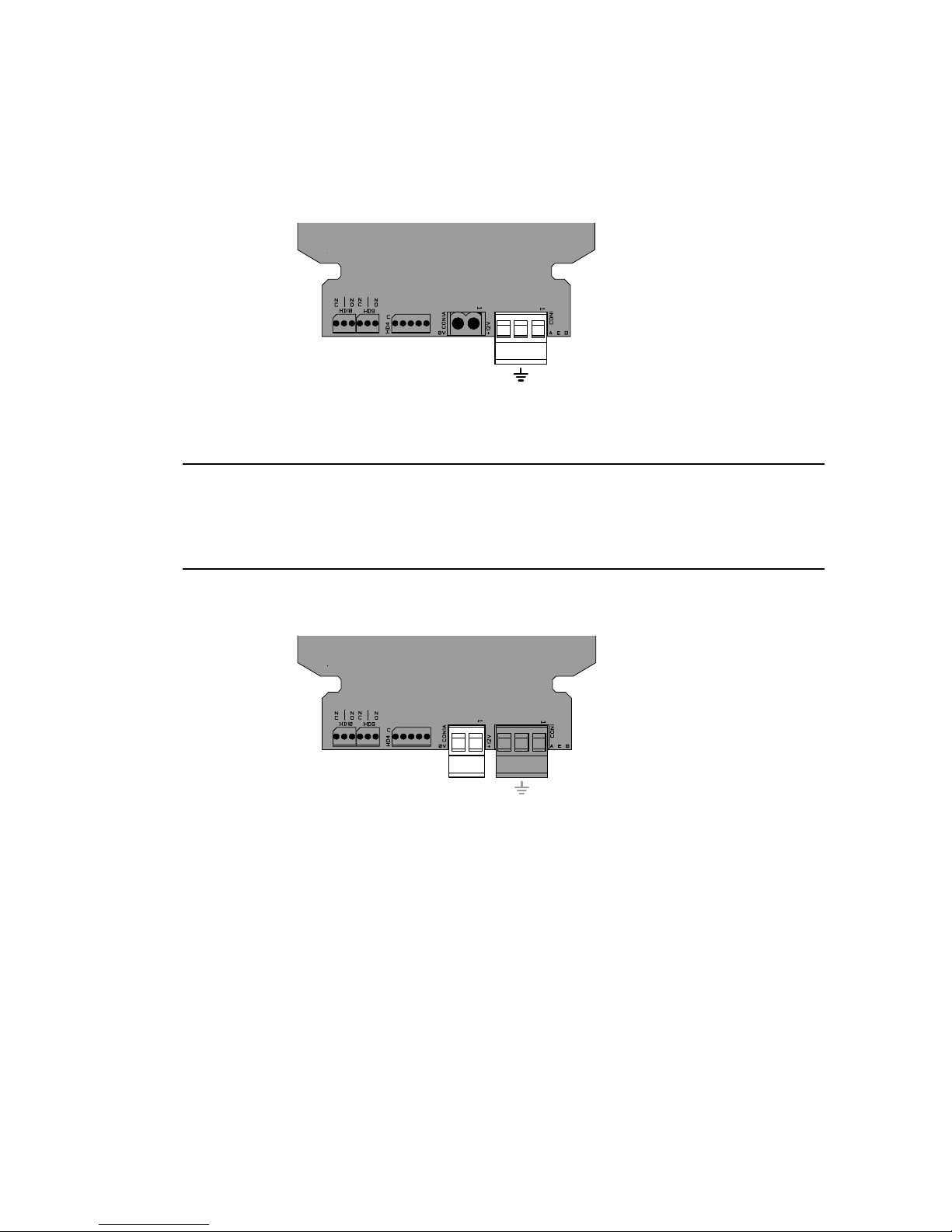

Connect the telephone line A and B to the main terminal block CON1 as

shown.

The centre earth terminal is intended as an optional connection to a local

earth for the purpose of enhanced protection from lightning transients, and is

not required in terms of user safety from the telephone network.

Note: Conductor sizes to be 0.5mm-2.5mm

(flexible cable); 0.5-4.0mm

(solid cable) The terminal block can be disconnected from the circuit board

for easier installation

Cabling must not infringe European Low Voltage Directive (LVD) 73/23/EEC.

6.2. Supplementary Power supply

GAI-Tronics hands-free telephones can be equipped with a supplementary

power supply, required to power the induction loop (if fitted), external relays (if

fitted) and generally to provide increased audio output level.

The standard telephone does not require this supplementary supply for

normal operation, but note that ringing on exchanges with low ring voltages

(<40Vac) may be unreliable without a supplementary supply.

The supplementary power input is provided on CON1A as shown and must be

an earth-free isolated supply of 12V dc (250mA min) to suit the power

requirements of the required peripherals, suitable for connection to a TNV-3

circuit.

Note: A common supply cannot be used for multiple telephones unless the

unit is equipped with an isolated power supply input. This is available as an

option if specifically ordered. Contact GAI-Tronics for details.

AB- +

Altri manuali per 1090

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali GAI-Tronics Telefono

GAI-Tronics

GAI-Tronics 7265-101 Manuale utente

GAI-Tronics

GAI-Tronics 210-001 Manuale utente

GAI-Tronics

GAI-Tronics 227-005 Manuale utente

GAI-Tronics

GAI-Tronics ILC-1117 Manuale utente

GAI-Tronics

GAI-Tronics IPE2500A Manuale operativo

GAI-Tronics

GAI-Tronics 256S Manuale utente

GAI-Tronics

GAI-Tronics Auteldac 4 VoIP Manuale utente

GAI-Tronics

GAI-Tronics Auteldac 4 Manuale utente

GAI-Tronics

GAI-Tronics ITR1000A Manuale operativo

GAI-Tronics

GAI-Tronics Commander GSM Istruzioni operative

GAI-Tronics

GAI-Tronics 716-102 Manuale utente

GAI-Tronics

GAI-Tronics 1090 Manuale utente

GAI-Tronics

GAI-Tronics Auteldac 5 Manuale utente

GAI-Tronics

GAI-Tronics 262-001 Manuale utente

GAI-Tronics

GAI-Tronics Titan CB Manuale utente

GAI-Tronics

GAI-Tronics 491-204 Manuale utente

GAI-Tronics

GAI-Tronics 354-700 Manuale utente

GAI-Tronics

GAI-Tronics Titan Illuminated Crossing Telephone Manuale utente

GAI-Tronics

GAI-Tronics 226-002 Manuale utente

GAI-Tronics

GAI-Tronics 263 Manuale utente

GAI-Tronics

GAI-Tronics 700 Series Manuale utente

GAI-Tronics

GAI-Tronics 226S Manuale utente

GAI-Tronics

GAI-Tronics ILD1000A Manuale operativo

GAI-Tronics

GAI-Tronics KETS 1141 Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

Geemarc

Geemarc PHOTOPHONE 155 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente
