Galvin Engineering GalvinSafe 190.81.12.32 Foglio di istruzioni

Version 3.1, 13th Aug. 2021, Page 1of 6

GalvinSafe®Free Standing Drench Shower, Pull

Rod, Axion®MSR ABS Shower (HAWS)

PRODUCT CODE:

Galvin Engineering: 190.81.12.32

HAWS: 8100-A

PRE - INSTALLATION

LOCATION OF UNIT: The Model 190.81.12.32 (8100-A) Emergency Shower should be

installed in close proximity to potential accident areas. It should be clearly identified, free

from obstructions and easy to access.

SUPPLY LINE: The minimum recommended line size is 1-1/4” BSPT with 210 –600 kPa

flowing pressure. Where sediment or mineral content is a problem, an inlet filter is

recommended.

PLUMBING CONNECTIONS: Inlet supply is male 1-1/4” BSPT.

Version 3.1, 13th Aug. 2021, Page 2of 6

PARTS BREAKDOWN

ITEM

ITEM CODE

DESCRIPTION

190.92.00.10

SHOWER HEAD

190.92.04.30

VALVE ASSEMBLY

EMERGENCY SHOWER SAFETY

SIGN*

190.92.30.20

PULL ROD

FLOOR FLANGE*

STRIPE TAPE*

190.91.80.33

TEST TAG

* spare parts will require special order or may not be

available (contact Galvin engineering for more details).

Version 3.1, 13th Aug. 2021, Page 3of 6

INSTALLATION PROCEDURE

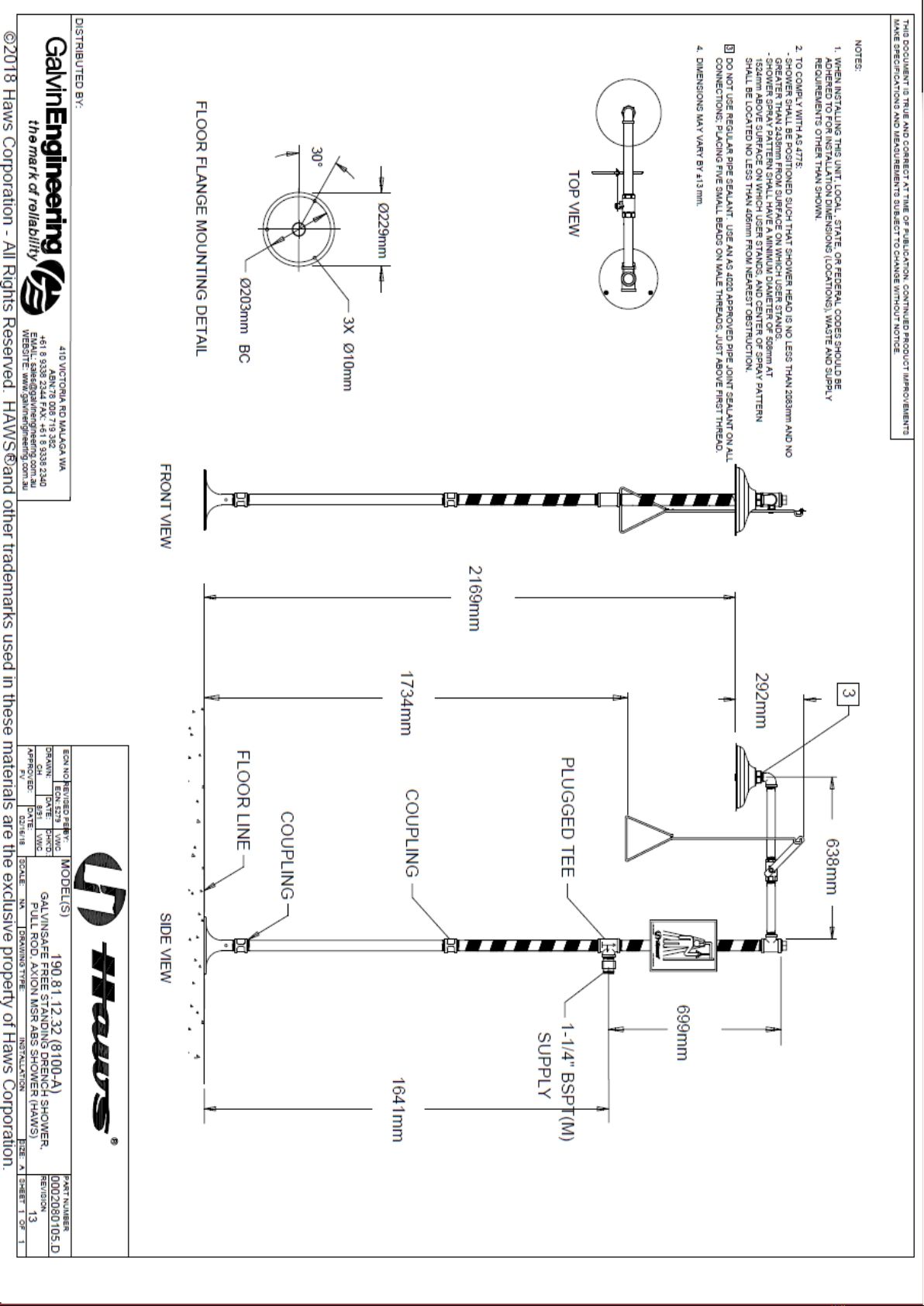

Refer to Installation Drawing for clarification. Check parts list to ensure all required

parts are included. Use an AS 4020 approved pipe joint sealant on all connections.

STEP 1: Prepare the emergency shower foundation by using the floor flange as a

template. Locate the three holes for the 3/8-16 UNC x 6” anchor bolts. (Not

supplied). They should extend 1” above the floor level.

STEP 2: Once the concrete foundation is ready (dry), assemble the floor flange to the

anchor bolts; then securely fasten with 3/8-16 UNC Hex nuts and 3/8”

washers (Not supplied). Seal and tighten floor flange and (1-1/4”) tee making

certain the waste tee is facing the proper location and the foot control holes

are facing side to side.

STEP 3: Assemble nipple (1-1/4” x 33”) to the tee and tighten with a pipe wrench.

STEP 4: Assemble in the following order:

Attach intermediate coupling to nipple (1-1/4” x 33”)

Attach plugged nipple (1-1/4” x 24”) and tee (1-1/4”) onto the coupling.

Attach nipple (1-1/4” x 24”) onto the tee.

Attach tee (1-1/4” x 1-1/4” x 1”) onto nipple.

Attach nipple (1” x 9”) valve assembly onto tee (1-1/4” x 1-1/4” x 1”)

Attach street elbow (1”) and nipple (1” x 12-1/2”)

Attach nipple onto valve.

STEP 5: Attach the showerhead onto street elbow (1”).

STEP 6: Assemble the sign onto the unit. Use the strap, screws, washers and nuts

provided to mount the sign onto the upright. The sign should be

positioned for maximum visibility.

STEP 7: Insert the plug into the optional supply line tee that is not used. Before

connecting the supply water line to the emergency shower; CHECK IF THE

ASSEMBLY IS RIGIDLY TIGHTENED AND FLUSH THE LINE

THOROUGHLY.

Version 3.1, 13th Aug. 2021, Page 4of 6

Version 3, 30th June

Version 3.1, 13th Aug. 2021, Page 5of 6

For more information about GalvinSafe®(Haws) products, see our website.

TROUBLESHOOTING

PROBLEM

REPAIR CHECKLIST

1. No Flow.

1. Check the main shut-off valve.

2. Insufficient water flow at shower

2. a. Verify minimum 210 kPa flowing supply

line pressure.

b. Probable clogging of flow control

inside shower head. Unscrew shower head

off elbow and clean rubber flow control.

3. Water does not drain properly.

3. Check your drain system for debris. Check

the main waste line of your building to see

if it does handle the capacity required for

the entire drainage system

4. Water leak between joints or fittings.

4. Tighten loose connections. If leak persists,

the application of hot water will sometimes

reseat improperly applied joint compound.

After 30 minutes wait and retest. A

persistent leak will necessitate reassembly

and additional sealant.

Version 1, 12th April 2021, Page 6of 6

Version 3.1, 13th Aug. 2021, Page 6of 6

WARRANTY

The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty

Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied.

Galvin Engineering Pty. Ltd. hereby specifically disclaims all other warranties, express or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose.

Galvin Engineering Pty Ltd products are covered under our manufacturer’s warranty available for download

from www.galvinengineering.com.au Galvin Engineering Pty Ltd expressly warrants that the product is free

from operational defects in workmanship and materials for the warranty period as shown on the schedule in

the manufacturer’s warranty. During the warranty period, Galvin Engineering will replace or repair any

defective products manufactured by Galvin Engineering without charge, so long as the terms of the

Manufacturer’s warranty are complied with.

The remedy described in the first paragraph of this warranty shall constitute the sole and exclusive remedy for

breach of warranty, and Galvin Engineering Pty Ltd shall not be responsible for any incidental, special or

consequential damages, including without limitation, lost profits or the cost of repairing or replacing other

property which is damaged if this product does not work properly, other costs resulting from labour charges,

delays, vandalism, negligence, fouling caused by foreign material, damage from adverse water conditions,

chemical, electrical or any other circumstances over which Galvin Engineering has no control. This warranty

shall be invalidated by any abuse, misuse, misapplication, improper installation or improper maintenance or

alteration of the product.
