INST-724
INSTALLATION INSTRUCTIONS
Product
Revision
Form
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Printing Spec:
PS-001
GETAC S410 DOCKING STATION
7160-0790
This instruction sheet is for the Getac S410 docking station only. For instructions on
features, set-up, and operation of the S410 computer, please refer to the manual
provided by Getac with the computer.
This docking station is designed to be used with a variety of Gamber-Johnson mounting
systems. Installation instructions for other Gamber-Johnson products are provided with
each individual product.
This instruction sheet is for the following products:
Item No. 7160-0790-00
No RF (External Power Supply & its bracket sold separately)
Item No. 7160-0790-03
Tri RF (External Power Supply & its bracket sold separately)
Getac recommends using the following Power Adapters to power the docking station. They
can be ordered from Gamber-Johnson seperately.
7300-0471
- Auto (12-32 Vdc input) - Available with the docking station as
KIT
7170-0536 (Non-RF) or 7170-0537 (Tri-RF)
7300-0413
- Isolated (12-32 Vdc input)
7300-0412
- Isolated (20-60 Vdc input)
7300-0416
- Isolated (72-110 Vdc input)
1 / 7
IMPORTANT SAFETY INFORMATION FOR INSTALLERS
Safety is dependent on the proper installation and servicing of this docking station. It is important to
read and follow all instructions before installing this product.
To properly install a Gamber-Johnson docking station you must have a good understanding of
automotive electrical procedures and systems, along with proficiency in the installation and service of
aftermarket vehicle equipment.
There are no adjustments required at any time of the electrical components within the docking station.
Opening the docking station will void the product warranty.
During Installation:
DO NOT
connect this docking station to the vehicle battery until:
All other electrical connections are made
1.
Mounting of all components is complete
2.
Verification that no shorts exist in the entire system
3.
DO NOT
install equipment or route wiring or cords in the deployment path of any air bag.
When drilling into the vehicle, DO make sure that both sides of the surface are clear of anything
that could be damaged.
CAUTION:
If wiring is shorted to the frame, high current conductors can cause hazardous sparks
resulting in electrical fires or flying molten metal.
After installation:
Test the docking station to ensure that it is working properly.
File these instructions in a safe place and refer to them when performing maintenance or re-
installing.
WARNING
: Failure to follow all safety precautions and instructions may result in property
damage, serious injury, or death.
PRE-INSTALLATION RECOMMENDATIONS
Conduct a "Bench Test"
Gamber-Johnson strongly advises a "bench test" be conducted to verify all electronic and
software issues are resolved prior to installation:
Make sure the computer is operational by itself.
1.
Insert computer into the docking station and verify that the computer is
2.
operating in the dock.
Interconnect entire assembly and verify start-up of all components, including
3.
other equipment (printers, modems, scanners, etc.)
Gamber-Johnson recommends positioning of all mounts and equipment in the vehicle
prior to the actual install to verify that mounting locations are safe and practical.
2 / 7
4X .25-20 PEM Nuts
75mm VESA mounting pattern
RF - GPS
RF - WLAN
RF - WWAN
HDMI
VGA
USB 3.0
USB 2.0
Ethernet
Power
Serial
Microphone
Speaker
Front Latch
w/ Hooks
Docking Connector
Rear Hooks
Tri RF Connector

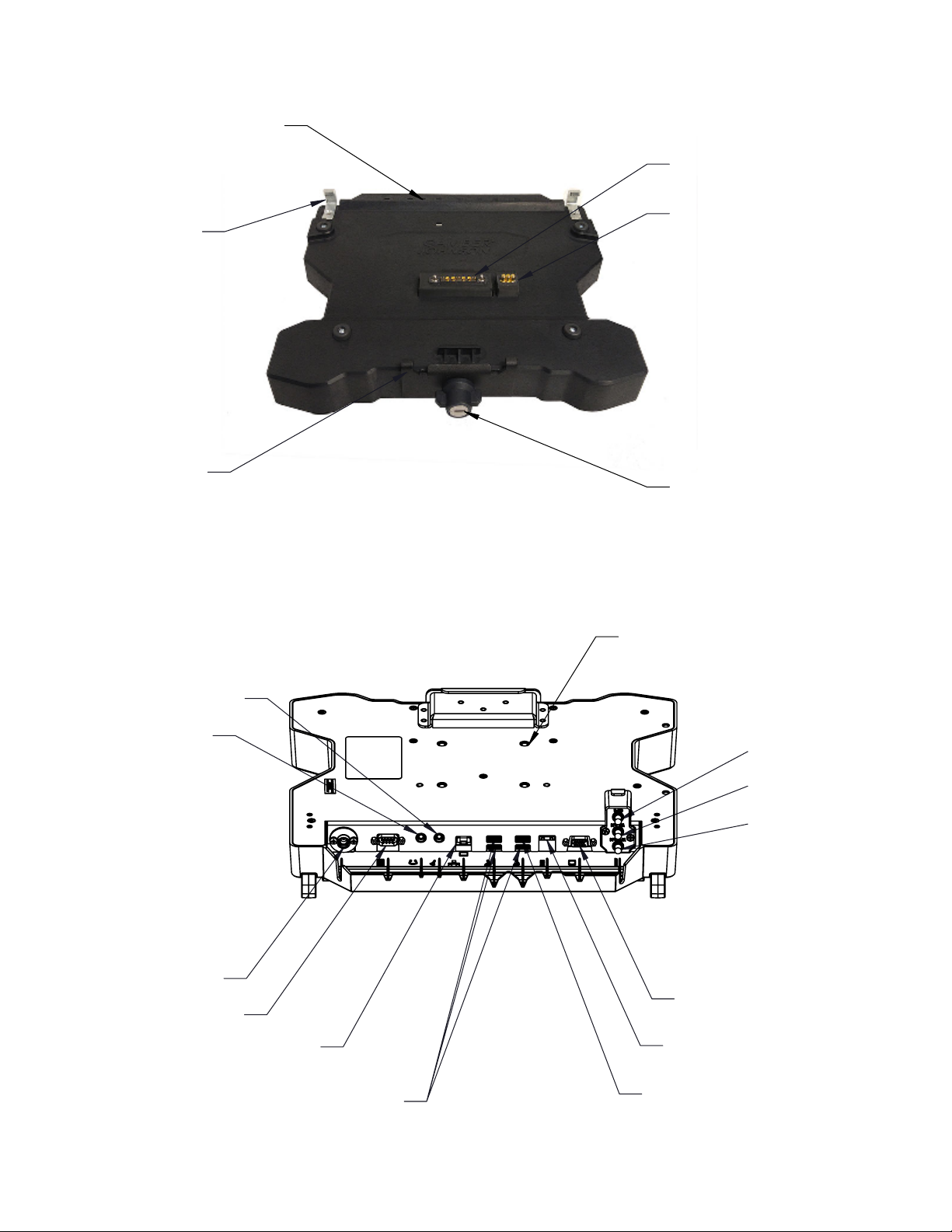

S410 DOCKING STATION FEATURE IDENTIFICATION
Cable Tie Openings
Wing Turn Lock
3 / 7

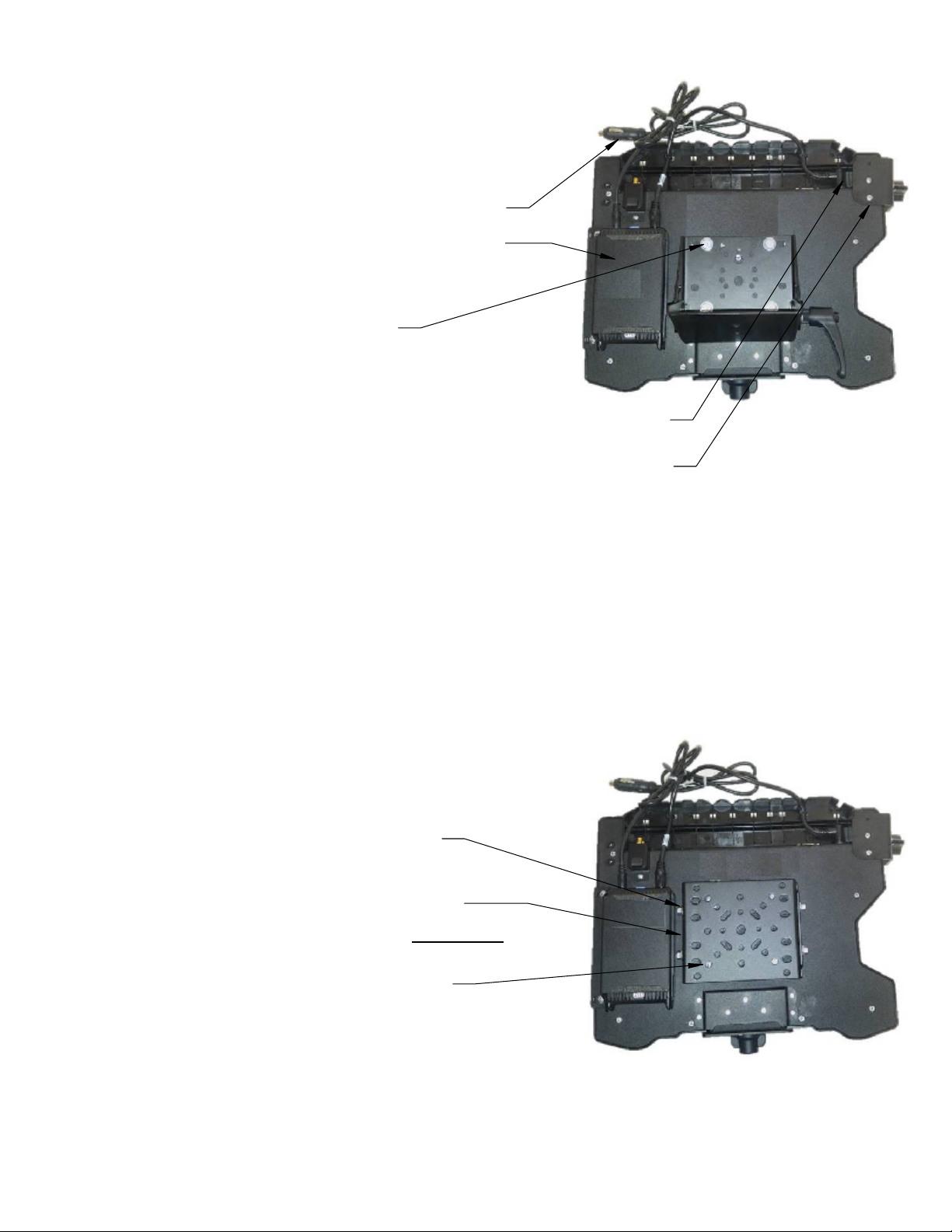

Attach Power Supply with mounting bracket
(sold separately)using #10-32 screws provided
with the bracket
Insert power plug into power port, secure cable with cable ties
Connect power wire to 12Vdc Vehicle power
Motion Attachment attached with
(4) .25-20 hex head bolts & washers
included in hardware bag
4 / 7
CONNECTING VEHICLE POWER TO S410 DOCKING STATION
WITH EXTERNAL POWER SUPPLY
UNIVERSAL ADAPTER
Replace washer head bolts with hex
head bolts supplied in hardware bag
Attach Universal Adapter to dock with
(4) .25-20 hex head bolts & washers
(included in the Dock Hardware bag)
Attach Universal Adapter to dock with
side flange toward power supply
as shown
(if using, attach this before attaching the
power supply)
(Only use .500" hex bolts that come with the
dock. A longer bolt will not work and might
damage electronics)
Attach Screen Support (7110-1206) here or on opposite side
DOCKING THE COMPUTER
TO DOCK THE COMPUTER
1. Insert the back of the S410 computer
such that the rear hooks enter the rear
pockets of the laptop
2. Lower the front of the computer down
on the dock and docking connector
3.
Lightly press down on the front of
the computer to ensure if is fully
seated
while closing the latch.
4. With front hooks latched into the
computer, turn the lock to "LOCK"
position
TO UNDOCK THE COMPUTER
1. Turn the lock to "UNLOCK" position.
Lightly press down on the front of the
computer
and pull the latch outward.
2. Lift the front of the computer off the
dock and docking connector.
3. Pull the back of the computer out from
the rear hooks.
5 / 7
6 / 7
Screen Support Mounting Locations
Use supplied #6-32 screws to attach included screen support to the left or right
mounting location, do not over-torque screws.
Reccomended torque is 8-11 in/lbs.
NOTE: Attaching Screen Support to the left side
will restrict access to the laptop's stylus
Screen Support Installation
Screen supports are recommended on all laptop dock/cradles in
high-vibration environments.
(1) screen support is included with each Getac S410 assembly, another may be
purchased from www.GamberJohnson.com. Part Number: 7110-1206
Gamber-Johnson LLC, 3001 Borham Ave., Stevens
Point, WI, 54481, USA, 715-344-3482
Regulatory Certification Information
Regulatory Model #: 7160-0790
GJ Model #'s & Description:
7160-0790-00 Dock-Getac-S410-No RF
7160-0790-03 Dock-Getac-S410-Tri RF
Certifications:
EN 55032: 2012/AC: 2013 Class A
•
EN 50498:2010
•
EN 50581:2012
•
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions. (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
7 / 7
