Game Winner PL600GW Manuale utente
Instruction Manual

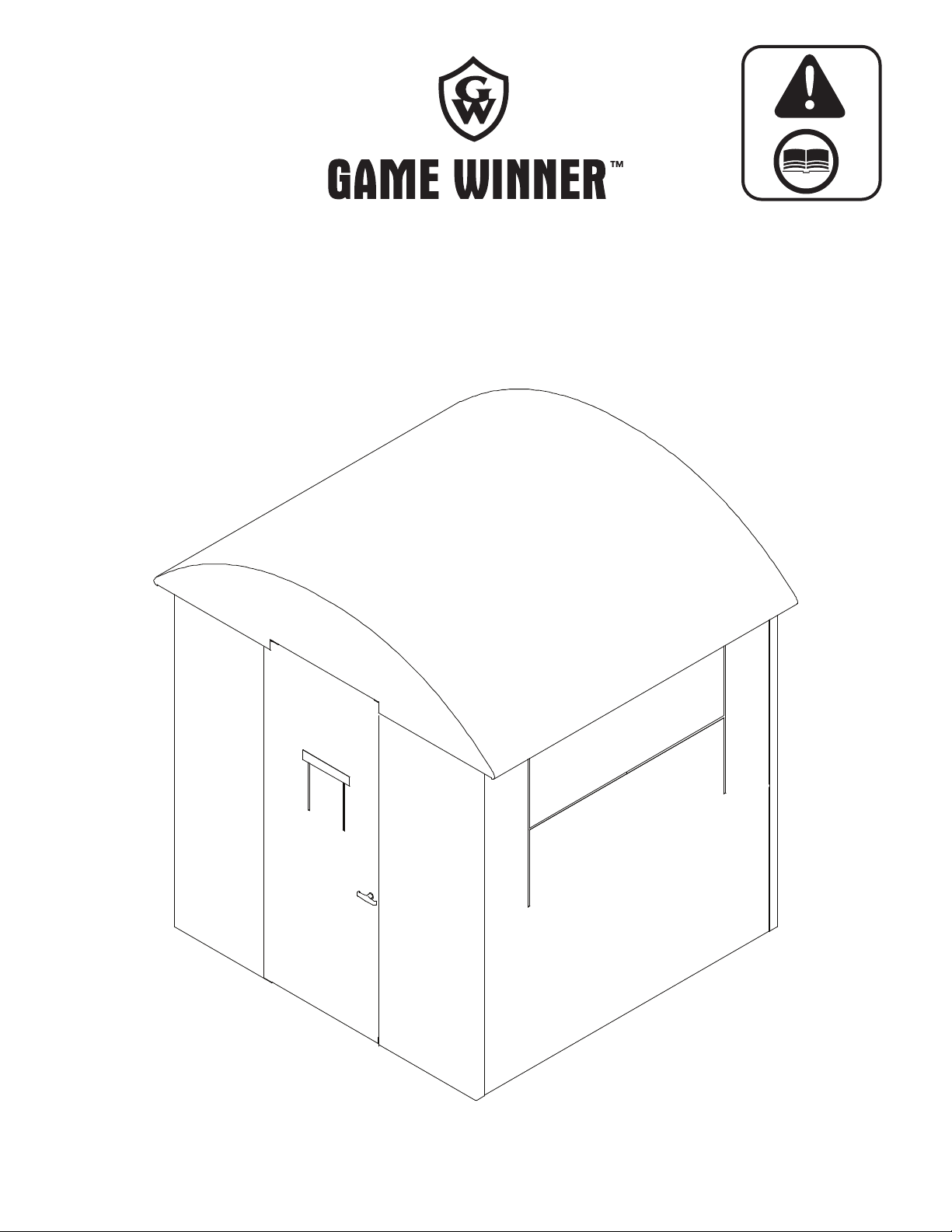

6’ X 6’ HYBRID BLIND
MODEL #: PL600GW
STYLE #: 165842
For parts call our Customer Service Center at 800-345-6007
Business Hours: 8:00 am to 4:30 pm CST | info@huntriversedge.com
© 2021 RETI All Rights Reserved | 39066 REV1: 06/08/2021
GAS/OIL
RATIO
50:1
Instruction Manual : 6’ X 6’ HYBRID BLIND
2
TABLE OF CONTENTS
Warranty Information ............................................................................................................................................................................................................2
Warnings.....................................................................................................................................................................................................................................3
Parts List..................................................................................................................................................................................................................................4-9
Hardware/Small Parts List...............................................................................................................................................................................................9-10
Tools Required........................................................................................................................................................................................................................10
Product Diagrams........................................................................................................................................................................................................... 11-14
Assembly Instructions .................................................................................................................................................................................................. 15-25
Notes................................................................................................................................................................................................................................... 26-27
Note: Before beginning assembly of product, make sure all parts are present. Compare parts list with package and
hardware contents. If any part is missing or damaged do not attempt to assemble the unit. Contact customer service
for replacement parts.
WARRANTY
Ardisam, Inc., warrants this product under a one-year limited warranty to be free from defects in materials or workmanship or both for a period not
exceeding twelve consecutive months from the date of original purchase by the rst retail consumer or commercial end user. “Consumer use”means
personal recreational use by a retail consumer. “Commercial use”or “commercial application” means all other uses, including use for commercial, income
producing or rental purposes. Once a product has experienced commercial use, it shall thereafter be considered as a commercial use product for purposes
of this warranty. This warranty does not cover cracked windows, tent tears, or bent poles due to use in exteme weather conditions (i.e. hurricane force
winds) or uses other than those listed in the owner’s manual. Damage that occurs to a unit due to improper anchoring is not covered under manufacturer
warranty. This warranty applies to the original owner that provides a proof of purchase of the unit. The warranty is not transferable. The warranty period
begins on the date of purchase by the rst retail consumer or commercial end user, and continues for the twelve month consecutive period thereafter. Any
unit used in a commercial application is covered for a period of 90 days after purchase. For the warranty to be valid, the product must be registered online
at huntriversedge.com, within 30 days of purchase. Ardisam, Inc. shall not be obligated to ship any repair or replacement product to any location outside of
the United States of America or Canada.
This warranty applies only to products which have not been subjected to negligent use, misuse, uses other than those indicated in the product’s owner’s manual,
alteration, accident, use of unauthorized parts, failure to perform periodic maintenance as specied in product’s owner’s manual, or normal wear and tear. There
is no other expressed warranty. Implied warranties, including those of merchantability and tness for a particular purpose, are limited to one year from purchase,
or to the extent permitted by law. All other implied warranties are excluded. Liability for incidental or consequential damages are excluded to the extent exclusion
is permitted by law. Ardisam, Inc. does not assume, and does not authorize any other person to assume for us, any liability in connection with the sale of our
products. To obtain warranty service, you must have prior approval by calling our Customer Service Department at 1-800-345-6007. Ardisam, Inc. will at no charge,
repair or replace, at their discretion, any defective part which satises all conditions stated above. Ardisam, Inc. retains the right to change models, specications
and price without notice. Ardisam, Inc. shall not be obligated to ship any repair or replacement product to any location outside of the United States of America or
Canada.
If you choose to elevate this product to use above ground (on a tower type structure), only use Ardisam, Inc. original designed structures to do so. *Using manmade
structures or structures not manufactured by Ardisam, Inc. will void your warranty and waive any and all claims for liability against the manufacturer Ardisam,
Inc. If you choose to elevate this product on a Ardisam, Inc. brand tower structure, the warranty listed in the tower structure manual will apply to this product in
addition to the warranty statement in this owner’s manual.
PAGE
Instruction Manual : 6’ X 6’ HYBRID BLIND
3
WARNING
Read, understand and follow all assembly, inspection
and use instructions provided before each use. Failure to
follow warnings and instructions could result in serious
injury or death.
This product is for hunting purposes only! It is not to be
used as a camping tent or for any other function.
Never allow children to play in this product without adult
supervision. To do so could cause serious injury or death.
Never allow the material to cover your face. This material
can cause suocation and death if it is placed over face.
READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY
STOP
WARNING
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM
THIS TENT FABRIC. This tent meets the ammability
requirements of CPAI-84. The fabric may burn if left in
continuous contact with any ame source.The application
of any foreign substance to the tent fabric may render the
ame-resistant properties ineective.
WARNING
Only use approved RETI parts. Failure to do so may result
in serious injury or death!
Instruction Manual : 6’ X 6’ HYBRID BLIND
4
PARTS LIST (NOT TO SCALE)
Item Part No. Description Image Qty
1 # 22864 BASE HUB 4
2 # 22868 MIDDLE HUB 4
3 # 22873 ROOF HUB 2
4 # 22876 ROOF MOUNT
MALE 2
5 # 22878 ROOF MOUNT
FEMALE 2
6 22930 HORIZONTAL
SUPPORT FEMALE 4
7 # 22932 HORIZONTAL
SUPPORT MALE 4
8 # 22935 ROOF SUPPORT
MALE 3
Instruction Manual : 6’ X 6’ HYBRID BLIND
5
Item Part No. Description Image Qty
9 # 30063 BASE HUB DOOR
SIDE 4
10 # 30070
VERTICAL
SUPOPRT LONG
CORNER
1
11 # 30094 DOOR TOP 1
12 # 30097 DOOR BOTTOM
RIGHT 1
13 # 30098 DOOR BOTTOM
LEFT 1
14 # 30102 TENSION TUBE
582 MM 1
15 # 30131
VERTICAL SUP-
PORT SHORT
DOOR STOP
1
Instruction Manual : 6’ X 6’ HYBRID BLIND
6
Item Part No. Description Image Qty
16 # 30136
VERTICAL
SUPPORT LONG
DOOR STOP
1
17 # 30189
VERTICAL
SUPPORT SHORT
CORNER
1
18 # 39074 VERTICAL
SUPPORT LOWER 4
19 # 39076 VERTICAL
SUPPORT UPPER 4
20 # 39078 ANGLED BRACE
UPPER STRAIGHT 4
21 # 39079 ANGLED BRACE
UPPER BENT 4
22 # 39080 ANGLED BRACE
LOWER STRAIGHT 8
23 # 39081
HORIZONTAL
SUPPORT MIDDLE
FEMALE
3
24 # 39082
HORIZONTAL
SUPPORT MIDDLE
MALE
3
25 # 39084 ROOF
SUPPORT FEMALE 3
26 # 39085 ROOF MALE 4
27 # 39086 ROOF
FEMALE 4
28 # 39087
WINDOW
VERTICAL
SIDE WALL
4
Instruction Manual : 6’ X 6’ HYBRID BLIND
7
Item Part No. Description Image Qty
29 # 39088
WINDOW
VERTICAL BACK
WALL
2
30 # 39089
HORIZONTAL
SUPPORT MIDDLE
FRONT
2
31 # 39090
HORIZONTAL
SUPPORT LOWER
FEMALE FRONT
1
32 # 39092
HORIZONTAL
SUPPORT LOWER
MALE FRONT
1
33 # 39094
HORIZONTAL
SUPPORT UPPER
FEMALE FRONT
1
34 # 39096
HORIZONTAL
SUPPORT UPPER
MALE FRONT
1
35 # 39098 ROOF HUB FRONT
RIGHT 1
36 # 39100 ROOF HUB FRONT
LEFT 1
37 # 39352 ANGLED BRACE
DOOR 1
38 # 29801 CAM STRAP LONG 2
Instruction Manual : 6’ X 6’ HYBRID BLIND
8
Item Part No. Description Image Qty
39 # 39174 PLATE LATCH
DOOR HANDLE 1
40 # 39175 DOOR HANDLE
PLASTIC 1
41 # 39038 SEWN ROOF
PANEL BROWN 1
42 # 39039
SEWN SIDE PANEL
ZIPPER WINDOWS
BROWN
2
43 # 39040
SEWN BACK PANEL
ZIPPER WINDOWS
BROWN
1
Instruction Manual : 6’ X 6’ HYBRID BLIND
9
Item Part No. Description Image Qty
44 # 39041
SEWN FRONT
PANEL LEFT
BROWN
1
45 # 39042
SEWN FRONT
PANEL RIGHT
BROWN
1
46 # 39043
SEWN WINDOW
PANEL VERTICAL
BROWN
6
47 # 39044 SEWN DOOR
PANEL BROWN 1
HARDWARE LIST
Item Part No. Description Image Qty
48 # 8909B BOLT
1/4 X 11/4 IN 8
49 # 48240B BOLT
1/4 X 11/2 IN 49
Instruction Manual : 6’ X 6’ HYBRID BLIND
10
Item Part No. Description Image Qty
50 # 48153B BOLT
1/4 X 2 IN 4
51 # 48271B BOLT
1/4 X 21/4 IN 1
52 # 63282 BOLT
1/4 X 1 IN 1
53 # 15909 SPACER PLASTIC
6 MM 2
54 # 15908 SPACER PLASTIC
2.5 MM 1
55 # 30259 WASHER BLACK
PLASTIC 4 MM 3
56 # 48752B NUT 1/4 IN 63
57 # 60G5NYB NUT 5/16 IN 1
TOOLS REQUIRED
- # 32563 7/16”WRENCHES 2
- - 1/2”WRENCH 1
