Garden Treasures 159083 Manuale utente
Serial Number Purchase Date
EB13478
ATTACH YOUR RECEIPT HERE
1
Lowes.com/gardentreasures
Español p. 15
Français p. 8
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m, EST, Monday - Friday.
MODEL #159083, 159084, 159085

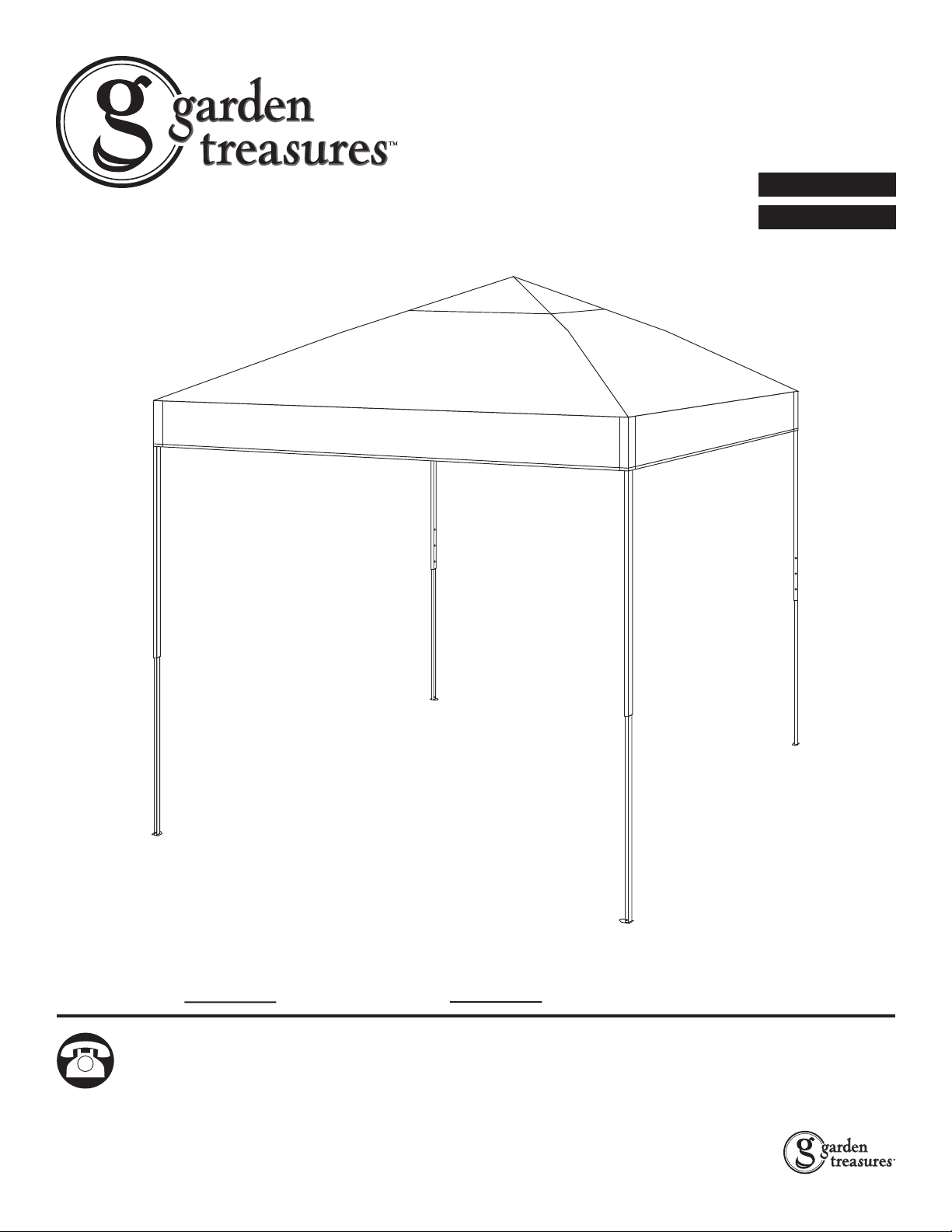

8 FT x 10 FT POP-UP TENT
ITEM #0493706, 0493707, 0493708
2

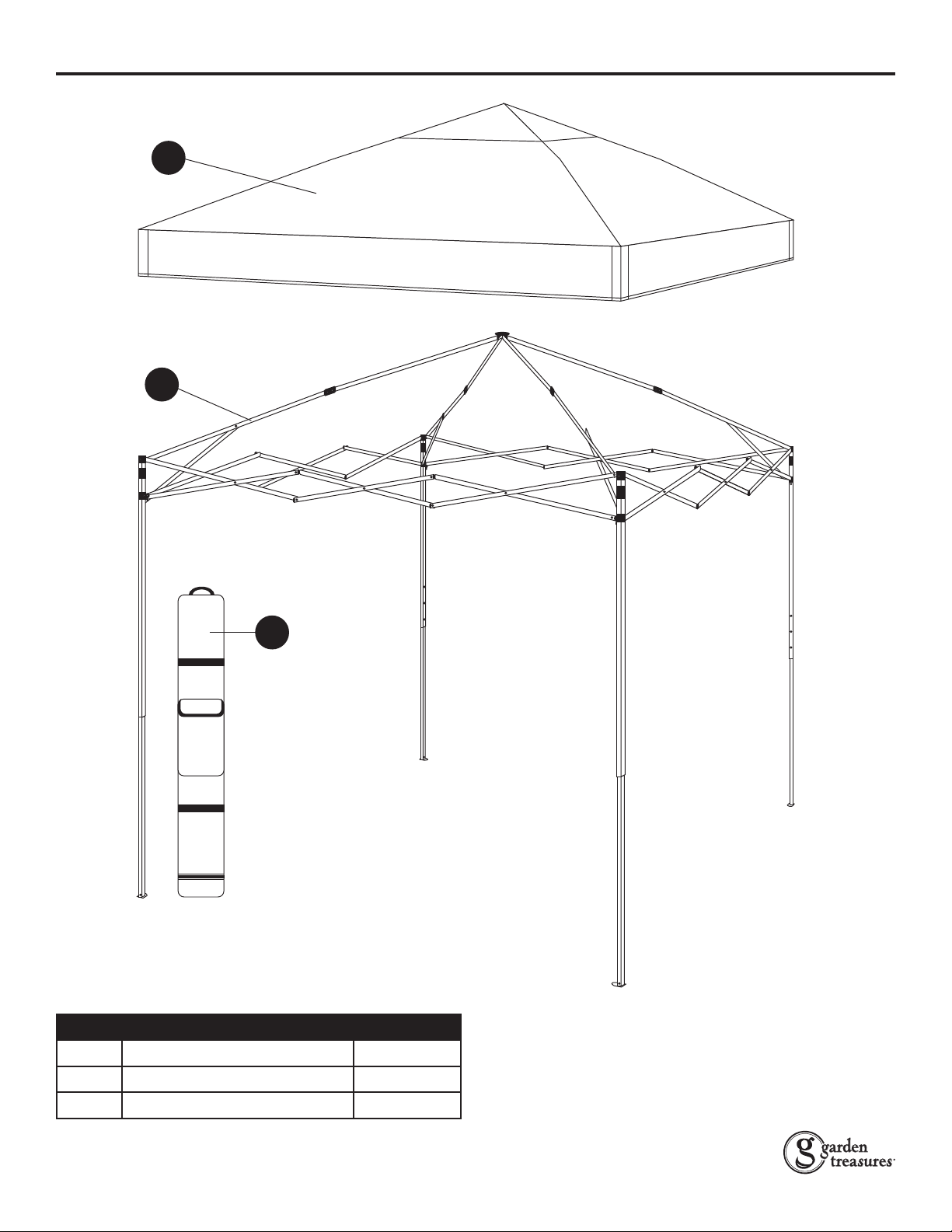

Package contents
Lowes.com/gardentreasures
PART DESCRIPTION QUANTITY
A Frame 1
B Canopy 1
C Bag 1
A
C
B
3
SAFETY INFORMATION
Lowes.com/gardentreasures
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 7 minutes
No Tools Required for Assembly
Please read and understand this entire manual before attempting to assemble or install the product.
WARNING
• KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC. This tent meets the
ammability requirements of CPAI-84. The fabric will burn if left in continuous contact with any ame
source. The application of any foreign substance to the tent fabric may render the ame resistant
properties ineffective.
• To safely put up or take down the canopy you must use two or more able adults.
CAUTION
• NEvER set up or continue to use in any rain, wind or storm conditions, especially lightning storms.
Damage can occur.
• Avoid bending the frame or pinching your ngers or hands while opening and closing the frame.
• Avoid setting up the item on steep inclines.
• DO NOT use the item for permanent shelter. It is designed for temporary use only.
• Keep the item away from heat and ames at all times. DO NOT barbeque or build res under
the item.
• NEvER leave the item unattended.
4
Lowes.com/gardentreasures
2B
A

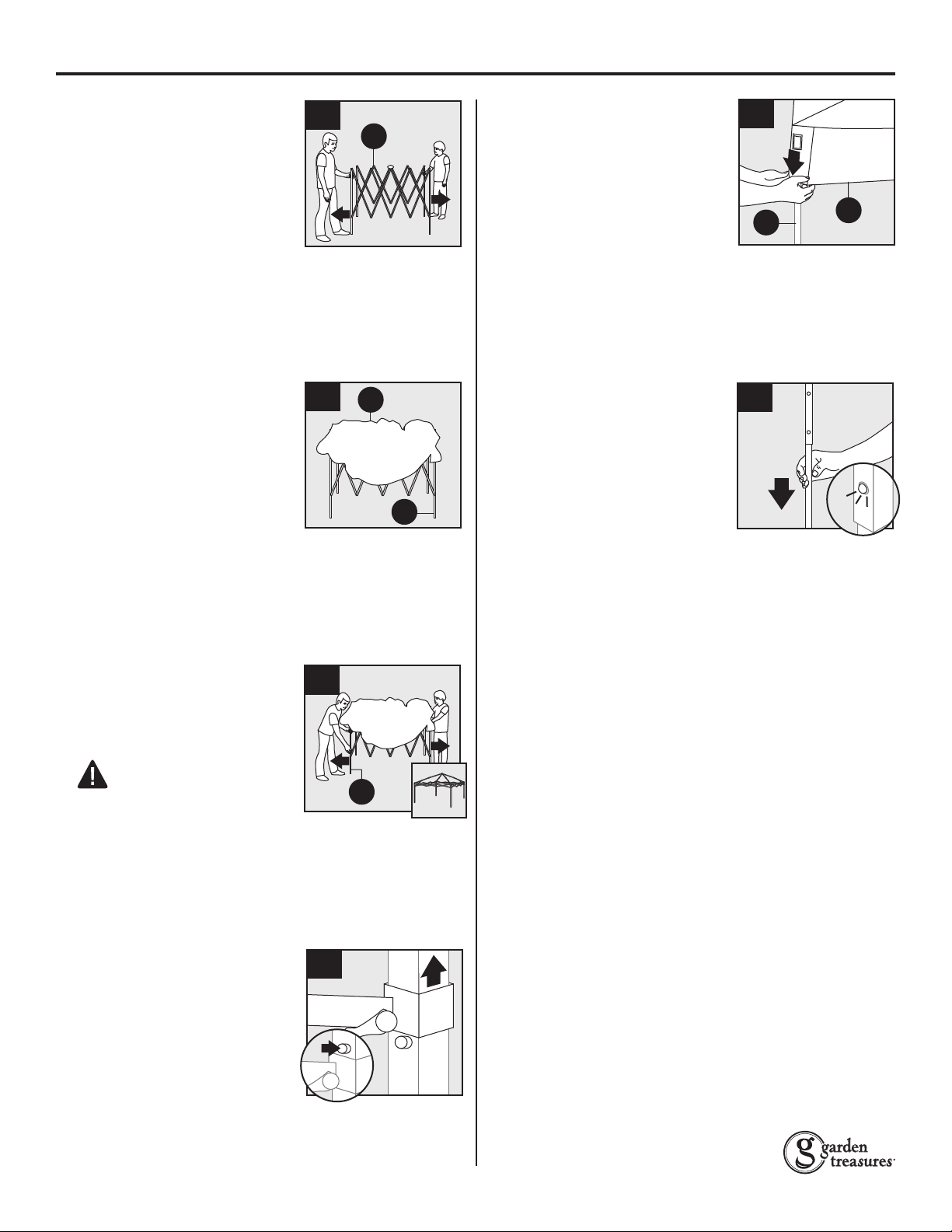

Set Up
1. Place the frame (A) in the
center of the setup area. With
a partner on the opposite side
of the frame (A), hold onto the
two outer legs and lift slightly
for clearance. Take a few
steps back until you extend
the frame (A) to a full arm’s
length – approximately 4 feet.
6. The adjustable legs offer
multiple height levels. To
change the height of the legs,
press the button on each leg
and raise or lower the inner leg
to the next slot until the desired
height is reached.
NOTE: Make sure all legs are
evenly extended.
2. Place the canopy (B) over the
top of the frame (A). Use the
hook-and-loop straps to secure
each corner of the canopy (B)
to the upper position of
each leg.
3. Hold the bottom section of the
frame (A) where it forms a “V”.
Lift slightly and slowly walk
backward until the frame (A)
is fully extended.
WARNING
• Avoid pinching your ngers.
4. At each corner of frame (A),
hold the leg with one hand
and lift the slider with the other
hand to raise the frame. The
frame (A) will lock in place
once the slider passes over
the button.
5. Adjust side hook-and-loop
straps on canopy (B) to the
frame (A).
5
A
B
1
A
1
2
6
3
A
2
4
2
1
ASSEMBLY INSTRUCTIONS
5
Lowes.com/gardentreasures

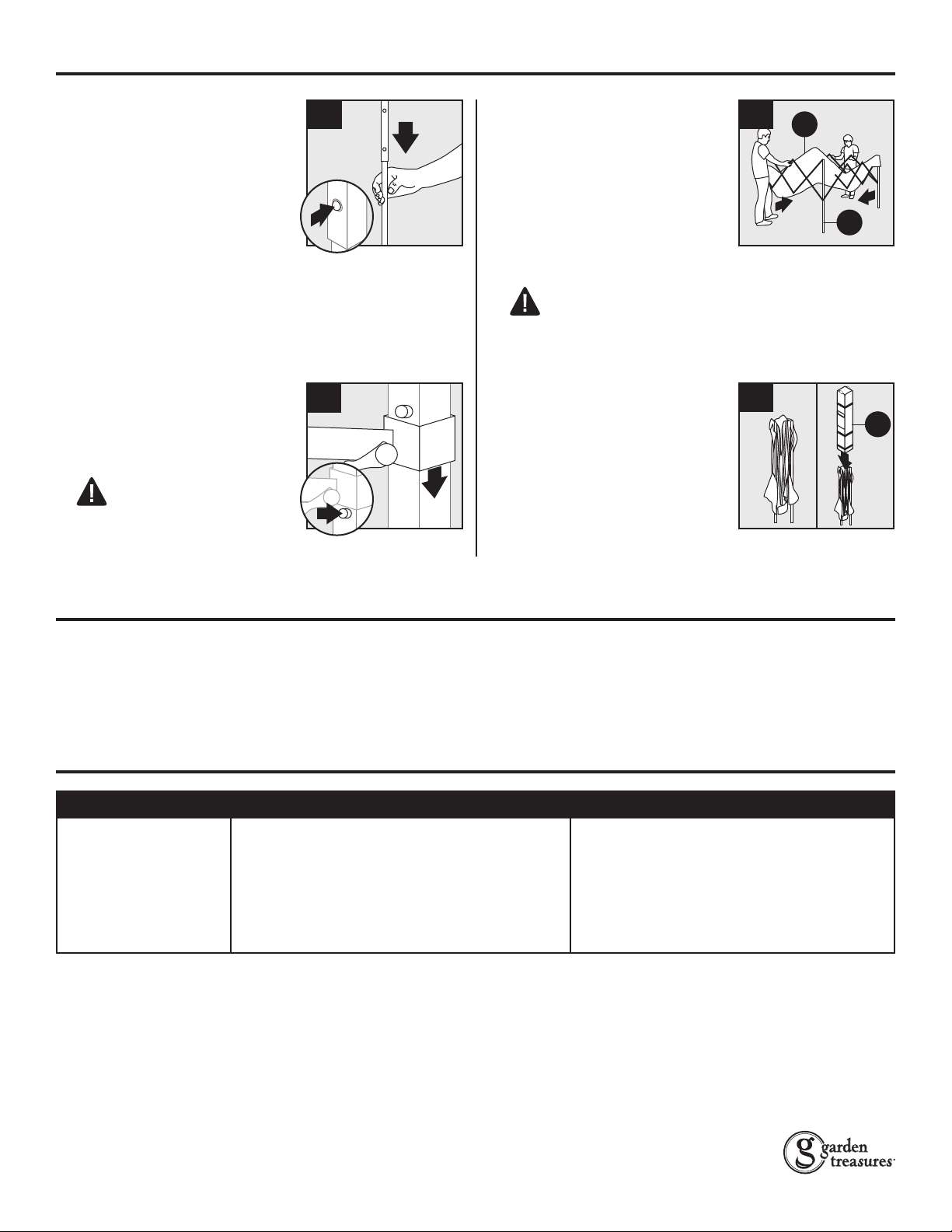

Take Down
1. Release each leg and lower
frame (A) completely. Keep
canopy (B) top on.
2. At each corner of frame (A),
push in the locking button and
pull the slider down slowly until
the button pops out above the
slider.
WARNING
• Avoid pinching your ngers.
3. Hold the top section of the
frame (A) at the X’s on two
opposite sides. Lift slightly and
slowly walk toward partner as
the frame (A) folds. Keep
walking until the frame (A) is
halfway closed Then, switch to
holding the legs of frame (A)
and continue to walk toward
your partner to close the frame (A).
WARNING
• Avoid pinching your ngers.
4. The completely folded canopy
should stand up on its own.
Slide the bag (C) over the
folded canopy, then turn the
item over and zipper shut.
2
1
2
3B
A
2
1
1
C
4
ASSEMBLY INSTRUCTIONS
CARE AND MAINTENANCE
TROUBLESHOOTING
• Hand wash the item using only mild soap and water. NEvER use harsh detergents, abrasives or
bleach. DO NOT machine wash.
• NEvER fold or store the item when it is wet or damp. Let it dry completely to avoid mildew.
PROBLEM POSSIBLE CAUSE CORRECTIvE ACTION
Canopy will not
easily close.
1. One person attempting to close the
frame.
2. Push pin has not been depressed to
allow frame to close.
1. Use two people.
2. Depress push pin.
6
WARRANTY
Lowes.com/gardentreasures
Subject to the following limitations, in addition to any imposed by virtue of applicable law, the
manufacturer warrants this canopy to be free of defects in material or workmanship for a period of
30 days from the date of original purchase. This warranty is limited to the repair and/or replacement of
defective parts only.
1. This limited warranty will apply only if the canopy and/or its parts are determined by the
manufacturer, in its sole discretion, to be defective.
2. This limited warranty applies only to multipurpose canopies purchased from authorized dealers.
This limited warranty is extended only to the original purchaser and is not transferable.
3. Be sure to retain your original purchase sales receipt for any warranty claim. All warranty claims
must be accompanied by the original purchase receipt from the authorized dealer.
4. This limited warranty does not cover damage or loss from: wind, rain, re, snow, ice, or other forces
of nature; accident, normal wear, improper assembly, disassembly, or adjustment during setup or
take down; or any abuse, neglect or misuse of the canopy and/or its parts.
5. To the extent allowed by applicable law, any implied warranty of merchantability or tness
applicable to the canopy is limited to the duration of this limited warranty. The manufacturer does
not warrant against and in no event shall the manufacturer or its authorized agents be liable for any
personal loss, injury, or direct or indirect incidental or consequential damage resulting from the use
of this product. Please note that some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you. This limited
warranty gives you specic legal rights and you may have other rights, which vary from state to
state.
6. Do not return this product to the place of purchase. For warranty service, or for missing parts,
replacement parts or any other problems, call our customer service department.
7
Lowes.com/gardentreasures
Printed in China
Garden Treasures® is a registered trademark
of LF, LLC. All Rights Reserved.

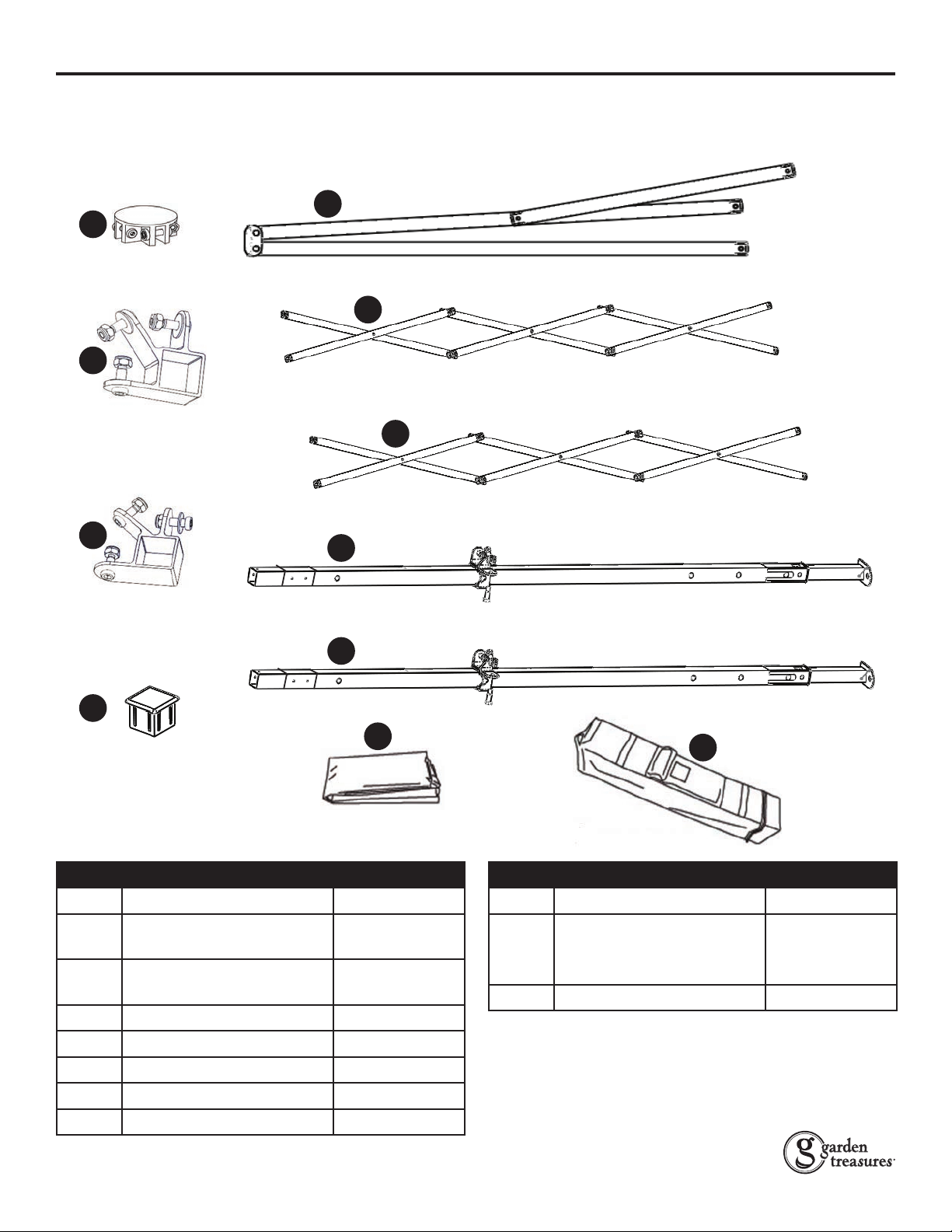

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 8 p.m, EST,
Monday - Friday.
PART DESCRIPTION PART #
1Center Junction 600926
2Top Bracket Assembly,
Left
600927
3Top Bracket Assembly,
Right
600928
4PP Cap 141434
5Ceiling Assembly 600929
6Eave Assembly, Short Side 600930
7Eave Assembly, Long Side 600867
8Leg Assembly, Left 600937
PART DESCRIPTION PART #
9Leg Assembly, Right 600938
10 Top, Black
Top, Green
Top, Blue
600931
600932
600933
11 Wheeled Bag 600934
1
5
6
7
8
9
10
11
2
3
4
Numéro de série Date d’achat
JOIGNEZ VOTRE REÇU ICI
8
Lowes.com/gardentreasures
Des questions, des problèmes, des pièces manquantes? Avant de retourner l’article
au détaillant, appelez notre service à la clientèle au 1 800 634-0067, entre 8 h et 20 h
(HNE), du lundi au vendredi.
MODÈLE #159083, 159084, 159085
ABRI-SOLEIL PLIANT
DE 2,44 M X 3,05 M
ARTICLE #0493706, 0493707, 0493708
9

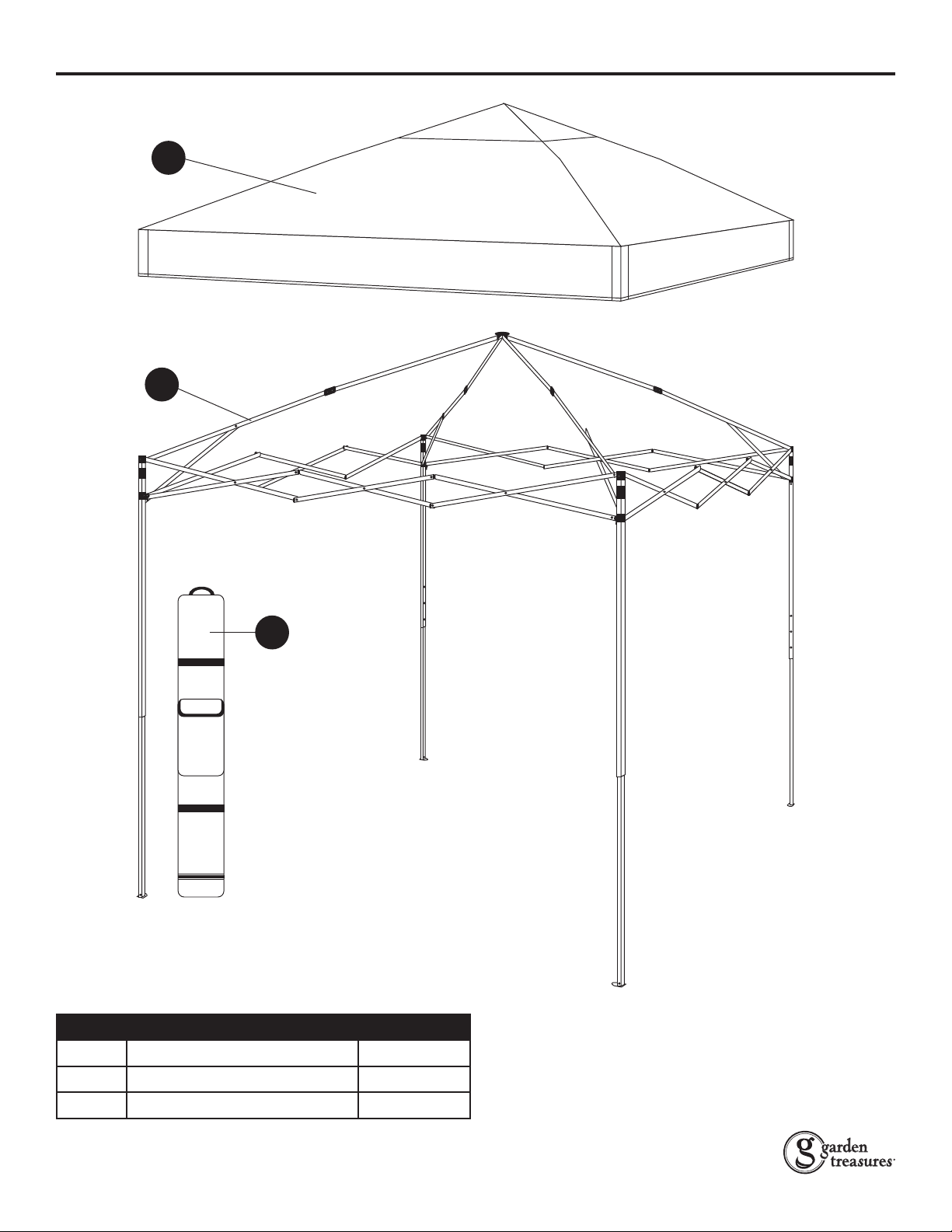

Contenu de l’emballage
Lowes.com/gardentreasures
PIÈCE DESCRIPTION QUANTITÉ
A Armature 1
B Auvent 1
C Sac de transport 1
A
C
B
10
Consignes de séCurité
Lowes.com/gardentreasures
Assurez-vous de lire et de comprendre l’intégralité du présent manuel avant de tenter d’assembler,
d’utiliser ou d’installer le produit.
AvERTISSEMENT
• GARDEZ LES FLAMMES ET AUTRES SOURCES DE CHALEUR À DISTANCE DE LA TOILE.
Cette toile satisfait aux normes d’inammabilité CPAI-84. Cette toile brûlera si elle est laissée en
contact continu avec une amme. L’application de toute substance étrangère sur cette toile pourrait
diminuer sa résistance aux ammes.
MISE EN GARDE
• NE montez jamais et n’utilisez jamais l’article par temps pluvieux ou venteux, particulièrement lors
d’un orage. Votre auvent risquerait d’être endommagé.
• Nous vous recommandons de prendre votre temps lorsque vous ouvrez ou que vous fermez
l’armature an d’éviter de la tordre ou de vous pincer les doigts ou les mains.
• Évitez de monter votre auvent sur une pente abrupte.
• N’UTILISEz PAS votre auvent comme abri permanent. Il est conçu pour un usage temporaire seulement.
• Gardez votre auvent à distance des sources de chaleur et des ammes en tout temps.
N’UTILISEz PAS de barbecue et n’allumez pas de feu sous votre auvent.
• NE laissez jamais votre auvent sans surveillance.
PRÉPARATION
Avant de commencer l’assemblage du produit, assurez-vous d’avoir toutes les pièces. Comparez le
contenu de l’emballage avec la liste des pièces. S’il y a des pièces manquantes ou endommagées,
ne tentez pas d’assembler le produit.
Temps d’assemblage approximatif : 7 minutes
