THIS BOX INCLUDES:

1 x HEDGE TRIMMER, SPANNER,

PLUG SPANNER, MIXING BOTTLE,

BLADE GUARD, 1 X BOTTLE OF OIL

26cc PETROL HEDGE TRIMMER

GLPHT26 User Guide Artwork.qxd 28/1/08 9:22 am Page 2

03 Introduction

04 General Information & Safety Instructions

10 Assembly and Parts List

12 Getting Started

13 Features

14 Instructions

25 FAQ

26 Other Useful Information

29 Warranty Card

Packaging

The unit is supplied in packaging to prevent its being

damaged in transit. This packaging is raw material and

can therefore be reused or can be returned to the raw

material system.

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053

Contents

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 3

Introduction 1

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053 03

Congratulations on choosing to buy a Gardenline®

product. By doing so you now have the assurance

and peace of mind that comes with purchasing a

product made by one of Europe’s leading

manufacturers.

All products brought to you by Gardenline®

are manufactured to the highest standards

of performance and safety, and, as part of our

philosophy of customer service and satisfaction,

are backed by our comprehensive 3 Year Warranty.

Great care has gone into the manufacture of this

product and it should therefore provide you with

years of good service when used properly. In the

event of product failure within its intended use

over the course of the first 3 years after date of

purchase, we will remedy the problem as fast

as possible once it has been brought to our

attention. In the unlikely event of such an

occurrence, or if you require any information

about the product, please contact us via our

helpline support services, details of which are

to be found both in this manual and on the

product itself.

Please fill in and return the Warranty Card to the

address provided.

We hope you will enjoy using your purchase for

many years to come.

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 4

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053

General Information

& Safety Instructions 2

Caution! When using tools it is imperative to

take the following basic safety precautions

in order to reduce the risk of injury and fire.

Read and take note of these instructions

before you use this tool.

General safety regulations

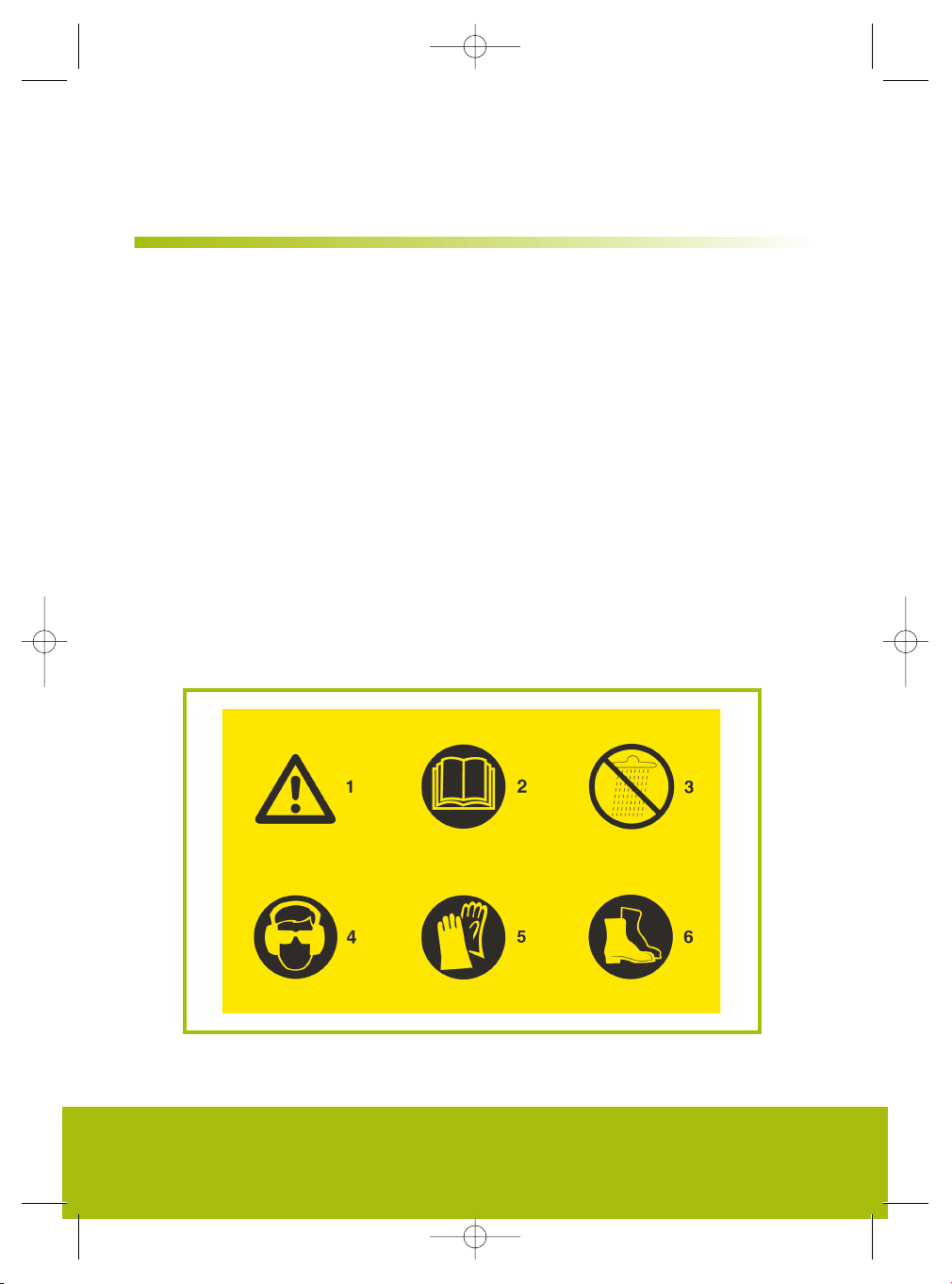

Explanation of the information plates on the machine

(See below)

1 Warning!

2 Read the instructions for use before use.

3 Protect from rain or wet conditions.

4 Wear eye protection and ear defenders.

5 Wear safety gloves.

6 Wear solid footwear.

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 5

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053 05

1 This machine can cause serious injuries. Read the

instructions for use carefully to discover how to use

it correctly:

•preparation

•maintenance

•starting and stopping the machine

Make yourself familiar with all the adjusters on the

machine and how to use it properly.

2 Children must never be allowed to use the hedge

trimmer.

3 Take care near overhead power cables.

4 Do not use the hedge trimmer when people are

nearby, particularly children.

5 Wear suitable clothing. Do not wear loose

clothing or jewelry as it may get caught in moving

parts. We recommend that you wear strong gloves,

non-slip shoes and always wear safety goggles.

6 Stop the engine or pull the mains plug before the

following:

•Cleaning or removing a blockage

•Inspection, maintenance or other work on

the machine

•Adjusting the working position of the cutter.

7 If the angles of the cutter and/or the length of the

shaft can be adjusted on the hedge trimmer, do not

hold the blades when adjusting the working position

of the cutter. Always make sure that the cutter is in

the correct working position before you start the

engine or connect the plug to the mains supply.

8 Always stand in a safe position whilst using the

machine, particularly if you are using steps or a

ladder. Do not over reach.

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 6

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053

9 Handle fuel with care, it is highly inflammable. Never

place fuel in a machine whose engine is running or

hot. Do not inhale fuel vapors, they

are toxic.

10 Do not carry out any repair work on the machine

unless you have been trained to do so.

11 Do not use the machine if it has a damaged or

excessively worn cutter.

12 To reduce the risk of fire ensure that the engine

and silencer are clear of deposits, leaves and

lubricants.

13 The machine may exceed 85 db (A) at the

workplace. The operator will require noise

protection measures and defenders if this is

the case.

14 Always make sure that all the handles and safety

equipment are fitted whilst you are using the

machine. Never attempt to use an incomplete

machine or one that has been modified illegally.

15 Always use both hands if the hedge trimmer is fitted

with more than one handle.

16 Always place the cover over the cutter when

transporting or storing the machine.

17 Important. This hedge trimmer is suitable for cutting

hedges, bushes and shrubs. Any use which is not

expressly permitted in manual may result in damage

to the hedge trimmer and place the user

in serious danger.

18 If it becomes necessary to stop the machine

immediately, set the ON/OFF switch to “Stop”

or “0”

19 Make yourself familiar with your surroundings and

watch for possible dangers that you may not be able

to hear due to the noise generated by the machine.

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 7

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053 07

Keep these safety instructions in a safe place.

Specific safety information

1 Store the machine in a safe place. Carefully

open the fuel tank cap beforehand to release

any pressure that may have built up in the tank.

2 Start the machine at least 3 m away from the

refueling site to avoid the possible risk of fire.

3 Keep the handles dry, clean and free from the

fuel mixture, oil and grease.

4 Do not use any fuel other than that recommended in

the instructions for use. Always follow the

instructions in the section entitled “Fuel and oil”.

Never use pure petrol, always use the specified

petrol and oil mixture. Otherwise the machine would

suffer permanent damage and the manufacturer’s

warranty would be voided.

5 Do not smoke whilst refueling or working with

the machine.

6 Do not use the machine without the silencer

and/or screen for the silencer.

7 Never touch the silencer after you have used the

machine. Leave the machine to cool down for a while

before carrying our maintenance or adjustment work.

8 Do not use the hedge trimmer near inflammable

liquids or gases. This could result in an explosion

and/or fire.

9 Switch the machine off before you place it on

the ground.

10 Check all screws and seals at regular intervals to

ensure that they are tight and tighten them if

necessary. Never use the machine if it has not

been properly adjusted or has not been fully or

safely assembled.

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 8

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053

11 Always clear items such as bottles, stones, etc.

away from where you are working. Thrown out

items may cause serious injuries to the user or

people nearby and may also damage the machine.

If you strike an item by accident, switch off the

machine immediately and check it. Never work

with a damaged or broken machine.

12 Do not modify, remove or add any things to any

components of this machine. This could cause

injuries or damage the machine and void the

manufacturer’s warranty.

13 Do not use the machine when you are tired or for

lengthy periods without breaks.

14 Do not use the machine if you have consumed

alcohol, drugs or strong medication.

15 Always hold the machine with both hands so that

your fingers and thumbs are hooked around the

handles.

16 Only use the machine outdoors. Exhaust fumes

are toxic.

Proper use

Important. This hedge trimmer is suitable for cutting

hedges, bushes and shrubs. Any use which is not

expressly permitted in manual may result in damage

to the machine and place the user in serious danger.

Be sure to observe the restrictions in the safety

instructions. Please note that our machines are not

designed for commercial, trade or industrial use.

Our warranty will be voided if the machine is used

in commercial, trade or industrial businesses or for

equivalent purposes.

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 9

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053 09

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 10

Helpline No. UK/Northern Ireland 0151 6491500

Rep. Ireland 1890 946244

Model Number: 9053

Layout and items supplied (see Figs.1/2)

Installation

The hedge trimmer is supplied fully assembled.

No assembly work is required.

To make it easier to control, the machine is fitted with

a rotary handle that can be adjusted as required into

positions at angles of -90°/-45°/0°/+45°/+90°. To do

this, pull the lever (Fig. 5/Item B) backwards, turn the

rotary handle into the required position and then allow

the lever to lock at the front again. The various

adjustable positions facilitate working above head

height or in other places with different access.

Important: The rotary handle may only be adjusted

when the engine is switched off.

Assembly & Parts List 3

1 Cutting blade

2 Cutting blade

safety cover

3 Protection Guard

4 Front handle

5 Choke lever

6 ON/OFF switch

7 Locking knob for

throttle lever

8 Locking knob for

rotary handle

9 Fuel pump (primer)

10 Air filter cover

11 Starter handle

12 Rear handle

13 Throttle lever “release”

14 Throttle lever

15 Silencer cover

16. Tank for fuel mixture

17 Spark plug boot

18 Spark plug wrench

19 8 mm / 10 mm

open-ended spanner

20 Oil and petrol mixing

bottle

21 Cutter rail cover

GLPHT26 User Guide Artwork.qxd 28/1/08 9:11 am Page 11

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Gardenline Tagliabordi

Gardenline

Gardenline GLHT551 Manuale di istruzioni

Gardenline

Gardenline 52742 Manuale utente

Gardenline

Gardenline Hedge Trimmer Manuale utente

Gardenline

Gardenline GPLT-26CC Manuale utente

Gardenline

Gardenline GL-CH 36 Li Manuale utente

Gardenline

Gardenline GLHT 6051 Manuale di istruzioni

Gardenline

Gardenline GLT 453 Manuale utente

Gardenline

Gardenline GLH 692 Manuale utente

Gardenline

Gardenline BG-PH2250 Manuale utente

Gardenline

Gardenline GLTH680 Manuale di istruzioni

Gardenline

Gardenline SPS01-26TRB2 Guida utente

Gardenline

Gardenline GLHT600 Manuale utente

Gardenline

Gardenline GLGS-250 Manuale di istruzioni

Gardenline

Gardenline GPHS-26cc Manuale utente

Gardenline

Gardenline GLGT400 Manuale utente

Gardenline

Gardenline GPHS-26cc Manuale utente

Gardenline

Gardenline CBC36A Manuale utente

Gardenline

Gardenline YGL N.G.1250-1 Manuale utente

Gardenline

Gardenline GCGS 18-S Manuale utente

Gardenline

Gardenline GLPT 2538 Manuale utente

Gardenline

Gardenline GLT455 Manuale di istruzioni

Gardenline

Gardenline 43671/HTKS26 Manuale utente

Gardenline

Gardenline LT26 Manuale utente

Gardenline

Gardenline GLHT680 Manuale di istruzioni

Manuali Tagliabordi popolari di altre marche

MTD

MTD HT 51 E Manuale utente

McCulloch

McCulloch T22 LS Manuale utente

COCKRAFT

COCKRAFT PRO HL36-S Manuale utente

Grizzly

Grizzly CT 1800 Li Manuale utente

Peco

Peco Z Trimmer ZT-3000 Manuale utente

Solo

Solo 116 Manuale utente

Stiga

Stiga ST 1200 Manuale utente

Echo

Echo GT-225 - 10-09 Manuale utente

RedMax

RedMax BT17 Manuale utente

GreenWorks

GreenWorks STA806 Manuale utente

Parkside

Parkside PHSL 900 A3 Manuale utente

Gardeo

Gardeo PRO GPTHT2560 Manuale utente

Park

Park DT-810870 Manuale utente

Worx

Worx WG209 Manuale utente

Makita

Makita 3710 Manuale utente

Champion

Champion 100683 Manuale utente

Stihl

Stihl FS 311 Manuale utente

Efco

Efco STARK 38 Manuale
