Garland ECO Manuale utente

FORM # ICO ECO Tim Horton (Rev 5)

ECO / ICO MODELS

SPRITZER MODEL

TIM HORTON

Toll Free Phone, (US & Canada): (800) 427-6668

Toll Free Fax, (US & Canada): (800) 361-7745

http://www.garland-group.com

Page 2 FORM # ICO ECO Tim Horton (Rev 5)

Page 3FORM # ICO ECO Tim Horton (Rev 5)

ECO / ICO MODELS

SPRITZER MODEL

TIM HORTON

Contents:

ECO/ICO MODELS

ECO/ICO Manual Controls ......................................................................................................... Page 4

ECO/ICO Electronic Controls ..................................................................................................... Page 6

ECO/ICO Operational Components ......................................................................................... Page 10

ECO/ICO Door Components ................................................................................................... Page 14

ECO/ICO Oven Components ................................................................................................... Page 16

ECO/ICO Main Exterior ........................................................................................................... Page 18

SPRITZER MODEL TIM HORTON

ICO Spritzer Control Panel & Motor ......................................................................................... Page 22

ICO-G-10-M Gas Oven Components ....................................................................................... Page 24

ICO-E-10-M Electric Oven Components ................................................................................. Page 26

ICO Spritzer Back Parts .......................................................................................................... .Page 28

Service Bulletin......................................................................................................................... Page 30

Digital Photographs .................................................................................................................. Page 31

Revision History........................................................................................................................ Page 32

Page 4 FORM # ICO ECO Tim Horton (Rev 5)

400F

450F

500F

350F 300F

250F

200F

TEMP

3525

OFF

POWER

COOK

DOWN

TIM

OFF

60 0

COOL

POWER

17/18

ICO/ECO

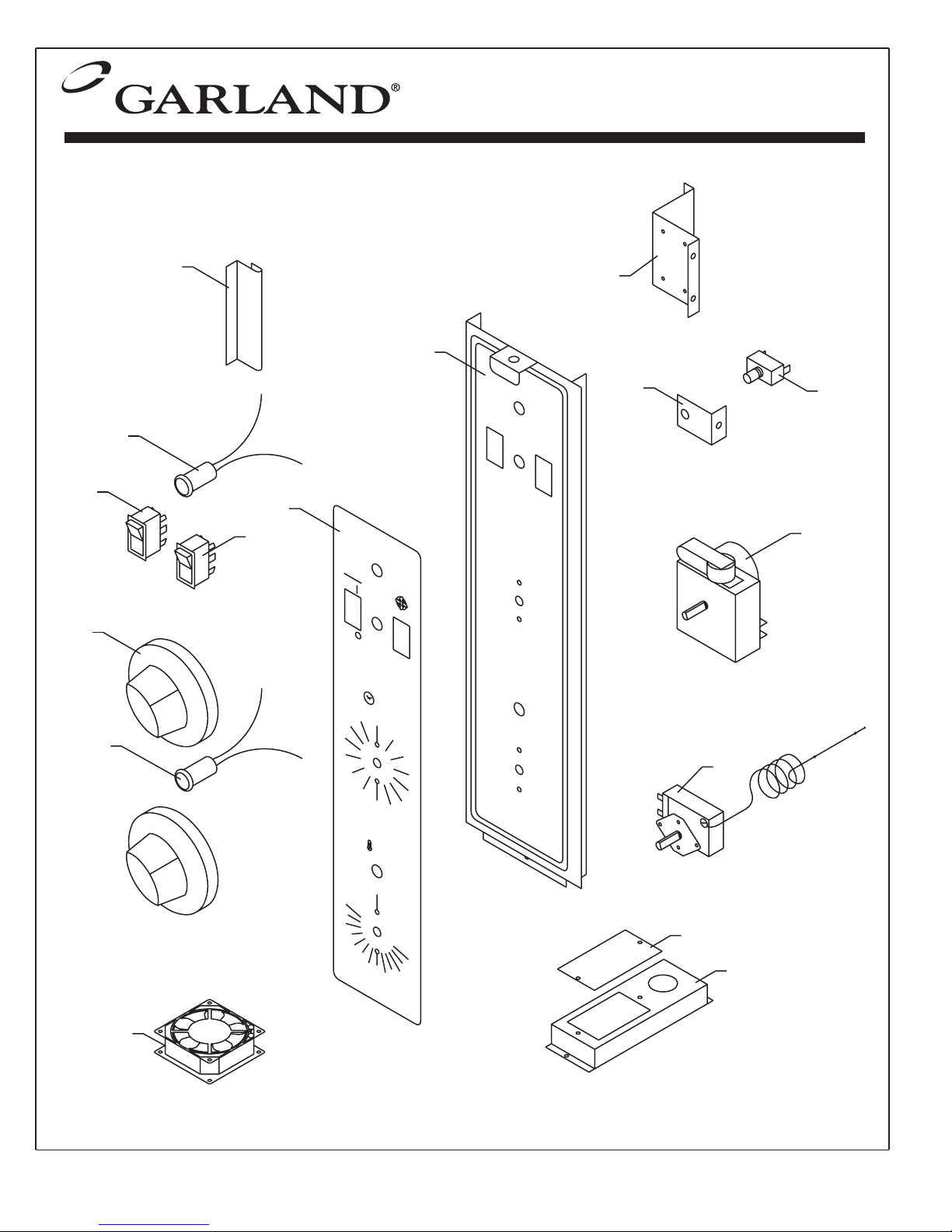

MANUAL CONTROL PANELS

POWER MODULE SECTION

MANUAL CONTROL

Manual Panel.dwg

Page 5FORM # ICO ECO Tim Horton (Rev 5)

GARLAND PARTS IDENTIFICATION

ECO/ ICO Control Panel

Manual Controls

ITEM PART # DESCRIPTION QTY DATE RANGE

(Table Below)

FROM UP TO

11657901 Control Panel, Manual 1 4-Jun-90 A,B,C,E

1719801 Control Panel 1 17-Nov-92 D

21657904 Overlay 2-Speed 1 4-Jun-90 A,B,C,D

1657902 GCI Overlay Man 1 Speed 1 4-Jun-90 F

1006489 Green Pilot Light 120V 1 A,B,C,E

1006493 Green Pilot Light 240V Export Use G01296-3 1 D

G01296-3 Pilot Green 1

1006496 Pilot Light Amber 115V 1 21-Dec-87 6-Nov-95 B

1270000 Pilot Light Amber 28V 1 6-Nov-95 B,E

1006498 Amber Pilot Light-Use G01296-2 1 D

G01296-2 Pilot Amber 1

1019207 Rocker Power Switch 3 Pos 2 Speed On/Off/On

1 13-Dec-83 A,B,C,D

1019203 Rocker Power Switch 2 Pos 1 Speed On/Off

1 E

1019209 Rocker Power Switch 2 Pos On/Off

1 31-Oct-83 A,B,C,D,E

7 G03053-1 Momentary Switch Push Button 1 A,B,C,D,E

8 1749201 Panel Restraining Bracket 1 23-Feb-93 ALL

G02716-1 Dial - (Universal) Small Shaft 2 B,C,D,E

1258200 Dial 1 A,B,C,D,E

1314121 Thermostat Dial Insert

Insert Blank Use G02725-21 2 B,C,D,E

1314117 Dial Insert 150F-550F / 65C-290C

Use G02725-17 1 D,E

1285700 Mallory Timer 1 hr 115V 50/60H

1 4-Oct-84 A,E

1285701 Mallory Timer 1 hr 240V 50/60H

1 4-Oct-84 B,C,D

1285600 Mallory 12Hr.Timer 115V 50/60H

1285601 Mallory 12 Hr Timer 230V

11 1032400 Thermostat (Use G02902-01) 1 A,B,C,D,E

12 1671100 Polar Fan 115V 1 5-Jun-94 A

1671101 Cooling Fan 208 / 240 V. 1 5-Jun-94 B,C,D

13* 1774402 Cooling Fan Bracket ALL

14 1280100 Terminal Box 1 15-Dec-92 B,C,D

15 1280101 Terminal Box Cover 15-Dec-92 B,C,D

1671100 Polar Fan 115V 120mm

1671101 Boxer Fan 230v 120mm

17 1300204 Control Panel Side Lt 1 7-Mar-94 E

18 1300203 Control Panel Side Rt. 1 7-Mar-94 E

19* 1266738 Wire Diagram 1 A

1266739 Wire Diagram D

20* 1779801 Transformer Mounting Bracket 1 9-Sep-94 B,C,D

21* 1030802 Transformer 208V 0.15 KVA (Hi Voltage Gas Units) 1 B

1030801 Transformer 240V 0.15 KVA (Hi Voltage Gas Units) 1 C,D

A 115V,60HZ,2 SPEED

B 208V,60 HZ,2 SPEED

C 240V/60 HZ,2 SPEED

D 240V,50HZ,2 SPEED

E 115V 1-SPEED

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

Page 6 FORM # ICO ECO Tim Horton (Rev 5)

0-24 HOUR

TIMER

140-500F

TEMP

HEA

OFF

POWER

DOWN

COOL

COOK

ICO/ECO

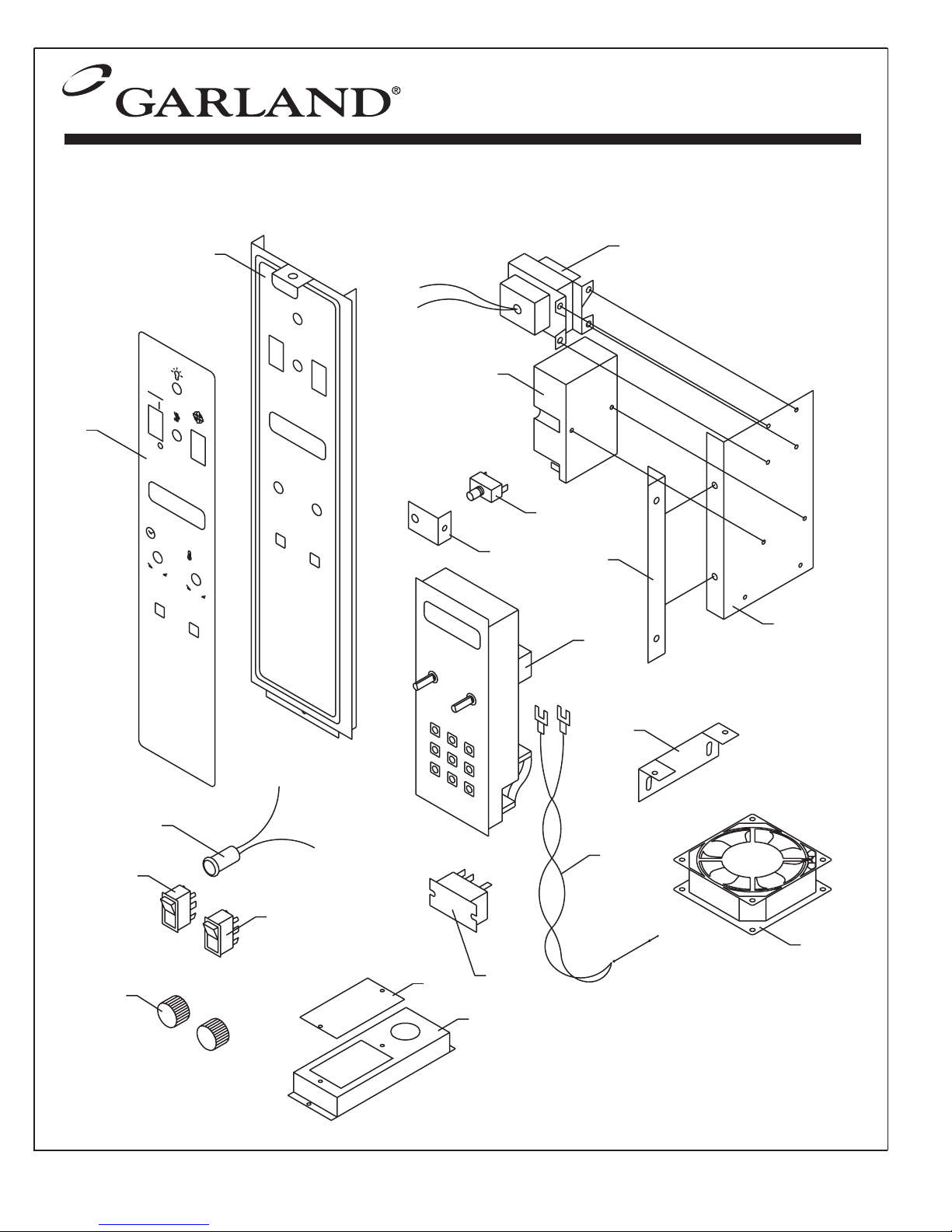

ELECTRONIC CONTROL PANELS

POWER MODULE SECTION

ELECTRONIC CONTROL

Electronic Control.dwg

Page 7FORM # ICO ECO Tim Horton (Rev 5)

GARLAND PARTS IDENTIFICATION

ECO / ICO Control Panel

Electronic Controls

ITEM PART # DESCRIPTION QTY DATE RANGE

(Table Below)

FROM UP TO

1719897 Control Panel (Electronic) S/W 1 A,B,C,D,J

1719899 Control Panel (Electronic) S/W 1 17-Nov-92 I,K

1719898 Control Panel Cook/Hold S/W 1 17-Nov-92 E,F,G.H

1657712 Overlay 2 Button 2 Speed 1 A, B, C, D

1657714 GCI Overlay 2 But. 1 Speed 1 J

1657702 GCI Elec Overlay 2 But. 1 Speed 1 4-Jun-90 I

1657710 Overlay Cook “N” Hold 1 4-Jun-90 E,F,G,H

3 1270000 Pilot Light Amber 28V 1 A,B,C,D,E,F,G.H,I,J,K

1019207 Rocker Power Switch

3 Pos 2 Speed On/Off/On

1 A,B,C,D

1019203 Rocker Power Switch

2 Pos 1 Speed On/Off

1 E,F,G,H,I,J,K

1019209 Rocker Power Switch 2 Pos On/Off

1 A,B,C,D,E,F,G,H,I,J,K

6 1181000 Momentary Push Switch USE G03053-1 1 B,C,D,E,F,G,H,I,J,K

7 1749201 Panel Restraining Bracket 1 23-Feb-93 All Units

1720501 Time/Temp Knob

2 A, B, C, D, J

9007200 Knob

2 E,F,G,H,I,K

1517706

Gas/Electrical MCO Control NLA

Replaced by Kits

Part # 4518959 & 4518961

1 A, B, C, D, J

4518959 Controller Kit 208/240V Electric –

(Bulletin Page 30)

1 A, B, C, D, J

4518961 Controller Kit 215V Gas –

(Bulletin Page 30)

1 A, B, C, D, J

1517702 Controller 2 Key

1 I,K

1544800 Controller Cook “N” Hold

1 E,F,G,H

9006800 Sensor Probe 5”W/36”Teﬂon

1 A,B,C,D,E,F,G,H,I,J,K

11 1771601 Relay 120V 2 Pole 1 A,H

1771602 Relay 240V 2 Pole 1 B,C,D,J

1269800 Transformer - 24V 120V (USE G03559-1) 1 A,E,H,K

1030802 Transformer 208V 0.15 KVA

(Hi Voltage Gas Units) 1 B,F,I

1030801 Transformer 240V 0.15 KVA

(Hi Voltage Gas Units) 1 C, D,G,J

13 1516301 Ignition Module Nat 1 Natural Gas

1516300 Spark Module (Use 2152700) 1 Propane Gas

14 1774702 Mounting Bracket/Module 1 1-Sep-94 Natural/Propane Gas

15 1774701 Mounting Plate/Module 1 1-Aug-94 Natural/Propane Gas

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

A 2 KEY 115 VOLT 60HZ 2 SPEED

B 2 KEY 208 VOLT 60HZ 2 SPEED

C 2 KEY 240 VOLT 60 HZ 2 SPEED

D 2 KEY 240 VOLT 50 HZ 2 SPEED

E COOK/HOLD, 115V, 60HZ

F COOK/HOLD,208V, 60 HZ

G COOK/HOLD, 240V, 60 HZ

H 2 KEY 115 VOLT 60 HZ 1 SPEED

I 2 KEY 208 VOLT 60 HZ 1 SPEED

J 2 KEY 240 VOLT 60 HZ 1 SPEED

K 2 KEY 115V,60HZ 1-SPEED MOTOR

Page 8 FORM # ICO ECO Tim Horton (Rev 5)

GARLAND PARTS IDENTIFICATION

ECO / ICO Control Panel

Electronic Controls

ITEM PART # DESCRIPTION QTY DATE RANGE

(Table Below)

FROM UP TO

16 1671100 Polar Fan 115V 1 A,E

1671101 Cooling Fan 208 / 240 V 1 5-Jun-94 B,C,D,F,G,H,J

17 1774402 Cooling Fan Bracket 1 5-Jun-94 All Units

18 1280100 Terminal Box 1 15-Dec-92 B,C,D,F,G,H,I,J

19 1280101 Terminal Box Cover 1 15-Dec-92 B,C,D,F,G,H,I,J

20* 1519501 Wire Harness ECO/ICO Gas 1 A,B,C,D,J

21* 1518700 Female Housing Plug ECO 1 A,B,C,D,E,F,G,H,I,J

22* 1193900 Terminal Block - 3 Pole-Hi Voltage 1 24-Oct-94 B,C,D,F,G,H,J

23* 1779801 Transformer Mounting Bracket 1 24-Oct-94 B,C,D,F,G,H,J

24* 1266754 Wire Diagram 1 B, C

25* 1030023 Terminal 2 7-Feb-95 B,C,D,E,F,G,H,J

26* 1516600 Key Lock W/Backing Nut -T 1 E,F,G,H

27*

1266755 Wire Diagram 1 D

1544704 Wire Diagram 1 E

1544702 Wire Diagram 1 F,G,H

1266745 Wire Diagram 1 I

1266756 Wire Diagram 1 J

1266757 Wire Diagram 1 J

* NOT ILLUSTRATED

RECOMMENDED STOCK PARTS

A 2 KEY 115 VOLT 60HZ 2 SPEED

B 2 KEY 208 VOLT 60HZ 2 SPEED

C 2 KEY 240 VOLT 60 HZ 2 SPEED

D 2 KEY 240 VOLT 50 HZ 2 SPEED

E COOK/HOLD, 115V, 60HZ

F COOK/HOLD,208V, 60 HZ

G COOK/HOLD, 240V, 60 HZ

H 2 KEY 115 VOLT 60 HZ 1 SPEED

I 2 KEY 208 VOLT 60 HZ 1 SPEED

J 2 KEY 240 VOLT 60 HZ 1 SPEED

K 2 KEY 115V,60HZ 1-SPEED MOTOR

Page 9FORM # ICO ECO Tim Horton (Rev 5)

NOTES

Page 10 FORM # ICO ECO Tim Horton (Rev 5)

25 19

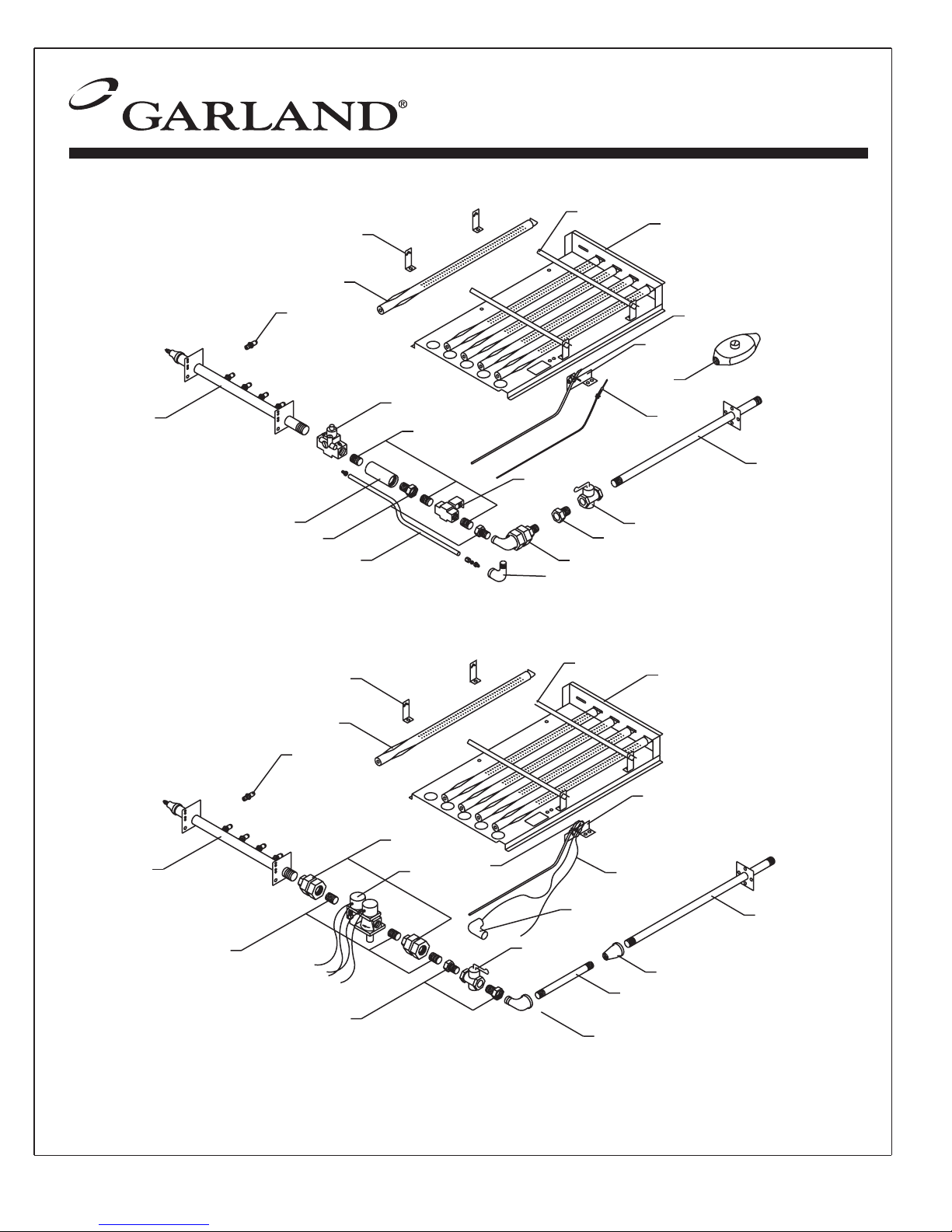

ICO/ECO OPERATIONAL COMPONENTS

STANDING PILOT

SPARK IGNITION

Operational Components.dwg
