Garmin GSC 10 Manuale utente

➍

Adjust and Test

1. Unscrew and move the sensor arm to within 5 mm of the

spoke magnet. You can also tilt the GSC10 closer to either

magnet for improved alignment.

2. Press the Reset button on the GSC10. The LED light turns

red, then green. Pedal to test the sensor alignment. The red

LED blinks each time the crank arm passes the sensor, and

the green LED blinks each time the wheel magnet passes

the sensor arm.

Note: The LED blinks for the ﬁrst 60 passes after a reset.

Press Reset again if you require additional passes.

3. When everything is aligned and working correctly, tighten

the cable ties, sensor arm, and spoke magnet.

➊

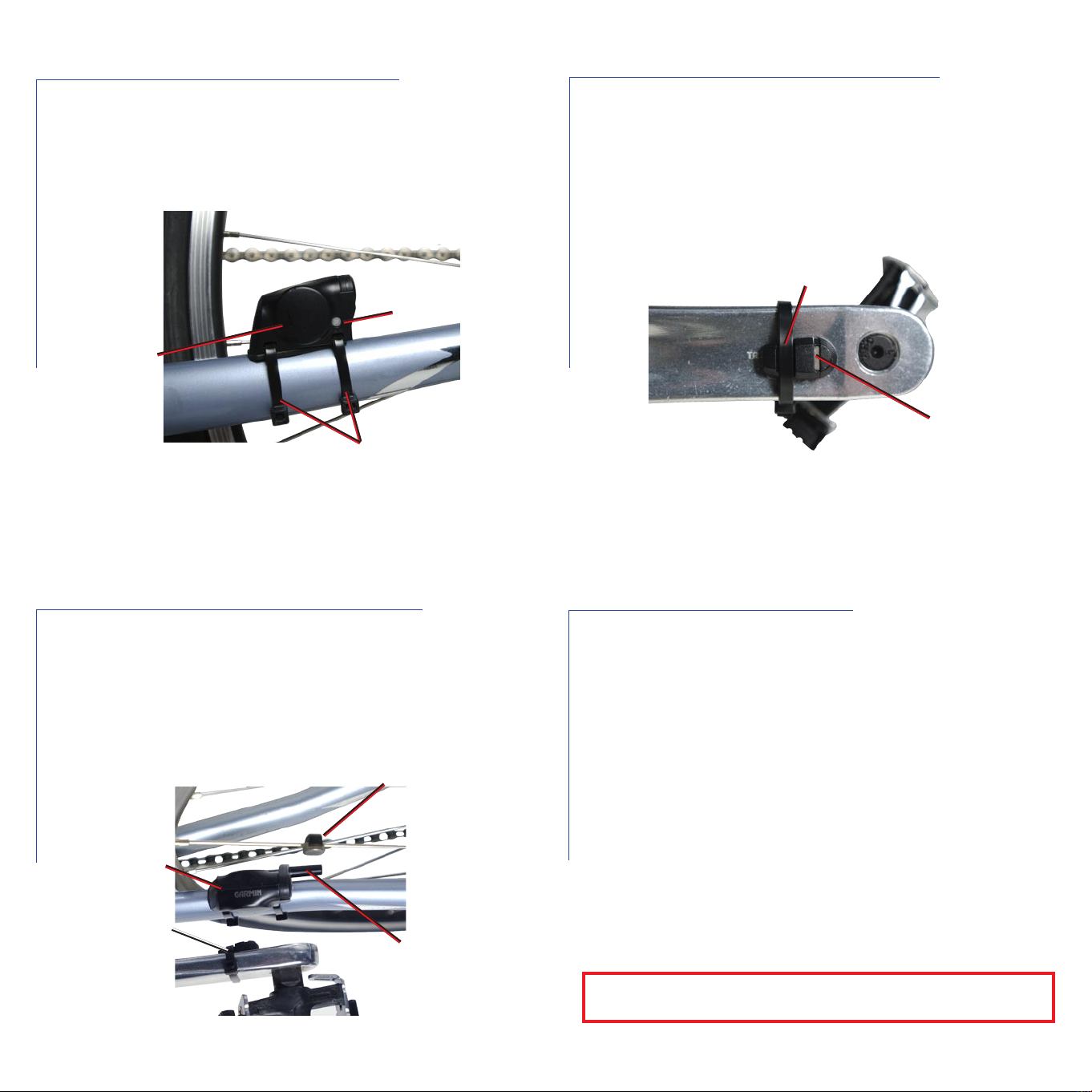

Install the GSC10 Sensor

Place the GSC10 on the rear chain stay (the side opposite

of the drive train). Loosely attach the GSC10 using two

cable ties.

reset button

cable ties

indication

line

GSC10 on rear chain stay

For more information on using the GSC10 with your compatible

GPS device, refer to your owner’s manual.

➋

Install the Pedal Magnet

Attach the pedal magnet to the crank arm using the

adhesive mount and a cable tie. Make sure the pedal

magnet is within 5 mm of the GSC10, and the indication line

on the pedal magnet is aligned with the indication line on the

GSC10.

cable tie

indication

line

Pedal magnet on crank arm

➌

Install the Spoke Magnet

Attach the spoke magnet by unscrewing the magnet from

the plastic piece. Then place the spoke in the groove of the

plastic piece and tighten slightly. The magnet can face away

from GSC10 if there is not enough room between the sensor

arm and spoke. Make sure the magnet is aligned with the

sensor arm indication line.

pedal magnet sensor arm

indication line

spoke magnet

GSC10

GSC10™

speed and cadence sensor

➎

Conﬁgure Your GPS Device

To activate the GSC10 accessory:

1. Press mode to access the Main Menu.

2. Go to the Accessories page. For example,

on the Edge™ 305, select Settings >

System > Accessories.

3. In the Cadence Sensor ﬁeld, select Yes.

4. Make sure there are no other sensors

around you. Select Restart Scan.

To set your bike proﬁle:

1. Press mode to access the Main Menu.

2. Go to the Bike proﬁle page. For the Edge

305, select Settings > Bike Proﬁle.

3. Select the Sensor Mounted check box.

Note: To set up custom data ﬁelds on your GPS

device to display cadence data, refer to your owner’s manual.

Sensor Pairing

What is pairing?

Pairing is the process of matching sensors, like your GSC10, with

your compatible GPS device. This process occurs automatically

when you turn on your GPS device and only takes a few seconds

when the sensors are on and functioning correctly. Once paired,

your GPS device will only receive data from your sensor.

Pairing tips:

• Position your GPS device within 3 meters of the sensor while

pairing.

• Stay far away from any other sensors while pairing.

• Restart scan if your GPS device appears to be paired with

another sensor.

• Make sure to enable the sensors on your GPS device.

• Make sure the sensors are functioning correctly.

• Replace the battery.

• Clean the sensors. Dirt and sweat build-up on the sensors can

weaken signals.

Replacing the Battery

1. Locate the circular battery cover on the back of the heart

rate monitor or the side of the GSC10.

2. Use a coin to twist the cover

counter-clockwise until it

is loose enough to remove

(arrow points to unlocked).

3. Remove the cover, and

replace the battery positive

side up. Be careful not to

damage or lose the o-ring

gasket on the cover.

4. Use a coin to twist the cover

back into place (arrow points

to locked).

Note: Dispose of used battery

properly.

May 2006 190-00646-00 Rev. C Printed in Taiwan

Examples: Edge 305

battery

cover

locked unlocked

arrow

GSC10 battery installation

battery cover

CR2032

battery
