StreetPilot®c340®
quick reference guide
WARNING: See the product information sheet in the product box for product warnings
and other important information.
Step 1: Mount Your c340
To ensure a tight grip, clean and dry the windshield before mounting the suction cup.
4
4. Fit the bottom of your c340 into the
cradle of the suction cup mount.
5. Tilt your c340 back until it snaps in
place.
Tension knob
5
1. Plug the small end of the cable into the
mount and the other end in a 12-Volt
receptacle in your vehicle.
2. Place the suction cup on the windshield.
3. Flip the lever back, toward the windshield.
2
3
1
If necessary, use the tension knob to improve your viewing angle.
WARNING: This product contains a non-user-replaceable lithium-ion battery. Do not
remove or attempt to remove the battery. Doing so could result in risk of battery re or
damage and injury.
To prevent damage and risk of re due to high temperatures, remove the unit from the
vehicle or store it out of direct sunlight. For more information, see www.garmin.com/
safety.
Tip: Touch and
to see more choices.
Garmin®, StreetPilot®, and c340®are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries.
Press and hold the Power button on the side of the unit to turn it on. Follow the on-screen
instructions to set up your c340; you only have to do this once.
Step 3: Find Your Destination
➍
Touch Go.
➋
Select a category.
➌
Select a destination.
➎
Enjoy the route!
➊
Touch Where to.
Check your state and local trafc laws before mounting. Currently, state laws in California and
Minnesota prohibit drivers from using suction mounts on their windshields while operating
motor vehicles. Other Garmin dashboard or friction mounting options should be used.
Step 4: Follow Your Route
Follow the route to your destination using the Map page. As you travel, your c340 guides
you to your destination with voice prompts, arrows on the map, and directions at the top of
the Map page. If you depart from the original route, your c340 recalculates the route and
provides new route instructions.
A checkered ag marks
your destination.
Follow the arrows as you
take turns.
Your route is marked with
a magenta line.
You can add a stop to your route. The c340 gives you directions to the stop and then to your
nal destination.
1. With a route active, go to the Menu page, and touch Where to.
2. Search for the extra stop.
3. Touch Go.
4. Touch Yes to add this stop before your destination. Or, touch No to make this your new
nal destination.
Note: You can add only one stop to your route.
From the Menu page, touch View map to open the Map page. The position icon shows
your current location. Touch buttons on the Map page to see additional information.
Touch to zoom in.
Touch the directions bar to
open the Current Route page.
Touch Turn In to open
the Next Turn page.
Touch Menu to open
the Menu page.
Touch Arrival or Speed to open
the Trip Information page.
Touch to zoom out.
➊

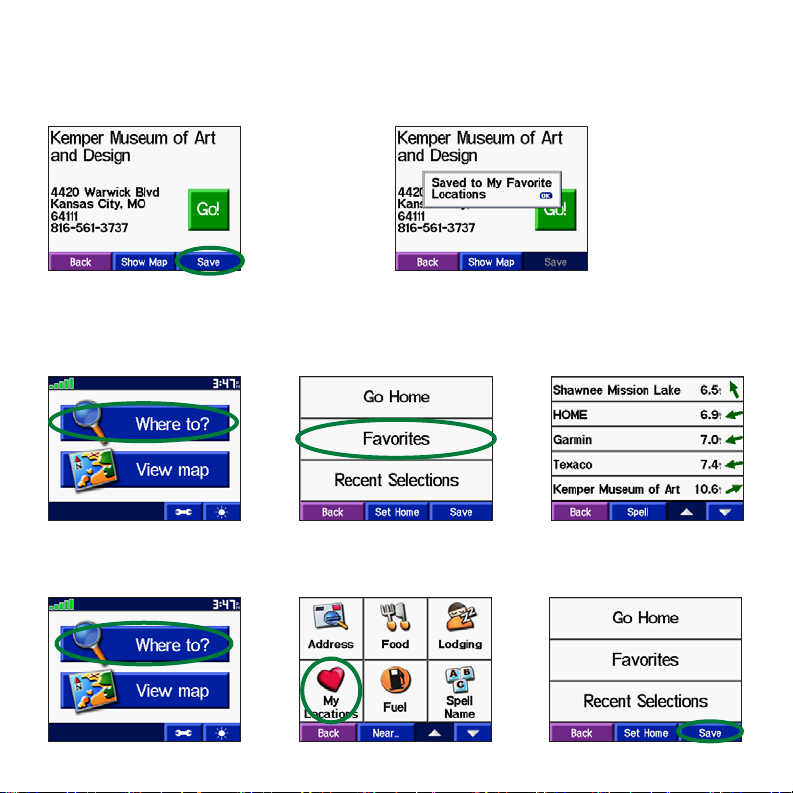

After you have found a place
you want to save, touch Save.
➋
Touch OK. The place is saved
in My Locations > Favorites.
➊
From the Menu page,
touch Where to.
➋
Touch My Locations
> Favorites.
➌
Select a place.
➋
Touch My Locations.
➌
Touch Save >Yes.
➊
Touch Where to.
➊
Touch Where to >
My Locations.
➌
Select an option.
➋
Touch .
Going Home
After you have set your Home location, you can route to it at any time by touching
Where to > My Locations > Go Home.
Using a Garmin FM TMC Trafc Receiver, your c340 can receive and use trafc
information broadcast over the FM Radio Data System. For more information about Garmin
FM trafc receivers, visit www.garmin.com/trafc.
Viewing Trafc Incidents
From the Menu page, touch to display a list of trafc
incidents. The trafc symbols appear on the Map as well.
Avoiding Trafc
The Map page displays when there is a trafc incident on
your current route or on the road on which you are traveling. To
avoid a trafc incident, touch , select a trafc incident, and
touch Avoid.
To adjust the volume, turn the Volume knob, located
above the Power button.
1. From the Menu page, touch .
2. Touch to decrease the backlight brightness.
Or, touch to increase the brightness.
3. Touch OK.
If your c340 stops responding, turn it off and back on. If this does not help, reset the c340.
1. Unplug the power and USB cables to remove external power.
2. Place your thumbnail in the groove located under the Garmin logo on the faceplate and
gently pull off the faceplate.
3. Press the Reset button for about 3 seconds.
4. Connect the c340 to a power source using the power cable. The c340 should
automatically turn back on and operate normally.
For more information about your c340, refer to the owner’s manual located at on Garmin’s
Web site at www.garmin.com/products/sp340. Click on the Manuals link and then select
Download.
© Copyright 2005–2007 Garmin Ltd. or its subsidiaries
July 2007 190-00437-01 Rev. D
Volume
knob
Power
button
Mini-USB
connector
