Garrett Pro-Pointer Manuale utente
Owner’s
Manual
1532600 PP Manual.indd 1 7/29/2008 9:11:27 AM
2Garrett Metal Detectors
GARRETT PRO-POINTER
Congratulations on your selection of the Garrett
PRO-POINTER Metal Detector. The Garrett PRO-
POINTER is a hand-held metal detector designed to
precisely pinpoint metallic (ferrous and nonferrous)
objects during treasure recovery.
The PRO-POINTER is intended for use in
conjunction with a ground search metal detector to
aid in the recovery of metallic targets. The Garrett
PRO-POINTER has both audible and vibrating alarms
to indicate the presence of metal objects. The alarms
increase in intensity as the PRO-POINTER is moved
closer to the metal target. With a pinpointing tip plus
a sifting blade with side-scan capability, the PRO-
POINTER is very effective in easily detecting even the
smallest of metallic objects. An LED flashlight assists in
dark and low light conditions.
The PRO-POINTER has an IP 66 standard
waterproof rating, fully protecting it from the environment
and allowing it to be washed under running water or
operated in the rain. The PRO-POINTER's durability—
based on MIL STD 810 F—will provide years of
reliable operation even in rugged environments.
1532600 PP Manual.indd 2 7/29/2008 9:11:27 AM
PRO-POINTER™3
Microprocessor circuitry allows the PRO-POINTER to
operate at maximum sensitivity without any need of
adjustments.
The Garrett PRO-POINTER is ideal for the recovery
of small items in a wide variety of hunting conditions,
ranging from highly mineralized ground to saltwater-
saturated sand.
You will find the Garrett PRO-POINTER to be an
indispensable tool to:
• Speed target recovery;
• Accurately find small objects;
• Prevent digging large holes;
• Identify multiple objects in near proximity;
• Search in tight interior areas such as walls and
ceilings;
• Serve as a utility pinpointer for locating metal
pipes, conduit, rebar and control boxes; and
• Locate nails and metal wall studs in homes.
1532600 PP Manual.indd 3 7/29/2008 9:11:27 AM
4Garrett Metal Detectors
Power
Switch
Audible and
Vibrating
Alarms
Battery
Cover
LED
Flashlight
360º Side-Scan
Detection Area
COMPONENTS
Exclusive
Sifting
Blade
Pinpointing
Tip
1532600 PP Manual.indd 4 7/29/2008 9:11:27 AM
PRO-POINTER™5
COMPONENTS AND FUNCTIONS
Power Switch—To switch the detector on, press
the power button while holding the PRO-POINTER
away from any metallic objects. The white LED will
illuminate and a brief audio beep will occur, indicating
the PRO-POINTER is ready for use.
Audio and Vibrate Alerts—The speaker
provides a clear audible sound whenever metal is
detected. The PRO-POINTER's vibrator motor also
activates when a metallic target has been detected.
As the PRO-POINTER is moved in closer proximity
to a metallic target, the rate of the pulsing audio and
vibrations will increase proportionally. As the PRO-
POINTER is moved away from the metallic object, the
rate of the pulsing audio and vibrations will decrease.
This unique Garrett feature helps the user determine
the precise location of the target.
Sifting Blade—The PRO-POINTER also
includes a 3.75" sifting blade to aid target recovery.
This rugged edge is ideal for sifting and scraping
through dirt while searching for the target. The PRO-
POINTER's 360º-side-scan metal detection allows the
1532600 PP Manual.indd 5 7/29/2008 9:11:27 AM
6Garrett Metal Detectors
detector to alarm when the blade is passed in close
proximity to a metallic target.
LED Light—The white LED (located next to the
Power Switch) will remain illuminated while the unit
is on, providing power-on indication and acting as a
flashlight when needed.
Audible Low Battery Alert—The battery

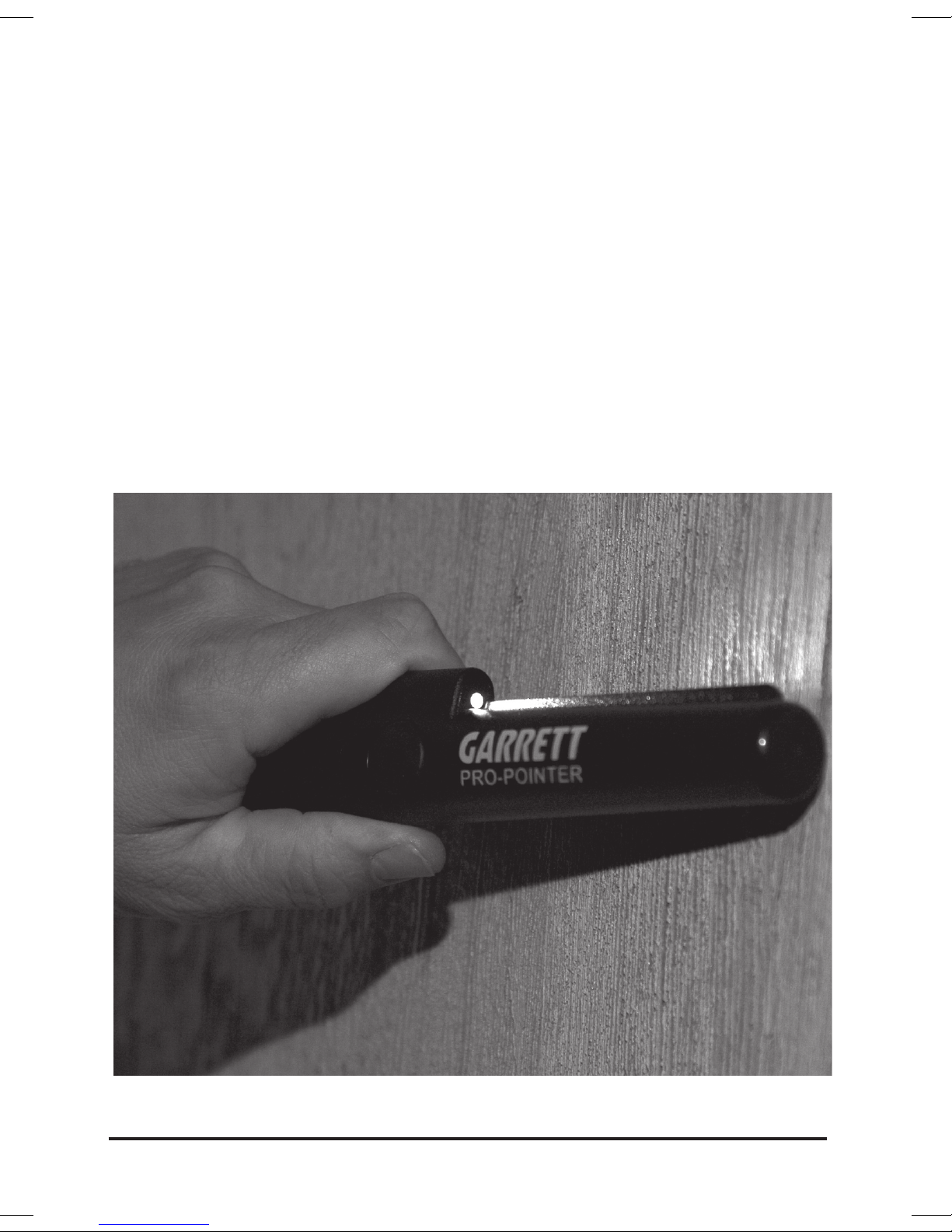

The PRO-POINTER's LED light helps illuminate targets in low light.
1532600 PP Manual.indd 6 7/29/2008 9:11:27 AM
PRO-POINTER™7
conditionofthePRO-POINTERismonitoredcontinually.
When the battery becomes low, the detector will sound
an alternating dual-tone alarm. This sound indicates
that the detector's 9V battery should be replaced as
soon as possible.
Battery Cover—This cover makes changing the
single 9V battery quick and easy. No tools are required.
Simply rotate the battery cover counterclockwise to
remove and clockwise to tighten by hand. Battery
contacts are keyed to avoid improper installation of the
9V battery.

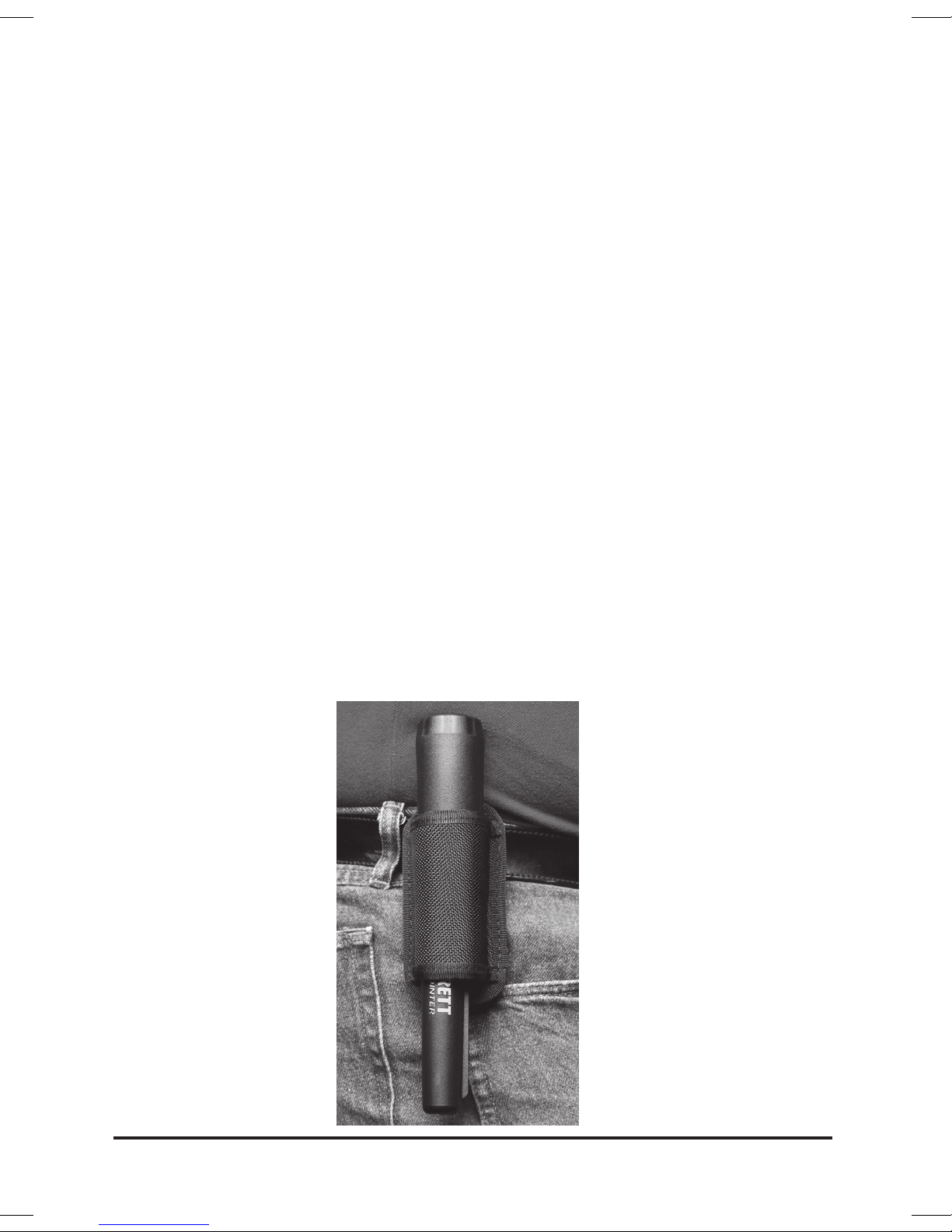

Holster—The convenient holster helps secure
the PRO-POINTER to any standard size belt.
1532600 PP Manual.indd 7 7/29/2008 9:11:27 AM
8Garrett Metal Detectors
OPERATING INSTRUCTIONS
Switch the detector on by pressing the power
button while holding the detector away from any
metallic objects. To avoid cancelling out the target, do
not turn on the PRO-POINTER while it is adjacent to
the target.
The white LED Light will illuminate when the PRO-
POINTER is on and this light will remain on until the
power button is pressed again to switch off the unit.
This mini flashlight feature is useful when operating in
low light situations.
The PRO-POINTER is a non-motion, all-metal
detector. This enables you to remain stationary over a
target with continuous audio and vibration response.
As the PRO-POINTER is moved in closer proximity to a
metallic target, the rate of pulsing audio and vibrations
increase proportionally—allowing precise pinpointing
of the target.
Operation is completely automatic. All metals will
be detected including ferrous and non-ferrous.
Basic Recovery Method: Once you have
located a target with your ground search metal detector,
dig the recovery hole or remove the plug of earth.
1532600 PP Manual.indd 8 7/29/2008 9:11:27 AM
PRO-POINTER™9
You should then use the Garrett PRO-POINTER to
precisely locate your metallic target.
First, scan over the earth plug or dirt pile to see if
your target has already been unearthed in the soil you
removed or turned over. If the PRO-POINTER does
not signal a target, you should next scan inside the
hole, pointing the tip of the PRO-POINTER toward the
side walls of the hole. As you move the tip of the PRO-
POINTER closer to the target object, the detector's
vibrations and audible beeps will steadily increase.
1532600 PP Manual.indd 9 7/29/2008 9:11:28 AM
10 Garrett Metal Detectors
If you do not receive a response from inside the
hole or the soil/plug that was removed, the object is
likely deeper in the ground or deep inside the plug—
beyond pinpointing range. Sweep with your ground
search detector again to confirm where the object is.
Tight Recovery Area Method: In some
locations, such as public parks, a treasure hunter will
generally dig the smallest hole possible. Where such
a tight plug has been lifted, check the area by pointing
the PRO-POINTER straight down into the opening.
If the target is located at or near the bottom of
the hole, the PRO-POINTER's response will steadily
increase as it is lowered into the hole, reaching
maximum response at the bottom. If the target is
located in the hole's side wall, the response will
increase and achieve its maximum response prior to
reaching the bottom of the hole. The PRO-POINTER
then will maintain a constant response as it is lowered
towards the bottom of the hole. In this case, slowly lift
the PRO-POINTER out of the hole until the response
just begins to decrease; then scan around the sides
of the hole to find the maximum response. The target
should be located in the side wall at the detector's tip.
