Two-Zone Induction Cooker
雙頭電磁爐
Model/型號：EC-2360IC
Installation & Operating Instructions
產品使用說明書
1
1、 Product Introduction-------------------------------------------------- 2
1.1 .Introduction of Product
1.2 .Function & Characteristics
2、 Installation Guideline-------------------------------------------------- 3-5
3、 Control Panel Instructions-------------------------------------------- 6
4、 Operation Method----------------------------------------------------- 7-9
4.1 .Operation Instructions
4.2 .Usable and Non-usable Cookware
4.3. Heating Power Distribution
4.4 Caution
5、 Safety Precautions----------------------------------------------------- 9-10
5.1 . Safety Notes
5.2 . Warning
6、 Daily Maintenance----------------------------------------------------- 10
7、 Product Specification-------------------------------------------------- 11
8、 Trouble-Shooting Guideline------------------------------------------ 11-12
8.1 . Code Of Breakdown
8.2 . Trouble Shooting
CONTENTS
2
1、Product Introduction
1.1、Introduction Of Product：
Thank you for choosing Garwoods EC Induction Cooker. This product utilizes electromagnetic
heating theory and be controlled by the micro-computer touching sensor control system.
There are multi-functions which cater for any delicious cuisine. It is the ideal product for
modern family. Please read this operation manual carefully before installing or using this product.
1.2 、Function & Characteristics：
Energy-efficient：It utilizes the brand-new calefaction principle. The thermal efficiency is
extremely high. It is both time-saving & energy-saving. Calefaction begins when a boiler is on
and heating is stopped when the boiler is removed.
Multi-function：It utilizes newest micro-computer chip program control. It offers multiple
scales for heating power level regulation. Also, it offers timing regulation and can
automatically check whether there is cooker on or not.
Safety & Environmental Friendly：Safety & Environmental Friendly of the product is on our
top priority. 1) Only cookware with a ferromagnetic material would be heated; 2) If the
body temperature of cookware is too high or the voltage change causes too strong electric
current, the cooker will enter into a self-protection system; 3) Automatic shut off by entering
into a self-protection system after 2 hours not in use during cooking; 4) The surface of the
cooker is a high quality heat-resistant ceramic glass that is insulated and guarded from
leakage; 5) No need to worry about bringing possible damage to the cooker when
overflowing of soup; 6) The cooker is free from typical problems such as leakage, explosion,
flaming burns etc. The chance of accidents are greatly reduced; 7) Fireless and smokeless
cooking is easier made for any cuisine. Meanwhile, it will keep your family members out of
respiratory system allergy.
Easy-to-clean Surface：Ceramic glass top panel is easy to clean. Wipe it with a damp cloth
after cooking.
Touch Buttons Operation：Touch button design is easy for use.
Intellectual Power：The induction cooker adopts intellectual power distribution technology
and the specified power can be distributed to each cooker zone by the micro-computer
system.
3
2、Installation Guideline
★ Installation should be followed below requirements：
1、 The walls on top of the working face and next to the installation of induction cooker must be
heat-proof.
2、 The laminated boards and adhesive used for installation must be heat-resistant.
3、 For any installation method, the air under the cooker and behind the cooking range should
have enough space for cooling in order to ensure the safety of operating the induction
cooker.
4、 Based on the prescribed dimensions, a square hole is opened on the work table. Ensure the
distance between any side of the work table and the walls is ≧100mm.
5、 Protect the opening: If in contact with damp, the laminated boards used in marking the work
table will easily expand more. It is required to stick varnish or special adhesive onto the edge
of the opening in order to prevent any steam from condensation under the work table.
6、 For any condition of installation, the induction cooker should have a good ventilation
condition with air inlet and air outlet not blocked.
7、 Don’t place other equipments on the working face of the double cooking zones of the
induction cooker and within the range of 30cm around the working face.
8、 If choosing a table-top installation, ventilation hole shall be at least 100mm from wall surface.
9、 The induction cooker must be complied with a 13A power outlet.
★ Steps on Installation：

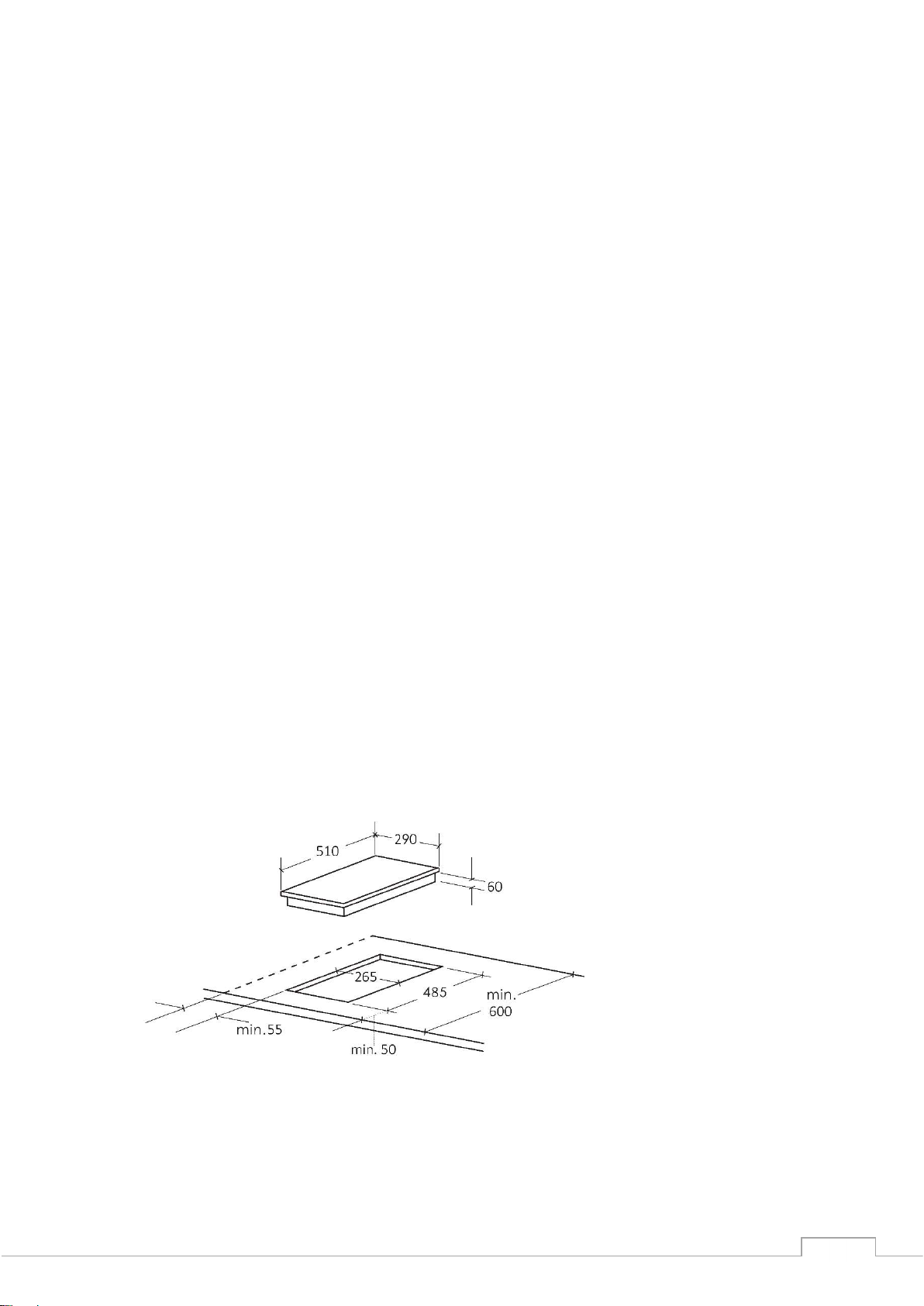

~ Open an installation hole on the worktop of cabinet as per 【illustration 1】.
(Note : The height shall be more than 100mm)
Cut out dimensions(unit/mm)：(W) 265 x (D) 485 x (H) 100
【illustration 1】
4

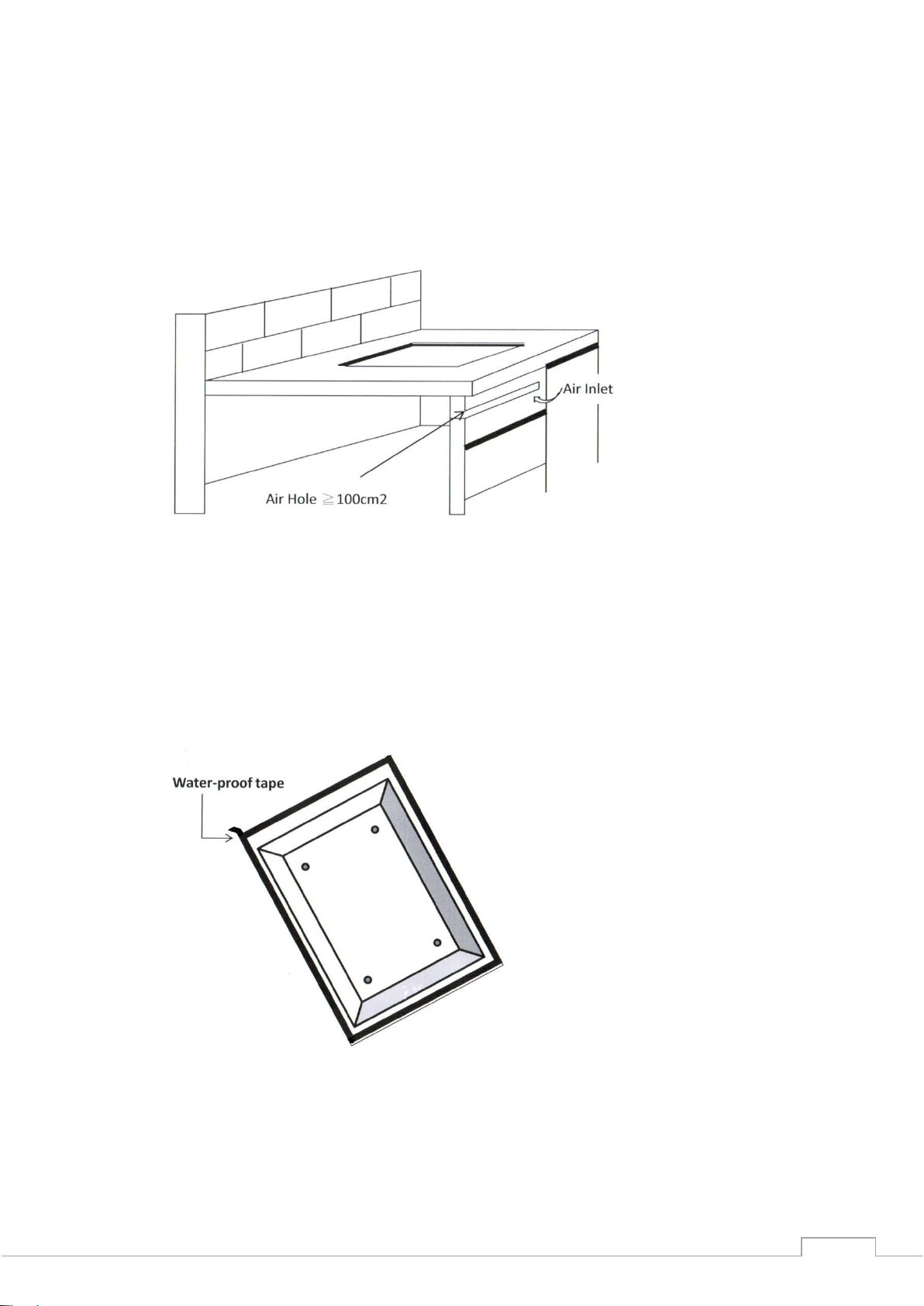

~ In front of the cabinet, open an air inlet with more than 100cm2 under the location of
induction cooker as per【illustration II】. If the cabinet is not sealed, the air inlet may not be
opened so as to ensure heat elimination.
【illustration II】
~ Before put the induction cooker into the hole, an water-proof type is properly applied on the
bottom of front panel of the induction cooker as per 【illustration III】 . If the old size of the
hole is large than the current size of cutting hole, a double side type can be used to fix the
movement between induction cooker and worktop.
【illustration III】
5

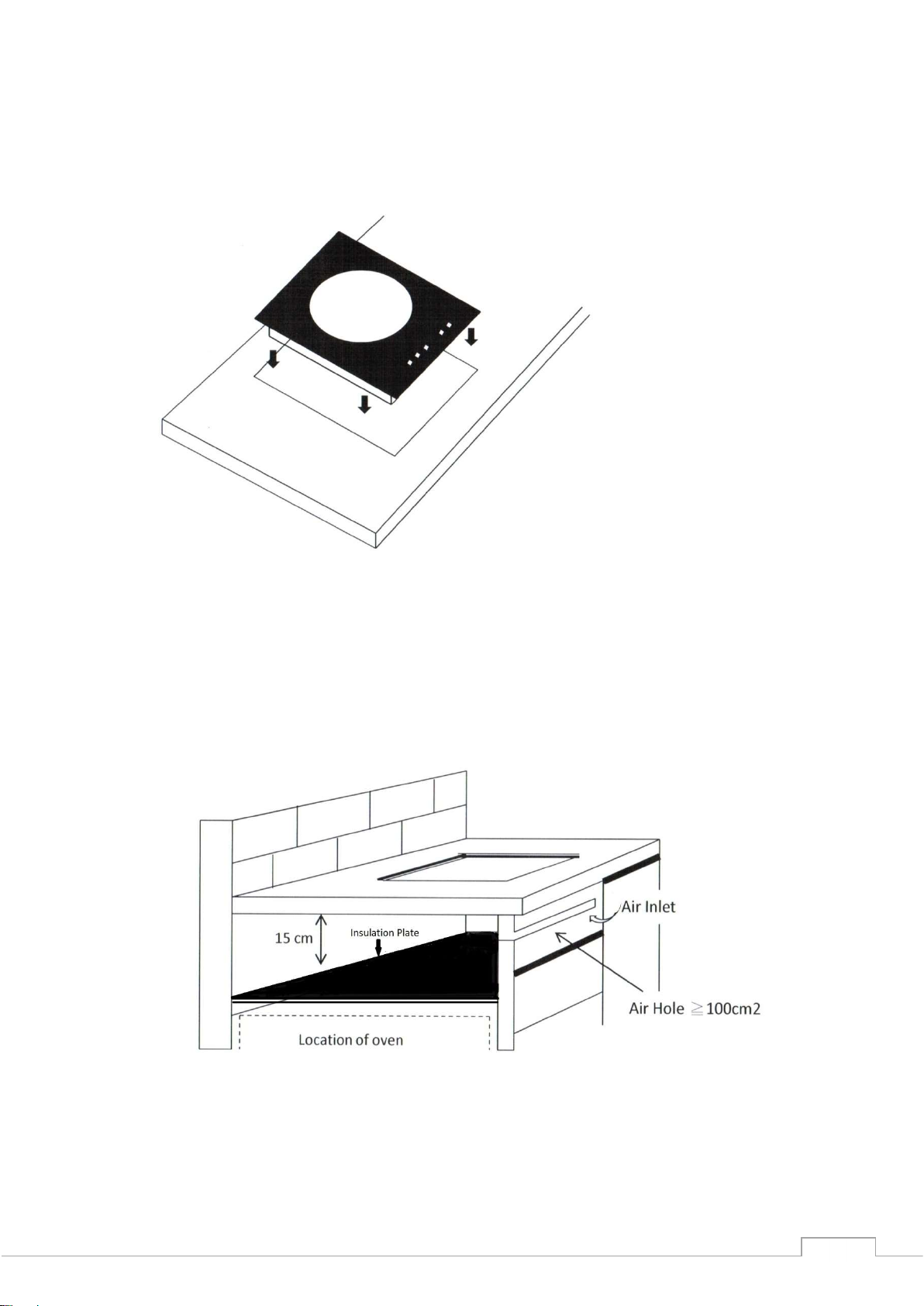

~ Put induction cooker into hole. Insert plug of power line into corresponding socket. The
induction cooker can be used after power connection as per 【illustration IV】.
【illustration IV】
~ If the induction cooker is installed above an oven, fix an insulation part at least 15cm under
the induction cooker as per 【illustration V】. Also, open an air inlet with more than 100cm2
under the location of the induction cooker to ensure ventilation and operation in good
conditions
【illustration V】
六 、
鍋具的選擇與使用
6

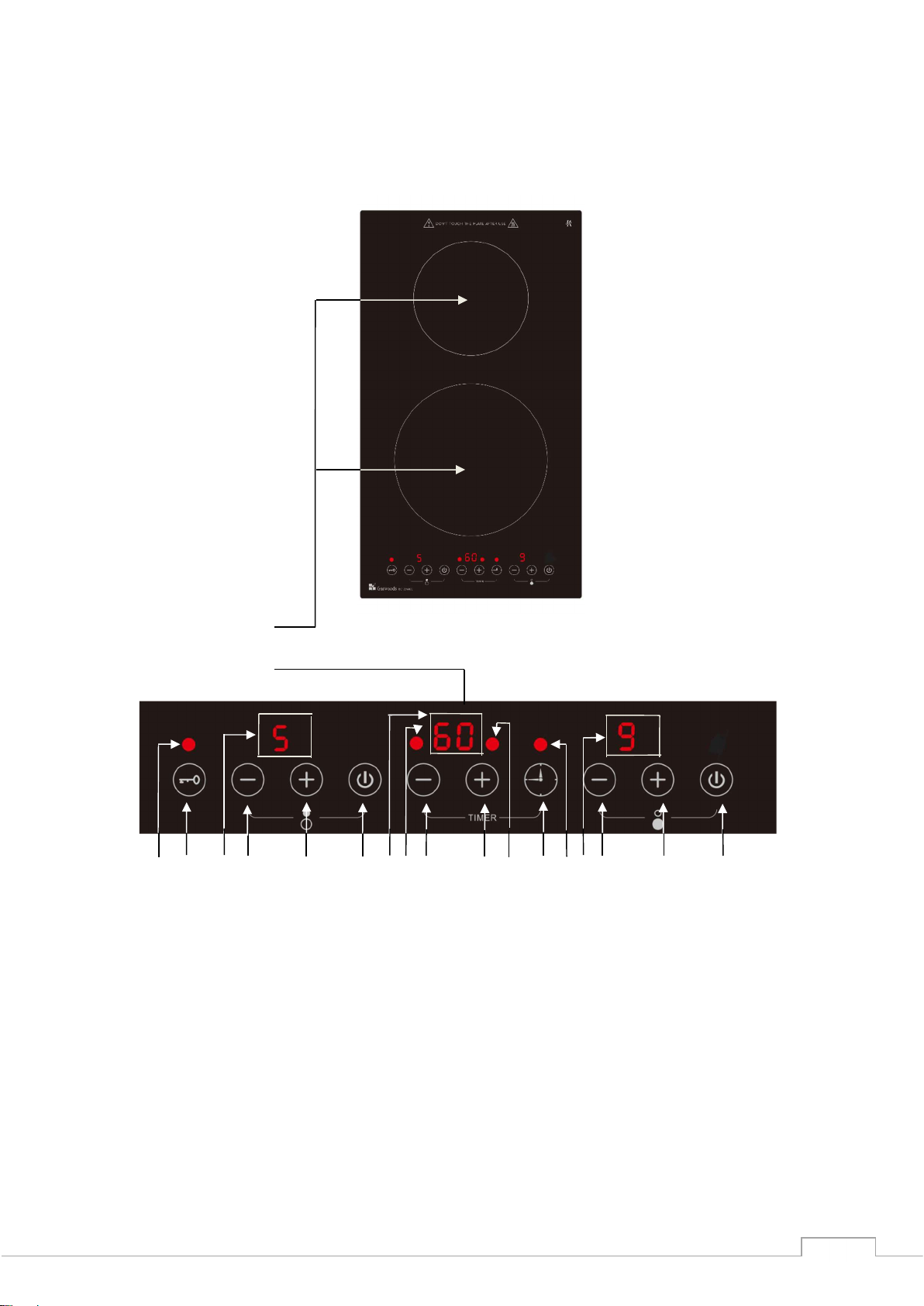

3、Control Panel Instruction
【Cooking Zone】
【Control Panel】
17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1
1…On/Off (Front Zone) 2…Power Plus Key (Front Zone)
3…Power Minus Key (Front Zone) 4…LED Digital Indicator
(Power – Front Zone)
5…Timer On/Off Indicator 6…Timer Key
7…Timer Indicator (Front Zone) 8…Timer Plus Key
9…Timer Minus Key 10…Timer Indicator (Rear Zone)
11…LED Digital Indicator (Timer) 12…On/Off (Rear Zone)
13…Power Plus Key (Rear Zone) 14…Power Minus Key (Rear Zone)
15…LED Digital Indicator
(Power – Rear Zone)
16…Lock Key
17…Lock Indicator
7
4、Operation Method
4.1、Operation Instructions：
Power Connection：After power connection, buzzer will make a short sound and the LED
digit will show “- ” . That means the induction cooker keeps at the stand-by mode. If no
working of the induction cooker after 15 sec., the induction cooker will automatically be
locked.
On switching： Place cookware on heating zone (Pls. refer to Usable and Non-usable
Cookware), by pressing the “ON/OFF” key, LED will show the pre-set power Level 5.
Power Level Alteration： At the power function, by pressing “Power plus” Or “Power minus”
key to increase or decrease power level. LED digit shows the set power level.
(Note : This induction cooker adopts intellectual power distribution technology. When the power
level of a cooking zone is increased and total power level exceeds specified value, the micro-
computer system will automatically decrease power level of another cooking zone so as to assure
total power is under specified value.)
Selecting Timer：By pressing〝Timer〞key, the time indicator will be on. At the time, by
pressing〝Timer plus 〞Or〝Timer minus〞key to set the required time. The operational
setting range is between 1 min. to 99 min. After setting, the LED digital indicator will show
the required time. When set time is reached, buzzer will make a long sound and the time
indicator will be off. To cancel time setting, set the timing to “ZERO”.
Lock Function：By pressing the〝Lock〞key, buzzer will make a short sound and a red dot
will be on. At this time, all keys will be locked in order to avoid mis-operation. By pressing
〝Lock〞key 3 sec. again, buzzer will make a short sound and a red dot will be off.
The induction cooker will be locked automatically after 15 sec. when switching off. For
restarting the induction cooker, by pressing the 〝Lock〞 key 3 sec. again, buzzer will make
a short sound and the red dot will be off, then by pressing the 〝ON/OFF〞 key to enter the
normal cooking mode by other function keys.
Off Switching：During heating, by pressing 〝ON/OFF〞key to switch off.
五
8
4.2、Usable and Non-usable Cookware：
~ Please refer to below information to select a suitable cookware cater for all delicious cuisine
by the induction cooker.
Usable Cookware Non-usable Cookware
【
Materials
】
Iron, cast iron, stainless steel
and enamel cookware.
【
Materials
】
Cookware made of pottery,
aluminum, glass, copper or bronze.
【
Shape and size
】
The diameter more
than 120mm (4.5 inches) are
recommended.
【
Shape
and size
】
The bottom diameter
of the cookware is less than 120mm (4.5
inches). And, the cookware with curved
bottom, with concave bottom (the concave
depth≧ 4mm) or with legs (the
height≧4mm).
【
Sorts of suitable cookware
】
Stainless
steel kettle, iron tray, bottom pan, iron pot,
iron tray, enamel pot etc.
【
Sorts of un
-
suitable cookware
】
Copper,
bronze and aluminum pot, glass pot,
pottery pot, bronze pan etc.
六、鍋具的選擇與使用
~ Put the suitable cookware on the central position of the heating zone.
~ It is normal that sound〝ze..ze..〞 from the cookware when heating.
4.3、Heating Power Distribution：
When two single zones are operating in the same time, the total power is up to 2800W. However,
the power of one single zone will reduce automatically when the other zone is being cooking so
as to maintain the total power level will not exceed 2800W.
Front Zone Rear Zone
Power Level Power(W) Power Level Power(W)
-/0 Stop power output -/0 Stop power output
1 300 1 300
2 600 2 600
3 900 3 900
4
1200 4 1000
5
(Pre-set level)
1600 5
(Pre-set level)
1200
6 1900
7 2200
8 2500
9 2800
9
4.4、Caution：
Don’t place any metal cooking utensils, e.g. knife, fork, spoon, lid over the heating zone to
avoid getting burnt.
Don’t place an empty cookware on the heating zone that will cause damage of the induction
cooker.
Beware of the cookware gets overheated and burnt while heating up oil.
Please use level 4 for deep fry cooking. Otherwise the induction cooker will turn off
automatically after cooking around 20 minutes. And the LED indicator will show the〝E2〞.
5、Safety Precautions
5.1 Safety Notes：
No other objects then cookware to be placed on the calefaction area.
Do not insert any objects like iron wire etc. into the vent in order to prevent any electric
shock.
Do not put anything to block the air outlet。
Do not heat up unopened tins of food on the heating zone as pressure will build up in the tin
and it can explode, which in turn could result in injury and scalding or damage.
Do not use the induction cooker in a high temperature environment. Keep it far away from
fire.
Do not lay object, which are susceptible to the magnetic fields such as credit cards, diskettes
in the immediate vicinity of the induction cooker.
Always keep children away from the induction cooker.
Keep a distance between the water supply and the induction cooker, to prevent any
electric shock and interference or malfunction on function of the induction cooker.
Water or liquid on the control panel will affect interference or malfunction on function of
the induction cooker.
