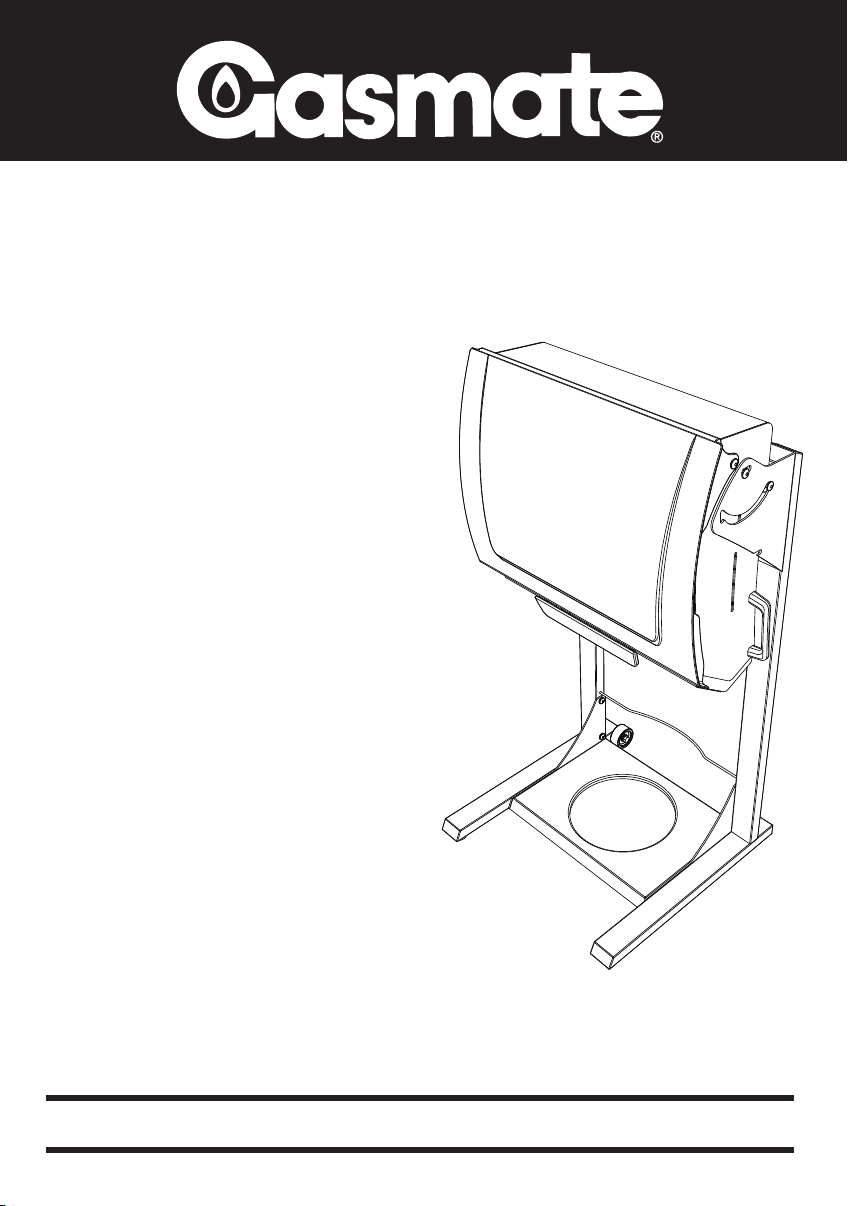

Gasmate BQIG10ST Manuale utente

02849 05/12

Important: Retain these instructions for future use.

Gasmate®is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au

Aber Ltd - Hamilton, N.Z. www.gasmate.co.nz

Ignite BBQ Stand

BQIG10ST

Product Features:

• StandforIgnitecompact

folding BBQ

• Powdercoatedmetallicnish

• IgniteBBQwallmounting

 bracketxesdirectlytostand

• Wheelsforeasymanoeuvring

 –tiltstandandmoveto

storage after cooking

• Cylindermountingposition

• LPGCylindersmustnotbe

stored indoors

EXPLODED DIAGRAM

PARTS LIST

1. Left Upright

* 1 pc

2. Right Upright

* 1 pc

5. Stopper

* 2 pcs

9.CylinderHolderBrace

* 1 pc

13. M6 Allen Head

Screw

* 8 pcs

6. Triangle Brace

* 2 pcs

10. Foot

* 4 pcs

14.FlatWasher

* 2 pcs

3. Left Beam Assy.

* 1 pc

7. Stand Base Panel

* 1 pc

11. M8 Dome Nut

* 2 pcs

15. M8*20 Screw

* 2 pcs

4. Right Beam Assy.

* 1 pc

8.Wheel

* 2 pcs

12. 3/8*16 Screw

* 2 pcs

ASSEMBLY INSTRUCTIONS

Tools Needed for Assembly

•HexWrench(AllenKey)isincluded

•Adjustablewrench

STEP 1

UnpacktheStandandremoveallpackaging

material.

Attach foot * 4 pcs beneath left and right beam

assemblies, but only hand tighten.

STEP 2

Use M8 Dome Nuts * 2 pcs to attach wheels * 2

pcs onto the left and right Beams.

STEP 3

Usethe3/8*16Screw*2pcsandFlatWashers

*2pcstoxLeftandRightUprightsontotheleft

andrightBeamsrespectively.Andthentighten

the screws.

STEP 4

UseM6AllenheadScrew*4pcstofixtheTriangleBrace*

1 pc and Stand Base Panel * 1 pc onto the Left Beam and

Upright.

STEP 5

InsertthecylinderholderbraceintothecorrespondingholesontheLeft

and Right uprights; then repeat Step 4 with the Right Beam and Upright.

Adjustthefoot*4pcstomakethestandsteadyonthefloor,thentighten

the lock nuts.

For any queries or assistance call

Customer Service

Australia Only

1300 174 876

Hours of operation: Monday to Friday 8.30am - 5.30pm EST

Do not return to place of purchase.

Keepyourpurchasereceipt,thiswillberequiredtomake

any claims under the 12 month warranty.
