Gateway Solo 1200 Manuale utente

www.gateway.com

Wireless Networking User Guide

Your Gateway Solo notebook comes with wireless Ethernet (also known as

IEEE 802.11b or WiFi) networking.

Setting up wireless Ethernet networking

Installing the Client Manager

If you have wireless Ethernet, the first time you start your Gateway Solo

notebook, your system automatically installs the wireless Ethernet drivers.

Immediately following the initial startup, you are asked to install the wireless

Ethernet client manager.

To install the ORiNOCO Client Manager:

1Insert the ORiNOCO CD in your CD/DVD drive.

2Click Start, then select Run. The Run dialog box opens.

3In the Run text box, type D:\cl_mgr\setup.exe (where D is the drive letter

of your CD/DVD drive).

Important For more information about networking your home or

office, discuss your particular needs with your Gateway

Country Store representative. In addition, several books

and Internet sites are dedicated to networking. Refer to

these sources for more information about networking your

home or office with wireless Ethernet.

8508055.fm Page 1 Monday, July 2, 2001 5:02 PM

2www.gateway.com

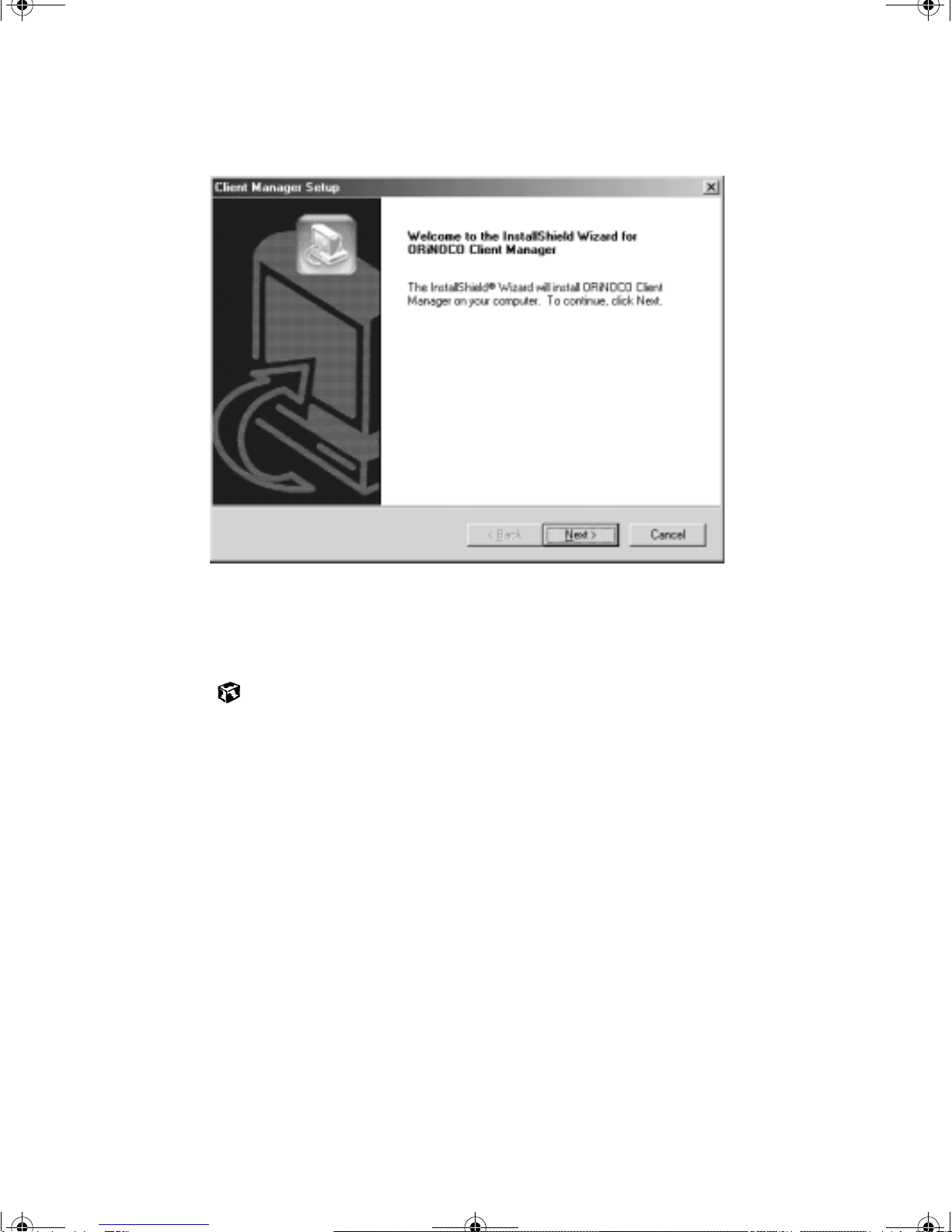

4Click OK. The Client Manager Setup wizard starts.

5Follow the on-screen prompts to complete the setup wizard.

6After reading the Readme file that appears, click the Xin the top right

corner of the window to close it.

8508055.fm Page 2 Monday, July 2, 2001 5:02 PM

Wireless Networking User Guide

www.gateway.com

Configuring your wireless Ethernet client manager

After you install the client manager, you need to configure your network

settings.

To configure your wireless Ethernet client manager:

1Click Start, then select Programs, ORiNOCO, then Client Manager. The

ORiNOCO Client Manager window opens.

2Select Actions, then Add/Edit Profile. The Add/Edit Configuration Profile

dialog box opens.

8508055.fm Page 3 Monday, July 2, 2001 5:02 PM

4www.gateway.com

3Enter the name of the profile you are creating. When you create the first

profile,youshouldrenametheDefaultprofiletothe nameofyourprofile.

For example, if you will be using your computer on two different

networks, such as at home and at work, you may want to name one

profile Home and another one Work.

4Select the type of network associated with this profile. Your options

include:

■Access Point - Use this network type if you are joining a wireless

network and accessing a wired network through an access point.

Contact your network system administrator or refer to the access

point documentation for more information about using this

network type.

■Residential Gateway - Use this network type if you are setting up

or joining a wireless network that is using a residential gateway to

access the Internet.

■Peer-to-Peer Group - Use this network type if you are setting up or

joining a temporary or permanent computer-to-computer network

for sharing files and peripheral devices. This type of network does

not include an access point into a wired network.

5Click the Edit Profile button. The Edit Configuration dialog box opens.

8508055.fm Page 4 Monday, July 2, 2001 5:02 PM

Wireless Networking User Guide

www.gateway.com

6Enter the name of your network and the encryption key (if required).

■If you are connecting to an access point network, enter ANY to

connect to any wireless Ethernet network within range of your

notebook, or enter the exact network name of the network you are

joining.

■If you are connecting to a residential gateway network, enter the

residential gateway identifier number for the network name and

the last five characters of the residential gateway identifier number

as the encryption key.

■If you are connecting to a peer-to-peer network, enter the exact

network name for the network you are joining. If an encryption

key has been agreed to by the other members of the network, enter

this value as well.

7If you are configuring your notebook for an access point network, tabs

are available to enter additional configuration information as necessary.

Contact your network system administrator or refer to the access point

documentation before entering this information.

8Click OK to close the Edit Configuration dialog box.

9If you are setting up your notebook for more than one network, repeat

steps 3 through 8 to create additional profiles.

10 Click OK to close the Add/Edit Configuration Profile dialog box.

Important All computers on your network must have the same

network name and encryption key. For help, ask your

network system administrator.

8508055.fm Page 5 Monday, July 2, 2001 5:02 PM

6www.gateway.com

Identifying this notebook on the Microsoft Network Neighborhood

If this is the first time you have used networking on your notebook, you need

to provide Windows with the name of the notebook and the workgroup to

which it belongs.

To identify this notebook on the network:

1Click Start, then select Settings, then Control Panel. The Control Panel

window opens. If you do not see the Network icon, click view all Control

Panel options.

2Double-click the Network icon. The Network dialog box opens.

3Select the Identification tab.

4Enter a unique computer name. This name identifies this notebook on

the Microsoft Network Neighborhood.

5Enter the name of the workgroup this notebook belongs to. This name

is usually assigned by the network system administrator and identifies

which group of computers this notebook is most likely to communicate

with.

8508055.fm Page 6 Monday, July 2, 2001 5:02 PM

Wireless Networking User Guide

www.gateway.com

6Enter a description of the notebook. This description lets other Microsoft

Network Neighborhood users identify who this notebook belongs to.

7Click OK.

Configuring Windows for wireless Ethernet

To configure Windows to use the wireless Ethernet network:

1Click Start, then select Settings, then Control Panel. The Control Panel

window opens. If you do not see the Network icon, click view all Control

Panel options.

2Double-click the Network icon. The Network dialog box opens.

8508055.fm Page 7 Monday, July 2, 2001 5:02 PM

8www.gateway.com

3Select TCP/IP -> ORiNOCO Mini PCI Card, then click Properties. The TCP/IP

Properties dialog box opens.

4Click the IP Address tab.

5If you are using a DHCP server, click Obtain an IP address automatically.

- OR -

If you are not using a DHCP server, click Specify an IP address and enter

the IP Address and Subnet Mask.

6Click OK to close the TCP/IP Properties dialog box.

7Click OK to close the Network dialog box.

Important If you are required to enter an IP Address and Subnet

Mask, ask your network system administrator for the

correct values.

8508055.fm Page 8 Monday, July 2, 2001 5:02 PM

Wireless Networking User Guide

www.gateway.com

8Click Start, then select Programs, ORiNOCO, then Client Manager. The

ORiNOCO Client Manager opens.

The meter on the left side now registers the signal strength for wireless

Ethernet on your notebook if other computers with the same network

name are within range of your notebook.

The status box in the middle provides status and error messages.

Turning your wireless Ethernet on or off

There are times, such as when you are flying in an aircraft, when you should

turn off yourwireless Ethernet network. You canalso turn off wireless Ethernet

to conserve battery power.

To turn the wireless Ethernet network on or off:

1Right-click the ORiNOCO Client Manager icon in the taskbar.

2Select Enable Radio or Disable Radio.

Important Signal strength is affected by the distance between your

wireless network devices, by radio interference, and

interference due to natural obstructions such as walls,

floors, and doors.

8508055.fm Page 9 Monday, July 2, 2001 5:02 PM

10 www.gateway.com

Accessing a different wireless Ethernet network

Once you have set up your profiles for all the possible wireless Ethernet

networks you may want to access, it is easy to access a different network.

To access a different wireless Ethernet network:

1Right-click the ORiNOCO Client Manager icon in the taskbar.

2Select Configuration Profile, then the profile that you have set up for the

new network.

Technical Support

Refer to your Gateway Solo user’s guide for Gateway Technical Support

information.

Safety, Regulatory, and Legal Information

Refer to your Gateway Solo user’s guide for important safety, regulatory, and

legal information related to wireless networking.

MAN US WIRELESS NET GDE R0 7/01

8508055.fm Page 10 Monday, July 2, 2001 5:02 PM
