GE AJXH08AF Istruzioni utente
AJXH08AF—”J Series” High Mount Cool Unit
GE Appliances
Revised 6/96
Note: When installing units in through-the-wall applications.
Do not restrict air flow areas.
26
15-5/8
16-7/8
For answers to your GE Monogram,™GE Profile,™
GE, Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.
Wall Case Dimensions (in inches)
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers' standards.
Listed by
Underwriters
Laboratories
Parallel
115V
15 Amp
Revised 6/96
GE Appliances
AJXH08AF—Built-In Room Air Conditioner RAB46/47/48
Brick Block and Brick
Frame Construction
Fill open cells
with mortar
or insulation
5" Min.
from floor
15-3/4
26-1/8
Lintel
R
Total capacity and E.E.R.
ratings are calculated
based on the Association
of Home Appliance
Manufacturers' standards.
Listed by
Underwriters
Laboratories
For answers to your GE Monogram,™GE Profile,™
GE, Hotpoint and RCA appliance questions, call
GE Answer Center®service, 800.626.2000.

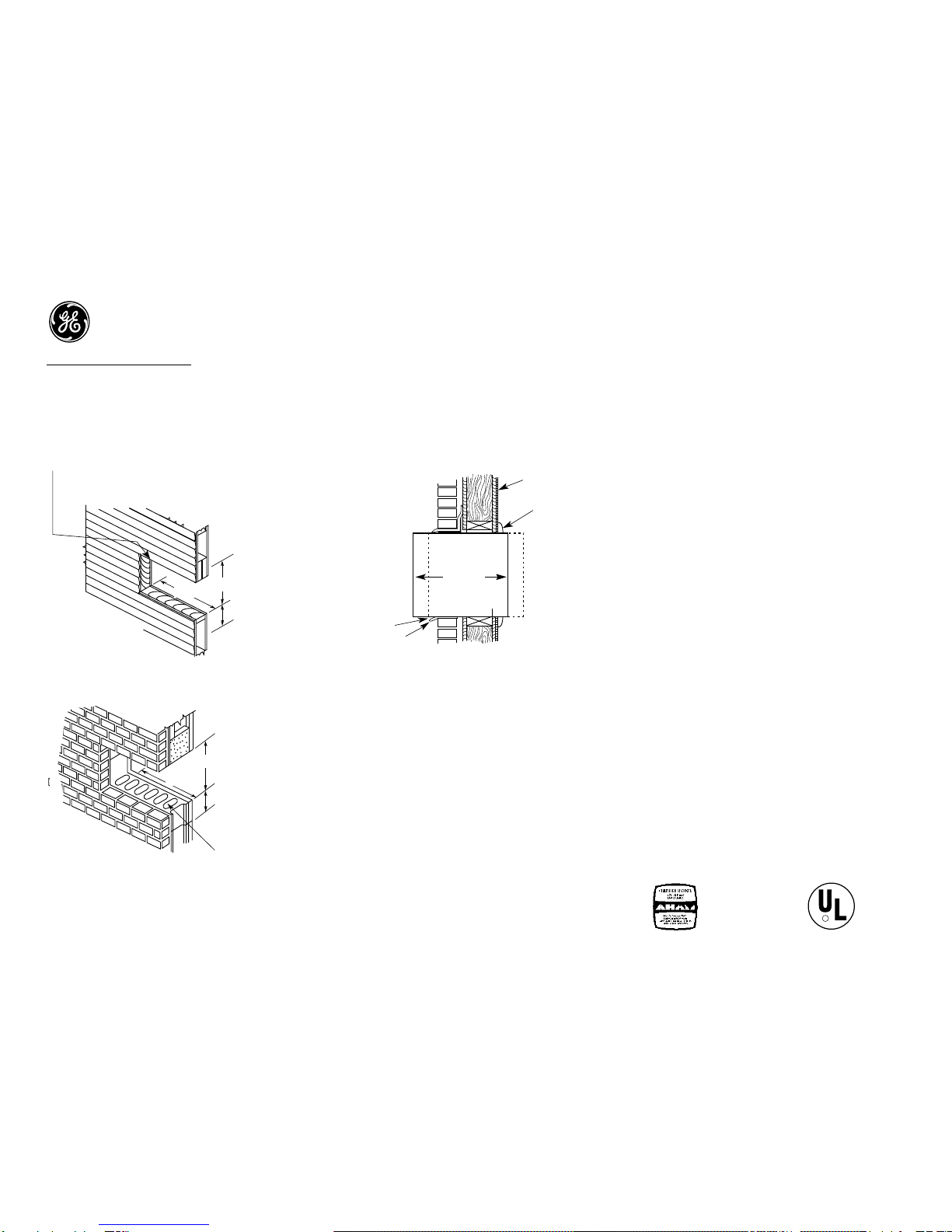

Dimensions (in inches)
Installation Informaion: A finished opening of
26-1/8" x 15-3/4" clear of intrusions is required. Keep
clearance of 4" from side walls. Brick veneer or frame
walls should have wood studding surrounding case to
provide firm anchoring with screws. Case can be fastened
directly to brick or block walls with screws sunk in lead
expansion shields.
Make frame if desired or caulk
between case and siding
15-3/4
26-1/8 5" Min.
from floor
Frame Construction
Lintel
OUTSIDE INSIDE
16-7/8
Caulking
Drip Rail
Trim Moulding
(if desired)
Plaster Line
Flexible Mounting Position
GE Appliances
Revised 6/96

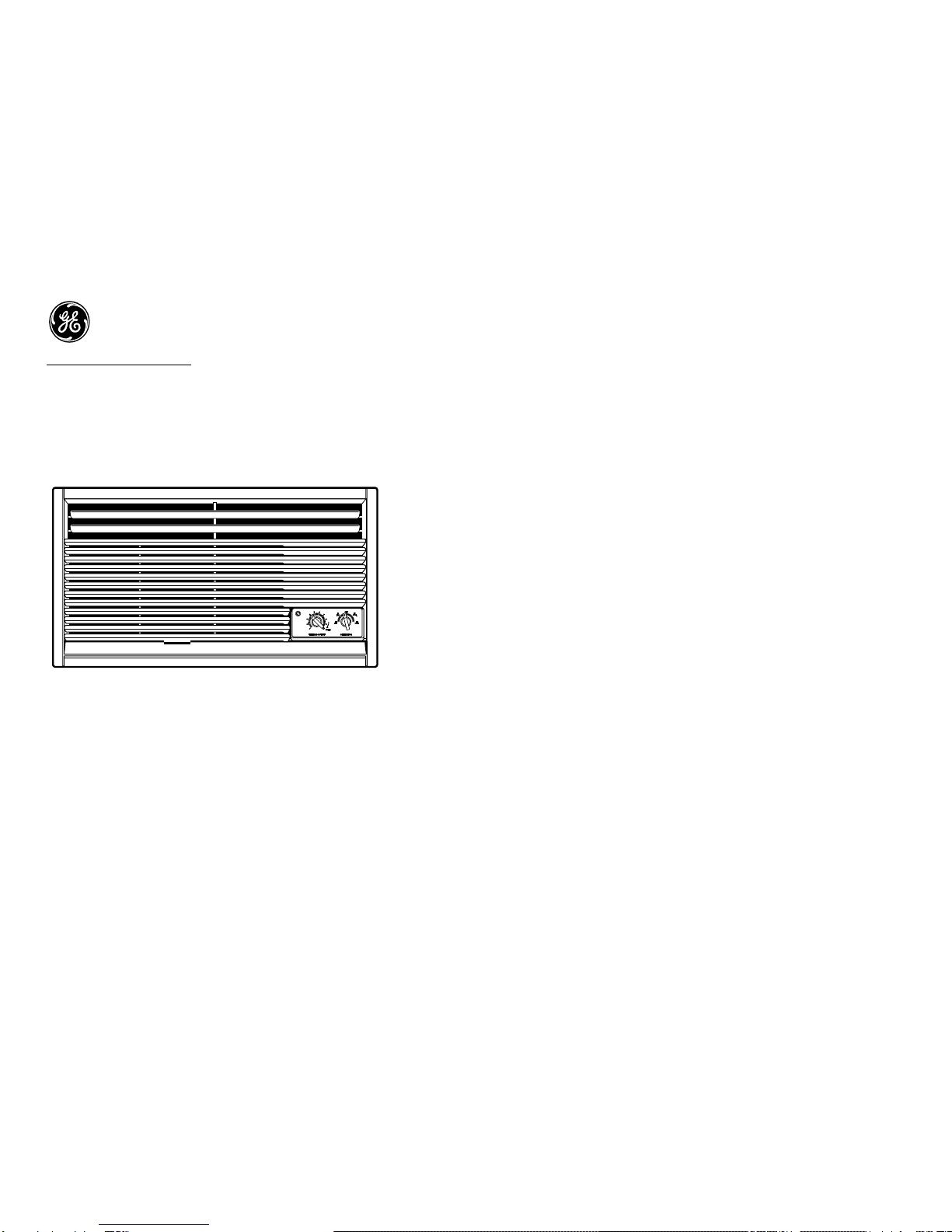

AJXH08AF—”J Series” High Mount Cool Unit
Features and Benefits
•Decorative Warm Gray-Beige Front
•Easy-To-Reach Controls for High Mount Installations
•8,200 BTUH, 8.7/8.7 EER, 115 Volts
•Hidden Energy Saver Switch for Reduced Energy Consumption
•10-Position Thermostat
•2 Cooling/2 Fan Speeds
•Slide-Out Filter for Easy Cleaning
•Hidden Exhaust Control for Air Exchange
•Slide-Out Chassis
•Chassis Only–Without Wall Case and Mounting Kit
•Wall Case–Optional Accessory
•Window Mounting Kit–Optional Accessory
•Plug Type–Parallel
