GE GE-200A Manuale utente
Model GE-200A

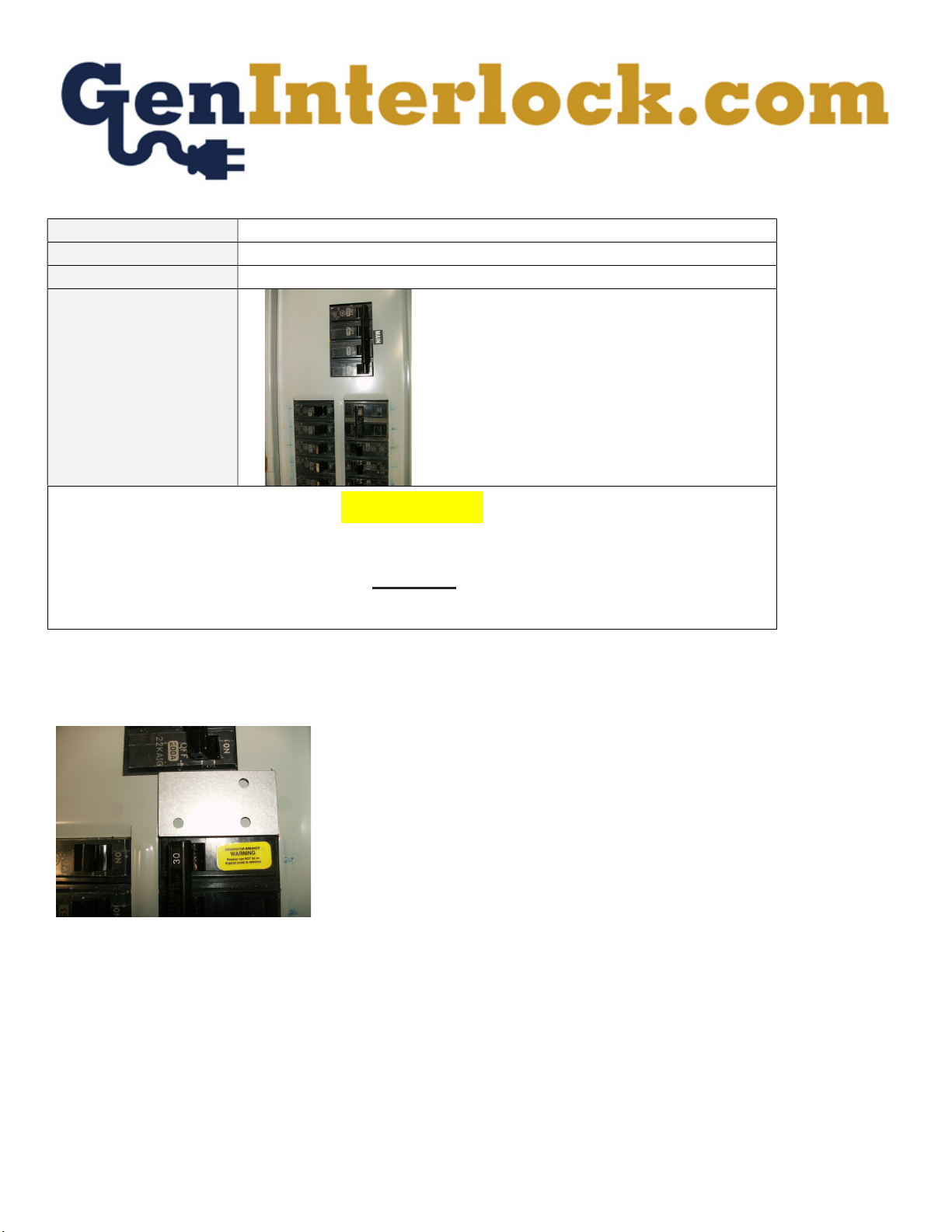

Main Breaker 200 amp Horizontal throw left (off) to right (on)
Generator Breaker Top right side 2 positions
WARNING
Only qualified personnel should be working on the panel box
An amateur should NEVER open the panel box
Please follow all rules and regulations of the National Electric Code
Step 1: Disassemble the interlock. Place the bottom plate (holes only) above the top right breaker and mark
holes. Plate is parallel to top right breaker.
Step 2: Turn off main breaker and remove panel cover.
Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.
Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to
screws and install retaining nuts. Ensure proper movement.
Step 5: Install 2 pole Generator breaker on top right side and place Generator Warning Sticker on Generator
breaker.

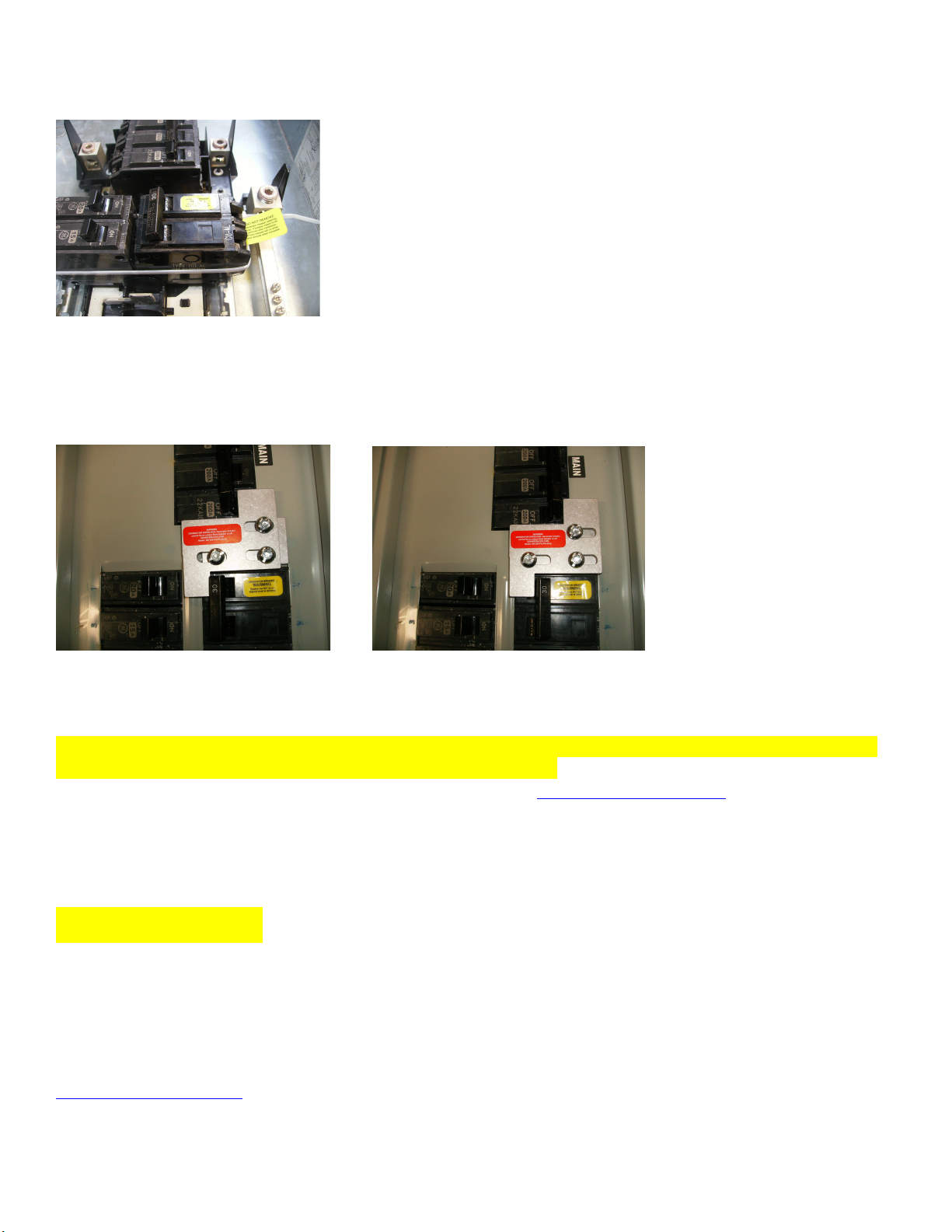

Step 6: Combine the zip ties to make a loop and install zip ties around top set of breakers in panel as shown in
picture below. Pull on ends to make tight around breakers. Trim zip ties as needed and install Warning
label next to release tab on zip tie at generator breaker.
Step 7: Re-Install panel cover, Verify proper operation of interlock. Main breaker ON, generator breaker OFF
and generator breaker CAN NOT be turned on. Generator breaker ON, main breaker OFF and main
breaker CAN NOT be turned on. Please verify that inside panel cover is touching all breaker, if not
adjust panel cover with top and bottom screw on cover.
Generator On Main On
Place Generator start-up procedure label on panel box, Place CAUTION label on panel box and electric meter
pan.
The MAIN and the GENERATOR breakers should NEVER be able to be turned on at the same time. If panel
cover is removed the Generator breaker is NEVER to be turned on. If for any reason the interlock does not
function properly, DO NOT USE and contact us immediately at sal[email protected] for support and
instructions.
Thank You for your support,
GenInterlock Team
DISCLAIMER: GenInterlock.com is NOT responsible for misuse or improper
installation. All electrical equipment should be installed and maintained by
qualified personnel. Any consequences arising from improper use is the
responsibility of the user.
GenInterlock.com
732-339-4191
