GE Monogram ZGU3650 Guida utente

Specification Created 7/00

Monogram.

™

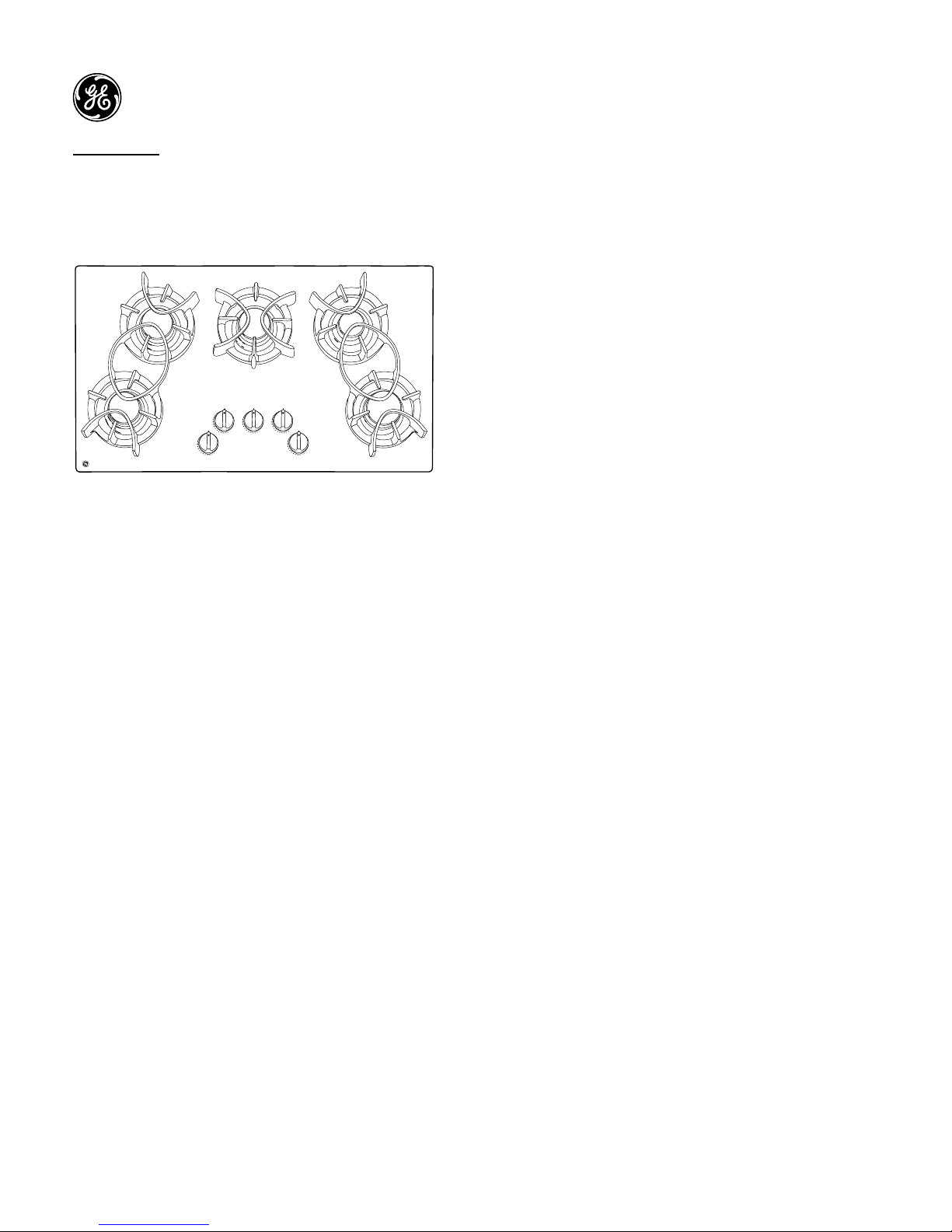

ZGU3650—GE Monogram 36” Updraft Cooktop with 5 Burners

Dimensions and Specifications (in inches)

Note:

Reference, Updraft Cooktop Installation Instructions, packed with product, for complete details.

*LP Gas Conversion JXLP56 must be ordered for LP applications.

Important:

Must order a white JXBA56WW or black JXBA56BB housing and blower assembly kit. JBXC55

optional outdoor cover accessory may be ordered for installation of motor and blower assembly

on outside wall.

†See written warranty for details.

2-15/16"

min.

36" 19-3/4"

34-7/16"

min. to

side wall

2-1/4"

min. to

front edge

8" min. to side

wall

18-5/16"

2" Min

Below Bottom

Of Counter

1-5/8" From Right

of Cutout

5/8" Forward of

Back of Cutout

For answers to your Monogram,

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call

GE Answer Center®service, 800.626.2000.

For answers to your Monogram,

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call

GE Answer Center®service, 800.626.2000.

Monogram.

™

Specification Created 7/00

Dimensions and Clearances (in inches) Advance Planning

19-3/4"

36"

18-1/8"

4-5/8" Min.

to Vertical

Combustible

Surface

2-1/4"

Min.

34-1/2"

8-13/16" Min.

to Wall

13"

Max.

36" Min.

3-7/8" Min.

to Vertical

Combustible

Surface When

Installed

8" Min. to Wall

When Installed

Both Sides

1-1/2" Min. to Front of

Countertop When Installed

18"

Min.

30"

Min.

• Refer to “Installation Preparation”, found in

installation instructions packed with product,

for information on appropriate placement and

necessary clearances when planning installation.

• Avoid placing cabinetry directly above cooktop

when possible.

• If cabinetry is used above the cooking surface:

–Use cabinets no more than 13” deep.

–Maintain 30” minimum clearance between

the cooktop and unprotected cabinets directly

above the cooktop.

–If clearance is less than 30”, protect cabinet

bottoms with flame-retardant millboard at least

1/4” thick, or gypsum board at least 3/16” thick,

covered with 28 gauge sheet steel or .02”

thick copper.

–Clearance between cooktop and protected

cabinetry must not be less than 24”.

–An exhaust hood that projects at least 5”

beyond front of cabinets can reduce risk of

burns caused by reaching over heated

surface units.

–Working areas adjacent to the cooktop should

have 18” minimum clearance between cooktop

and cabinet bottom.

• Use the Monogram gas updraft cooktop with any

36” or wider exhaust hood, if desired; no special

ventilation is required.

• Installation must conform with local codes. In the

absence of local codes, the gas cooktop must

comply with the National Fuel Gas Code,

ANSI Z223.1, latest edition.

ZGU3650—GE Monogram 36”Updraft Cooktop with 5 Burners

For answers to your Monogram,

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call

GE Answer Center®service, 800.626.2000.

Monogram.

™

Specification Created 7/00

4-5/8" Min.

Cutout to Vertical

Combustible Surface

8-13/16" Min.

to Side Wall

8-13/16"

Min.

Cutout

To Side

Wall

34-1/2"

2-1/4"

Min. From

Front of

Countertop

18-1/8"

Cutout Information

Measure carefully when cutting countertop.

Make sure sides of opening are parallel and rear

and front cuts are exactly perpendicular to sides.

•The Monogram gas cooktop is designed to fit in

a 36”or larger base cabinet.

•The countertop cutout for cooktop must be:

–34-1/2”wide

–18-1/8”deep

–Allow at least 4-5/8”clearance between back

of cutout and wall.

–Allow at least 8-13/16”clearance from right

and left side of cutout to adjacent wall.

–Allow at least 2-1/4”clearance between front

of cutout and front edge of countertop.

•Cooktop requires 3”free space below countertop

•If installing cooktop above a cabinet with drawers,

is may be necessary to use a shorted length

drawer to allow clearance for gas connection.

•In some cases, two 3/8”I.D. 45°elbows and a

pipe nipple may be added between regulator and

cooktop to move regulator further back in order to

avoid interference with drawer.

ZGU3650—GE Monogram 36”Updraft Cooktop with 5 Burners

Cautioin:

Wallcoverings, countertops and cabinets should

withstand 200°F heat generated by the cooktop.

Specification Created 7/00

Monogram.

™

Features and Benefits

•36”Updraft Gas Cooktop

•Five Cooking Areas with Sealed Cooktop Burners

•(1) 12,000 BTU Gas Burner

•(3) 9,500 BTU Gas Burners

•(1) 5,000 BTU Gas Burner

•Burner Flame Stability Chamber

•Electronic Pilotless Ignition

•Tempered Glass Surface

•Continuous Porcelainized Burner Grates

•Front-Mounted Controls

•Model ZGU3650WBWG—White on white

•Model ZGU3650BBBG—Black on black

HIGH

OFF

LIGHT

HIGH

OFF

LIGHT

HIGH

OFF

LIGHT HIGH

OFF

LIGHT

HIGH

OFF

LIGHT

Monogram.

ZGU3650—GE Monogram 36”Updraft Cooktop with 5 Burners
