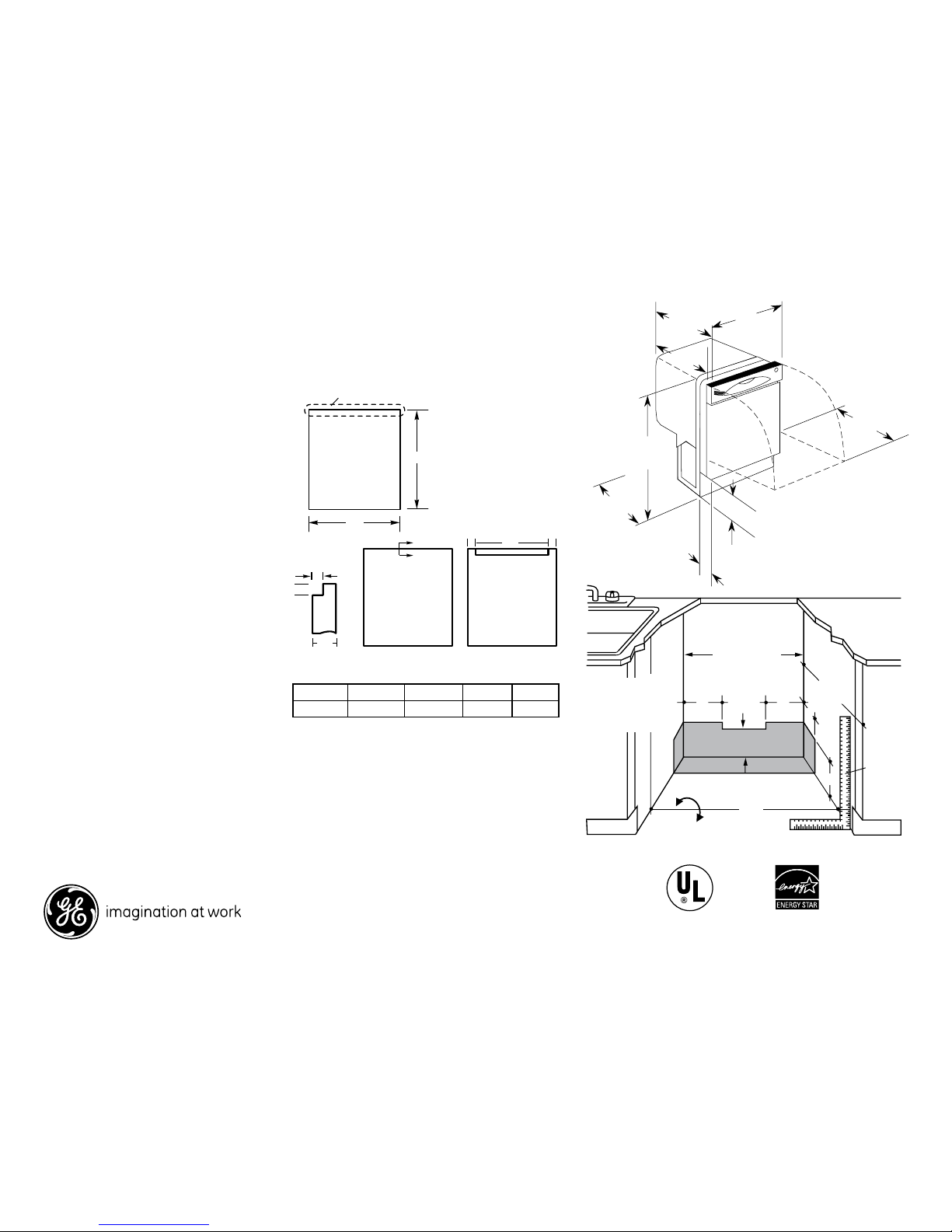

Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Created 9/06 350237

Panel

Thickness

Kit A B C

GPF525 25-1/4" 23-1/2" N/A 1/4"

GPF575 25-1/2" 23-5/8" 1/4" 3/4"

Listed by

Underwriters

Laboratories

• The rough cabinet opening must be at least 24" deep,

24" wide and approximately 34-1/2" high from floor to

underside of the countertop.

5" 5"

Figure A

Floor MUST be Even

With Room Floor

Cabinets

Square

and

Plumb

This Wall Area

must be Free

of Pipes or

wires

24"

Min.

24"

Min.

34-1/2"1/4"

Underside of

Countertop

to Floor

Plumbing and Electric Service

Must Enter Inside This Area

MAX.

20-1/2

4 (Adjustable)

33-3/4" MIN.

adj. to 35"

27-1/2

See Detail E for 3/4" Panel Detail E for 3/4 panel only

Door insert ABack ViewFront View

1-7/8 1-7/8

Section E-F

3/8

3/4

See Detail E for 3/4" Panel Detail E for 3/4 panel only

Door insert ABack ViewFront View

1-7/8 1-7/8

Section E-F

3/8

3/4

Electrical Rating

Voltage AC.......................................................... 120

Hertz..................................................................... 60

Total connected load amperage............. 10

Calrod® heater watts max........................ 875

For use on adequately wired 120-volt,

15-amp circuit having 2-wire service

with a separate ground wire. This appliance

must be grounded for safe operation.

Note: The rough cabinet opening must be at

least 24" deep, 24" wide and approximately

34-1/2" high from floor to underside of

the countertop. Dishwasher must not be

installed more than 10 feet from sink for

proper drainage. All plumbing and

electrical work must be in accordance

with local codes. The power cord and

connections must comply with the National

Electrical Code Section 422 and/or local

codes and ordinances. The cord must be no

longer than 6 ft. from the junction box to

the receptacle.

Installation Information: Before installing,

consult installation instructions packed with

product for current dimensional data.

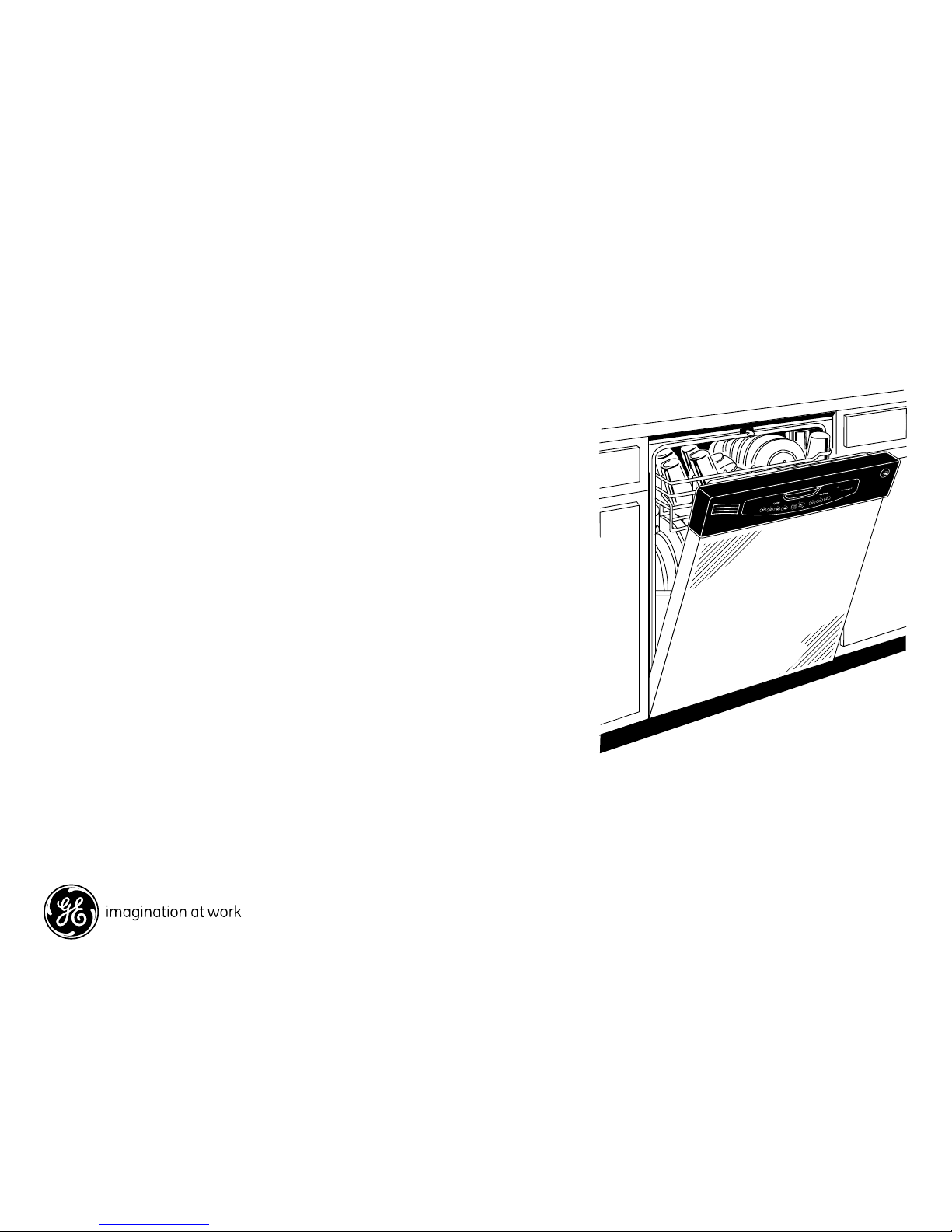

GLD4500/50/60N

GE®Tall Tub Built-In Dishwasher

GLD4560NSS

GLD4550NLS

Features and Benefits

• Full-Length Flat Door - Blends almost seamlessly with adjacent cabinetry

• Electronic Controls with 4 Cycles/4 Options - Make it easy to select a wide

range of wash cycles

• Giant Tub with Super Capacity Racking - Washes up to 15 place settings at once,

with room for cookie sheets, platters and other tall items

• 6-Level BrilliantClean™Towerless Wash System - Quietly and efficiently powers dishes

clean using remarkably less water and energy; 6 wash levels and three wash arms

direct water onto dishes just where it's needed

• HotStart™Option - Preheats water before the main wash cycle for dependable

performance every time

• QuietPower™3 Sound Package - Dramatically reduces the sound of washing

the dishes

• China/Crystal Cycle - Protects delicate dishes and glassware by lowering the

water temperature during the cycle

• 100% Triple Water Filtration - Water stays clean, so just-washed dishes do, too

• 2/4-Hour Delay Start - Makes it easier than ever to wash dishes at any hour taking

advantage of reduced energy rates or washing dishes even when the family's asleep

• Last Cycle Memory - Quickly recalls the last cycle used, starting it at the

touch of a button

• Model GLD4500NWW - White on white

• Model GLD4500NCC - Bisque on bisque

• Model GLD4500NBB - Black on black

• Model GLD4550NCS - CleanSteel™

• Model GLD4560NSS - Stainless steel

Specification Created 9/06 350237

GLD4500/50/60N

GE®Tall Tub Built-In Dishwasher
