Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Created 6/09 350202

Panel

Thickness

Kit ABC

GPF325 18-7/8" 23-9/16" 3-11/16" 1/4"

GPF375 18-15/16" 23-5/8"* 4-1/4" to

3-3/4"**

3/4"

Listed by

Underwriters

Laboratories

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34" to 34-3/4"

Underside

of countertop

to floor

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

25-3/4

MAX.

21-1/2

3-1/4 4 (Adjustable)

34 MIN.

adj. to 35

24-3/4

23-3/8

Access insert

Door insert A

Models/Kits A B C Thickness

GE Models

GPF325 Kit 18-7/8” 23-9/16” 3-11/16” 1/4”

GPF375 Kit 18-15/16” 23-5/8”* 3-3/4”** 3/4”

*Bottom of panel must be notched 1-1/2"x1/2" to clear

across panel

**Adjustment required to match adjcent cabinets fronts due to

leveling leg adjustment, 4" nominal.

4-1/4" to

Electrical Rating

Voltage AC.......................................................... 120

Hertz..................................................................... 60

Total connected load amperage............. 6.2

Calrod® heater watts max........................ 500

For use on adequately wired 120-volt,

15-amp circuit having 2-wire service

with a separate ground wire. This appliance

must be grounded for safe operation.

Note: Dishwasher must not be installed

more than 10 feet from sink for proper

drainage. All plumbing and electrical work

must be in accordance with local codes.

GSD2300/2301/2340/2350R

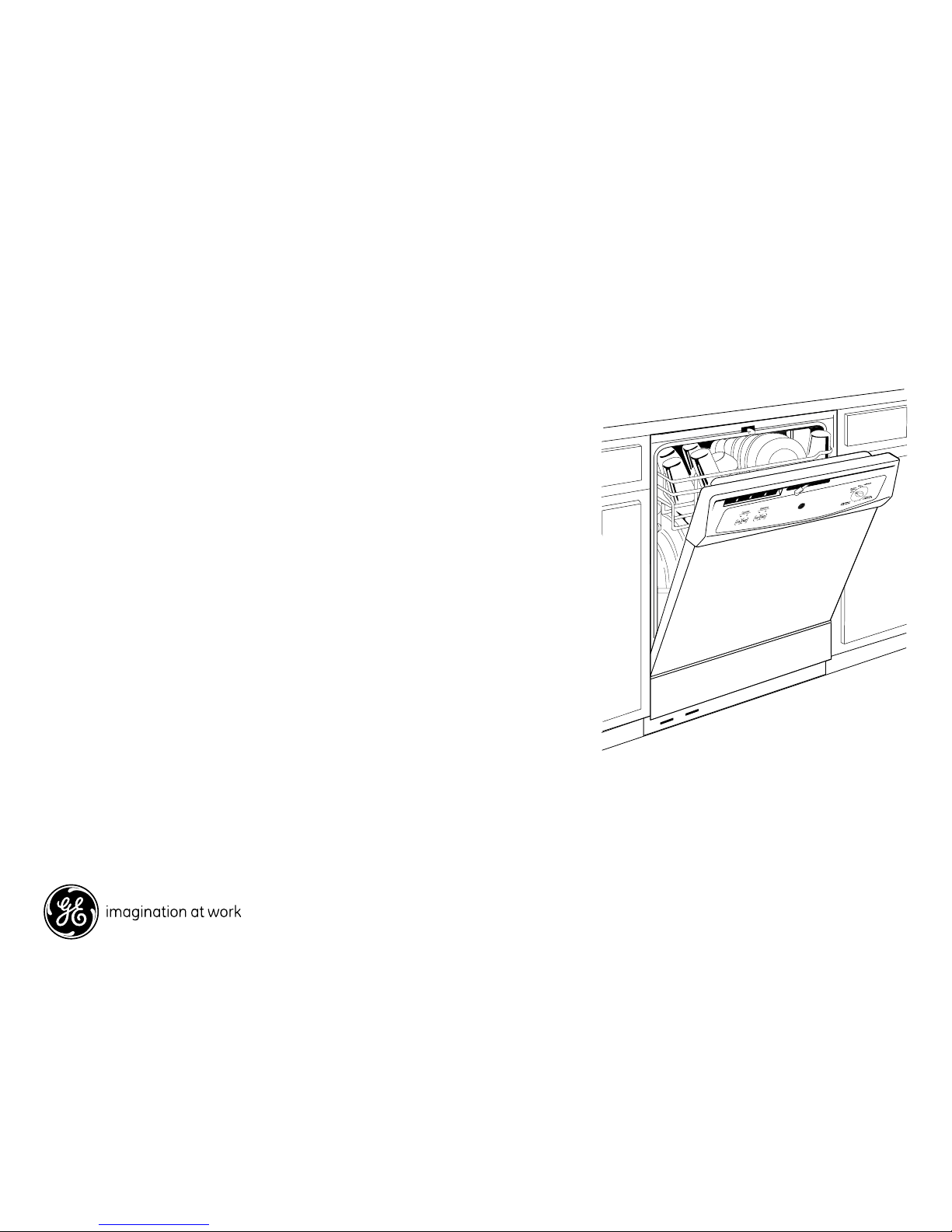

GE®Built-In Dishwasher

* Bottom of panel must be notched 1-1/2" x 1/2" to clear across panel

** Adjustment required to match adjacent cabinet fronts due

to leveling leg adjustment, 4" nominal

Features and Benefits

• 3-level PowerScrub™wash system - Precision water jets and hot temperatures

power away tough food stains

• ENERGY STAR®Qualified - Meets or exceeds federal guidelines for energy efficiency

for year-round energy and money savings

• Piranha™hard food disposer - This disposal grinds food into tiny particles that are

easily washed away

• HotStart™option - Ensures that water temperatures remain consistent from the

beginning of a cycle to the end

• 5 cycles/2 options - Allows you to select the combination that best fits your dish load

• 100% water filtration - Water stays clean, so just-washed dishes do, too

• Pots and Pans cycle - Tough food stains are scrubbed and scoured clean with ease

• Model GSD2300RWW - White on white

• Model GSD2300RBB - Black on black

• Model GSD2301RWW - White on white, has power cord attached

• Model GSD2301RBB - Black on black, has power cord attached

• Model GSD2350RCS - CleanSteel™

• Model GSD2340RSA - Silver

Specification Created 6/09 350202

GSD2300/2301/2340/2350R

GE®Built-In Dishwasher

GSD2300NWW/BB/CC

GSD2201NWW

GSD2400NWW/BB/CC
